7.4.1. Distance Time Graphs
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free account
Today, we will explore distance-time graphs. These graphs help us visualize how far an object has moved over a period of time. Can anyone explain what variables we would use on each axis?
Time should be on the x-axis, right?
Exactly! And what about the y-axis?
It should represent distance!
Correct! So we plot time on the x-axis and distance on the y-axis. This helps us see the relationship between time and distance visually.
Why is this relationship important?
Great question! It allows us to determine speed by calculating the slope of the graph. The steeper the slope, the faster the object is moving. Remember this: 'Slope = speed!'
So, a straight line means uniform speed?
Yes! If the line goes up steadily, it indicates uniform speed. Let’s summarize what we’ve learned: Distance-time graphs plot distance against time, allowing us to analyze speed.
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free account
Now, let's look at a graph showing uniform motion. What do you notice about the line?
It’s a straight diagonal line!
Exactly! This indicates that the object is moving at a constant speed. Can someone tell me how we determine speed from this graph?
We calculate the slope!
Yes! We can find the speed by using the formula: speed = distance covered / time taken. If I say the distance is 20 meters over 4 seconds, what's the speed?
It’s 5 meters per second!
Perfect! Now, who can share what a flat line indicates on our graph?
That the object isn’t moving, it’s at rest.
Right you are! A flat line signifies no distance covered over time. We’ve now established how to interpret uniform motion on distance-time graphs.
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free accountLet’s discuss non-uniform motion now. How do you think it would appear on a graph?
Maybe a curve or zigzag line?
Correct! When the speed changes unevenly, the line curves. If an object moves faster for a bit and then slows down, that changes the shape of the line. Can we think of a real-life example where this happens?
Like when I'm biking downhill and then hit a steep hill?
Exactly! This variation can be seen on the graph with slopes changing as speed increases or decreases. If I ask you to pinpoint how you’d find the average speed from quite a jagged graph, how might you approach it?
We could look at the total distance and total time, right?
Spot on! It’s crucial to accumulate distances and corresponding times. Remember, whether the line is straight or curved, we can always analyze the data this way.
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free accountLet’s apply our knowledge! Imagine we have a graph defined by points representing a car’s journey. Can you deduce the distance the car traveled after two minutes?
I think we can find that by checking the graph’s endpoint!
Yeah, and we need to find the distance on the y-axis!
Great observations! The area under the curve can also indicate total distance! If we calculate the area of the triangles or rectangles formed.
Can we do an example together?
Absolutely! Let’s graph together and calculate distances step by step!
This is fun! It’s like solving a puzzle.
And that’s the thinking you need! Graphs can be challenging, but they offer a way to visualize motion effortlessly.
Overview
Short Summary
Distance-time graphs are essential tools for visualizing and understanding the motion of objects over time, illustrating the relationship between distance traveled and time taken.
Medium Summary
In this section, we explore how to represent the motion of objects through distance-time graphs, illustrating concepts such as uniform speed, non-uniform speed, and rest. These graphs enable us to interpret motion quantitatively and visually, providing insights into speed and displacement.
Detailed Summary

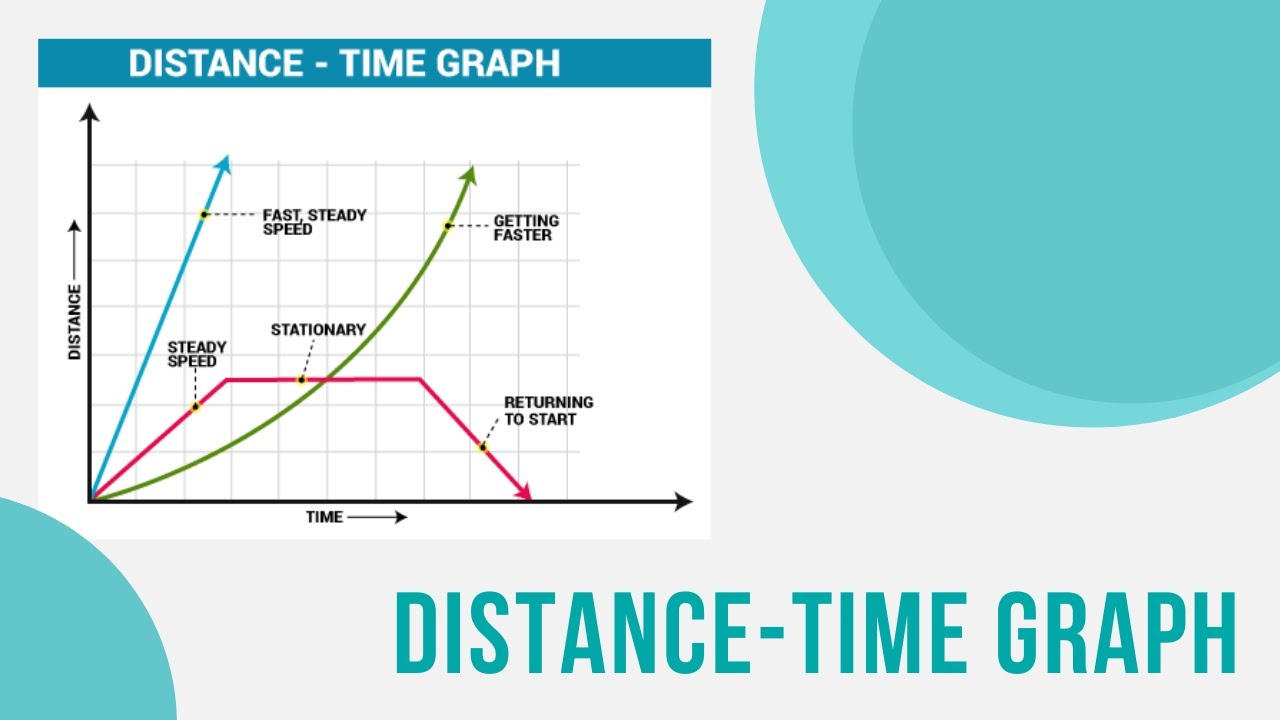

Distance-time graphs are crucial for comprehensively understanding motion. These graphs visually demonstrate the relationship between the distance travelled by an object and the time taken. Time is represented along the x-axis, while distance is plotted on the y-axis.
-

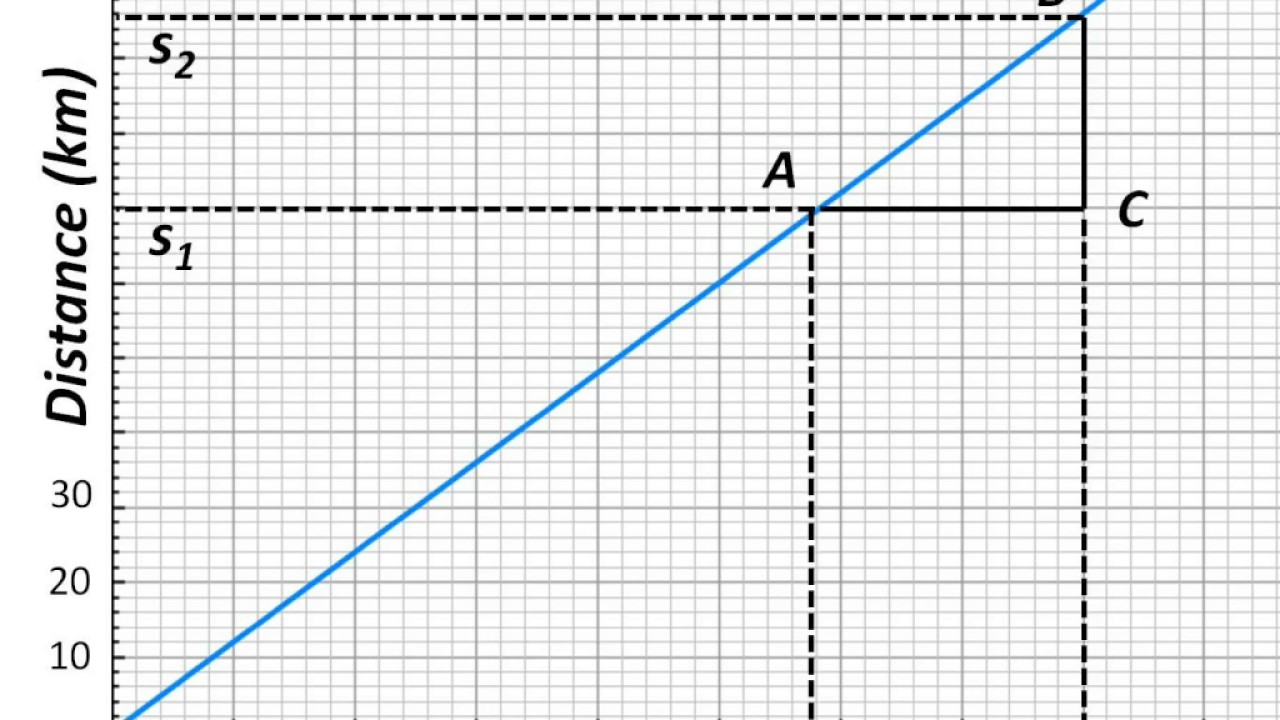

Uniform Motion: When an object moves at a constant speed, the graph forms a straight line. This indicates that equal distances are covered in equal time intervals.
-
Non-Uniform Motion: If the motion is at a variable speed, the distance-time graph will exhibit a curve, showing that distances do not increase uniformly over time.
-

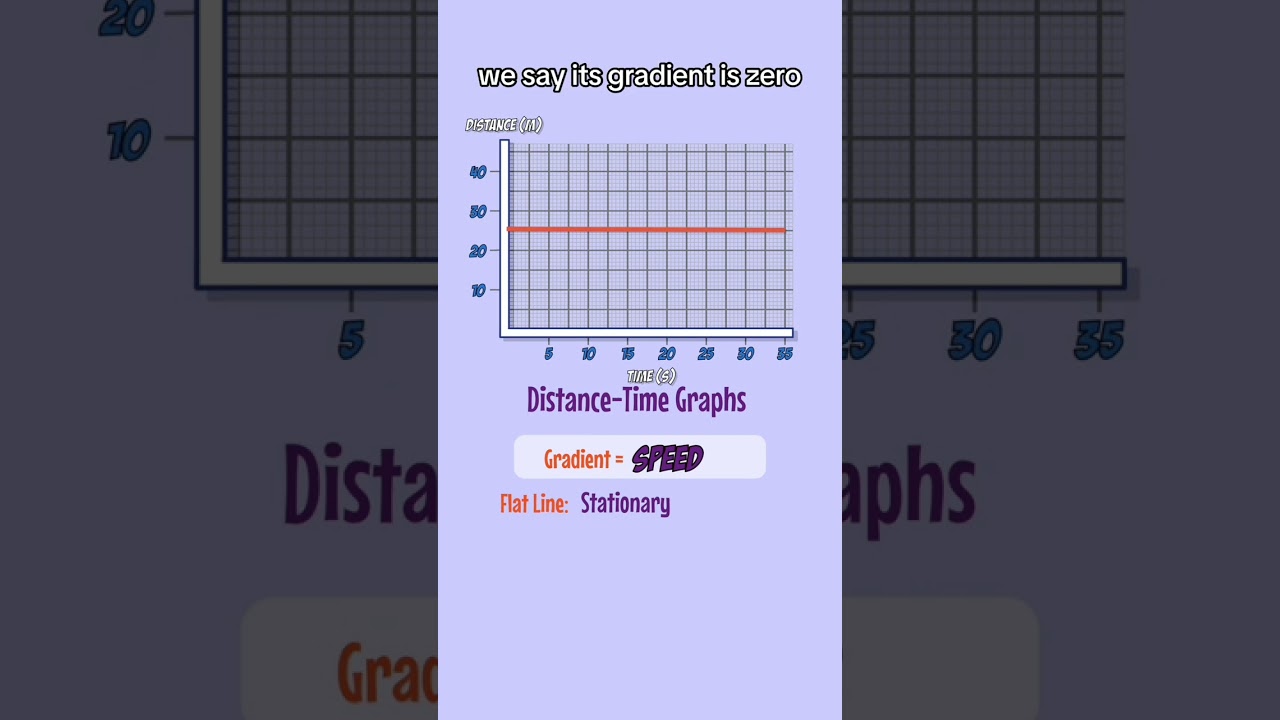

Rest: A horizontal line on the graph indicates that the object is at rest, as there is no change in distance over time.
These representations allow us to calculate speed via the slope of the line, where speed is defined as distance divided by time. Moreover, the total distance covered during intervals can be derived by calculating areas under relevant segments of the graph. Understanding these graphs enhances our ability to analyze motion in real-world contexts.

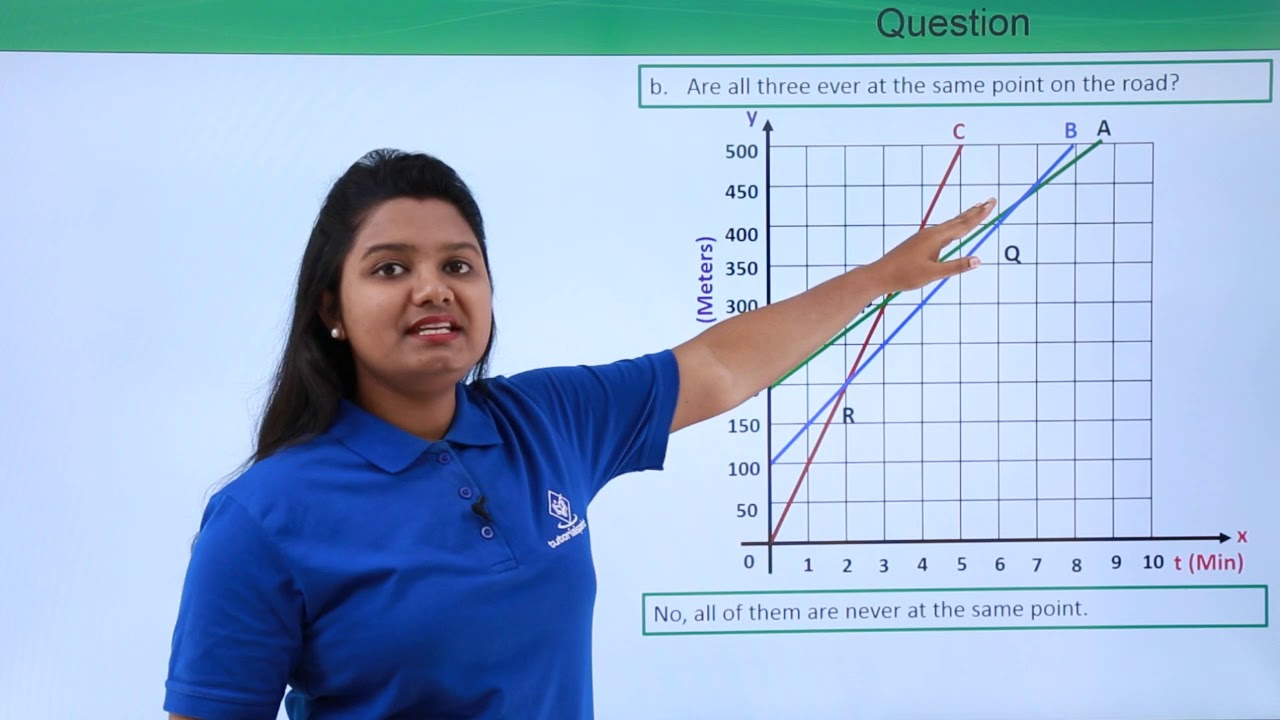

Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountThe change in the position of an object with time can be represented on the distance-time graph adopting a convenient scale of choice. In this graph, time is taken along the x–axis and distance is taken along the y-axis.
Detailed Explanation
A distance-time graph visually represents how the distance traveled by an object changes over time. On this graph, the horizontal axis (x-axis) represents time, while the vertical axis (y-axis) shows the distance. By plotting points that indicate distance at specific time intervals, we can understand the motion of the object.
Examples & Analogies
Imagine you are tracking your running distance on a piece of paper. Each minute, you note how far you have run. When you plot these distances against time, it forms a distance-time graph. If you run continuously, the graph rises steadily. If you stop, the line will remain flat, indicating no distance is covered during that time.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountDistance-time graphs can be employed under various conditions where objects move with uniform speed, non-uniform speed, remain at rest etc. We can also plot the distance-time graph for accelerated motion.
Detailed Explanation
Distance-time graphs can illustrate different types of motion. For instance, if an object moves uniformly (covering equal distance in equal time), the graph will be a straight line with a slope showing its speed. If the object is stationary, the line will be horizontal, indicating no change in distance. For non-uniform speeds, the graph will show curves or changing slopes, reflecting changes in speed.
Examples & Analogies
Think about a car trip. If you're driving at a constant speed, the distance-time graph will have a straight upward line. If you stop at a traffic light (remain at rest), the graph will flatten out, showing that time is passing but distance isn't changing. If you speed up or slow down, the line will curve, showing that the speed is changing.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountTo describe the motion of an object, we can use line graphs. In this case, line graphs show dependence of one physical quantity, such as distance or velocity, on another quantity, such as time.
Detailed Explanation
The slope of a distance-time graph indicates the speed of the object. A steeper slope means higher speed, while a gentle slope indicates slower speeds. By analyzing segments of the graph, one can determine how speed varies during different times of the object's motion.
Examples & Analogies
Consider a cyclist going up a hill. As they climb, they may go slower (gentle slope on the graph) and when descending, they speed up (steeper slope). Observing the graph, you can tell when the cyclist is accelerating, maintaining steady speed, or slowing down.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountWe can also study uniformly accelerated motion by plotting its velocity-time graph.
Detailed Explanation
Distance-time graphs are useful in analyzing various real-world situations, such as vehicles in motion or athletes' performances. By comparing graphs for different scenarios, students can visualize and understand differences in speed and acceleration, thus gaining insights into how speed affects distance over time.
Examples & Analogies
Imagine a sprint race where three runners start at different points. Using distance-time graphs for each runner, you can visually compare who sped up, slowed down, or maintained constant speeds. This can be seen in sports analytics, helping coaches assess performance.
--
Key Concepts
Core takeaways and short definitions to help you quickly recall the key ideas from this section.
Distance: Total path length traveled.
Displacement: Shortest straight line from start to finish.
Uniform Motion: Constant speed in a straight line.
Non-Uniform Motion: Speed changes over time.
Slope: Represents speed on distance-time graphs.
Examples
Memory Aids
Interactive tools to help you remember key concepts
Flash Cards
Glossary
Distance
The total length of the path traveled by an object, regardless of direction.
Displacement
The shortest distance from the initial to the final position of an object, usually represented as a straight line.
Uniform Motion
Motion at a constant speed in a straight line.
NonUniform Motion
Motion where an object's speed changes over time.
Slope
The steepness of the graph; in distance-time graphs, the slope indicates speed.
