Understanding Layers
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we're learning about layers in AutoCAD. Can anyone tell me what a layer is?
Isn't a layer like a sheet where you put different things?
Exactly! Layers are like transparent sheets that help us manage and organize different elements of our drawings. Each object resides on a specific layer for better visibility control.
How do we create a layer?
Great question! To create a new layer, youβll open the Layer Properties Manager by typing `LAYER` or `LA` in the command line. Letβs remember that with the acronym `C-M-P`, which stands for Create, Manage, and Properties.
What properties can we assign to layers?
We can assign colors, linetypes, and lineweights. Colors help distinguish between different elements in our drawings. Does that make sense?
Yes, but what about linetypes and lineweights?
Linetypes define the pattern of our lines, like dashed or continuous, and lineweights determine how thick our lines appear. For example, thicker lines are often used for outlines.
Let's summarize: Layers help us organize drawings, we can create and manage them via the Layer Properties Manager, and we can assign properties like color, linetype, and lineweight. Remember `C-M-P` for Create, Manage, and Properties!
Controlling Layer Visibility
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, letβs discuss controlling layer visibility. Why might we want to hide certain layers?
To focus on specific parts of the drawing?
Exactly! To turn layers on or off, simply click the light bulb icon next to the layer in the Layer Properties Manager. Can anyone think of why freezing layers is helpful?
I think it might speed things up when working on the drawing?
Correct! Freezing layers reduces the amount of data AutoCAD has to process, which enhances performance. You can freeze a layer by clicking the snowflake icon.
And what about locking layers? Why would we do that?
To prevent accidental changes?
Exactly! Locking a layer prevents modifications to its objects. Remember, visibility control is crucial for maintaining an organized workspace and avoiding errors.
Letβs recap: We can turn layers on and off using the light bulb icon, freeze layers for performance, and lock them to prevent changes. Each helps us maintain an organized and efficient workflow.
Layer States and Filters
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Next, letβs talk about layer states. What do you think a Layer State is?
Is it like saving a specific view or setting for layers?
Exactly! Layer States allow you to save configurations of layers such as on/off, freeze/thaw settings, or lock/unlock states. Have any of you used them before?
No, how do you restore a saved Layer State?
To restore a Layer State, open the Layer States Manager, select the state you want, and click 'Restore'. Now, what are layer filters?
Are they for organizing layers better?
Exactly! Layer Filters help you group layers based on specific criteria like name or color. You can create a new filter in the Layer Properties Manager and define your criteria. This makes navigating complex drawings much easier.
To summarize, Layer States let you save and restore configurations, while Layer Filters help organize your layers for easier management.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Layers in AutoCAD serve as transparent sheets that help organize drawing elements. This section explains how to create new layers, assign properties like color, linetype, and lineweight, and manage layer visibility through freezing and locking. Additionally, it covers saving and restoring layer states and using layer filters for organization.
Detailed
Layers and Properties
Layers are critical in AutoCAD as they act as transparent sheets enabling users to organize and control various drawing elements efficiently. This section defines layers, elaborates on how to create and manage them through the Layer Properties Manager, and discusses the significance of assigning colors, linetypes, and lineweights.
Creating new layers involves accessing the Layer Properties Manager with the command LAYER or LA, where users can assign names and customize properties like color, linetype, and lineweight. It's essential to control layer visibility; users can turn layers on or off, freeze or thaw them for performance enhancements, and lock them to prevent modification.
Additionally, layer states allow users to save and restore configurations quickly, while layer filters simplify the management of many layers by grouping them based on defined criteria. Understanding and utilizing these layer properties greatly improves workflow and the ability to produce detailed, organized drawings.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Understanding Layers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Understanding Layers
- Definition: In AutoCAD, layers function as transparent sheets that help organize and manage different elements of a drawing. Each object resides on a specific layer, allowing for better control over visibility, color, linetype, and lineweight.
Detailed Explanation
In AutoCAD, layers serve as organizational tools for your drawings. Think of layers as different transparent sheets stacked in a binder. Each sheet holds different information, like one for walls, another for furniture, and so on. When you place elements on specific layers, it allows you to easily control which elements are visible, change their colors, alter their line types (like dashed or solid), and adjust how thick the lines appear. This makes it easier to edit and focus on specific parts of a drawing without clutter.
Examples & Analogies
Imagine you are organizing a scrapbook. Each page features a different themeβvacation photos, family gatherings, or birthday parties. By using different sheets for each theme, you can easily flip to the page you want to show without getting all your photos mixed up. Similarly, in AutoCAD, using layers helps keep different parts of your drawing organized, so you can work more effectively.
Creating and Managing Layers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Creating and Managing Layers:
- To create a new layer, open the Layer Properties Manager by typing LAYER or LA in the command line.
- Click on the "New Layer" button, assign a name, and set properties such as color, linetype, and lineweight.
- To manage existing layers, you can rename, delete, or modify their properties within the Layer Properties Manager.
Detailed Explanation
Creating and managing layers in AutoCAD is straightforward. First, you access the Layer Properties Manager, which allows you to oversee all your layers. To make a new layer, you click the 'New Layer' button, provide a name for the layer (like 'Walls' or 'Furniture'), and then select attributes like the color, line type, and thickness. Moreover, if you need to change something about an existing layerβlike renaming it or deleting itβyou can do that right from the same Layer Properties Manager.
Examples & Analogies
Think of a painter getting their paint ready. They might create different sections in their palette for colors they need for sky, land, or buildings. Each section helps them keep their colors organized. In the same way, layers help you organize different elements in your design, ensuring everything stays neat and manageable.
Assigning Colors, Linetypes, and Lineweights
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Assigning Colors, Linetypes, and Lineweights

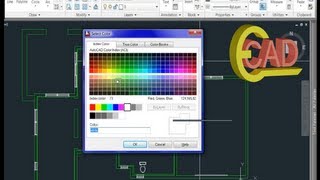

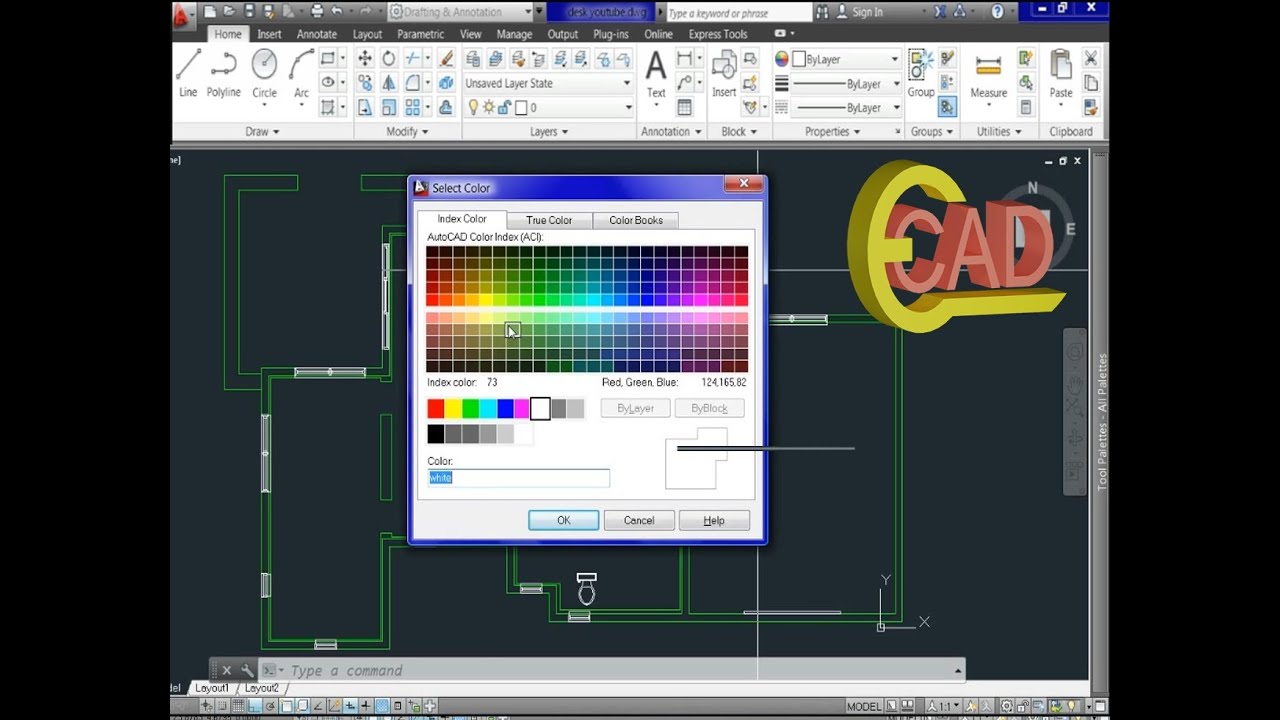

- Colors: Assigning colors to layers helps in distinguishing different elements in a drawing. You can set the color for a layer by selecting it in the Layer Properties Manager and choosing a color from the color palette.
- Linetypes: Linetypes define the pattern of lines (e.g., dashed, continuous). To assign a linetype, select the layer in the Layer Properties Manager and choose the desired linetype. Note that linetypes must be loaded before they can be assigned.
- Lineweights: Lineweights control the thickness of lines. Assign a lineweight to a layer to ensure that objects on that layer are displayed with the appropriate thickness. This is particularly useful for printing purposes.
Detailed Explanation
When you're designing in AutoCAD, using colors, linetypes, and lineweights is crucial for clarity. Colors help differentiate between various elements; for instance, you might use blue for plumbing and red for electrical work. Linetypes let you illustrate varied types of linesβlike using dashed lines to represent hidden objects and solid lines for visible features. Lineweights determine how thick or thin your lines will appear; thicker lines often denote more critical boundaries, which can be especially vital when printing drawings to ensure all details are accurately represented.
Examples & Analogies
Consider a map, where different colors highlight parks, roads, and rivers. Dashed lines might indicate paths not accessible to cars, while thick lines surround important landmarks, making them stand out. Using colors, linetypes, and lineweights in AutoCAD functions in much the same way, helping your drawing communicate information clearly and effectively.
Controlling Layer Visibility and Properties
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Controlling Layer Visibility and Properties
- Turning Layers On/Off: Click the light bulb icon next to a layer in the Layer Properties Manager to toggle its visibility. Turning off a layer hides its objects without affecting the drawing.
- Freezing/Thawing Layers: Freezing a layer improves performance by preventing AutoCAD from regenerating objects on that layer. To freeze or thaw a layer, click the snowflake icon next to the layer in the Layer Properties Manager.
- Locking/Unlocking Layers: Locking a layer prevents modifications to its objects. To lock or unlock a layer, click the lock icon next to the layer in the Layer Properties Manager.
Detailed Explanation
Controlling the visibility of layers in AutoCAD is vital for managing complex drawings. If you want to focus on certain parts without being distracted by others, you can turn off those layers. Freezing a layer not only hides its elements but also helps AutoCAD run smoother by stopping it from regenerating those absent elements, which is especially advantageous in large projects. Locking layers ensures you donβt accidentally modify critical components while working on other aspects of your drawing.
Examples & Analogies
Imagine you are working on a large jigsaw puzzle. You might turn over pieces of sections that you donβt want to focus on right now to reduce distraction. Similarly, by turning off or freezing layers in AutoCAD, you streamline your focus on the task at hand, ensuring efficiency and precision.
Layer States
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Layer States
- Saving Layer States: You can save the current settings of layers (such as on/off, freeze/thaw, lock/unlock) as a Layer State. This is useful when you want to return to a specific layer configuration.
- Restoring Layer States: To restore a saved Layer State, open the Layer States Manager, select the desired state, and click "Restore."
Detailed Explanation
Layer States allow you to quickly save and restore configurations of your layers. For example, if you have a setup you frequently useβlike one for presentation and another for detailed editingβyou can save these settings as Layer States. When you need to switch between these configurations, you can restore a state with a single click, saving you considerable time and effort.
Examples & Analogies
Consider a film director who has multiple setups for each scene, with different lighting and props. By saving configurations of each sceneβs setup, they can switch easily between them, ensuring a seamless shoot. Similarly, Layer States in AutoCAD allow you to maintain efficiency in your design process by saving and switching between different layer configurations effortlessly.
Layer Filters
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Layer Filters
- Purpose: Layer Filters help in organizing and managing layers by grouping them based on specific criteria.
- Creating Layer Filters:
- In the Layer Properties Manager, click on the "Layer Filters" tab.
- Click "New Filter" and define the filter criteria (e.g., by name, color, linetype).
- Apply the filter to view only the layers that meet the specified criteria.
Detailed Explanation
Layer Filters streamline your workflow by allowing you to group layers according to specific characteristics. For example, if you have many layers related to electrical work, you can create a filter that only shows those layers, making it much easier to work without visual clutter from unrelated layers. To create a filter, simply access the 'Layer Filters' tab in the Layer Properties Manager and define your criteria, enabling you to focus on relevant information whenever necessary.
Examples & Analogies
Think about organizing your email inbox by categories like 'Work,' 'Personal,' and 'Spam.' When you apply filters, you can see only one type of email at a time, making it easier to manage your correspondence. Similarly, Layer Filters in AutoCAD allow you to keep your workspace organized and focused, making complex projects feel more manageable.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Layers: Transparent sheets that help organize drawing elements.
-
Layer Properties Manager: The tool for creating and managing layers.
-
Layer Visibility: Control over which layers are visible or hidden.
-
Layer States: Saved configurations of layers that can be restored.
-
Layer Filters: Grouping layers based on specific criteria.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Using different colors for electrical and plumbing lines in a blueprint using layers.
-
Freezing layers containing temporary construction lines while working on primary structures.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
Layers help us see and hide, keeping our drawings well defined.
π Fascinating Stories
-
Once there was a young designer who used layers to separate tree branches from the sky, making each part easy to edit without touching the other components.
π§ Other Memory Gems
-
Remember
C-M-Pfor Create, Manage, and Properties when working with layers.
π― Super Acronyms
L-A-F for Layers, Attributes, and Filters helps you remember key functions in layer management.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Layer
Definition:
A transparent sheet in AutoCAD that organizes and manages different elements of a drawing.
-
Term: Layer Properties Manager
Definition:
A tool in AutoCAD where users can create and manage layers and assign properties.
-
Term: Color
Definition:
A property that distinguishes different elements in a drawing, assigned to layers.
-
Term: Linetype
Definition:
Defines the pattern of lines in a drawing, such as dashed or continuous.
-
Term: Lineweight
Definition:
The thickness of lines used in a drawing, significant for visibility and printing.
-
Term: Layer State
Definition:
A saved configuration of layer settings such as visibility and lock status.
-
Term: Layer Filter
Definition:
A tool for grouping layers based on specific criteria to simplify layer management.
