Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Masonry Wall Foundations
Unlock Audio Lesson
Today, we will be discussing the cross-section of masonry wall foundations. Can anyone tell me what a masonry wall generally consists of?
Isn't it made up of bricks or blocks?
Yes, exactly! Masonry walls are typically made of materials like burnt brick or concrete blocks. They are robust and can bear substantial loads from structures above.
How do we determine the thickness of these walls?
Great question! The thickness is usually defined depending on the load requirements and design specifications, like the 300mm in today's first exercise. Remember, the thicker the wall, the more load it can support.
Does that mean we can just increase the wall thickness for any heavy structure?
Not necessarily! While thicker walls can support more load, they also add to the material costs and overall weight. Optimal design is key!
So, we're aiming for a balance between strength and cost?
Correct! That balance is fundamental in building construction.
In summary, masonry wall foundations are essential components of building structures, supporting loads and ensuring stability. Let’s move on to the specifics of how we draw them using AutoCAD.
Understanding Footings
Unlock Audio Lesson
Now, can someone explain what a footing is?
I think it’s the base that supports a structure like a wall or a column.
Exactly! Footings distribute the load from structures above to the soil below. Can anyone recall the different types of footings we discussed?
There are isolated footings and combined footings, right?
Correct! Isolated footings are typically used for single columns, while combined footings support multiple columns. Each type serves purposes based on structural requirements.
What about the dimensions? How do we decide those?
Footing dimensions depend largely on the column size and load-bearing requirements, alongside bearing capacity of the soil. In our exercises, we’ll see specific dimensions established to understand practical applications.
To summarize, footings are essential in ensuring stability by evenly distributing loads. Next, we’ll look into specifics on RCC column footings.
Reinforcement in Footings
Unlock Audio Lesson
Let’s switch gears and focus on reinforcement within footings. What reinforcement types are commonly used?
I think we use steel bars for strengthening.
Exactly! Reinforcement steel bars or rebar are crucial for providing tensile strength. Can anyone explain why we don’t just use concrete alone?
Concrete is strong in compression but weak in tension.
Correct! That’s why we combine materials to ensure the structure can handle different types of stresses. Now, what size and spacing of reinforcement do we typically see in the exercises?
For instance, #8 bars or TOR steel, depending on the scenario!
Right! The choices made depend on load considerations and design specifics. In our examples, we will calculate these necessities.
In summary, reinforcing footings involves strategic planning of sizes, types, and spacing to ensure a safe and effective design.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section elaborates on the foundational concepts and components necessary for constructing cross-sectional views of masonry walls, isolated and combined footings for RCC columns, and the application exercise using AutoCAD software for practical understanding.
Detailed
Detailed Summary
In this section, we delve into the intricacies of creating cross sections for masonry wall foundations, RCC columns, and their respective footings. The critical exercises provided enable students to practice drafting these fundamental components using AutoCAD software.
- Exercise 5.1 discusses the specifics of drawing a cross-section for a load-bearing wall with a given set of parameters for a masonry foundation, emphasizing the details needed for accurate representation.
- Exercise 5.2 focuses on the cross-section of a partition wall, promoting understanding of variations in wall thickness and structural support.
- Exercises 5.3 to 5.5 cover isolated and combined footings for RCC columns, presenting the methodologies of calculating and drafting footings that adequately support the structural elements above, including various reinforcement techniques that lend strength to the entire construction.
- Additionally, these practices develop an ability to transition from conceptual design to detailed working drawings, crucial in modern civil engineering drafting and building planning.

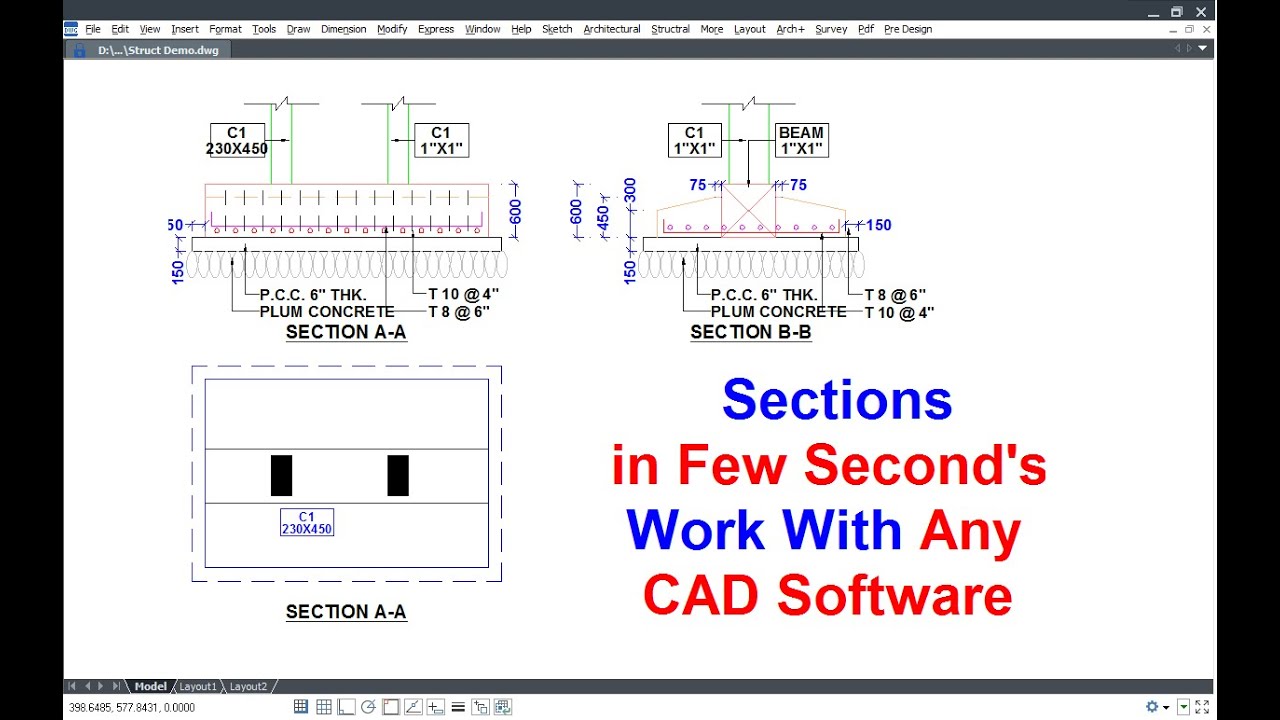

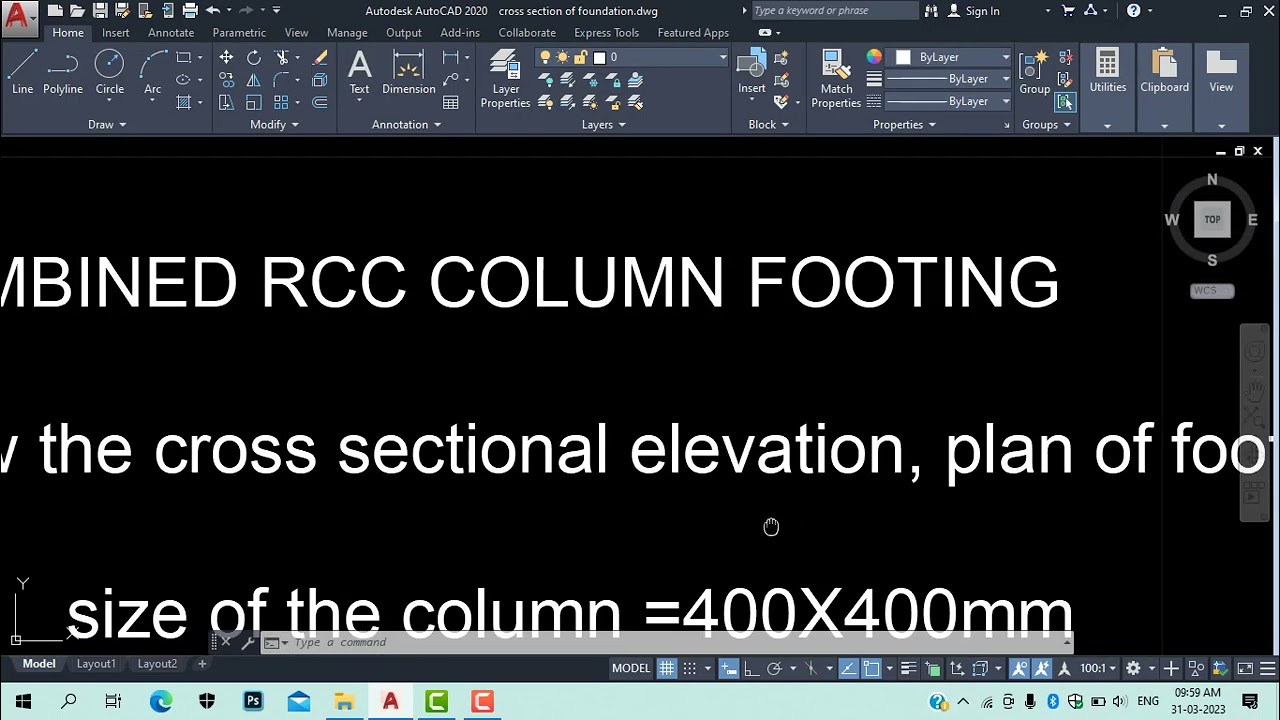

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Initial Foundation Specifications
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

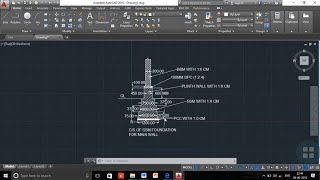

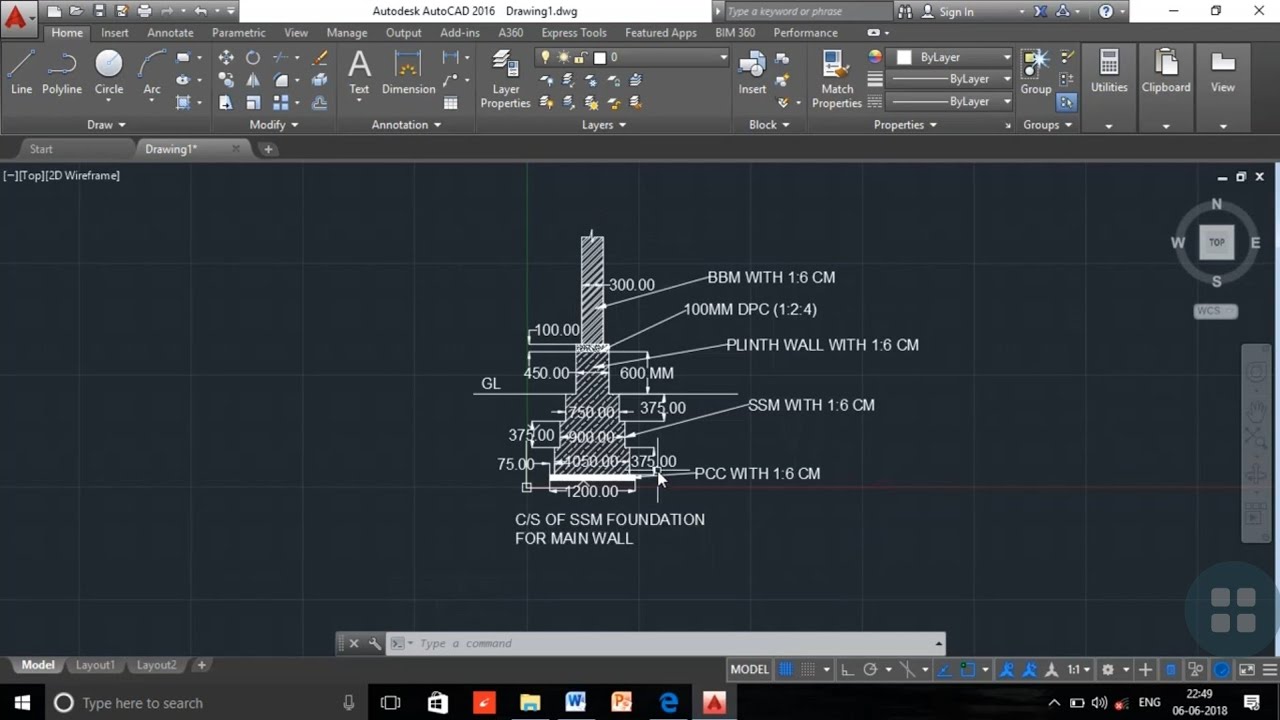

Draw a cross section of a S.S. Masonry foundation to be provided for a load bearing wall 300mm thick in Burnt Brick Masonry in superstructure of a residential building. Use following data:
- Width of foundation = 1.20m
- Depth of foundation below GL = 1.20m
- Width of PCC = 1.20m
- Thickness of PCC in 1:3:6 = 75mm.
Detailed Explanation
This chunk introduces the need for a cross section drawing of a foundation. The specifications dictate that the wall will be made from burnt brick masonry, which is common in residential buildings for its durability. Key dimensions include a foundation width and depth, along with a concrete layer (PCC) that supports the foundation. The specifications state the width of the foundation is 1.20 meters and its depth is also 1.20 meters, meaning the foundation is quite strong and deep enough to handle the weight of the structure above.
Examples & Analogies
Think of the foundation as a solid base of a multi-layer cake; just like the deep and broad layer holds everything together, a robust foundation stabilizes the building above it.
Footing Dimensions
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Width of first footing above PCC = 1.05m
- Depth of first footing above PCC = 0.375m
- Width of second footing = 0.90m
- Depth of second footing = 0.375m
- Width of third footing = 0.75m
- Depth of third footing = 0.375m.
Detailed Explanation
This section focuses on the dimensions of various footings that will help distribute the load from the structure. The first footing is slightly narrower than the foundation width, while the second and third footings have specific widths and the same depth. These variations in size help in achieving better load distribution and stability. Each footing extends from a concrete base layer, the PCC, allowing for a more stable support for the wall.
Examples & Analogies
Imagine how different-sized plates can hold different amounts of food without spilling. In construction, larger footings bear heavier loads efficiently, making sure the structure won't sway or settle unevenly.
Plinth Wall and DPC Specifications
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Width of plinth wall = 0.45m
- Depth of plinth wall = 0.60m
- Thickness of DPC in 1:2:4 = 100mm.
Detailed Explanation
The specifications for the plinth wall, which sits above the foundation, indicate a width and depth of 0.45 and 0.60 meters, respectively. The plinth wall helps to elevate the structure above ground moisture, preventing damage from rain or flooding. Additionally, the damp-proof course (DPC) is a critical waterproof barrier that protects the masonry by preventing moisture penetration. The thickness of this layer is specified to be 100mm, ensuring its effectiveness.
Examples & Analogies
Consider the plinth wall like a thick platform raised above a puddle; it keeps the building dry and safe from potential water damage, much like how a platform prevents your shoes from getting wet.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Masonry Wall: Comprised of bricks/blocks, crucial for structural integrity.
-
Footing: Distributes load from walls/columns to the ground.
-
RCC Columns: Provide vertical support within a structure, reinforced for strength.
-
Isolated Footing: Serves individual columns, ensuring stability.
-
Combined Footing: Supports multiple columns, providing shared load distribution.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example of a masonry wall foundation drawing exercise.
-
Example of combining footings for adjacent columns in a residential building.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
For footings sure, keep them strong, a sturdy base will last long.
📖 Fascinating Stories
-
Imagine a building standing tall; without strong footings, it could fall. Each layer must support its weight, with solid designs, we can create!
🧠 Other Memory Gems
-
F-L-A-T: Footings, Load-bearing, Area, Thickness.
🎯 Super Acronyms
RCC
- Reinforced Concrete Construction.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Masonry Wall
Definition:
A structural element composed of bricks or blocks bonded together with mortar.
-
Term: Footing
Definition:
The lower portion of a foundation, supporting the structure above it by distributing load.
-
Term: RCC (Reinforced Cement Concrete)
Definition:
Concrete that has steel reinforcement bars embedded to improve tension strength.
-
Term: Isolated Footing
Definition:
A footing that supports a single structural load like a column.
-
Term: Combined Footing
Definition:
A footing that supports two or more columns, generally used when columns are close to each other.
