6.2 - Similar Figures
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Similar Figures
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we’re discussing similar figures. Can anyone tell me what it means for two figures to be similar?
Does it mean they are the same size?
Good question! Similar figures have the same shape, but they can be different sizes. For example, all circles are similar to each other, even if their radii differ.
So, all squares are also similar?
Exactly! Remember, similarity is about shape not size. And we use terms such as 'scale factor' to describe how one figure may enlarge or shrink compared to another.
How do we know if two shapes are similar?
Great question! Two figures are similar if their corresponding angles are equal and their sides are in proportion. This can be remembered by the acronym AEP: Angles Equal, Proportions. Let me summarize: similar figures have equal angles and proportional sides.
Real-World Applications
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Can anyone think of an example where we might use the concept of similar figures in real life?
When measuring tall buildings or mountains.
Exactly! We often use similar triangles to find indirect measurements. By knowing the height of a person and the size of their shadow, we can calculate the height of a mountain using similar triangle principles.
That sounds useful! What about photographs?
Wonderful! Photographs of the same object taken at different distances also demonstrate similarity in size but not in scale. The angles remain the same despite varying dimensions.
So, the principle of shadows illustrates the practical use of similar figures?
Absolutely! This understanding is essential in many fields, including architecture, geography, and photography.
Exploring Polygon Similarity
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s dive deeper! We learned that polygons are similar based on their angles and side ratios. Who can explain the conditions we need to identify them?
We need equal corresponding angles and proportional corresponding sides!
Great job! Remember, to check for similarity, first measure the angles, then compare the ratios of their corresponding sides. Who remembers how to find the scale factor?
It’s the ratio of corresponding sides!
Exactly. If you have two triangles, you can find the scale factor by comparing one side of triangle A to its corresponding side in triangle B. Let's recap—similar polygons have equal angles and sides that are proportional.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section explains the definition and properties of similar figures, particularly triangles, illustrating how similarity compares to congruence. It delineates the criteria for similarity in polygons and introduces the concept of scale factors.
Detailed
In this section, we delve into the world of similar figures, which are defined as shapes that retain the same form but may differ in size. We first distinguish between congruent and similar figures, noting that while congruent figures are both the same shape and size, similar figures are merely the same shape, with variations in size. The section emphasizes that all circles, squares, and equilateral triangles maintain similarity regardless of their dimensions.
To determine whether two figures are similar, two main conditions are emphasized: (1) their corresponding angles must be equal and (2) their corresponding sides must be proportional. This foundational understanding leads to practical applications of similarity in real-world contexts, such as measuring heights and distances indirectly through similar triangles. Finally, the concept of similarity is illustrated with engaging examples and activities, ultimately setting the stage for exploring the similarity of triangles in subsequent sections.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Similar Figures
Chapter 1 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Two similar figures have the same shape but not necessarily the same size. Therefore, all circles are similar.
Detailed Explanation
Similar figures are those that have the same shape, meaning their corresponding angles are equal, but their sizes can differ. For example, all circles, regardless of their radii, are considered similar because they maintain the same round shape. This concept can extend to other shapes as well, such as squares and triangles, where all squares are similar, and all equilateral triangles are similar, regardless of the length of their sides.
Examples & Analogies
Think of similar figures like different sizes of pictures of the same object. Whether you have a small or large picture of a flower, they share the same shape and can be recognized as that flower, just like similar figures in geometry.
Distinction Between Congruence and Similarity
Chapter 2 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
From the above, we can say that all congruent figures are similar but the similar figures need not be congruent.
Detailed Explanation
Congruent figures are those that are both the same shape and size; they completely overlap when placed on each other. However, similar figures only require the same shape but can vary in size. This is significant in geometry because it allows us to classify figures based on their relational properties rather than their specific measurements.
Examples & Analogies
Imagine two identical twin siblings. They are congruent because not only do they look alike (same shape), but they are the same height. Now, think of two siblings of the same height but different body shapes; they might be similar in how tall they are, but not congruent because their shapes differ.
Determining Similarity in Figures
Chapter 3 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
What can you say about the two quadrilaterals ABCD and PQRS? These figures appear to be similar but we cannot be certain about it. Therefore, we must have some definition of similarity of figures and based on this definition some rules to decide whether the two given figures are similar or not.
Detailed Explanation
To determine if two figures are similar, we need to have a clear definition of similarity and specific criteria to check. This often involves measuring the angles of the figures and comparing the ratios of corresponding sides. If all corresponding angles are equal and the sides are in the same proportion, then the figures are classified as similar.
Examples & Analogies
Consider two different-sized models of the Eiffel Tower. By measuring the angles and the sides, you can determine that they are similar. Just as in real life, smaller and larger replicas of buildings maintain the same proportions and angle relationships, which is the essence of similarity.
Understanding Shadows and Similarity
Chapter 4 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
What does the photographer do when she prints photographs of different sizes from the same negative? ... Thus, if we consider any line segment in the smaller photograph (figure), its corresponding line segment in the bigger photograph (figure) will be ... In both photographs, the angles will be equal.
Detailed Explanation
When a photographer enlarges an image, she is maintaining the proportions between elements in the photo. This means that while the size may change, the relationships between the objects stay consistent, just as with similar figures in geometry. Therefore, the corresponding line segments in two photographs maintain a consistent ratio based on the scale factor applied, and the angles remain the same.
Examples & Analogies
Think of it like blowing a balloon. When you inflate a balloon, every part of it expands equally, keeping the same proportions. Even though the balloon becomes larger, it still retains its original shape – a perfect example of similarity in action.
Conditions for Similar Polygons
Chapter 5 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content

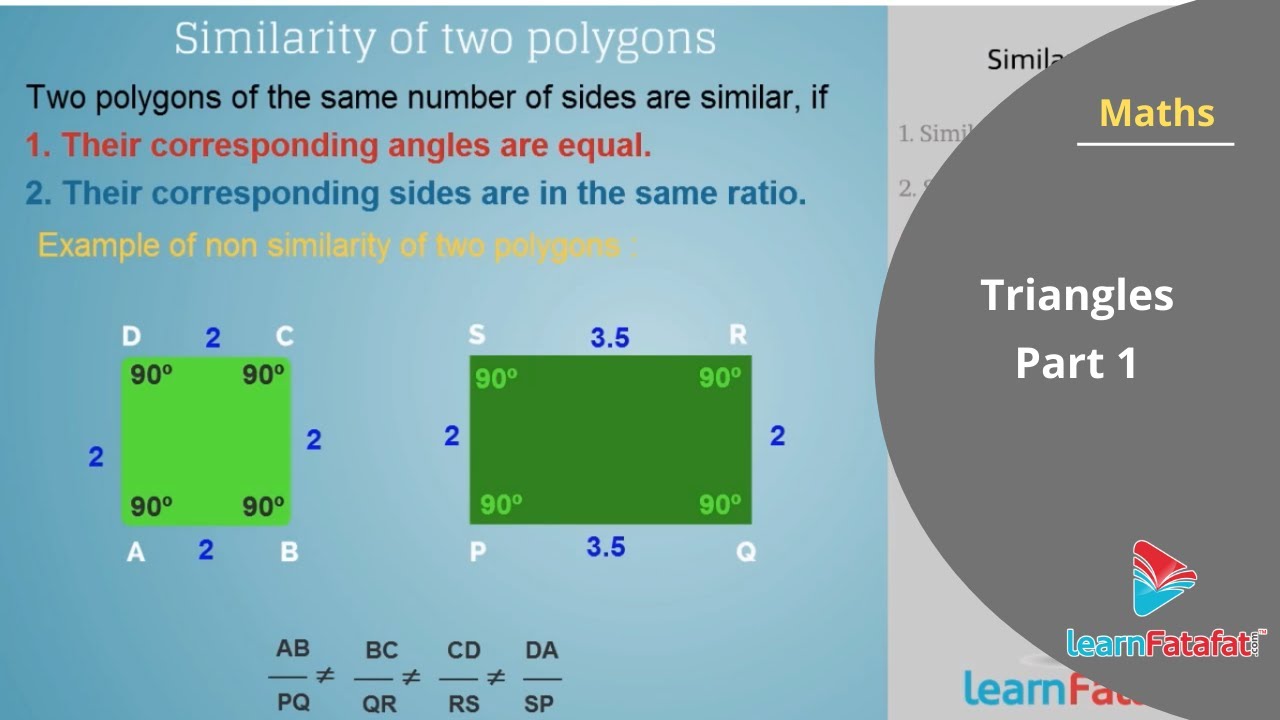

We say that two polygons of the same number of sides are similar, if (i) their corresponding angles are equal and (ii) their corresponding sides are in the same ratio (or proportion).
Detailed Explanation
To establish that two polygons are similar, there are two critical conditions to satisfy. First, we must ensure all corresponding angles match in degree measurement. Second, we need to measure the lengths of the sides and confirm that the ratios of these lengths are equivalent across the corresponding sides. If both conditions are satisfied, we can confidently claim the two polygons are similar.
Examples & Analogies
You can think of it as pairs of shoes from the same brand; if you have a pair of size 7 and a pair of size 10, they maintain the same shape, and the proportions between different parts of the shoe (like heel height) stay consistent even though the shoes are different sizes.
Proof Through Shadow Activities
Chapter 6 of 6
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Activity 1: Place a lighted bulb ... quadrilateral A’B’C’D’ is an enlargement of the quadrilateral ABCD.
Detailed Explanation
This activity illustrates how similarity can be observed through shadows. By using a light source and a cardboard cutout, you can create a shadow that reflects the original shape in a larger or smaller size. This shows hands-on how one shape can remain similar to another even when scaled up or down, highlighting the direct correlation between angles and the proportions of corresponding line segments.
Examples & Analogies
Consider a shadow puppet show. When you create a shadow puppet, regardless of how far you move the puppet away from the light source, the shape remains the same. The relationship between the angles and the proportions of sizes showcases similarity.
Key Concepts
-
Similarity: Refers to figures that have the same shape but not necessarily the same size.
-
Criteria for Similarity: Two figures are similar if their corresponding angles are equal and their corresponding sides are proportional.
-
Scale Factor: The ratio of corresponding side lengths in similar figures.
-
Congruence vs. Similarity: All congruent figures are similar, but not all similar figures are congruent.
Examples & Applications
All circles are similar as they maintain the same shape regardless of radius.
Two equilateral triangles are similar if they have the same angular measurements but differing side lengths.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Similar shapes we see, same form but not the degree; angles equal, sides align, that's how similarity's defined.
Stories
Imagine two friends standing next to each other. They wear the same outfit but in different sizes. They look the same but are different in height, just like similar figures!
Memory Tools
AEP: Angles Equal, Proportions for similarity.
Acronyms
S.A.P
Same Angles
Proportions for similarity.
Flash Cards
Glossary
- Similar Figures
Figures that have the same shape but not necessarily the same size.
- Scale Factor
The ratio of the lengths of corresponding sides of two similar figures.
- Congruent Figures
Figures that have the same shape and size.
- Proportional Sides
Sides that have the same ratio in similar figures.
- Corresponding Angles
Angles in two shapes that occupy the same relative position.
- Polygon
A flat shape consisting of straight lines that are joined to form a closed figure.
