9.2.4. Mirror Formula and Magnification

In a spherical mirror, the distance of the object from its pole is called the object distance (u). The distance of the image from the pole of the mirror is called the image distance (v). You already know that the distance of the principal focus from the pole is called the focal length (f). There is a relationship between these three quantities given by the mirror formula which is expressed as 1/f = 1/v + 1/u.

The mirror formula relates three important distances in optics: the object distance (u), the image distance (v), and the focal length (f). The object distance is always measured from the pole of the mirror to where the object is placed. The image distance indicates where the image formed by the mirror is located, and the focal length shows how strongly the mirror converges or diverges light. This relationship is crucial for finding the position of the image when the object is placed at a specific distance. It holds true for all spherical mirrors, regardless of whether they are concave or convex.

Imagine you are using a makeup mirror, which is a concave mirror. When you are a certain distance from the mirror, you can see a clear image of your face. If you move closer or further away, the image changes position and size based on your distance to the mirror. The mirror formula helps to predict where that image will be based on your distance (u).

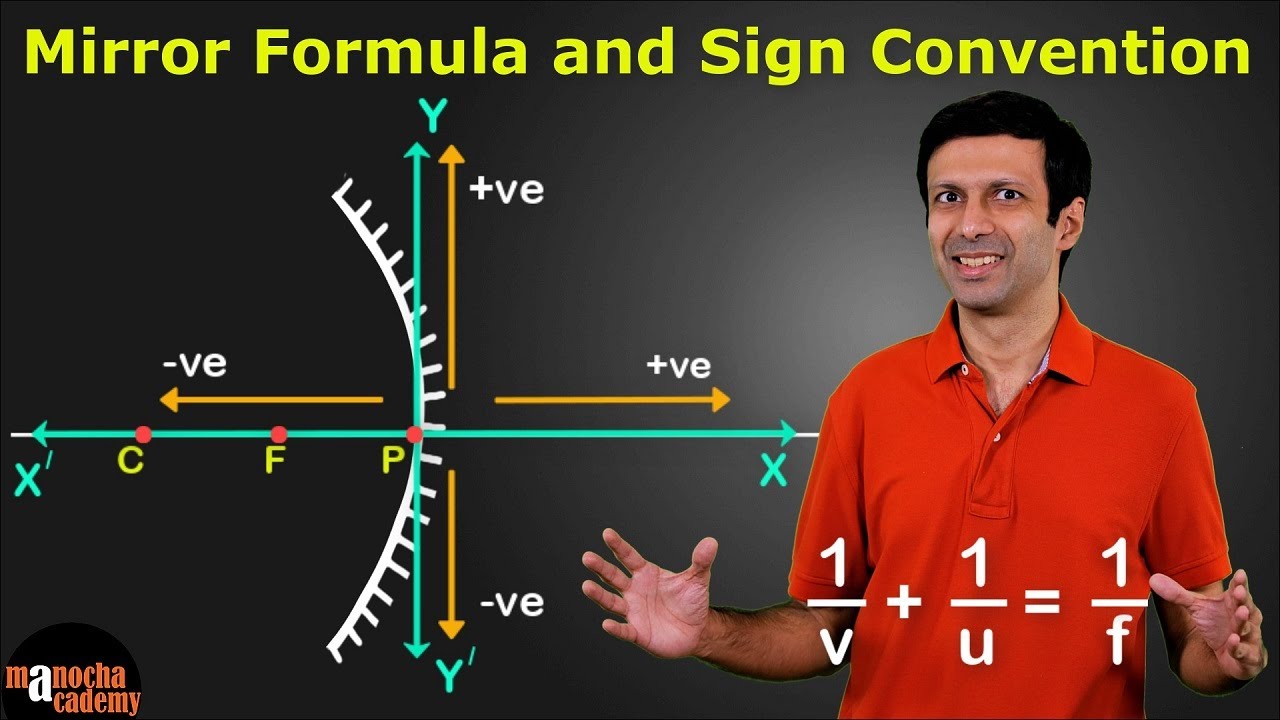

This formula is valid in all situations for all spherical mirrors for all positions of the object. You must use the New Cartesian Sign Convention while substituting numerical values for u, v, f, and R in the mirror formula for solving problems.

The New Cartesian Sign Convention helps to standardize how we measure distances in optics. In this system, distances measured in the direction of the incident light are considered negative, while those in the direction of the outgoing light are positive. This allows for consistent calculations. Understanding and applying the correct signs for each distance when using the mirror formula is essential for accurately solving problems.

Think of the New Cartesian Sign Convention like a game where you have to follow certain rules for scoring points. If you follow the rules correctly, you get the right score (i.e., correct results in optics). If you get the signs wrong, your calculations (or score) will also be incorrect, leading to confusion about where the image will form.

Magnification produced by a spherical mirror gives the relative extent to which the image of an object is magnified with respect to the object size. It is expressed as the ratio of the height of the image to the height of the object. It is usually represented by the letter m.

Magnification (m) indicates how much larger or smaller an image appears compared to the actual object. It is calculated by dividing the height of the image (h') by the height of the object (h). This ratio gives a clear understanding of image size compared to the object size, helping to also know if the image is upright (virtual) or inverted (real). A positive magnification indicates a virtual image, while a negative magnification indicates a real image.

Consider looking through binoculars. If you use them to see a distant tree, the image of the tree appears larger than it actually is, which is the magnification effect. In optics, we can calculate exactly how much larger or smaller it is by using the height of the image compared to the actual height of the tree.

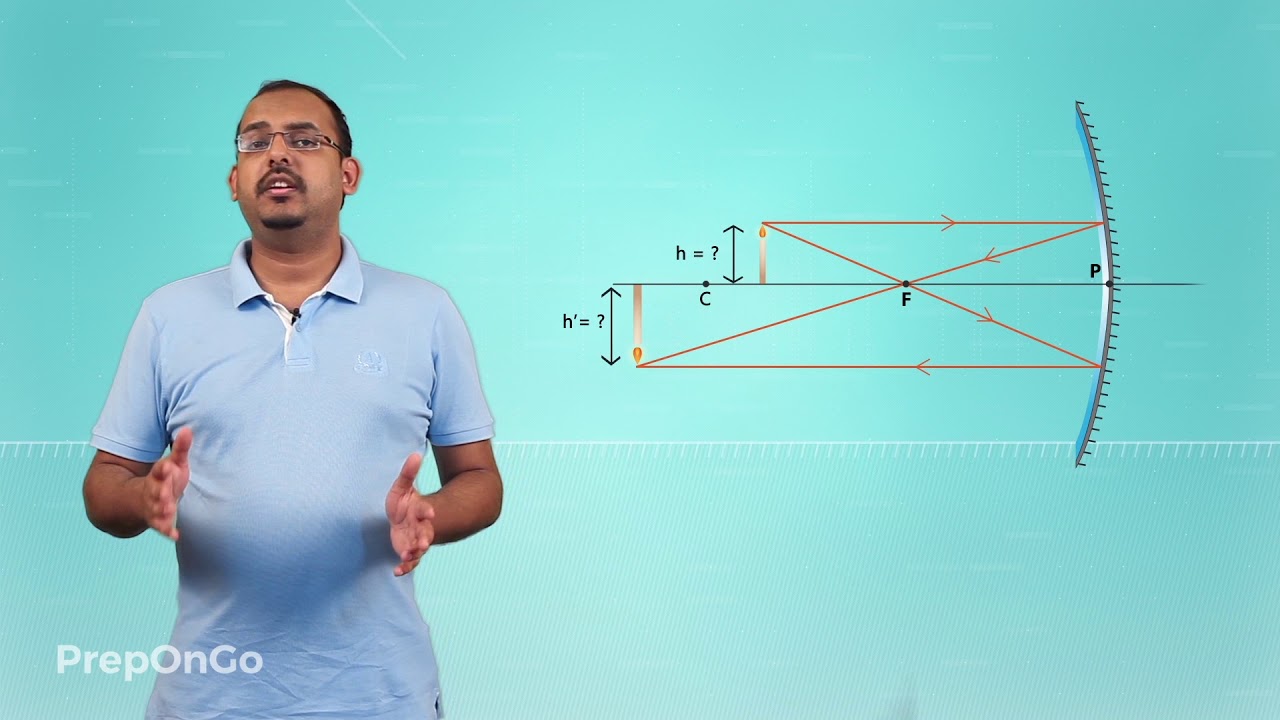

If h is the height of the object and h′ is the height of the image, then the magnification m produced by a spherical mirror is given by h′/h. The magnification m is also related to the object distance (u) and image distance (v). It can be expressed as: m = -v/u.

The magnification equation not only relates the sizes of the object and image but also connects these sizes to their respective distances from the mirror. By understanding this relationship, one can figure out how far the object needs to be placed from the mirror to achieve a desired image size. Negative magnification values signify that the image is inverted while positive values indicate the image is upright.

Imagine using a telescope to view the moon. Depending on how far you position the telescope (analogous to 'u') and its ability to make distant objects appear closer (analogous to 'v'), you will see the moon at different sizes. The degree of magnification helps you appreciate what you're viewing and can guide you in adjusting the device for the best experience.

--
