9.3.5. Obtaining the Foreign Gene Product

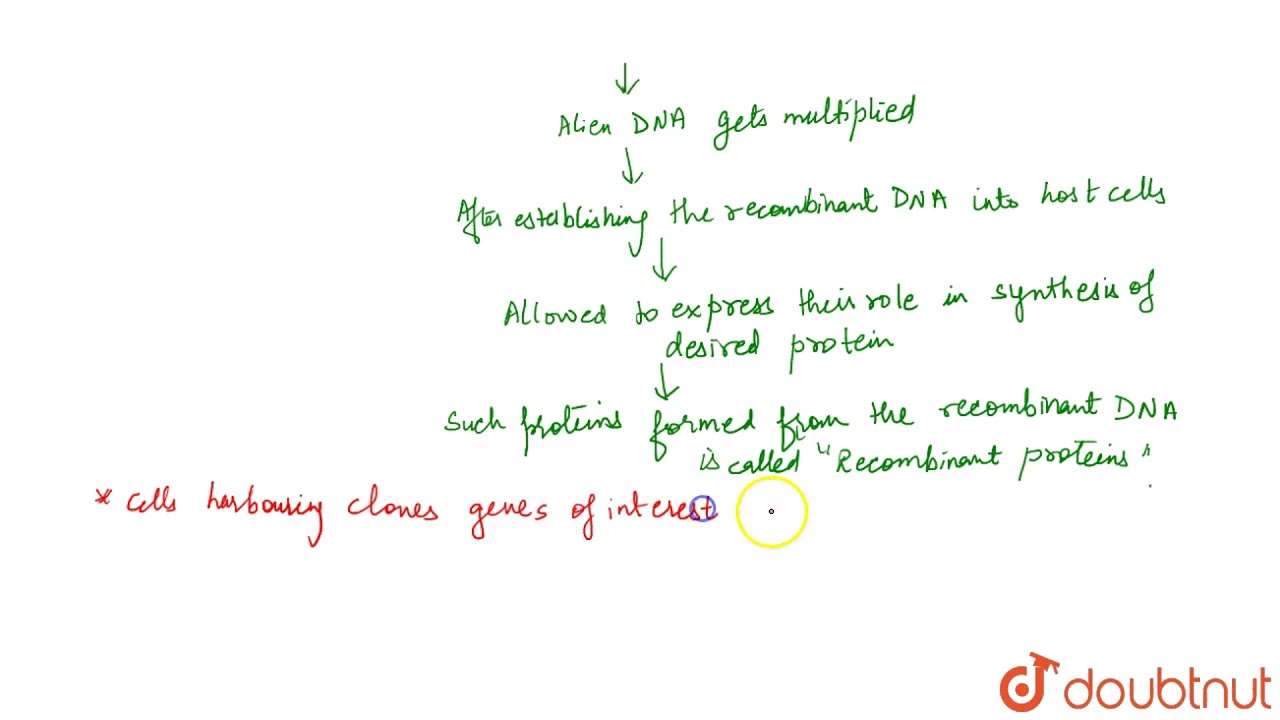

When you insert a piece of alien DNA into a cloning vector and transfer it into a bacterial, plant or animal cell, the alien DNA gets multiplied. In almost all recombinant technologies, the ultimate aim is to produce a desirable protein. Hence, there is a need for the recombinant DNA to be expressed.

This chunk introduces the concept that the primary goal of recombinant DNA technology is to produce proteins. When foreign DNA is inserted into a host organism (like bacteria or plants), it not only gets replicated but is also expected to be expressed to yield functional proteins necessary for various applications. Understanding how to induce this gene expression is critical for biotechnological applications.

Imagine a bakery where foreign ingredients (like chocolate chips or nuts) are added to a basic cookie dough recipe. The goal is to produce delicious cookies (the desirable protein) from that dough (the cloning vector) once these foreign ingredients are mixed in. Just like bakers must find the right temperature and baking time to make perfect cookies, biotechnologists must optimize conditions to express the foreign gene effectively.

After having cloned the gene of interest and having optimised the conditions to induce the expression of the target protein, one has to consider producing it on a large scale.

Once the gene of interest is successfully cloned into the host organism and the expression conditions are fine-tuned, the focus shifts to large-scale production of the protein. This means that scientists must carefully control the environment in which the host cells grow, ensuring they produce as much of the target protein as possible.

Consider a company that starts small but wants to grow its production line. Initially, they optimize the recipe for their popular snack, but then they need to scale it to produce tens of thousands of bags every day. They’ll have to control everything from ingredient quality to machine efficiency, akin to a lab controlling temperature and nutrient supply to maximize protein yield.

The cells harbouring cloned genes of interest may be grown on a small scale in the laboratory. The cultures may be used for extracting the desired protein and then purifying it by using different separation techniques.

This chunk explains that initial cultures of the genetically modified cells can be small, enough for laboratory-scale experiments. These cultures provide a way to test and extract the desired protein, which may undergo various purification processes to isolate it from other cellular components.

Think of brewing tea. You start with a small pot, allowing you to test the flavor. Once you perfect it, you can brew a larger batch. Similarly, in recombinant biotechnology, small-scale cell cultures allow scientists to test and refine the protein extraction process before moving to larger-scale production.

The cells can also be multiplied in a continuous culture system wherein the used medium is drained out from one side while fresh medium is added from the other to maintain the cells in their physiologically most active log/exponential phase.

This chunk discusses the significance of bioreactors in maintaining optimal conditions for cell growth. A continuous culture system allows nutrients to be refreshed while waste products are removed, leading to higher yields of the target protein as cells remain in their most productive phase.

Consider a hydroponic garden where plants have a steady supply of nutrients and oxygen. This ensures the plants grow optimally, just like cells in a bioreactor thrive with continuous medium renewal, maximizing protein production for industrial use.

Thus, bioreactors can be thought of as vessels in which raw materials are biologically converted into specific products, individual enzymes, etc., using microbial plant, animal or human cells.

Bioreactors are designed to provide ideal conditions for the growth of cells used in biotechnology, facilitating the transformation of raw materials into desired products, including proteins. They are equipped with systems to monitor and control conditions such as temperature, pH, and oxygen levels.

Imagine a controlled environment like an aquarium where conditions such as water temperature and filtration are carefully managed to foster fish growth. Similarly, a bioreactor maintains specific conditions to maximize the growth and productivity of the cells within it.

A stirred-tank reactor is usually cylindrical or with a curved base to facilitate the mixing of the reactor contents. The stirrer facilitates even mixing and oxygen availability throughout the bioreactor.

This concluding chunk wraps up the section by describing a common type of bioreactor, the stirred-tank reactor. Its design ensures optimal mixing and oxygen transfer, which are crucial for the effective growth of cells and production of proteins.

Think of making a smoothie. You blend fruits, yogurt, and ice to ensure everything combines evenly; a stirred-tank reactor does the same for cells and nutrients, ensuring they mix thoroughly for efficient growth and protein production.

--
