4.2. Electronic Configurations of the d-Block Elements

The d-block of the periodic table contains the elements of the groups 3-12 in which the d orbitals are progressively filled in each of the four long periods. The f-block consists of elements in which 4f and 5f orbitals are progressively filled.

The periodic table is divided into blocks based on the type of orbitals that are being filled with electrons. The d-block corresponds to the transition metals, which are located in groups 3 to 12. This means that as you move across these groups, electrons are added to the d orbitals (which are subsets of the main energy levels) in a sequential manner, completing each row of the table as you go down. Similarly, the f-block consists of those elements whose 4f and 5f orbitals are being filled, positioned below the main table, usually referred to as lanthanides and actinides respectively.

Think of it like a multi-tiered cake. The d-block elements are like the main layers of the cake, representing the most common and widely used transition metals, while the f-block elements, akin to the additional decorative tiers at the bottom, are more specialized and less commonly discussed, but still essential in certain areas, like nuclear chemistry.

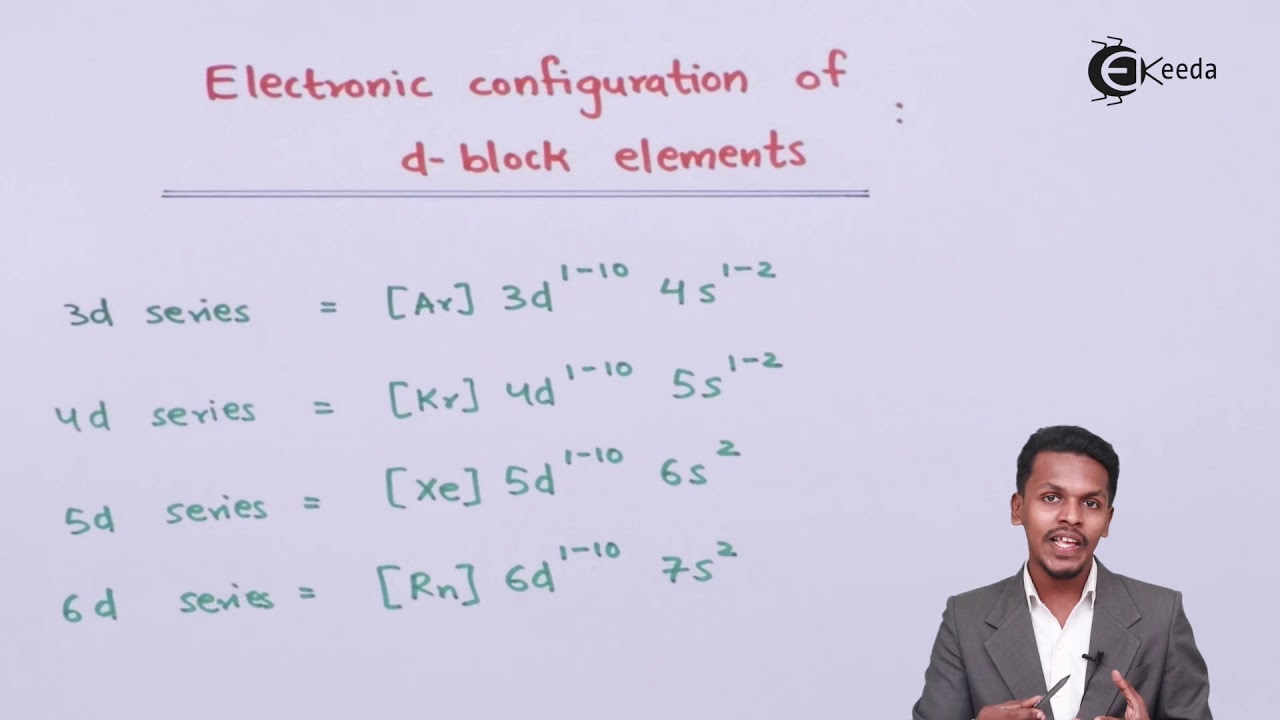

In general the electronic configuration of outer orbitals of these elements is (n-1)d1–10ns1–2 except for Pd where its electronic configuration is 4d105s0.

The electronic configurations of transition metals are typically (n-1)d1 to 10 for the d orbitals and ns1 or ns2 for the outermost s orbitals. The notation (n-1)d indicates that the d orbitals for a given period fill after the s orbitals of the prior level (for instance, in the 4th period, the 3d orbitals fill after the 4s orbitals). An exception is the element Palladium (Pd), which has a unique configuration of 4d105s0, meaning its 4d orbitals are fully filled while its 5s orbital has no electrons. This illustrates how electron shell filling can deviate due to stability factors.

Consider filling a theater row with seats. The (n-1)d orbitals represent the premium seats that get filled after the regular row (the ns seats). Just like how preferred seats might remain empty if another row provides an optimal view, electrons may fill the d orbitals fully instead of going into the s orbital depending on energy considerations.

However, this generalisation has several exceptions because of very little energy difference between (n-1)d and ns orbitals. Furthermore, half and completely filled sets of orbitals are relatively more stable.

While the previous rule helps describe most cases, there are notable exceptions due to the subtle energy differences between the orbitals. Electrons tend to fill orbitals in a way that minimizes energy. Therefore, configurations that result in half-filled or fully filled d subshells lead to extra stability (like in Chromium where it is 3d5 instead of 3d4). This means that atoms can alter their configurations to achieve more stable arrangements. The stability achieved from having entirely filled or half-filled orbitals can outweigh the initial expectation based on the rules.

Imagine you’re organizing boxes in a warehouse. If filling one box completely makes it much easier to stack (extra stability), you'll prioritize filling it to the top rather than keeping it according to a simple but less effective arrangement. The same principle applies to how electrons arrange themselves in their orbitals.
