13.2. Laws of Reflection

Activity 13.1 Fix a white sheet of paper on a drawing board or a table. Take a comb and close all its openings except one in the middle. You can use a strip of black paper for this purpose. Hold the comb perpendicular to the sheet of paper. Throw light from a torch through the opening of the comb from one side. With slight adjustment of the torch and the comb you will see a ray of light along the paper on the other side of the comb.

In Activity 13.1, you start by preparing a simple setup to observe the behavior of light. A white sheet of paper is placed flat, and a comb is arranged in a way that only one gap is open to allow light to pass through. By shining a torch through this opening, you create a ray of light that travels along the paper. This setup helps visualize how a ray of light interacts with surfaces.

Think of this activity like shining a flashlight through a small opening into a dark room. The light only illuminates a narrow path, just like the ray of light on the paper. This is similar to how light travels from a source to reach our eyes.

Place a strip of plane mirror in the path of the light ray. What do you observe? After striking the mirror, the ray of light is reflected in another direction. The light ray, which strikes any surface, is called the incident ray. The ray that comes back from the surface after reflection is known as the reflected ray.

When you introduce a plane mirror into the setup, you can observe that the light ray that was traveling in a straight line will change direction upon hitting the mirror; this is the reflection process. The incoming light is referred to as the 'incident ray', and once it strikes the mirror and bounces back, it's termed the 'reflected ray'. This demonstrates how surfaces can redirect light.

Consider a game of basketball where you shoot the ball (the incident ray) toward the backboard (the mirror). When the ball hits the backboard, it bounces back in a new direction (the reflected ray). This illustrates how light behaves when it encounters a reflective surface.

Draw lines showing the position of the plane mirror, the incident ray, and the reflected ray on the paper with the help of your friends. Remove the mirror and the comb. Draw a line making an angle of 90º to the line representing the mirror at the point where the incident ray strikes the mirror. This line is known as the normal to the reflecting surface at that point.

In this part, you will visualize the angles involved in reflection. After reflecting the light, you'll remove the mirror and use a protractor to draw a normal line, which is a hypothetical line perpendicular to the mirror at the point of incident. This creates a clear framework for comparing the angles of the incident and reflected rays as they relate to the normal line.

Imagine trying to shoot an arrow towards a target. The angle at which you aim (incident angle) and the angle at which the arrow bounces off the target (reflected angle) can help you understand the reflection process of light. The normal line is like an imaginary guide that tells you how to position your shot.

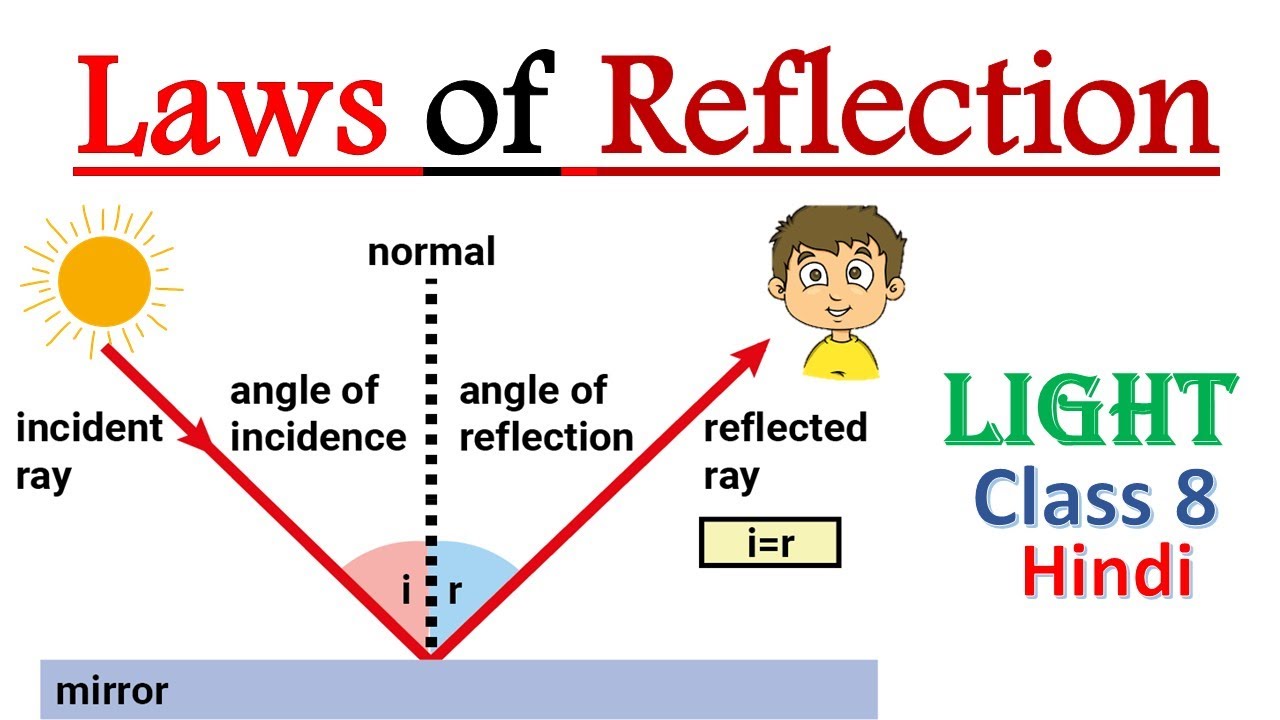

If the experiment is carried out carefully, it is seen that the angle of incidence is always equal to the angle of reflection. This is one of the laws of reflection.

The angle of incidence is defined as the angle between the normal line and the incoming light ray. The angle of reflection is measured similarly for the outgoing light. Through careful measurement during the activity, you will find that these two angles are always equal, demonstrating the first fundamental law of reflection.

Consider throwing a ball against a wall. If you throw the ball at a specific angle (the angle of incidence), it will bounce back off the wall at the same angle (the angle of reflection). This consistency is what the law of reflection describes.

It indicates that the incident ray, the normal at the point of incidence, and the reflected ray all lie in the same plane.

To further understand reflection, it's highlighted that not only do the angles of incidence and reflection relate to one another, but they are also confined to the same geometric plane. This means that if you were to look at these rays from the side, they would all align horizontally or vertically in a straight line, reinforcing the spatial relationship between them.

Imagine a dance floor where dancers must stay in a specific formation. Each dancer's position must stay in line with others, just like how the incident ray, normal line, and reflected ray must align in space.

--
