9.2. Perpendicular from the Centre to a Chord
Interactive Audio Lesson
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free account
Good morning everyone! Today we are going to explore a fascinating property related to circles. Can anyone tell me what happens when we draw a line that goes from the center to a chord?
Is it perpendicular to the chord?
I think it divides the chord into two equal parts!
Exactly! This brings us to Theorem 9.3: the perpendicular from the center of a circle to a chord bisects the chord. That's why, when we measure the lengths on either side, we find them equal!
Can we visualize this with our tracing paper activity?
Yes! When you fold the tracing paper over the chord, the center's perpendicular perfectly aligns the two halves. Remember, we can use the acronym 'PB' where 'P' stands for Perpendicular and 'B' for Bisection to help us remember this theorem.
I like that! This makes it easier to recall!
Great! So if we know the perpendicular bisects the chord, how can we verify this using triangles?
We can prove that the triangles formed are congruent!
Correct! By showing that two right triangles are congruent, we affirm the lengths are equal, which reinforces our understanding.
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free account
Now, let’s discuss the converse of Theorem 9.3, which is Theorem 9.4. Can someone explain what the converse means?
I think it means if a line bisects the chord, then it's also perpendicular!
Exactly! This helps us see that the characteristics of chords in circles are interdependent. If we know one property, we can assume the other holds true.
So in practical terms, if I knew a line was a bisector, I could directly infer it's also a perpendicular?
Precisely! This leads us to next explore distances. Who can tell me how chord lengths and their distances from the center relate?
Are equal chords always at equal distances from the center?
Spot on! This is captured in Theorem 9.5. Remember, the acronym 'CE' stands for 'Chords Equal' - this connects directly to their corresponding distances from the center.
Unlock the classroom podcast
The transcript is above and free to read. A free account plays the conversation back.
Create a free accountNow that we have established that equal chords are equidistant from the center, can someone elaborate on its converse?
If two chords are equidistant from the center, then they are equal?
Exactly! This is what Theorem 9.6 asserts. It’s crucial to understand how these properties of distance and length correlate in our discussions.
Does this mean we can find unknown chord lengths if we can measure their distances?
Right again! Understanding these properties is foundational in circle geometry. Can someone summarize what we learned today?
We learned that the perpendicular from the center bisects the chord and that equal chords are equidistant from the center!
Perfect! Remember today’s key concepts and acronyms to help you recall these theorems in the future.
Overview
Short Summary
The section discusses the properties of the perpendicular drawn from the center of a circle to a chord, including its ability to bisect the chord and its relation to the concept of distance from the center.
Medium Summary
In this section, we explore the crucial relationship between the center of a circle, a chord, and the perpendicular that is drawn to the chord. Theorems related to this relationship highlight that such a perpendicular not only bisects the chord but also offers insights into distance properties related to equal chords. Examples and classroom discussions illustrate these concepts effectively.
Detailed Summary
Detailed Summary
This section explores the Perpendicular from the Centre to a Chord in a circle and highlights two important theorems:
-
Theorem 9.3 states that the perpendicular from the center of a circle to a chord bisects the chord. This theorem is demonstrated through a folding activity, where students see that when the chord overlaps, the two segments created by the perpendicular meet at the midpoint, affirming that the lengths are equal.
-
Theorem 9.4 is the converse of Theorem 9.3, stating that if a line from the center bisects a chord, it is perpendicular to that chord.

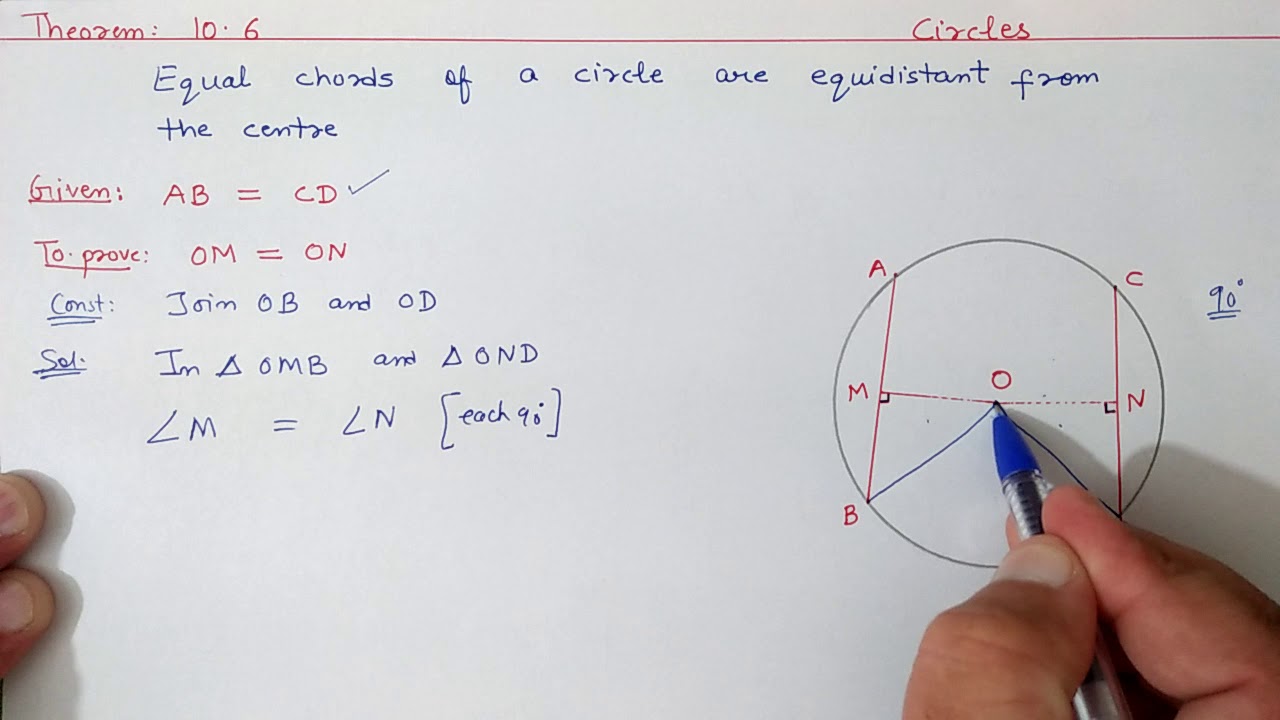

An activity connecting equal chords and their distances from the center leads to Theorem 9.5, affirming that equal chords are equidistant from the center. Finally, the converse of this theorem, Theorem 9.6, establishes that chords equidistant from the center are equal in length.
These theorems and their corresponding proofs illuminate foundational properties of circles and chords, and they emphasize the significant relationship between angles, distances, and lengths in circular geometry.
Reference YouTube Videos
Audio Book
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountActivity: Draw a circle on a tracing paper. Let O be its centre. Draw a chord AB. Fold the paper along a line through O so that a portion of the chord falls on the other. Let the crease cut AB at the point M. Then, ∠OMA = ∠OMB = 90° or OM is perpendicular to AB. Does the point B coincide with A?
Detailed Explanation
This activity helps in visualizing how the perpendicular from the center of the circle to the chord works. When you fold along the center, the line from the center (O) to the chord (AB) intersects it at a point (M), making two right angles (90 degrees) at that point. The key point here is that when you fold the paper, points A and B end up overlapping, illustrating that the distance from O to the chord is the same from both endpoints of the chord.
Examples & Analogies
Imagine if you were to fold a piece of paper at a perfect midpoint and you had a line drawn across it. If you place two stickers at the ends of the line, when you fold, both should end up right on top of each other, suggesting that from the fold (midpoint) to each sticker is the same distance. This is the same principle at play with the circle and the chord.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.

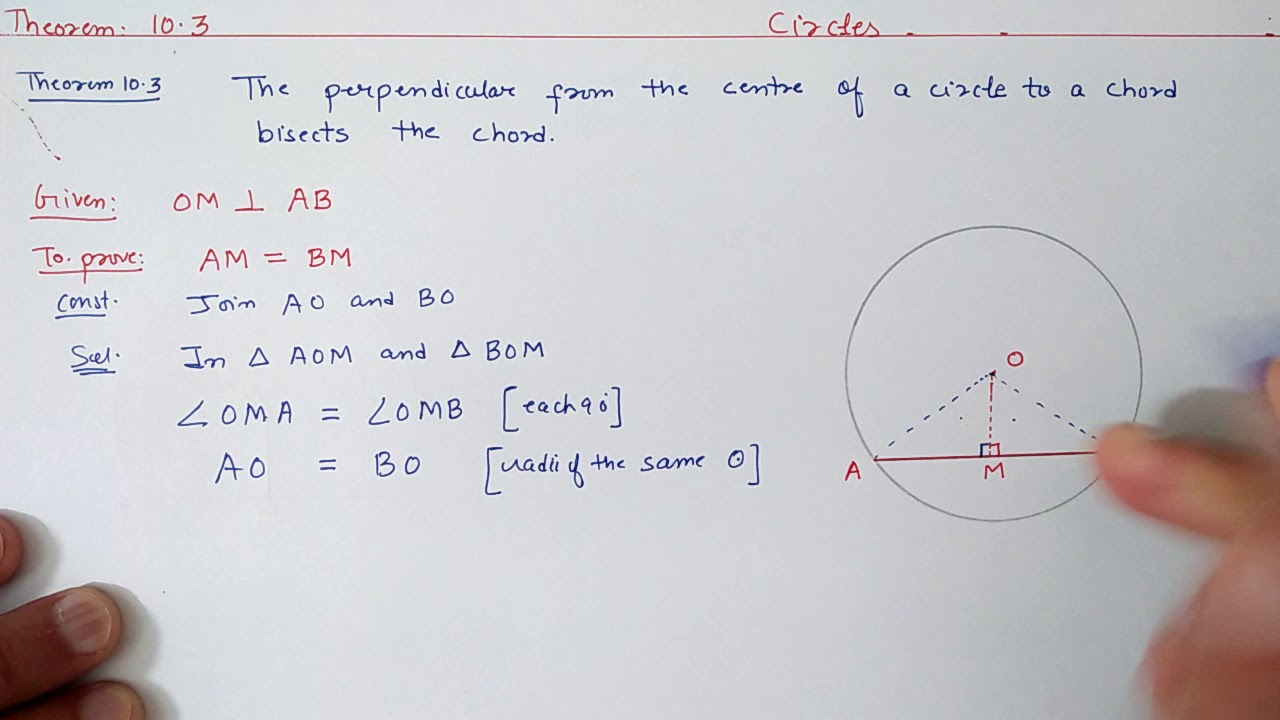

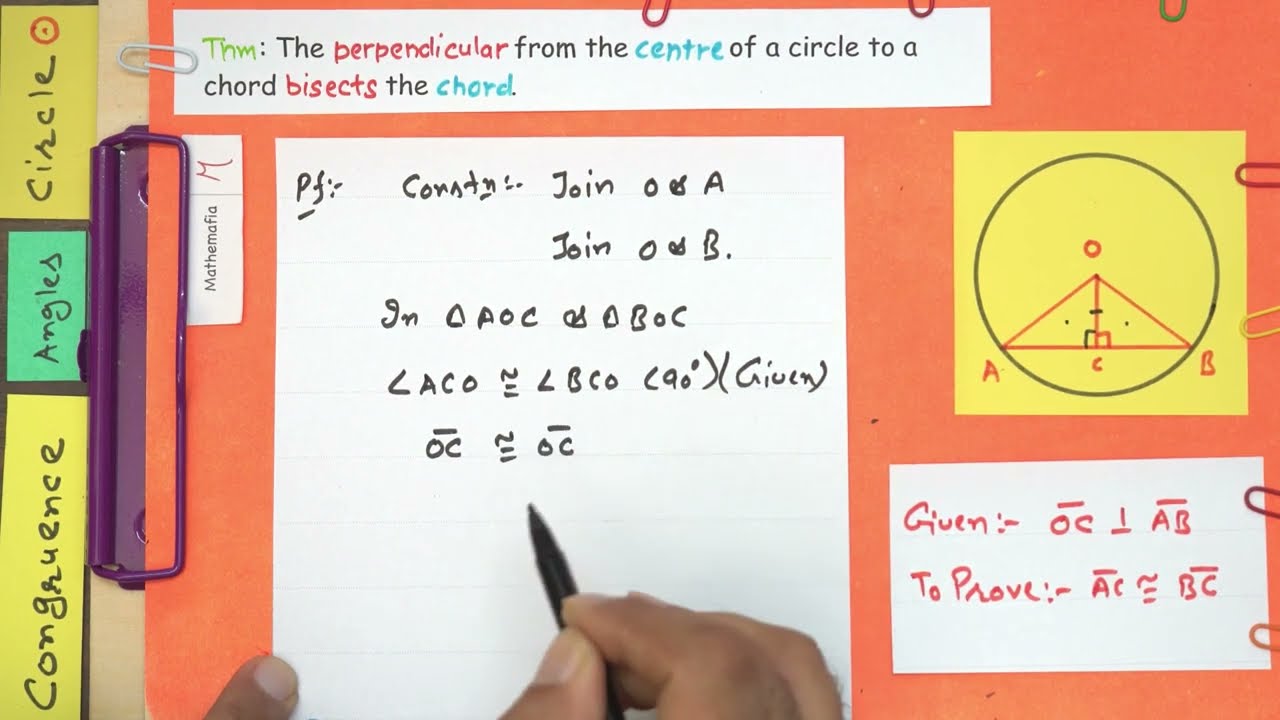

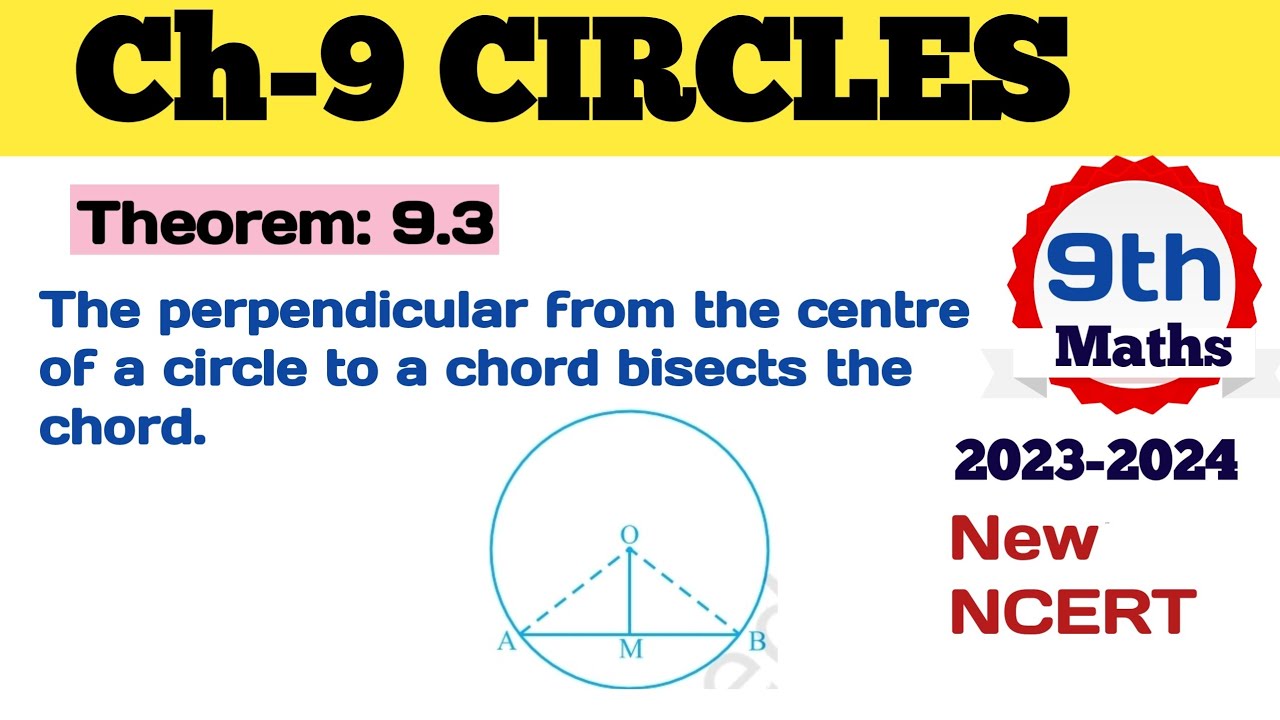

Create a free accountTheorem 9.3: The perpendicular from the centre of a circle to a chord bisects the chord.
Detailed Explanation
The theorem states that if you draw a line from the center of a circle to a chord and that line is perpendicular to the chord, the point where it meets the chord divides the chord into two equal parts. This means that if OM is perpendicular to AB, then MA = MB, which shows that M is the midpoint of chord AB.
Examples & Analogies
Think of a seesaw that has a pivot point in the center. If two children sit on opposite sides of the seesaw and they are both sitting the same distance from the center, the seesaw will be balanced. Just like how the seesaw balances when something equal is on both sides, the chord is bisected into two equal lengths.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.

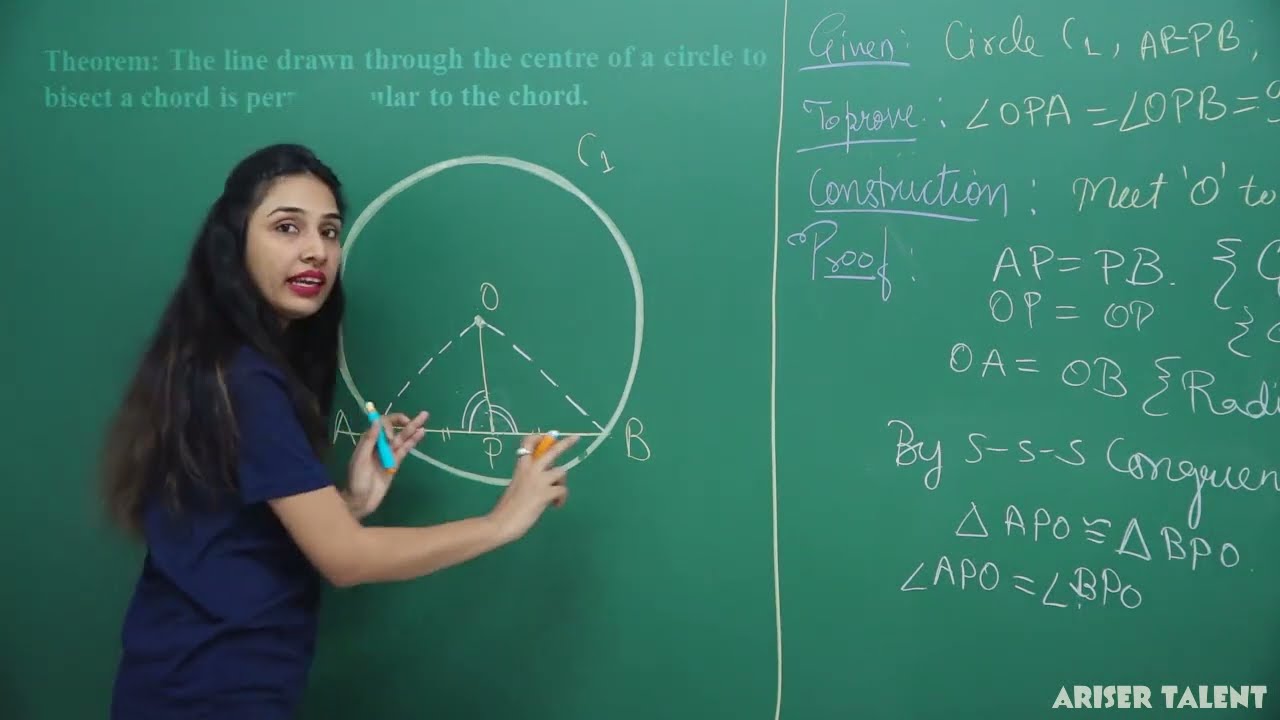

Create a free accountThe converse of this theorem states: The line drawn through the centre of a circle to bisect a chord is perpendicular to the chord.
Detailed Explanation
Conversely, if you have a chord and know that a line from the center bisects it, this theorem tells us that this line must be perpendicular to the chord at the midpoint. This emphasizes the special relationship between the chords and the center of the circle.
Examples & Analogies
Imagine you have a piece of string hanging down in a perfectly vertical position, representing the line from the center. If you wanted to divide that string at its exact center and the pieces were of equal length, then it must drop straight down at a right angle to the surface on which it hangs—a very similar principle to our theorem.
Unlock the audio lesson
The script is above and free to read. A free account plays it back, in the voice you pick.
Create a free accountYou have to prove that OM ⊥ AB. Join OA and OB. In triangles OAM and OBM, OA = OB (Radii of a circle), AM = MB (From the midpoint), OM = OM (Common). Therefore, ∆OAM ≅∆OBM (How?) This gives ∠OMA = ∠OMB = 90°.
Detailed Explanation
Here, we are demonstrating a proof to show that when we know the line from the center bisects the chord, then it is indeed perpendicular. By constructing triangles and showing that they are congruent through the sides and the included angles, we conclude that both angles at the endpoints of the segment must be right angles, proving our original claim.
Examples & Analogies
Consider folding a sandwich perfectly in half. If both halves are equal and sit perfectly over each other, they create a balanced and symmetrical effect—similar to how the angles are also balanced when we draw the perpendicular from the center in the circle.
--
Key Concepts
Examples
Step-by-step examples to apply the section's ideas and test your understanding.
{'example': 'Given a circle with center O and a chord AB, if OM is perpendicular to AB, prove that AM = MB.', 'solution': 'Since OM is perpendicular, triangles OMA and OMB are congruent by the Hypotenuse-Leg theorem. Therefore, AM = MB.'}
{'example': 'If chords AB and CD are equal and both are equidistant from the center, prove they are equal.', 'solution': 'Since they are equidistant from the center, both will have the same length by Theorem 9.6.'}
