11.5. Applications of Ultrasound

Ultrasounds are high frequency waves. Ultrasounds are able to travel along well-defined paths even in the presence of obstacles. Ultrasounds are used extensively in industries and for medical purposes.

Ultrasound refers to sound waves that have a higher frequency than what the human ear can detect, typically above 20 kHz. These waves have unique properties that allow them to travel through different media, including liquids, solids, and gases. Their ability to navigate around obstacles makes them particularly useful in various industrial and medical applications. In industries, ultrasound can be employed for cleaning and detecting material defects, while in medicine, it plays a crucial role in diagnostics.

Imagine using a flashlight in a dark room. Just as the beam of light can illuminate corners and reach around objects, ultrasound can penetrate various substances to provide information about their internal structure, assisting doctors or engineers in their assessments.

Ultrasound is generally used to clean parts located in hard-to-reach places, for example, spiral tube, odd shaped parts, electronic components, etc. Objects to be cleaned are placed in a cleaning solution and ultrasonic waves are sent into the solution. Due to the high frequency, the particles of dust, grease and dirt get detached and drop out. The objects thus get thoroughly cleaned.

Ultrasonic cleaning utilizes high-frequency sound waves that create high-frequency vibrations in a cleaning solution. When these vibrations travel through the solution, they agitate the liquid and cause cavitation bubbles, which collapse violently to create powerful cleaning action. This is particularly effective for intricate parts like jewelry or delicate electronic components that might be damaged by traditional cleaning methods.

Think of how a washing machine uses water to clean clothes. Now, imagine if instead of moving the clothes with water, bubbles were formed that gently scrub all surfaces clean - this is what ultrasonic cleaning does on a microscopic level.

Ultrasonic waves are made to reflect from various parts of the heart and form the image of the heart. This technique is called 'echocardiography'.

Echocardiography is a non-invasive diagnostic tool that uses ultrasound waves to create detailed images of the heart's structure and function. The ultrasonic waves are sent from a machine, and when they hit the heart, they echo back. These echoes are captured and processed to produce images that visualize the heart's chambers, valves, and blood flow, assisting healthcare professionals in diagnosing heart conditions.

Imagine using sonar to map the underwater terrain while fishing. Just as sonar pings send out waves that bounce back to create an image of the seabed, echocardiography uses similar principles to visualize the heart's anatomy without any invasive procedures.

Ultrasound scanner is an instrument which uses ultrasonic waves for getting images of internal organs of the human body. A doctor may image the patient's organs, such as the liver, gall bladder, uterus, kidney, etc. It helps the doctor to detect abnormalities, such as stones in the gall bladder and kidney or tumours in different organs.

An ultrasound scanner emits ultrasonic waves that penetrate the body and reflect off tissues. The scanner processes these echoes to create real-time images of the organs, assisting doctors in diagnosing conditions like tumors, cysts, or gallstones. This method is favored because it does not involve radiation, making it safer for patients.

Consider how a bat uses echolocation to navigate in the dark—sending out calls and interpreting the returning echoes to understand its surroundings. Similarly, ultrasound imaging allows doctors to visualize the internal landscape of the body.

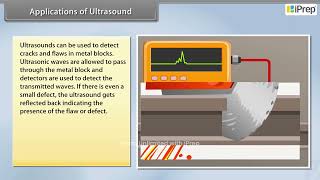

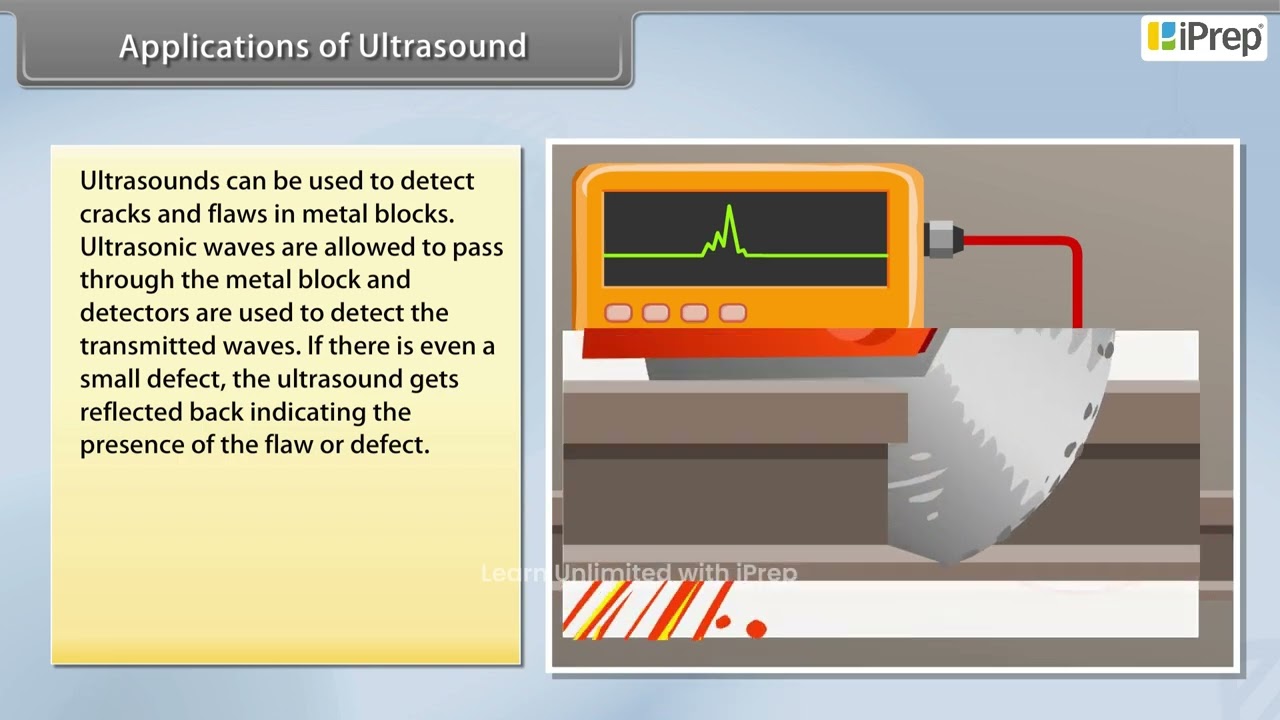

Ultrasounds can be used to detect cracks and flaws in metal blocks. Metallic components are generally used in the construction of big structures like buildings, bridges, machines and also scientific equipment. The cracks or holes inside the metal blocks, which are invisible from outside, reduces the strength of the structure. Ultrasonic waves are allowed to pass through the metal block and detectors are used to detect the transmitted waves. If there is even a small defect, the ultrasound gets reflected back indicating the presence of the flaw or defect.

In industrial applications, ultrasonic testing is a non-destructive testing method used to identify internal flaws in metal structures. When ultrasonic waves are sent through the material, they travel at a specific speed. If there are no flaws, the waves will pass through smoothly. However, if there are cracks or other imperfections, the waves will be reflected back. This method is crucial for ensuring the integrity and safety of large structures.

Think about using a metal detector to find hidden treasure. Just as the metal detector identifies changes in the magnetic field when metal is nearby, ultrasonic testing reveals structural integrity by showing changes in how ultrasound waves behave as they encounter flaws.

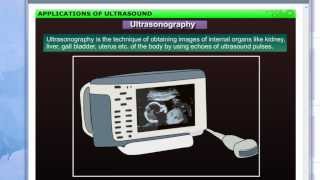

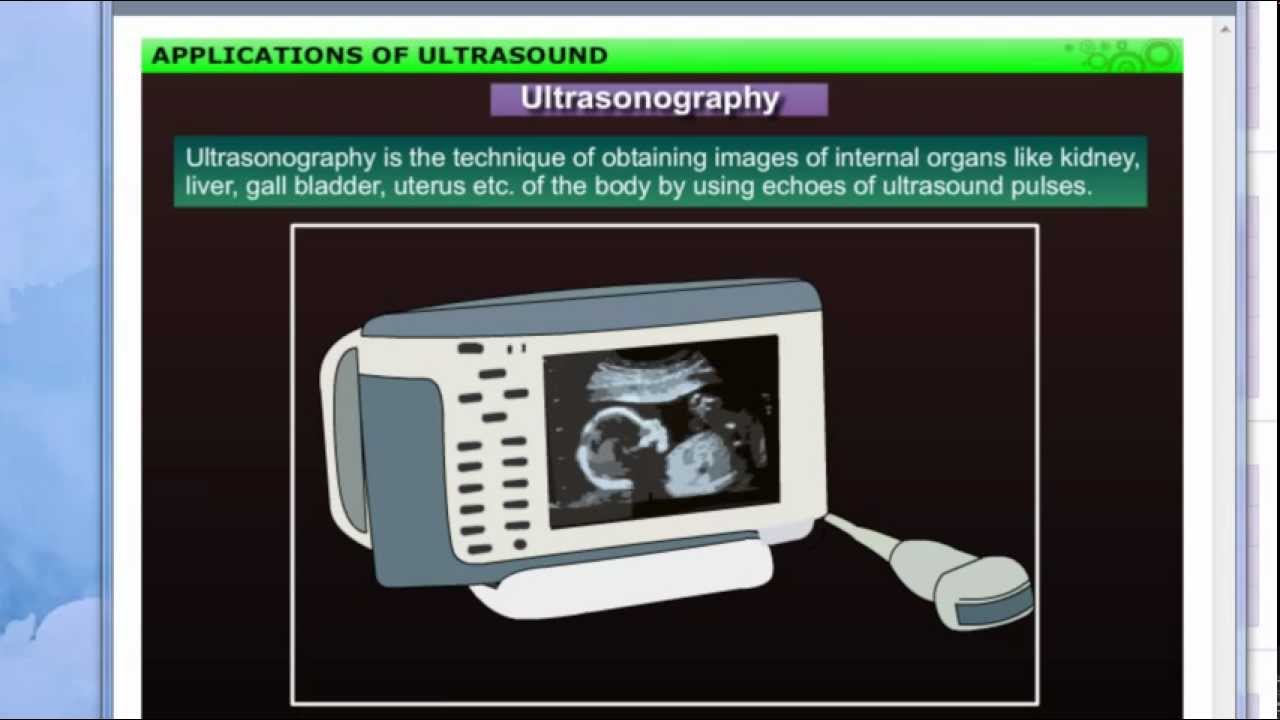

These waves are then converted into electrical signals that are used to generate images of the organ. These images are then displayed on a monitor or printed on a film. This technique is called 'ultrasonography'. This technique is also used for the examination of the foetus during pregnancy to detect congenital defects and growth abnormalities.

In addition to imaging internal organs, ultrasonography is widely used in prenatal care. During pregnancy, ultrasound scans allow doctors to visualize the developing fetus, assess its growth, and identify any potential health issues. This is done by applying a gel on the mother's abdomen and using a transducer that emits ultrasound waves, capturing reflections from the fetus.

Picture the way a camera captures images by reflecting light off various surfaces. Similarly, ultrasound captures images of a baby inside the womb, providing parents and doctors a window into the pregnancy journey.

Ultrasound may be employed to break small 'stones' formed in the kidneys into fine grains. These grains later get flushed out with urine.

Ultrasound can be used in a treatment called lithotripsy, which breaks down kidney stones into tiny pieces, allowing them to be more easily passed through the urinary tract. The ultrasonic waves target the stones, generating shock waves that fracture them, alleviating pain and discomfort for the patient.

Think about using a hammer to break a tough nut—once broken, the smaller pieces are easier to remove. Similarly, ultrasound acts like a gentle yet powerful tool that breaks apart kidney stones, making it easier for the body to eliminate them.

--
