Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Workability
Unlock Audio Lesson
Workability defines how easily we can mix, transport, place, and compact concrete. It is crucial because low workability can lead to performance issues.
What factors influence workability the most?
Great question! The water-cement ratio is key, but aggregate shape, size, and even ambient conditions also play significant roles.
Can you explain why water-cement ratio matters?
The water-cement ratio affects the concrete's fluidity. More water generally means greater workability, but too much can weaken the final structure. Remember: less water = stronger concrete!
So, how do we measure workability?
We use tests like the slump test, which gives us a quick visual indication of workability. What's interesting is that there are different types of slump!
What types are there?
There are three: true slump, shear slump, and collapse slump. A true slump is what we want—uniform subsidence. Remember, 'True is the ideal, shear shows lack of cohesion, and collapse means crisis!'
In summary, ensure to maintain the right water-cement ratio to achieve optimal workability, and rely on standardized tests like the slump test for evaluations.
Testing Workability
Unlock Audio Lesson
Let's delve into the various tests for measuring workability. The first, the - slump test, is the most widely used.
What's the equipment we need for that test?

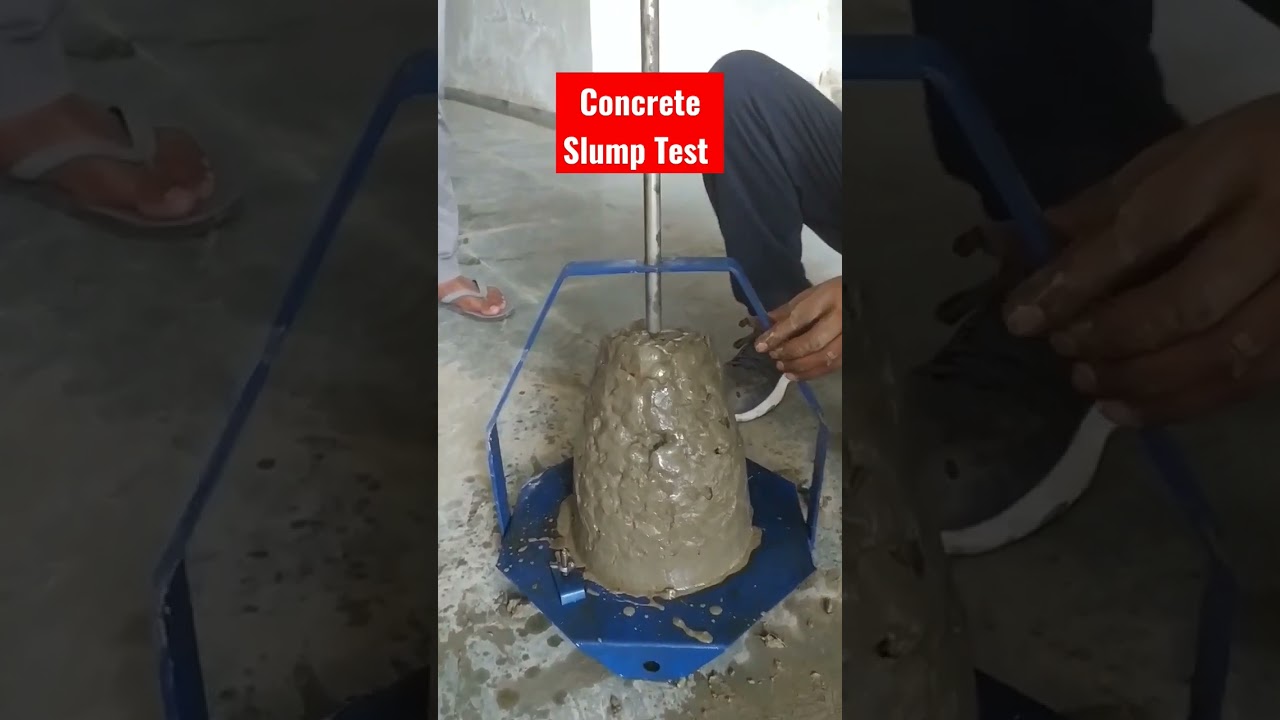

The apparatus includes a slump cone and a tamping rod. The procedure involves filling in layers and measuring the slump after removing the cone.
What about other tests?
Another is the compacting factor test, which is particularly useful for low workability mixes. This one involves weighing partially versus fully compacted concrete.
Can you tell us how the flow table test works?
Absolutely! The flow table test is meant for very high workability mixes, measuring how far a concrete mix can spread when shaken. A memorable tip is: 'Flow shows how freely concrete goes!'
Are there any limitations to these tests?
Yes, for instance, the slump test isn't very effective for very low or very high workability mixes. It’s essential to choose the right test for accurate assessment.
In summary, understanding each test's specific use, limitations, and proper equipment is vital for determining concrete's workability.
Field Application and Acceptance Criteria
Unlock Audio Lesson
Now that we understand how to test workability, let’s talk about its practical applications.
How do we decide on the appropriate slump values?
The IS codes guide us. For example, 25–75 mm for mass concrete and up to 150 mm for pumped concrete. We target these based on structural application.
What if a batch fails the slump test?
In that case, we need to investigate anything that could have led to a faulty mixture! Record keeping is essential for transparency and identifying any persistent problems.
What challenges might arise in real field applications?
Common issues include segregation during pumping or rapid slump loss due to high temperatures. We can mitigate this with the right admixtures!
So, is monitoring workability ongoing?
Exactly! Continuous monitoring is critical. 'Track, fix, optimize’ should be our mantra for successful concrete application.'
In summary, applying the right acceptance criteria and conducting regular assessments ensures high-quality concrete in constructions.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Fresh concrete exhibits key properties such as workability, consistency, cohesiveness, segregation, bleeding, and harshness, all of which are critical for effective handling and finishing. Various tests, including the slump test and flow table test, are mentioned as standardized methods for assessing workability, while IS standards guide their execution.
Detailed
Fresh Concrete – Properties and Workability Tests (IS Standards)
Fresh concrete is characterized by its plastic state, which is crucial for effective placement and finishing in construction. The properties of fresh concrete include:
Properties of Fresh Concrete
- Workability: Ease of mixing and placement affected by factors like water-cement ratio and temperature.
- Consistency: Measurement of how fluid the mix is, impacting ease of placement.
- Cohesiveness: Resistance to segregation and bleeding during handling.
- Segregation: Separation of coarse aggregates from cement mortar, often due to improper handling.
- Bleeding: Water emergence on the surface post-placement, which can weaken the structure.
- Harshness: Difficulty in finishing due to poor mix design.
Workability Tests (As per IS Standards)
Standardized tests such as the slump test and compacting factor test are essential for assessing workability. Each test method features specific apparatus and procedures:
- Slump Test: Evaluates the consistency of fresh concrete with three classification types of slump (true, shear, collapse).
- Compacting Factor Test: Ideal for low workability assesses compaction accuracy.
- Flow Table Test: Used for very high workability mixes to measure flow capacity.
Each test has limitations, with specific IS codes (notably IS 1199) guiding their methodology. Furthermore, factors affecting workability include the water-cement ratio, aggregate grading, and temperature, which all influence the concrete’s performance at the job site.
Acceptance Criteria and Field Applications
Acceptable slump ranges guide the use of concrete based on structural applications, emphasizing the importance of testing frequency and meticulous record keeping. Special considerations are necessary for unique mixtures like self-compacting concrete and various admixtures play significant roles in optimizing performance.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Fresh Concrete
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Fresh concrete refers to the concrete mixture in its plastic state—just after mixing and before setting begins. At this stage, concrete should be workable, cohesive, and homogeneous so that it can be placed, compacted, and finished effectively without segregation or excessive bleeding. The properties of fresh concrete directly affect the durability, strength, and finish of the final structure. To ensure quality and consistency, various standardized workability tests are employed, guided by Indian Standards, mainly IS 1199 (1959): Methods of Sampling and Analysis of Concrete.
Detailed Explanation
Fresh concrete is the stage of concrete before it sets, meaning it is still in a malleable state, allowing for manipulation during construction. Workability at this point is essential; it needs to be easy to handle, cohesive (sticking together well), and uniform in composition. If these conditions aren’t met, the concrete can suffer from problems like separation of materials (segregation) or excessive water remaining on the surface (bleeding), which can ultimately affect the strength and durability of the finished structure. The standards set by IS 1199 (1959) serve as guidelines to ensure concrete is tested for these properties consistently.
Examples & Analogies
Think of fresh concrete like dough for baking bread. If the dough is too dry, it won’t rise properly, and if it’s too wet, it can be sticky and hard to handle. Just as the right balance of ingredients makes good dough, the ideal properties of fresh concrete ensure it can be effectively shaped and set into a strong structure.
Properties of Fresh Concrete
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Fresh concrete must exhibit specific characteristics for effective handling, placing, compaction, and finishing. The most crucial properties include: 1. Workability 2. Consistency 3. Cohesiveness 4. Segregation 5. Bleeding 6. Harshness.
Detailed Explanation
Each property of fresh concrete plays a crucial role in how it behaves during placement and setting. Workability indicates how easily the concrete can be mixed and placed. Consistency defines how fluid or stiff the mix is, affecting its placement ease. Cohesiveness measures how well the concrete holds together and resists separation. Segregation is undesirable separation of materials within the mix, while bleeding can weaken the surface. Harshness indicates how difficult the mix is to finish. Understanding these properties helps ensure a good quality end product.
Examples & Analogies
Consider making a smoothie. If your ingredients are well-blended, the smoothie pours easily (good workability). If it's too thick (low consistency), it may not flow into the glass well. Similarly, if the fruits aren't mixed properly, some might settle at the bottom (segregation), and you want to avoid that. Each property must be just right to achieve the desired drinkability, much like fresh concrete for construction.
Workability: Definition and Influencing Factors
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Workability is the ease with which concrete can be mixed, transported, placed, and compacted without segregation. It is a composite property influenced by: • Water-cement ratio • Aggregate shape, size, and grading • Admixtures • Ambient temperature IS Code Reference: IS 1199:1959 provides standard methods for assessing workability.
Detailed Explanation
Workability reflects the practical handling quality of fresh concrete and is paramount in construction. The water-cement ratio is foundational; too much water can weaken concrete, while too little makes it hard to work with. The shape, size, and grading of aggregates also affect how well concrete flows and is compacted. Additional admixtures can improve workability further, and environmental conditions like temperature play a role too. The IS 1199:1959 outlines standardized methods to measure and ensure desirable workability levels.
Examples & Analogies
Imagine filling a cup with sand. If you add too much water, the sand is too loose and pours out easily (high workability), but when it’s dry, it clumps and is hard to manage (low workability). In construction, just as you need the right amount of water for handling dry sand, the balance of ingredients in concrete determines its workability.
Common Workability Tests
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Various tests are employed to assess the workability of fresh concrete, including the slump test, compacting factor test, flow table test, and Vee-Bee consistometer test. Each test serves to provide a measure of how well the concrete can be worked with in actual construction scenarios.
Detailed Explanation
To ensure concrete's workability meets construction needs, several tests are performed. The slump test evaluates consistency and flow, the compacting factor test is better for low workability mixtures, the flow table test determines how fluid high-workability concrete is, and the Vee-Bee consistometer test assesses very stiff concrete. Together, these tests provide insight into how the concrete will behave on-site during application.
Examples & Analogies
Think of these tests like tasting food while cooking. A chef may taste the sauce (slump test) to see if it flows right, check the seasoning with a spoon (compacting factor test), see how well the ingredients combine (flow table test), and evaluate overall balance in the dish (Vee-Bee test). Each step ensures the final dish—like concrete—is suited for the desired outcome.
Factors Affecting Workability
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Several factors influence the workability of fresh concrete: • Water-Cement Ratio: Higher w/c ratio → increased workability • Aggregate Shape: Rounded → better workability; Angular → lower workability • Aggregate Size: Larger size → more workable mix • Grading of Aggregates: Well-graded → improved cohesiveness • Admixtures: Plasticizers/superplasticizers → improved flow without extra water • Temperature: High temp → rapid setting, reduced workability • Mixing Time and Method: Proper mixing → uniformity and better workability.
Detailed Explanation
The workability of fresh concrete can be affected by numerous factors, including the water-cement ratio, which directly impacts flow. Rounded aggregates offer better movement compared to angular ones, while larger aggregate sizes can also enhance workability. Proper grading allows for a cohesive mix, and admixtures can significantly improve workability without adding more water. The surrounding temperature can accelerate or hinder setting times, and effective mixing techniques ensure uniformity, which enhances workability.
Examples & Analogies
Consider baking cookies. If you use too much flour (low water-cement ratio), the dough will be dry and hard to shape. If your flour is too chunky (angular aggregates), mixing becomes difficult. Using well-sized, smooth flour makes mixing easier (better workability). Similarly, methods and conditions in construction affect the ease of working with concrete.
Acceptance Criteria for Workability
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Acceptance criteria for various types of concrete based on usage, such as mass concrete and reinforced sections, are defined to ensure correct workability during construction. Recommended target slump values vary significantly depending on the structural application according to IS 456:2000.
Detailed Explanation
Each type of concrete has established target slump values to determine acceptable workability. For example, mass concrete should have a slump of 25-75 mm, while reinforced sections require 75-100 mm. Pumped concrete needs a higher measurement of 100-150 mm. Monitoring these values during construction ensures the concrete mixture is appropriate for its intended use and will perform effectively in the final structure.
Examples & Analogies
Like adjusting a recipe for different types of cakes—some may need to be lighter and fluffier while others may be denser—it’s crucial to get the right slump values for various concrete uses to ensure it functions correctly in its application.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Workability: The ease of mixing, transporting, and placing concrete.
-
Consistency: Measurement of wetness or dryness of the concrete mix.
-
Cohesiveness: Ability of fresh concrete to resist segregation and maintain homogeneity.
-
Segregation: The undesirable separation of constituent materials within the concrete.
-
Bleeding: The water surface appearance after placement which may affect durability.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
If a concrete mix is too stiff, it may require more water, but this could weaken the final product.
-
High ambient temperatures can lead to rapid slump loss, which can be mitigated with retarders.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Keep your concrete mixed just right, too dry or wet will lead to a fight!
📖 Fascinating Stories
-
Imagine a chef trying to make bread. He adds just enough water for it to rise - too much, and it falls flat. This is just like the water-cement ratio in concrete!
🧠 Other Memory Gems
-
Use ‘WISC’ to remember: Water, Ingredients, Shape, Consistency - all affect workability!
🎯 Super Acronyms
Remember 'CREC' for Concrete Properties
- Cohesiveness
- Resistance
- Ease of flow
- Consistency.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Workability
Definition:
The ease with which concrete can be mixed, transported, placed, and compacted without segregation.
-
Term: Consistency
Definition:
The relative mobility or flowability of fresh concrete, indicating how wet or dry the mix is.
-
Term: Cohesiveness
Definition:
The ability of concrete to remain homogenous during mixing and handling.
-
Term: Segregation
Definition:
The separation of concrete constituents, especially coarse aggregates from the mortar.
-
Term: Bleeding
Definition:
The emergence of water on the surface of freshly placed concrete due to settlement.
-
Term: Harshness
Definition:
The resistance offered by concrete to finishing operations, often making it difficult to compact.
-
Term: Slump Test
Definition:
A test that measures the consistency and relative workability of fresh concrete.
-
Term: Compacting Factor Test
Definition:
A test that measures the workability for low workability concrete, more accurate than a slump test.
-
Term: Flow Table Test
Definition:
A test used to determine the flow of concrete of very high workability.
-
Term: VeeBee Consistometer Test
Definition:
A test used to determine the workability of very low slump concrete.
