1. Representation of Curves

Interactive Audio Lesson

Sessions

Session 1: Introduction to Curve Representations

Unlock the classroom podcast

The transcript is above and free to read. A free account plays the conversation back.

Create a free account

SarahInstructor

Today we’re diving into how curves are represented in CAD. Curves can be represented in three main forms: explicit, implicit, and parametric. What do you think is the most flexible method among these?

Noah

I think parametric form seems more flexible because it allows for manipulation with a variable 't'.

SarahInstructor

Exactly, great observation! Parametric representation allows us to define curves in a way that adapts easily to changes. Can anyone give me an example of explicit and implicit forms?

Isabella

For explicit, $y = f(x)$ makes sense, and for implicit, the circle can be represented as $x^2 + y^2 = r^2$ .

SarahInstructor

Great examples! Now let’s summarize – the explicit form has limited flexibility, while implicit forms are suitable for shapes like circles. Let’s remember the acronym EIP – Explicit, Implicit, Parametric. It can help you recall these types!

Session 2: Key Parametric Curves

Unlock the classroom podcast

The transcript is above and free to read. A free account plays the conversation back.

Create a free account

RobertInstructor

Let’s explore some key parametric curves. First, we have Hermite curves. Who can tell me how they are defined?

Akash

They are defined by two endpoints and tangent vectors, right?

RobertInstructor

Correct! Hermite curves are fantastic for making smooth transitions. Can you recall the significance of tangent vectors?

Ananya

They influence the direction and speed of the curve at the endpoints.

RobertInstructor

Yes! Excellent understanding. Now, let’s move on to Bézier curves. They are defined by control points. Does anyone know a key feature of Bézier curves?

Noah

The entire curve stays within the convex hull of the control points!

RobertInstructor

Exactly! That property makes Bézier curves popular in design. To remember these properties, use the mnemonic 'B for Bézier, B for Bounding'.

Session 3: Advanced Curves - B-splines and NURBS

Unlock the classroom podcast

The transcript is above and free to read. A free account plays the conversation back.

Create a free account

SarahInstructor

Now let’s discuss B-splines. Who can explain their main advantage?

Isabella

They allow local shape control, meaning changing one control point does not affect the entire curve.

SarahInstructor

Absolutely! And how do they differ from Bézier curves?

Akash

B-splines can have a higher degree and can support more control points without a significant increase in complexity.

SarahInstructor

Exactly! Lastly, NURBS curves are very powerful because they include weights for representing conic sections. Can someone summarize when we would prefer to use NURBS?

Ananya

NURBS are best for complex shapes that require precise geometric representation, like in aerodynamics.

SarahInstructor

Spot on! These concepts help in creating sophisticated CAD models.

Overview

Short Summary

This section explores the various representations of curves in CAD, focusing on explicit, implicit, and parametric forms, and highlights key types like Hermite, Bézier, B-spline, and NURBS curves.

Medium Summary

The representation of curves in CAD is fundamental for designing complex shapes and forms. The section outlines the three main ways to represent curves—explicit, implicit, and parametric. It describes key parametric curves such as Hermite curves, which aid in controlled transitions; Bézier curves, noted for their intuitive control points; B-splines, which allow local modifications; and NURBS, which are essential for precise geometric representations.

Detailed Summary

In Computer-Aided Design (CAD), the representation of curves is critical as it lays the groundwork for creating intricate shapes and surfaces. This section categorizes curve representations into three primary forms:

Explicit Form: Defined as a direct equation such as $y = f(x)$ , it offers limited flexibility in depicting curves.
Implicit Form: Expressed in the form $F(x, y) = 0$ , it is useful for defining curves like circles and ellipses.
Parametric Form: This is the most versatile approach, parametrizing curves using a variable $t$ such that $x = x(t)$ and $y = y(t)$ . It allows for efficient manipulation and representation of any curve shape.

Key Parametric Curves in CAD

Hermite Curves: These curves are defined by endpoints and tangent vectors, making them excellent for smooth transitions in animations and local modifications. The equation is: $C(t) = h_1(t)P_0 + h_2(t)P_1 + h_3(t)T_0 + h_4(t)T_1$ where $P_0, P_1$ are endpoints, and $T_0, T_1$ are tangents.
Bézier Curves: Defined by a set of control points, Bézier curves ensure the curve starts at $P_0$ and ends at $P_n$ , never leaving the convex hull of the control points. The equation is: $B(t) = \sum_{i=0}^{n} {n \choose i} (1-t)^{n-i} t^i P_i$ . They are widely used in graphic design and CAD.
B-spline Curves: A generalization of Bézier curves allowing local shape control through control points, degree $p$ , and a knot vector. The equation is: $C(t) = \sum_{i=0}^{n} N_{i,p}(t) P_i$ . They offer high flexibility and degree control.
Rational Curves (NURBS): The most general form of curves, incorporating weights that allow exact representations of conic sections. Its representation is: $C(t) = \frac{\sum_{i=0}^{n} N_{i,p}(t) w_i P_i}{\sum_{i=0}^{n} N_{i,p}(t) w_i}$ . NURBS are widely utilized in modern CAD to represent complex shapes.

Mastering these representations empowers designers and engineers to create precise and sophisticated 3D models.

Reference YouTube Videos

Audio Book

Voice:

Playlist

Importance of Curves in CAD

Unlock the audio lesson

The script is above and free to read. A free account plays it back, in the voice you pick.

Create a free account

Curves in CAD are essential for creating complex shapes and forms.

Detailed Explanation

Curves play a critical role in Computer-Aided Design (CAD) because they serve as the basic building blocks for crafting intricate designs and models. Rather than simply relying on straight lines, curves allow designers to replicate the natural fluidity and variety found in the real world, enabling the creation of objects like car bodies, architectural features, and product designs that more closely resemble their physical counterparts.

Examples & Analogies

Think of drawing: if you only used a ruler, you could only create rectangles and straight lines. But using a pencil, you can sketch rounded edges and intricate designs like leaves or flowers, which are much more appealing and realistic. Similarly, in CAD, curves provide the flexibility needed to create beautiful, complex shapes.

Methods of Representing Curves

Unlock the audio lesson

The script is above and free to read. A free account plays it back, in the voice you pick.

Create a free account

They can be represented in several ways: Explicit Form: $y = f(x)$ (limited flexibility) Implicit Form: $F(x, y) = 0$ (for circles, ellipses, etc.) Parametric Form: Most versatile, uses a parameter $t$ so that $x = x(t)$ , $y = y(t)$ .

Detailed Explanation

Curves can be expressed in different mathematical forms, each having its own advantages. The explicit form, like $y = f(x)$ , defines $y$ directly in terms of $x$ , which is quite limited when it comes to representing more intricate shapes. The implicit form, such as $F(x, y) = 0$ , allows for shapes like circles and ellipses to be defined without specifying $y$ explicitly. However, the parametric form, where both $x$ and $y$ are described using a parameter $t$ , is the most flexible. This method allows curves to be defined in a way that better captures their complex nature and makes manipulation easier, which is particularly useful in CAD.

Examples & Analogies

Consider how you might describe a route on a map. An explicit form would be inadequate to capture winding roads, but if you use a series of coordinates along a route (like giving a friend turn-by-turn directions), it reflects the actual path much better. Similarly, the parametric form gives a more realistic and flexible representation of curves.

Advantages of Parametric Form

Unlock the audio lesson

The script is above and free to read. A free account plays it back, in the voice you pick.

Create a free account

Ideal for CAD since any curve shape can be described and manipulated efficiently.

Detailed Explanation

The parametric form's flexibility allows designers to create virtually any shape they envision. By controllably adjusting the parameter $t$ , designers can move along the curve, enabling dynamic changes without needing to redefine the entire curve. This adaptability is particularly important in CAD where iterative design and modifications are common workflows.

Examples & Analogies

Imagine a sculptor shaping a piece of clay. Instead of starting again each time they want to change a small part, they can just push or pull areas as needed. The way parametric curves are defined allows designers similar control over their constructions, making it easy to refine and evolve the design.

Key Concepts

Core takeaways and short definitions to help you quickly recall the key ideas from this section.

Explicit Form: Limited flexibility in curve representation.

Implicit Form: Useful for defining simple geometric shapes.

Parametric Form: Most versatile, enables dynamic manipulation.

Hermite Curves: Defined by endpoints and tangent vectors.

Bézier Curves: Governed by control points, significant for design consistency.

B-spline Curves: Flexible representation allowing local modifications.

NURBS: The most general curve form including weights and knots.

Examples

Step-by-step examples to apply the section's ideas and test your understanding.

A Hermite curve could be used to model the path of an object in animation, controlled by specific tangents.

A Bézier curve is often employed in graphic design software to create smooth curves between multiple control points.

Memory Aids

Interactive tools to help you remember key concepts

🎵

Rhymes

Curves can be explicit or implicit too, but parametric forms let creativity break through!

📖

Stories

Imagine building a roller coaster. Explicit curves give you the start, but parametric lets you twist and turn with ease, ensuring every loop is just right!

🧠

Memory Tools

Remember EP for Explicit/Parametric and I for Implicit. They represent the kinds of curves you’ll see in CAD!

🎯

Acronyms

EIP

Explicit

Implicit

Parametric. These forms of curves help in design and articulation.

Flash Cards

Term

What is an explicit form of a curve?

Definition

It is defined as y = f(x).

Term

What are Hermite curves used for?

Definition

They are used for smooth transitions in animations.

Term

What is unique about NURBS?

Definition

They can accurately represent complex shapes through weights and knots.

Glossary

Explicit Form

A curve representation defined directly by an equation such as y = f(x).

Implicit Form

A curve representation defined by an equation F(x, y) = 0, often used for simple shapes like circles.

Parametric Form

A representation of a curve where both x and y are expressed as functions of a third variable, typically 't'.

Hermite Curve

A parametric curve defined by points and tangents, useful for smooth transitions.

Bézier Curve

A parametric curve defined by control points, staying within the convex hull of these points.

Bspline Curve

A generalization of Bézier curves allowing flexibility in local shape control with multiple control points.

NURBS

Non-Uniform Rational B-Splines; the most flexible and general form of curves which can represent complex shapes accurately.

Reference Links

Introduction to Curves and Surfaces in CADweb

What are B-Splines?web

Interactive Bézier Curve Tutorialweb

Learn Content

1. Representation of Curves

Interactive Audio Lesson

Overview

Short Summary

Medium Summary

Detailed Summary

Detailed Summary

Key Parametric Curves in CAD

Reference YouTube Videos

Parametric Representation of Analytic Curve | CAD | Computer Aided Design

Parametric & Non Parametric Representation of Curve - Technique For Geometric Modeling - CAD/CAM/CAE

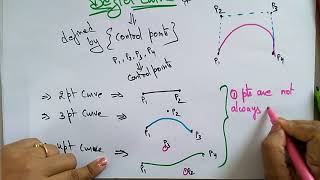

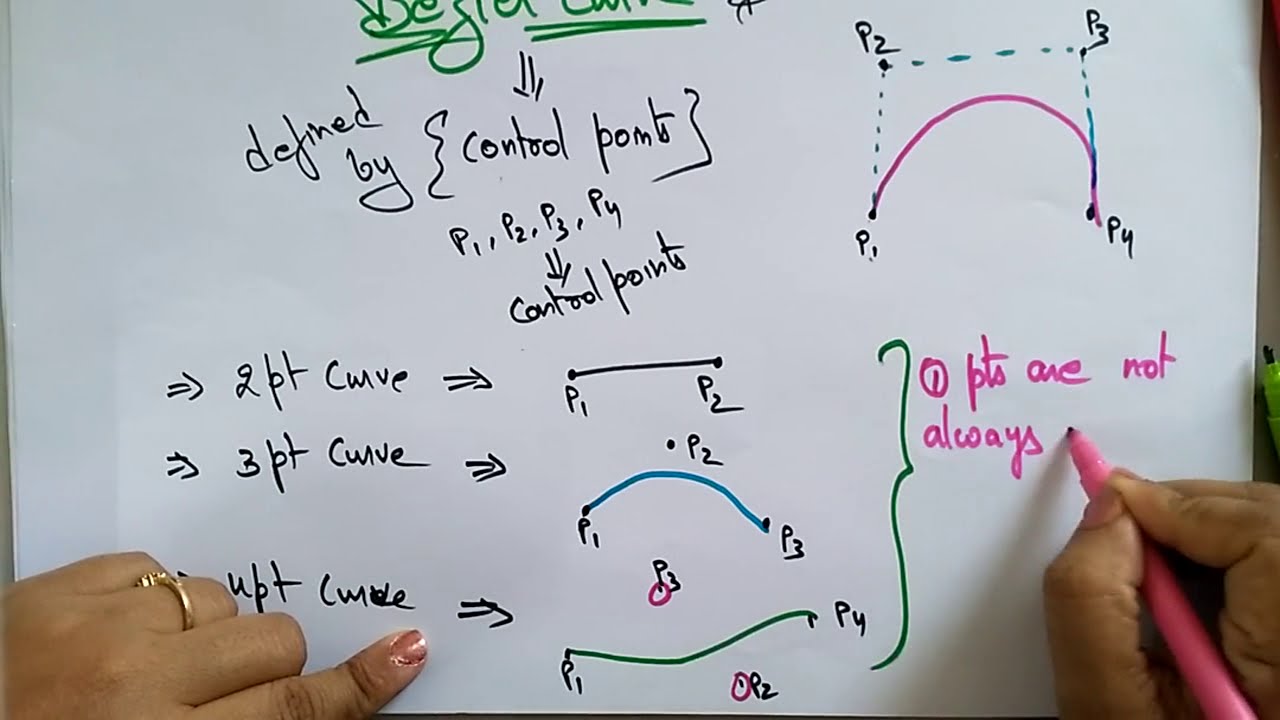

Bezier Curve in Computer Graphics | Introduction | Types | CG | Lec-41 | Bhanu Priya

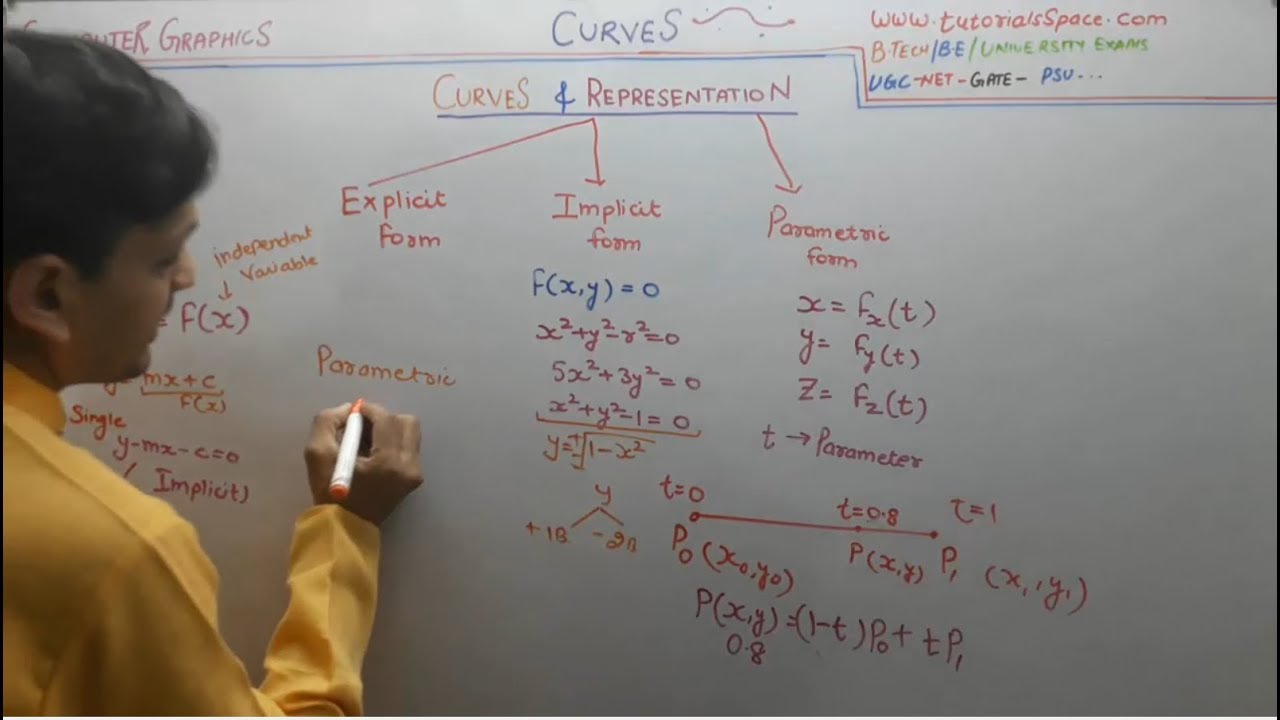

80- What Is Exactly A Curve And Its Representation In Computer Graphics In Hindi | Curves In CG
