Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Understanding Driving Stresses
Unlock Audio Lesson
Today, we're going to talk about the stresses that piles, especially precast and concrete piles, endure during driving. Can anyone tell me why it’s important to manage these stresses?
Maybe because if they are too high, the piles could break or fail?
Exactly, great point! High driving stresses can lead to severe damage. So what do you think we can do to protect them?
Could we use cushioning material?
Yes! Using materials like wood timber cushions helps absorb the shock. Remember: 'Cushioning is key to protection.' Let's note that down.
Cushioning Materials
Unlock Audio Lesson
Now, let’s discuss the cushioning materials. What’s a typical thickness we should maintain?
Is it at least 10 centimeters?
Correct! It's crucial not to go below that. Why do you think we should replace the cushions regularly?
Because they wear out from repeated use and won’t absorb shock properly?
Exactly! Regular maintenance is essential to ensure they are effective. Good job!
Driving Stress Management Techniques
Unlock Audio Lesson
Let’s talk about managing driving stresses during installation. What do we know about hammer weight and drop height?
We should prefer a heavier hammer but a shorter height to reduce impact velocity.
Right! A heavier hammer provides more energy without increasing impact velocity, which protects the pile. Can anyone express this relationship in a formula?
The formula involves hammer weight and height of fall, but I can’t recall the exact details.
Good attempt! The blow energy is indeed related to the weight and height, but we prioritize hammer weight. Let’s remember the acronym 'H.E.R.O.' - Heavy hammer, Efficient energy, Reduced impact.
Calculating Safe Load using Engineering News Formula
Unlock Audio Lesson
Now, let’s engage with the Engineering News formula. Who can tell me what this formula helps us determine?
It determines the safe load on the piles and the driving energy needed, right?
Great! So, who remembers the relationship in the formula?
It's W times H over S plus 0.1, for a single acting hammer!
Precisely! Let's remember: 'Safe Load is a calculation of weight, height, and efforts.'
Factors Affecting Hammer Selection
Unlock Audio Lesson
Finally, let’s discuss factors that affect hammer selection. Who can name a few?
The weight and type of the pile!
And the soil type and conditions?
Excellent! Both pile and soil characteristics are fundamental to the selection process. The phrase 'Piles and soil work together' may help you remember this concept.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section explains how precast piles are subjected to significant handling and driving stresses, emphasizing the need for appropriate design. It highlights the use of cushioning materials to protect piles during installation and discusses optimal hammer weight and impact velocity to reduce damage.
Detailed
In the installation of piles, particularly precast and concrete piles, they endure high levels of driving stresses that can lead to failure if not managed appropriately. The section explains that these stresses are primarily a result of the handling and the driving process, which necessitates careful design considerations. To mitigate the driving stress, the introduction of cushioning materials, such as wood timber, is recommended. These cushions should be of a sufficient thickness, never below 10 centimeters, to absorb impacts during driving. Additionally, the section discusses that while increasing blow energy can be beneficial, it should be achieved by increasing the hammer's weight rather than the height of fall to avoid high impact velocities that can damage the brittle concrete piles. Important formulas, such as the Engineering News formula, are introduced for calculating safe load and hammer energy related to soil resistance, emphasizing the necessity for safety factors in design. Finally, factors governing the selection of pile hammers based on pile type and soil conditions are addressed, underscoring the importance of the equipment used in pile driving.

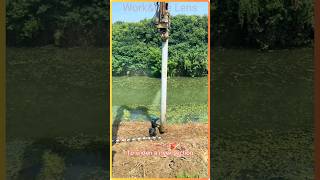

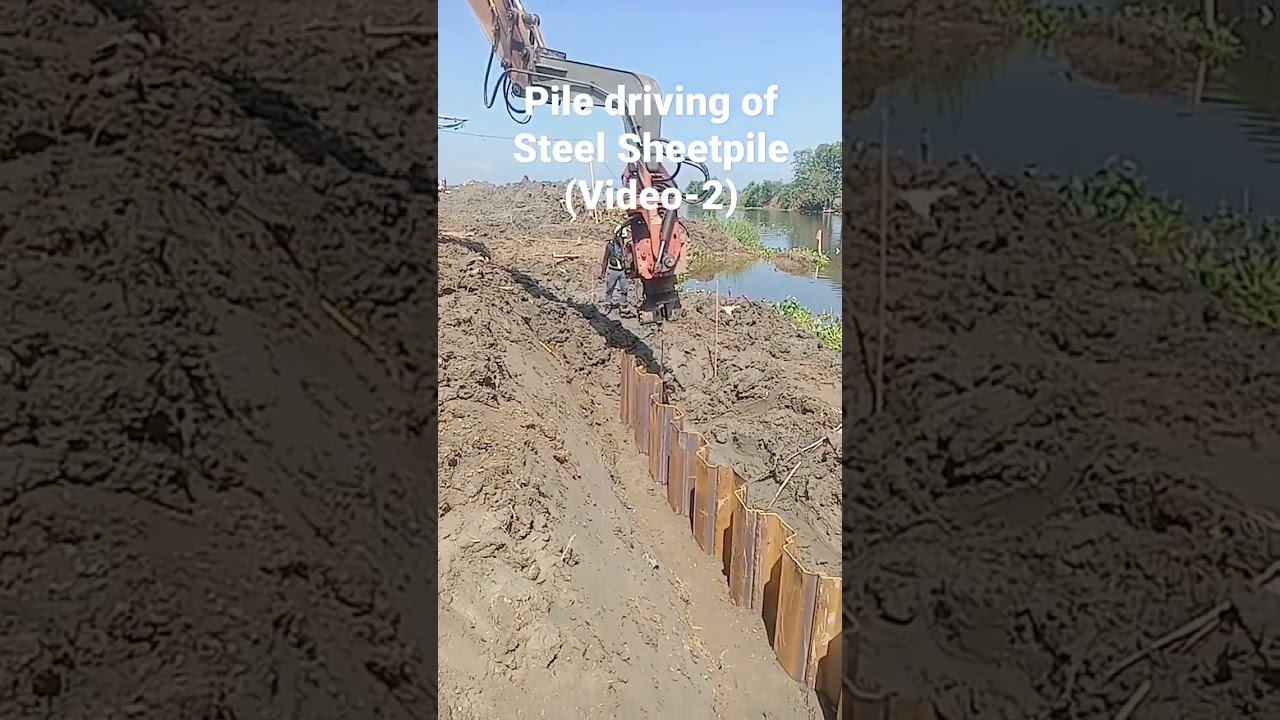

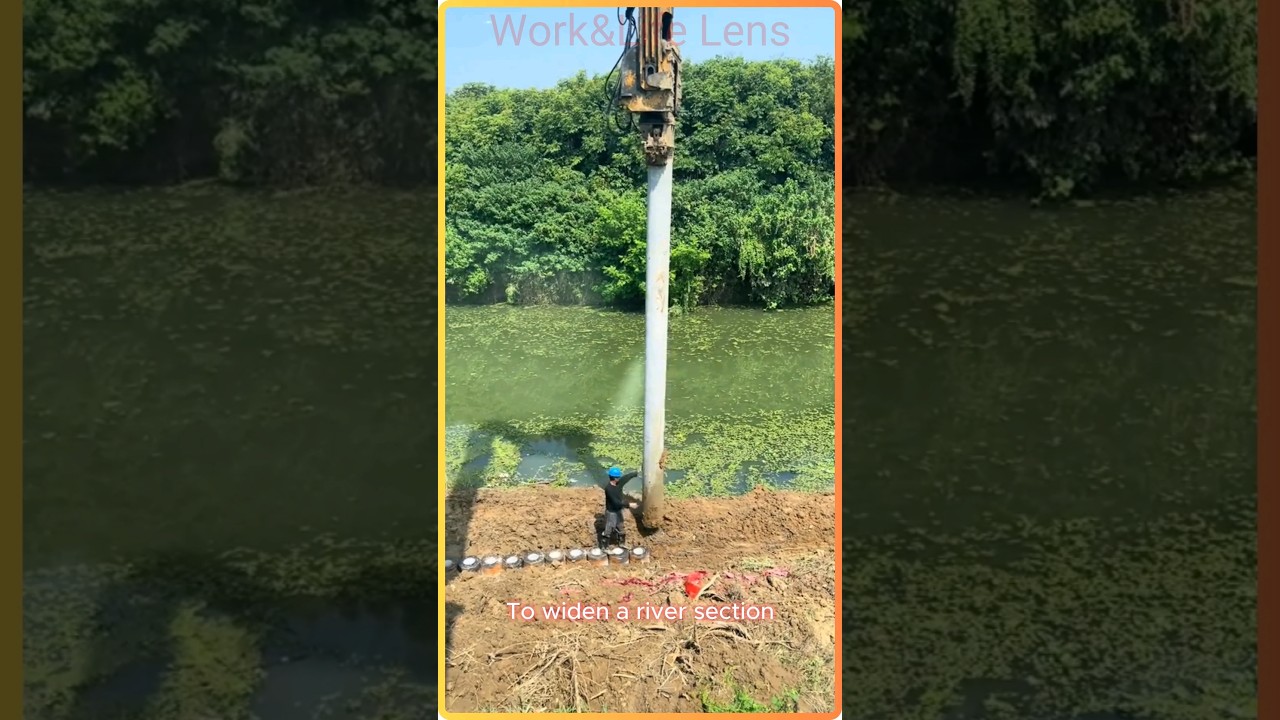

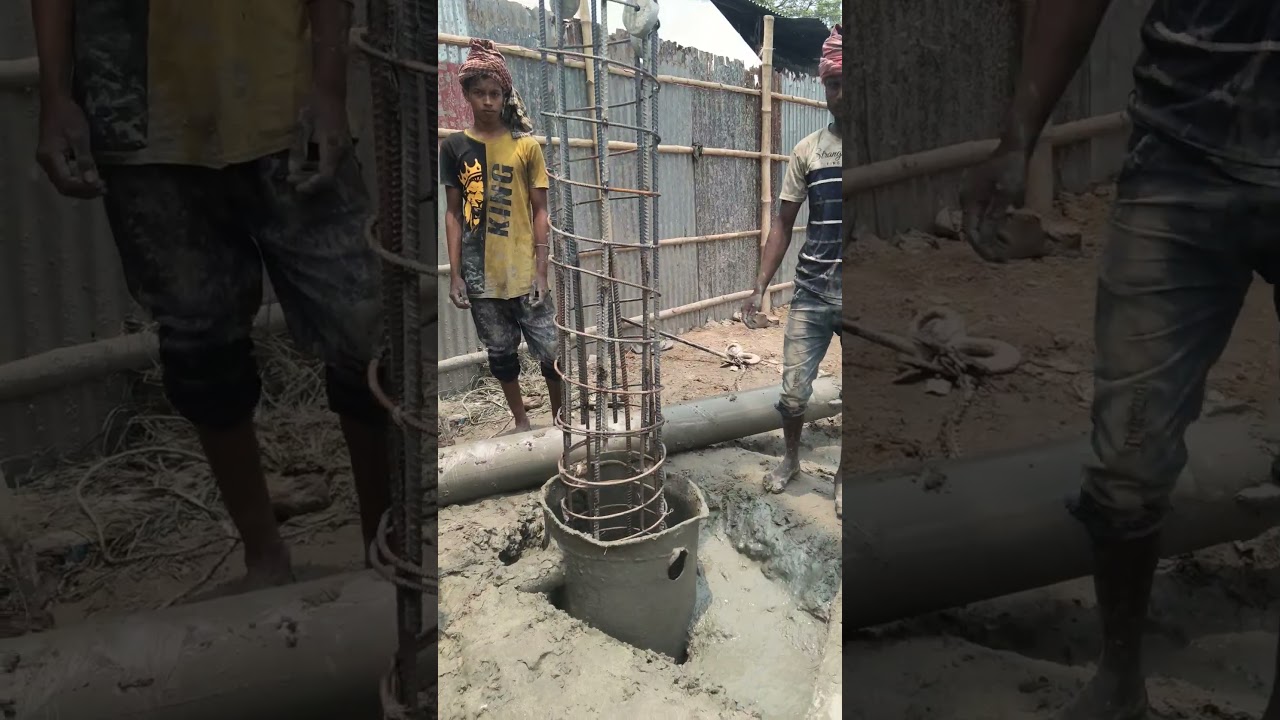

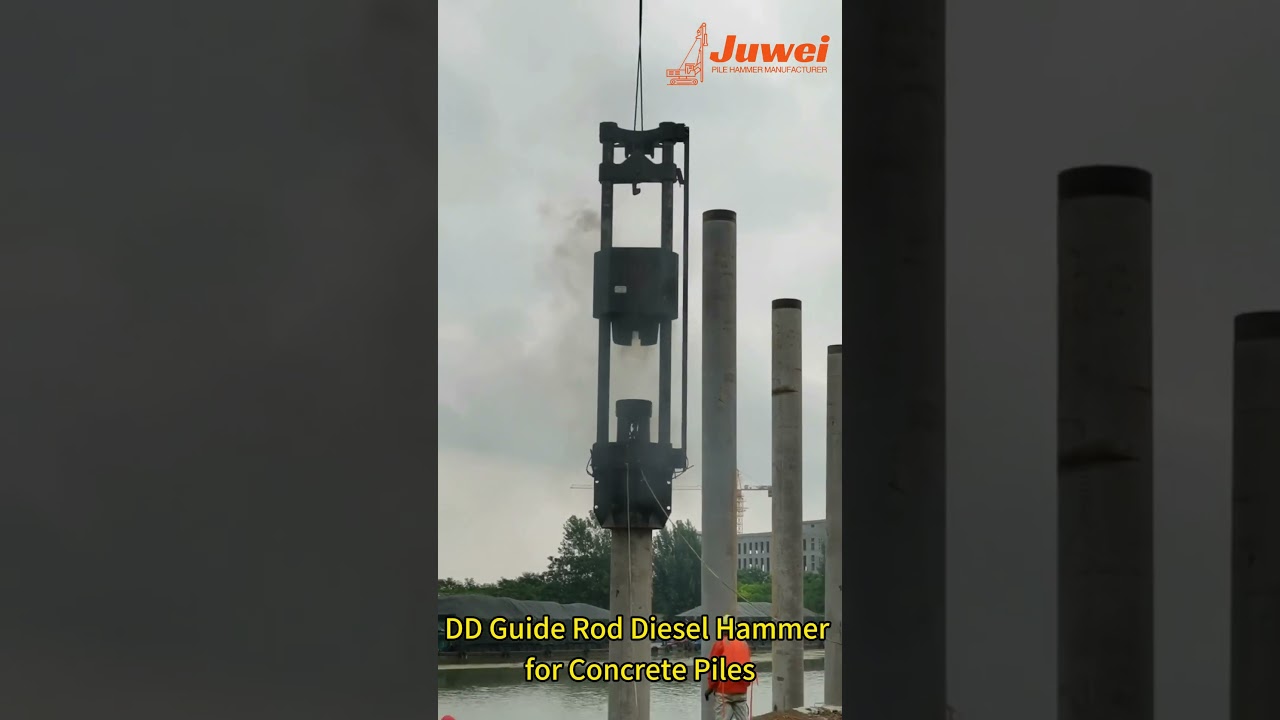

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Driving Stresses
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, everyone knows particularly the precast piles or likely to be subjected to more amount of stress while driving it. They are subjected to more amount of handling stresses as well as when you drive the pile into the ground they are subjected to more amount of driving stresses. That is why all the stresses should be taken into account when you design your pile. So, highest stress across in the pile mainly during it is driving than when compare to during it is service life.
Detailed Explanation
Driving stresses are significant pressures encountered by piles, especially precast piles, during installation. These stresses are not only due to the handling of piles but also arise when driving them into the ground. When designing piles, engineers must consider these stresses since they can exceed the stresses experienced during the pile's service life. Understanding this distinction is crucial for effective pile design and ensuring structural integrity.
Examples & Analogies
Think of driving a nail into a wall. The force used to hammer the nail is similar to the driving stresses in piles. If you hit too hard, you might bend or break the nail, just as excessive driving stresses can damage a pile.
Controlling Driving Stresses
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, how to control the driving stress? So, the commonly adopted method is, we have to introduce some cushioning material between the pile and the hammer... The commonly used cushion is wood timber cushion so you have to choose a sufficient thickness depending upon the length of the pile needed, so we should never go below 10-centimeter thickness.
Detailed Explanation
To manage driving stresses during pile installation, cushioning materials are used between the hammer and the pile. This cushioning helps absorb impact and prevents damage to the pile. Commonly, wooden timber cushions are employed, which should be of adequate thickness—at least 10 centimeters—to effectively mitigate stress and protect the piles during the driving process.
Examples & Analogies
Imagine putting a sponge between a hammer and a fragile object. The sponge absorbs some of the force, reducing the risk of breaking the object. Similarly, cushioning for piles protects them from the intense forces during driving.
Use of Pile Helmets
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, this is a common setup which you can see to control the driving stress, so why we can see this is your pile and this is your hammer. So, you have two cushions, one is your pile cushion, other one is your hammer cushion... to distribute the blow from the hammer uniformly to the head of the pile to cushion and protect the pile head.
Detailed Explanation
In addition to cushioning materials, a pile helmet is used in conjunction with pile and hammer cushions. This helmet helps distribute the impact load evenly across the pile head, thereby minimizing stress concentrations that could lead to damage. This systematic arrangement is essential for providing comprehensive protection to the pile against driving stresses.
Examples & Analogies
Consider a soft helmet worn by cyclists; it distributes the impact from falls across a larger area, reducing the risk of injury. Similarly, the pile helmet equally spreads the load on the pile, safeguarding it against potential damage.
Impact Velocity and Driving Stress
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Another important guideline which you should keep in mind to control the driving stress is, the driving stress is will be very high when the impact velocity is high... it is preferable to increase the weight of hammer but do not increase the height of fall.
Detailed Explanation
Driving stress is related to the impact velocity, which depends on how high the hammer falls. The recommendation is to use a heavier hammer while keeping the drop height low. High impact velocities result in greater stresses, potentially damaging the pile. Therefore, managing both weight and height is critical for reducing the risk of excessive stress during pile installation.
Examples & Analogies
Think about how a bowling ball dropping from a tall building would hit the ground harder than one dropped from a short height. Similarly, using a heavy hammer but controlling its height can prevent too much stress on the pile.
Energy Relationships in Pile Driving
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, if you want to increase the blow energy of your pile, it is preferable to increase the weight of hammer but do not increase the height of fall... heavy hammer with low velocity results in higher blow efficiency than light hammer with high velocity.
Detailed Explanation
The blow energy applied to a pile during driving is a product of the hammer's weight and the height of its fall. For optimal efficiency and to protect concrete piles—especially fragile ones—it's advisable to use a heavier hammer with a reduced height drop. This approach enhances energy transfer to the pile without increasing the impact velocity, thus minimizing potential damage.
Examples & Analogies
Imagine swinging a baseball bat. If you swing a heavier bat but don't swing it too fast, you hit the ball hard without swinging off balance. Similarly, using a heavy hammer gently protects piles while still driving them effectively.
Determining Safe Load on Piles
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, now let us see how to determine the safe load on the piles? As a piles are likely to be subjected to more amount of stress during driving... hammer energy = work of soil resistance.
Detailed Explanation
Determining the safe load on piles is crucial due to the stresses they undergo during installation. The engineering news formula provides a way to calculate both the safe load and the required driving energy. Fundamentally, the energy applied by the hammer must equal the resistance the pile faces from the soil. Proper calculation ensures that the pile can safely bear the intended loads without structural failure.
Examples & Analogies
Consider filling a balloon with air. The pressure inside has to match the material’s capacity to hold it without bursting. Similarly, accurately calculating the safe load on piles ensures they can withstand external pressures without failing.
Engineering News Formula
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The engineering news formula is an commonly accepted formula to determine the safe load on the pile... R is the safe load on the pile in pounds.
Detailed Explanation
The Engineering News Formula is a standard method used to calculate the safe load that piles can support. It incorporates factors like the weight of the hammer, height of the hammer's fall, and the average penetration of the pile. By using this formula, engineers can achieve safe load estimates suitable for different pile types and conditions, ensuring safety and reliability.
Examples & Analogies
Think of this formula like a recipe in cooking. Just as precise ingredient measurements yield the best dish, accurately applying this formula results in safely designed piles capable of supporting expected loads.
Factors Influencing Hammer Selection
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, now let us see what are all the basic factors which governs the pile hammer selection... all these things are going to affect your selection of a hammer.
Detailed Explanation
Selection of the appropriate pile hammer depends on various factors such as pile type, size, projected productivity, soil conditions, and equipment capabilities. Pile hammers must match the specific requirements of the pile and soil to ensure efficient and safe driving. Considerations include whether the pile is concrete or steel, the weight of the hammer relative to the pile, and various operational constraints.
Examples & Analogies
When choosing a tool for a job—like a drill for making holes—one must consider the material being drilled (wood, metal, etc.) as well as the drill's size and power. Similarly, selecting the right hammer for pile driving is crucial for the successful completion of the task.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Driving Stress: Important for understanding potential failure during pile installation.
-
Cushioning Material: Essential for reducing impact forces on brittle materials like concrete.
-
Engineering News Formula: A critical formula for engineers to determine safe loads on piles.
-
Blow Energy: A fundamental concept in pile driving that influences the effectiveness of installation.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Using a timber cushion of at least 10 centimeters between the concrete pile and the hammer to absorb impact stress.
-
Calculating the safe load for a pile using the Engineering News formula based on the specific hammer weight and drop height.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
For piles that are precast and made of rock, cushion them well, or they'll hit the block!
📖 Fascinating Stories
-
Imagine a brave engineer trying to drive piles into the ground. He learns that using heavy hammers can help, but he must keep the drop height low or risk breaking his prized concrete piles! So, he opts for a well-cushioned hammer.
🧠 Other Memory Gems
-
Remember 'C.H.A.I.R.' - Cushion, Hammer weight, Avoid high drop, Impact reduction, Regular checks.
🎯 Super Acronyms
P.A.C.E. - Pile stress, Absorb impact, Cushioning, Efficiency.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Driving Stress
Definition:
Stresses experienced by piles during installation due to impact forces.
-
Term: Cushioning Material
Definition:
Material placed between the hammer and pile to absorb impact energy.
-
Term: Engineering News Formula
Definition:
A formula used to calculate the safe load and required driving energy for piles.
-
Term: Blow Energy
Definition:
The energy delivered by the hammer to drive the pile, calculated as weight times height of fall.
-
Term: Hammer Efficiency
Definition:
The ratio of transmitted energy to input energy during pile driving.
