Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Drop Hammers
Unlock Audio Lesson
Today, we're starting with drop hammers. Can someone explain what a drop hammer is?
Isn't it just a heavy weight that you lift and drop to drive the pile?
Exactly! The drop hammer uses gravity to drop a heavy weight onto the pile, driving it into the ground. Can anyone tell me what type of lifting mechanisms can be used?
You could use a crane or even a simple pulley system.
That's right! Depending on the project scale and budget, you can choose the appropriate lifting mechanism. Remember, the hammer weight is ideally at least equal to the pile weight for effective driving energy.
What if the hammer is too light?
Good question! If the hammer weight is less, we need to increase the height from which it drops. However, be careful with concrete piles as they are prone to shattering!
So, we need to maintain the right balance to avoid damaging the pile?
Exactly! In summary, a drop hammer is effective for fewer piles where time isn't a constraint, as it is a slower method.
Single Acting Steam Hammer
Unlock Audio Lesson
Now let’s look at single acting steam hammers. Who can explain how these differ from drop hammers?
I think they use steam to lift the hammer, right?
That's correct! The steam hammer raises the hammer during the upward stroke using steam pressure while allowing it to fall freely. Can anyone tell me about its productivity compared to drop hammers?
The single acting hammer is much faster! It can do about 40 to 60 blows per minute!
Excellent! This makes it ideal for projects with tighter deadlines. However, weight selection rules still apply, ideally matching the pile weight during operation. What’s the maximum height of drop here?
I believe it's limited to 4 feet for concrete piles?
Exactly! Proper hammer size and drop height are crucial to prevent damage. Let’s summarize: the single acting steam hammer enhances efficiency significantly. Great job!
Double Acting Steam Hammer
Unlock Audio Lesson
Finally, let's examine double acting steam hammers. What do you think makes them 'double acting'?
Does it mean they use steam for both the upward and downward strokes?
Exactly! They provide additional energy during the downward stroke, which increases efficiency. How do the two cylinders work?
Is it like alternating steam supply to the upper and lower cylinders for lifting and dropping?
Yes! This complex valve system allows for greater control and productivity compared to single acting hammers. Can anyone guess the implications of these efficiencies?
I think this means more piles can be driven in less time!
Absolutely! The greater the number of piles installed efficiently, the better for project timelines. Remember these key differences by summarizing: double acting hammers double the impact energy!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore various types of pile driving equipment, including drop hammers, single and double acting steam hammers, and vibratory pile drivers. The section emphasizes the significance of selecting the appropriate pile hammer based on project requirements, pile characteristics, and soil conditions.
Detailed
Detailed Summary of Pile Driving Equipment
In this section, we delve into the various types of pile driving equipment, specifically focusing on pile hammers which play a crucial role in the installation of piles. The main types of hammers discussed include:
Drop Hammer
- The drop hammer is a traditional type of pile driver consisting of a heavy metal weight lifted by a winching mechanism and dropped onto the pile. It uses gravity to drive the pile into the ground and requires auxiliary equipment like leaders for proper alignment.
- The hammer's weight is ideally equal to the pile weight to ensure optimal driving energy. Specific drop heights are limited to prevent damage to certain types of piles, particularly concrete.
Single Acting Steam Hammer
- This type improves upon the drop hammer by utilizing steam or compressed air to raise the hammer during the upward stroke while allowing it to fall by gravity during the downward stroke. This results in increased efficiency, with a blow rate of approximately 40 to 60 blows per minute compared to the drop hammer's rate of 4 to 8.
- Similar weight guidelines apply, with a recommended hammer weight equal to the pile weight.
Double Acting Steam Hammer
- The double acting hammer uses steam energy for both strokes. This increases productivity further and features a more complex valve system for managing steam flow.
Throughout the section, important considerations for selecting the appropriate hammer based on specific site conditions, pile weights, types of materials, and project deadlines are emphasized. The importance of pacing in pile driving operations is highlighted, as well as the mechanical aspects of each driving method.

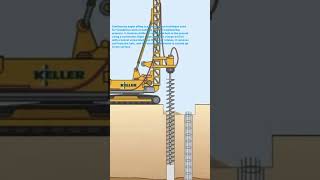

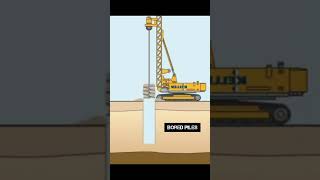

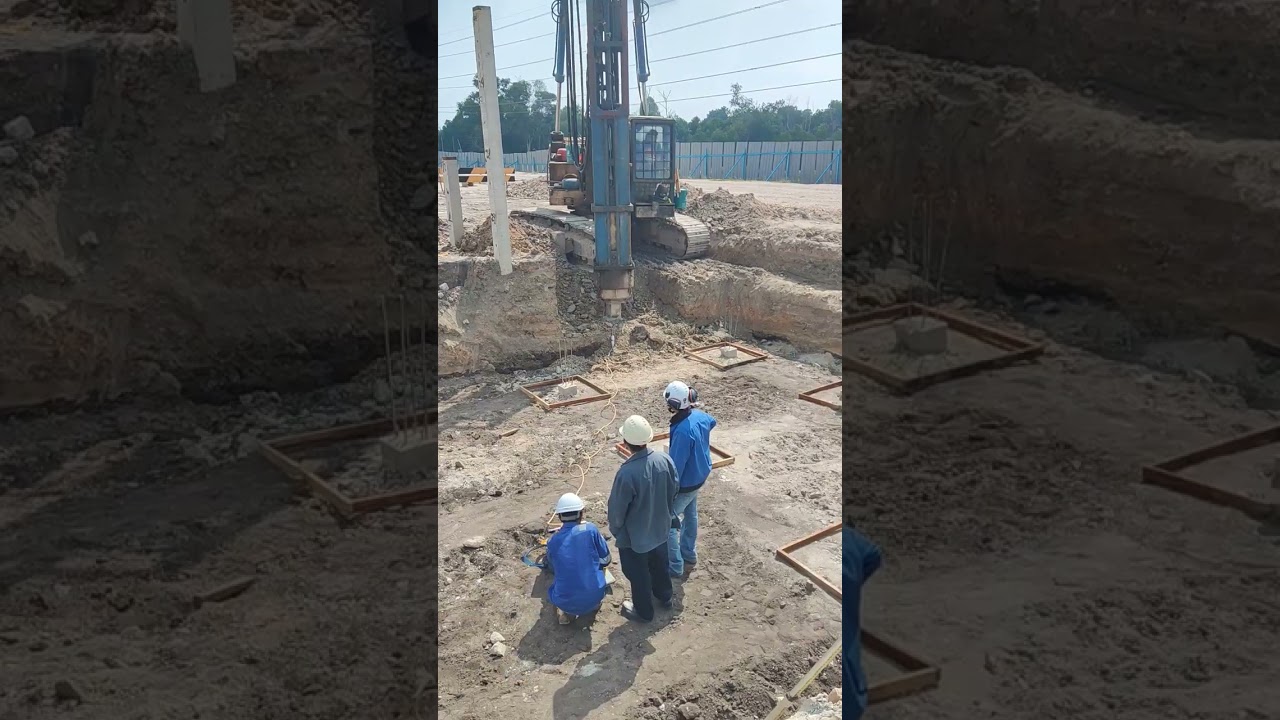

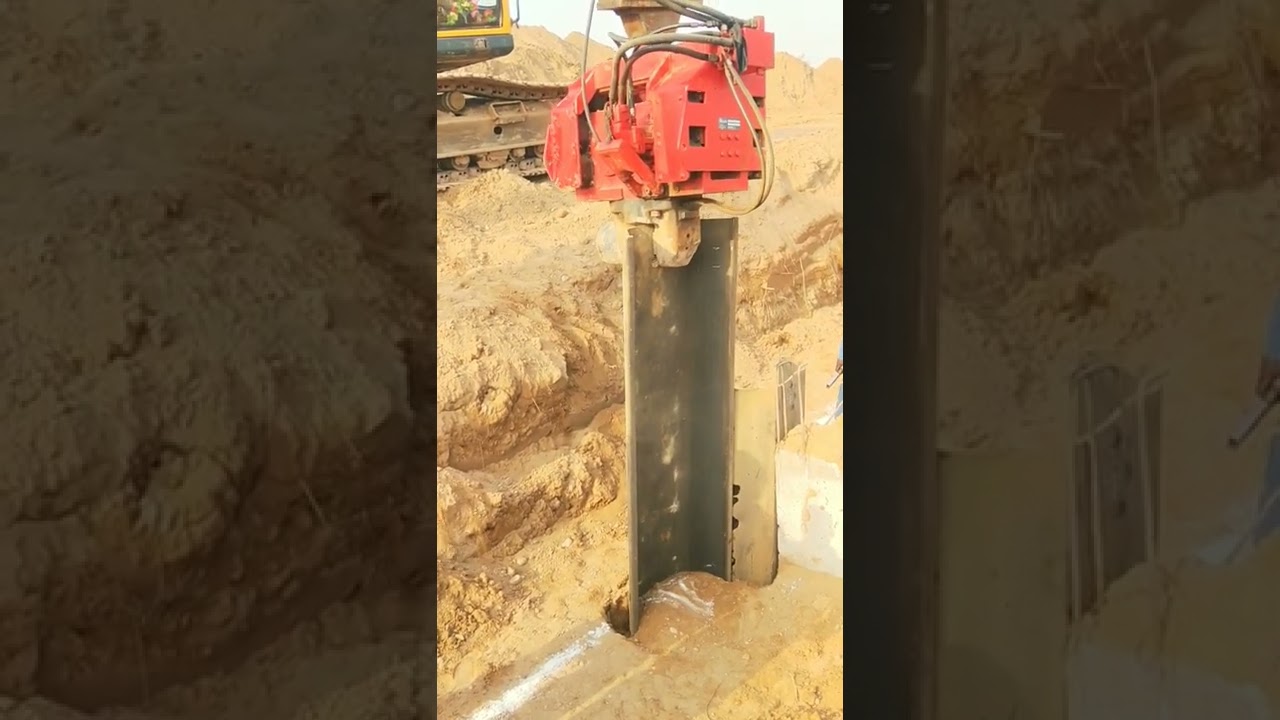

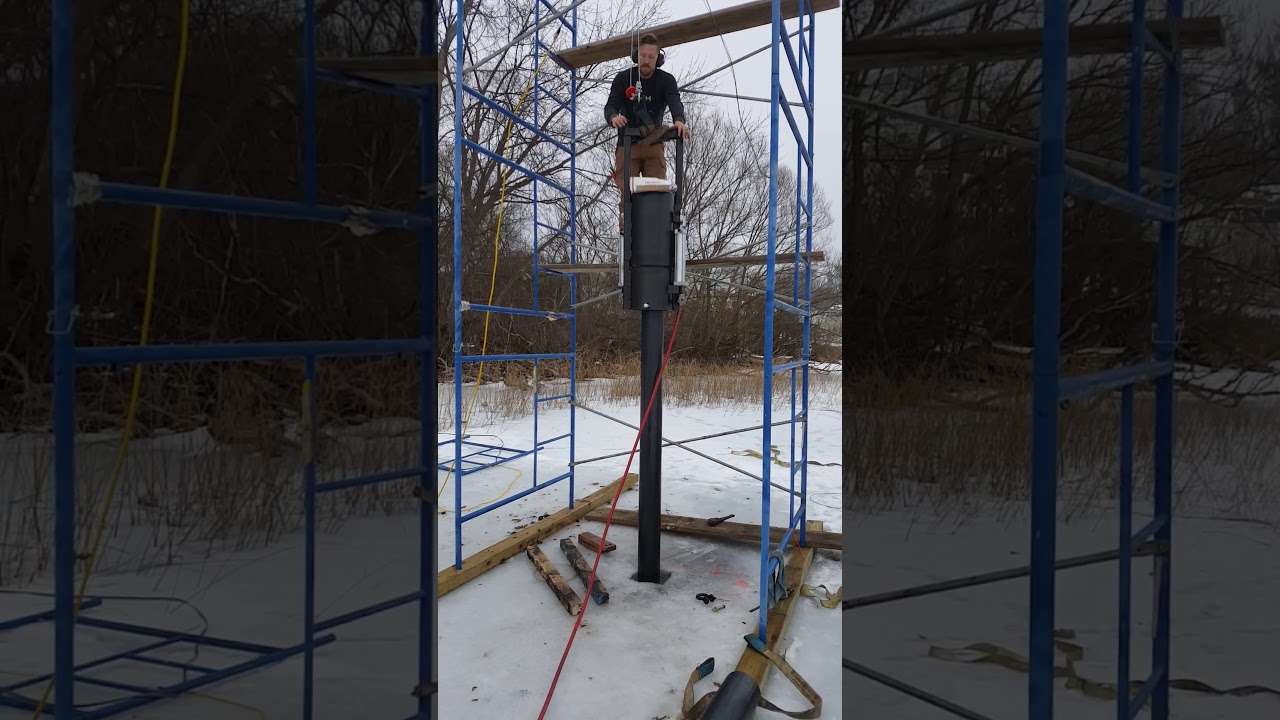

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Pile Driving Equipment
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In today's presentation, we will be discussing about the different types of pile hammers, and we will also be discussing about the guidelines for selection of the pile hammer.
Detailed Explanation
In this chunk, the instructor outlines the main topics for today's discussion regarding pile driving equipment. The focus will be on different types of pile hammers and how to select the appropriate hammer for specific conditions. Understanding these factors is crucial for effective and safe pile driving in construction projects.
Examples & Analogies
Imagine you're trying to hammer a nail into wood. Depending on the type of wood (soft or hard), you would choose a different type of hammer (light or heavy). Similarly, when driving piles into the ground, engineers need to choose the right hammer based on the soil type and the material of the pile.
Types of Pile Hammers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
There are different types of pile hammer ranging from the oldest drop hammer method to the modern vibratory pile drivers. So, firstly, we will be discussing about the drop hammer followed by the steam hammers, then we will be discussing about diesel hammer and the vibratory pile drivers.
Detailed Explanation
This part introduces different types of pile hammers. The drop hammer is the most traditional, which relies on gravity for impact. The discussion will then cover steam hammers, diesel hammers, and vibratory pile drivers, highlighting their distinct mechanisms and uses. Each type has unique advantages and is suited for different pile driving scenarios.
Examples & Analogies
Think of different tools in a toolbox. A hammer is great for pounding nails, but if you're working with tougher materials or need more precision, you might opt for a power drill. Similarly, different types of pile hammers are suited for different types of piles or soil conditions.
The Drop Hammer Method
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
First is about the drop hammer. Basically, this is nothing but a heavy metal weight that has to be lifted by some lifting mechanism. ... to protect the pile head from damage, you put the pile cushion.
Detailed Explanation
The drop hammer consists of a heavy weight that is lifted and then dropped onto the pile to drive it into the ground. A cushion is used to prevent damage to the pile head during impact. The method is simple and can be implemented using various mechanisms like ropes or cranes, suitable to the project's size and budget.
Examples & Analogies
Imagine dropping a heavy ball onto a soft surface. The ball sinks in without damaging the surface too much, thanks to a pillow placed underneath. In pile driving, the cushion serves a similar function, absorbing some of the shock to protect the pile.
Importance of Supporting Equipment
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For the pile driving, we cannot just do the pile driving only with the pile hammer. We need supporting equipment... lifting capacity of the crane whether the crane has a sufficient lifting capacity to lift your pile.
Detailed Explanation
In addition to the hammer, proper supporting equipment like cranes and structural frames (known as leaders) are necessary to ensure that everything is aligned and stable during pile driving. Checking the lifting capacity of cranes is vital, as they must support the combined weight of the hammer, pile, and supporting structures.
Examples & Analogies
Consider a group of friends trying to lift a large couch to move it—if one friend is too weak to lift their end, the whole couch could tilt or even drop. Similarly, if the crane is not strong enough, it risks instability during pile driving.
Guidelines for Selecting Hammer Weight
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When you select a weight of the hammer, it is advisable to select the weight of the hammer at least equal to the weight of your pile. ... the limitation of height of fall is given for the drop hammer as 8 feet, for timber pile it is 15 feet.
Detailed Explanation
This chunk explains the guidelines for selecting the weight of the hammer relative to the pile. A hammer weight should ideally match or exceed the weight of the pile to achieve sufficient driving energy. It also mentions restrictions on the height from which the hammer can fall based on the type of pile material.
Examples & Analogies
Think of trying to push a heavy object across the floor. If you don't apply enough weight or force, it won't move easily. Similarly, the hammer must exert enough force to effectively drive the pile into the ground.
Performance of the Drop Hammer
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
This drop hammer method is very slow... the blow rate is relatively very less.
Detailed Explanation
While the drop hammer is a traditional and reliable method for pile driving, it is not the most efficient due to its slow speed, delivering only 4 to 8 blows per minute. This makes it suitable for projects where time is less of a concern and fewer piles need to be driven.
Examples & Analogies
Imagine using a slow, manual corkscrew to open a bottle of wine. It works but takes much longer compared to modern electric corkscrews that get the job done efficiently. The drop hammer is like that slow tool—still effective, just not fast.
Single Acting Steam Hammer
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Next is your single acting steam hammer, so this is an improvement over the drop hammer... it can go of a 1 blow per second.
Detailed Explanation
The single acting steam hammer uses steam or compressed air to lift the hammer on the upward stroke while allowing it to fall freely on the downward stroke. This method improves productivity compared to the drop hammer, capable of achieving up to 60 blows per minute, making it more suitable for projects with tight deadlines.
Examples & Analogies
Consider a hydraulic lift, which can quickly raise heavy objects by using pressurized fluid. The single acting steam hammer functions similarly, using steam pressure to quickly lift and drop the hammer more efficiently than manual methods.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Drop Hammer: A traditional pile driving method using gravity to drop a weight onto piles.
-
Single Acting Hammer: Enhances the drop hammer technique by utilizing steam for upward stroke.
-
Double Acting Hammer: Increases efficiency by utilizing steam for both strokes.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
In a residential project with limited piles, a drop hammer may be employed due to cost-effectiveness.
-
For a high-rise building with many piles, a single acting steam hammer would be preferred due to increased productivity.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Drop it low, let it go, drive that pile, strong and slow.
📖 Fascinating Stories
-
Imagine a strong crane lifting a heavy hammer high, then letting it drop like a warrior's axe striking the earth, driving piles deep into the ground.
🧠 Other Memory Gems
-
Hammers 'D' for Drop, 'S' for Single, 'D' for Double: Remember by 'DSSD' for Hammer Types.
🎯 Super Acronyms
P.I.L.E.S
- Pile Installation Lifting Equipment Selection.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Drop Hammer
Definition:
A type of pile driver consisting of a heavy weight dropped onto a pile to drive it into the ground.
-
Term: Single Acting Steam Hammer
Definition:
A pile driving hammer that uses steam energy only for the upward stroke while allowing free fall for the downward stroke.
-
Term: Double Acting Steam Hammer
Definition:
A pile driving hammer that utilizes steam energy for both the upward and downward strokes, providing more driving force.
-
Term: Pile Cushion
Definition:
A material placed between the hammer and pile head to reduce stresses and prevent damage.
-
Term: Operating Radius
Definition:
The distance from the center of the crane's rotation to the load line during lifting.
