Introduction to the Double Acting Steam Hammer
Unlock Audio Lesson
Today, we will discuss the double acting steam hammer. Can anyone tell me what they think a steam hammer does?
I think it’s a machine that uses steam to do some kind of work, maybe in construction.
Exactly! The steam hammer is used mainly for driving piles into the ground. It consists of two cylinders: an upper and a lower. Both cylinders are crucial to its operation, which you will learn about shortly.
How does it work with those two cylinders?
Great question! When we supply air to the lower cylinder, it pushes the hammer upwards into the upper cylinder. Who can tell me what happens to the air in the upper cylinder then?
The air gets pushed out, right?
Yes! The air is expelled through an exhaust. This mechanism allows for continuous striking, which is essential for driving piles effectively. To remember this, think of the acronym 'LAY' - Lift, Air, Yield.
So LAY helps us think about how air is used to make the hammer lift and strike?
Exactly, 'LAY' encapsulates the operation! Remember, these hammers are designed for lighter conditions when driving piles into soil.
Energy Source and Hammer Weight
Unlock Audio Lesson
Now, let's talk about energy. What type of energy drives the hammer during its strokes?
Is it steam energy?
Correct! Approximately 90% of the blow energy comes from steam energy. This high reliance on steam means we can use lighter hammers. Can anyone think of why that’s beneficial?
Maybe it makes it easier to move and operate?
Yes, yes! Lighter hammers mean we don’t need as much force to lift them, making the operation more efficient. Remember: lighter hammers, higher efficiency. This relationship crucially affects how deep we can drive the piles.
What kind of soil works best with these hammers?
Excellent question! They work best in light to medium weight piles and soils with normal frictional resistance. Never use them in high frictional soils or for concrete. What would happen if we did?
The concrete could crack or break!
Exactly! Damage can occur due to the high blow rate, which can be between 95 and 300 blows per minute. Let’s remember this with 'HFC' – High Friction Concrete, to avoid where these hammers should not be used.
Operational Advantages and Limitations
Unlock Audio Lesson
Having covered how the steam hammer works, can anyone summarize the advantages of using it?
It’s compact and doesn’t require heavy weights, plus it operates with high energy efficiency!
Right! It's designed for lighter applications. And because it delivers quick successive blows, it’s efficient in appropriate conditions. What are some cases where using this hammer could be problematic?
When you’re dealing with heavier soils or concrete piles, right?
Absolutely! Suitable soil conditions are crucial. High friction can lead to failure. To make sure we remember this, let's use 'LMC' - Lighter Material Concrete – so we know to avoid that.
Sounds good, LMC helps us remember the limitations!
Great teamwork! Let’s summarize: the double acting steam hammer thrives in lighter conditions, provides high blow rates, and should be used cautiously to avoid damaging structures.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The double acting steam hammer operates with two cylinders where air is alternately supplied to raise and lower a hammer. This mechanism allows for a high blow rate and the use of lighter hammers, making it suitable for driving light to medium weight piles into soils with normal friction resistance. However, it is not suitable for heavier soils or concrete piles due to the potential for damage.
Detailed
Detailed Summary
The double acting steam hammer is a mechanical device consisting of two cylinders (upper and lower), which work in tandem to lift and lower a hammer for pile driving. In operation, compressed air is introduced into the lower cylinder, pushing the hammer upward into the upper cylinder, while the air in the upper cylinder is expelled through an exhaust valve. In the subsequent downward stroke, air is supplied to the upper cylinder, again pushing the hammer down while expelling air from the lower cylinder.
This mechanism highlights that approximately 90% of the blow energy is derived from steam energy, allowing for the use of lighter hammers and shorter strokes compared to single acting hammers. While effective for driving light to medium weight piles, these hammers are designed for use in soils with normal frictional resistance and should not be used in high-friction clay or for concrete piles due to their high blow rate (95 to 300 blows per minute), which could cause damage.
In essence, the double acting steam hammer is notable for its compact design, lightweight construction, and high operational efficiency in appropriate soil conditions.

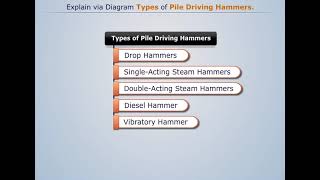

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Setup of the Double Acting Steam Hammer
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, basically what to do here is, so this is a setup of the double acting steam hammer, you can see two cylinders one is the upper cylinder, other one is a lowest cylinder.
Detailed Explanation
The double acting steam hammer consists of two cylinders: an upper cylinder and a lower cylinder. This setup is crucial for its operation, as it allows the hammer to move up and down efficiently. Understanding the layout is the first step in comprehending how the hammer functions as it uses compressed air or steam to create motion.
Examples & Analogies
Think of it like a pair of bellows used in old blacksmithing, where one side pushes air in and the other side pulls it out, creating movement that helps forge metal. The double acting steam hammer uses a similar principle to lift and drop the hammer.
Upward Stroke Process
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now in the upward stroke what you do is, you supply air into the lower cylinder. So, when you supply into this, this is the lowest cylinder, when you supply air into the lower cylinder, the hammer which was earlier in the lower cylinder will be pushed up into the upper cylinder.
Detailed Explanation
In the upward stroke, air is introduced into the lower cylinder. This pressurization causes the hammer, which starts at the lower cylinder, to be pushed upwards into the upper cylinder. This upward movement is essential for completing the cycle of the steam hammer's operation.
Examples & Analogies
Imagine a balloon. If you squeeze it from the bottom, the air within pushes out, causing the top to expand or rise. Similarly, when air is pushed into the lower cylinder of the double acting steam hammer, it forces the hammer to rise.
Exhaust During Upward Stroke
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, the air which was already there in the upper cylinder will expel out to the exhaust. So, the air which was already there in the upper cylinder will be expelled out through the exhaust.
Detailed Explanation
As the hammer moves up, the air that was initially in the upper cylinder has to go somewhere. It is expelled through an exhaust system. It is important to note that this exhaust of air allows the hammer to ascend without creating a back pressure that could hinder its movement.
Examples & Analogies
Consider a syringe. When you draw back on the plunger, the liquid inside moves up, but it pushes the air out of the top. Just like this, the upward motion of the hammer pushes air out of the upper cylinder.
Downward Stroke Process
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, what are you doing the downward cylinder? You supply air through the inlet into the upper cylinder. So, when you are supplying air into the upper cylinder, the hammer which was already there will be pushed into the lower cylinder.
Detailed Explanation
In the downward stroke, air is supplied into the upper cylinder. This action pushes the hammer back down into the lower cylinder. This alternating action between the two cylinders creates a continuous cycle of movement for the hammer.
Examples & Analogies
Think of a seesaw; as one side goes up, the other comes down. Similarly, when air is pushed into the upper cylinder, it causes the hammer to go down just as the push on the seesaw causes one side to drop.
Exhaust During Downward Stroke
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
And air which was already in the lower cylinder will be expelled out through the exhaust.
Detailed Explanation
As the hammer descends, the air that was in the lower cylinder must also be expelled out through the exhaust. This prevents pressure build-up, which could impede the downward motion of the hammer.
Examples & Analogies
Imagine a French press coffee maker. When you push the plunger down, old coffee grounds and air are pushed out of the spout. Similarly, in the downward stroke of the steam hammer, the air must exit to allow for smooth operation.
Energy Source for Double Acting Hammer
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, another important thing we need to know with respect to double acting hammer is in this most of the blow energy is derived from the steam energy.
Detailed Explanation
The blow energy for both the upward and downward strokes of the double acting steam hammer primarily comes from steam energy. This means the hammer can effectively operate without relying heavily on its own weight, allowing it to be lighter and more efficient.
Examples & Analogies
Think of a water-powered fountain; it uses water pressure to create movement rather than relying on heavy stones. In the same way, the double acting steam hammer primarily utilizes steam pressure to perform its work, making it lighter.
Design Considerations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, that is why, for the double acting hammer we need not for a heavier hammer.
Detailed Explanation
Because the energy is derived mainly from steam rather than weight, double acting steam hammers can be designed to be lighter in weight. This enables a more compact design, which can be beneficial in different applications.
Examples & Analogies
Think of how modern cars use lighter materials to improve efficiency and fuel economy. Similarly, lighter hammers in double acting steam hammers enhance their capability without needing heavy materials.
Limitations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
And this hammer is basically designed for I can say lighter conditions, lighter conditions in the sense.
Detailed Explanation
Double acting steam hammers are specifically designed for lighter conditions, which means they are most effective for light to medium weight piles and normal soil. They should not be used in tough conditions, like very clayey soils with high friction or for driving concrete piles, as the high blow rate can cause damage.
Examples & Analogies
Think of a delicate hammer used for crafting jewelry versus a heavy sledgehammer used for breaking boulders. Each has its specialty, and using the wrong tool can ruin the project. Similarly, the double acting steam hammer is not suited for all conditions.
Blow Rate and Suitability
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, if you look into the blow rate, you can see that the blow rate will be 95 to 300 blows per minute.
Detailed Explanation
The blow rate of a double acting steam hammer can reach between 95 to 300 blows per minute. This high blow rate makes it suitable for specific applications but dangerous for concrete piles where the energy can cause damage.
Examples & Analogies
Consider a jackhammer used in construction. It has a high blow rate useful for breaking concrete but could easily damage a delicate sculpture. Similarly, while the steam hammer is powerful, it's not appropriate for all materials.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Double Acting Mechanism: The mechanism consists of two cylinders that alternate the supply of air or steam to move the hammer.
-
Energy Source: 90% of the blow energy comes from steam, allowing the use of lighter hammers.
-
Suitability: Ideal for light to medium weight piles in soils with normal friction resistance and not recommended for concrete or high friction soils.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Driving steel piles into sandy soil using a double acting steam hammer due to its high blow rate and efficiency.
-
Using a lighter hammer in a construction project over normal soil conditions, illustrating the compact design advantage.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Lift, air in, and hammer goes, striking high, while down it flows.
📖 Fascinating Stories
-
A construction team uses a light hammer powered by steam, easily lifting and striking for efficient piling on a sunny day.
🧠 Other Memory Gems
-
LAY – Lift, Air, Yield helps remember the key operational phases.
🎯 Super Acronyms
HFC - High Friction Concrete, remembering where the double acting steam hamers should never be used.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Double Acting Steam Hammer
Definition:
A mechanical device that uses compressed air or steam to drive a hammer up and down for driving piles.
-
Term: Cylinders
Definition:
The components within the steam hammer where air or steam is supplied to move the hammer.
-
Term: Blow Rate
Definition:
The frequency at which the hammer strikes, measured in blows per minute.
-
Term: Frictional Resistance
Definition:
The force opposing the motion of the hammer as it interacts with the soil.
