Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Free Fall Non-Tilting Reversible Mixers
Unlock Audio Lesson
Today, we’re discussing the free fall non-tilting reversible mixer, like the RMC transit mixer. Can anyone tell me how this mixer operates?
I think it has blades inside that mix the concrete.
Exactly! The mixer has a spiral blade arrangement. When we want to mix, the drum rotates in one direction. What happens when we want to discharge?
It rotates in the opposite direction!
Correct! This reversible mechanism allows for easy discharge. So, remember—M-Mix, D-Discharge! Can anyone explain why this mixer is limited in handling certain materials?
Is it because it needs a slump of at least 50 mm?
Yes! Great point. If the slump is too low, the mixer struggles. Let’s recap: what are the core features of this mixer?
It has a spiral blade, rotates in two directions, and is limited to certain slump mixes.
Perfect summary!
Comparison with Power Mixers
Unlock Audio Lesson
Now, let's compare free fall mixers with power mixers. How do you think their operation differs?
Power mixers spin really fast, right?
Exactly! Power mixers utilize rapid rotation of paddles for mixing. Why is that advantageous?
Because they can handle stiff concrete better.
You got it! This leads to shorter mixing times and higher productivity. Remember—speed equals productivity. Now, which mixer is preferable for a stiff mix?
The power mixer!
Right again! So, when dealing with different concrete mixtures, always opt for the mixer that fits the job requirements.
Configurations of Power Mixers
Unlock Audio Lesson
We’ve covered reversible mixers, now let’s talk about various types of power mixers. Can anyone name a type of power mixer?
How about the pan mixer?
Yes! The pan mixer has a vertical shaft and attached paddles. What unique feature does it include to aid in mixing?
It has scraper blades to prevent sticking.
Exactly! Now, how does a trough mixer differ in design?
It has a horizontal shaft, right?
Spot on! And this design offers good mixing intensity due to the spiraling paddles or wave-shaped arms. Let’s summarize the importance of each design...
Mixing Duration
Unlock Audio Lesson
Mixing duration is critical. What happens if we mix too little or too long?
A short time might not get a uniform mix.
But mixing too long can make it set early.
Exactly! We must adhere to the IS 4925 guidelines that provide minimum mixing times based on mixer type. Can anyone explain why following guidelines is essential?
It ensures proper quality and workability of concrete.
Well said! So remember, optimal mixing duration leads to better quality concrete. Who remembers how to know when the mixing time starts?
When all materials, except water, are added!
Correct! Great job, everyone.
Understanding Productivity
Unlock Audio Lesson
Let’s wrap up with how to assess mixer productivity. What factors do you think affect how much concrete a mixer can produce?
The size of the mixer and how fast it mixes.
Exactly! The combination of batch size and cycle time determines productivity. Who can explain how we find the cycle time?
It includes loading time, mixing time, and discharging time.
Right! Knowing these times helps in estimating batching production rates. Let’s remember the efficiency that typically varies between 60% to 80%. Can anyone explain its significance?
It shows how effectively the plant operates.
Great! Efficient operations ensure higher concrete output. Let’s summarize today’s discussion!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section outlines the operation of free fall non-tilting reversible mixers, including their design with spiral blades, modes of operation for mixing and discharging, and contrasts with power mixers which use rapid rotation for homogeneous mixing. It details different configurations such as pan and trough mixers and emphasizes the importance of mixing duration and high productivity in concrete production.
Detailed
Free Fall Non-Tilting Reversible Mixer
A free fall non-tilting reversible mixer, exemplified by the RMC transit mixer, operates with a single opening and a spiral blade arrangement inside the drum. The drum rotates in one direction for mixing and in the opposite direction for discharging concrete, thanks to its reversible mechanism.
Key Features
- Mixing and Discharge: The spiral blades facilitate efficient mixing when the drum rotates, while reversing the rotation allows for easy concrete discharge.
- Comparison with Power Mixers: Unlike power mixers that depend on rapid rotation and can handle a wider range of mix consistencies, free fall mixers are limited to materials with a certain slump (at least 50 mm). Power mixers can manage lower slumps, leading to a higher productivity rate and shorter mixing duration.
Types of Mixers
- Pan Mixers: Feature a vertical shaft and paddles, providing thorough mixing while preventing material from sticking through scraper blades.
- Planetary Mixers: Emulate planetary motion allowing intense mixing, facilitating better homogeneity.
- Trough Mixers: Horizontal shaft design with spirally arranged paddles or wave-shaped arms enhances mixing intensity and productivity.
Mixing Duration
Careful attention must also be paid to the mixing duration, which varies by mixer type and capacity, with prescribed minimum times provided in IS 4925 guidelines.
Effective mixing is critical to achieving a uniform concrete appearance, necessitating adherence to manufacturer guidelines to avoid issues with workability and setting times.

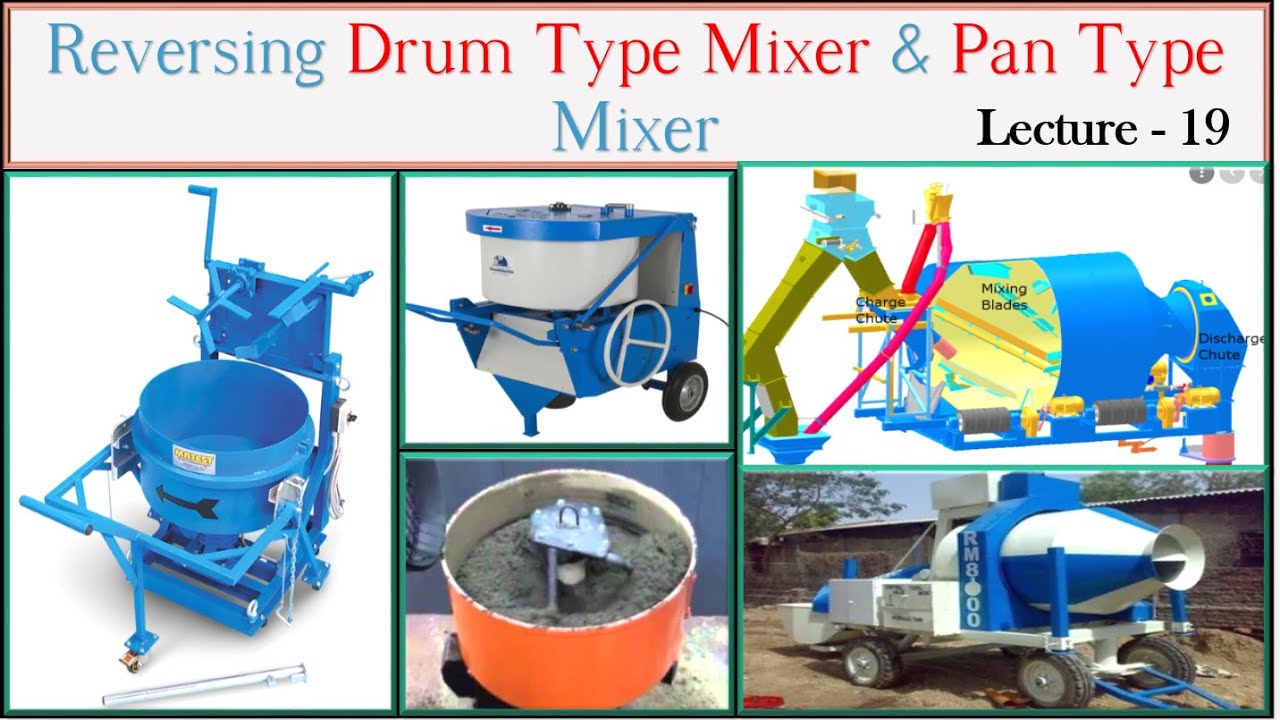

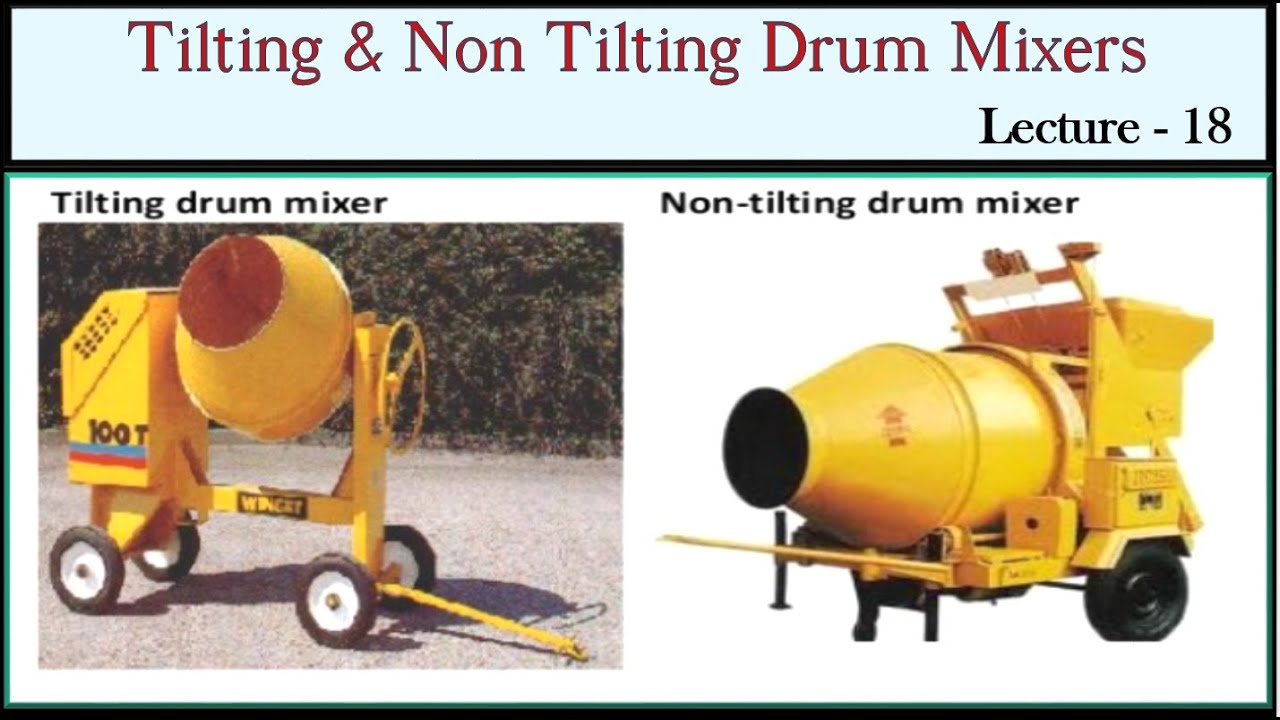

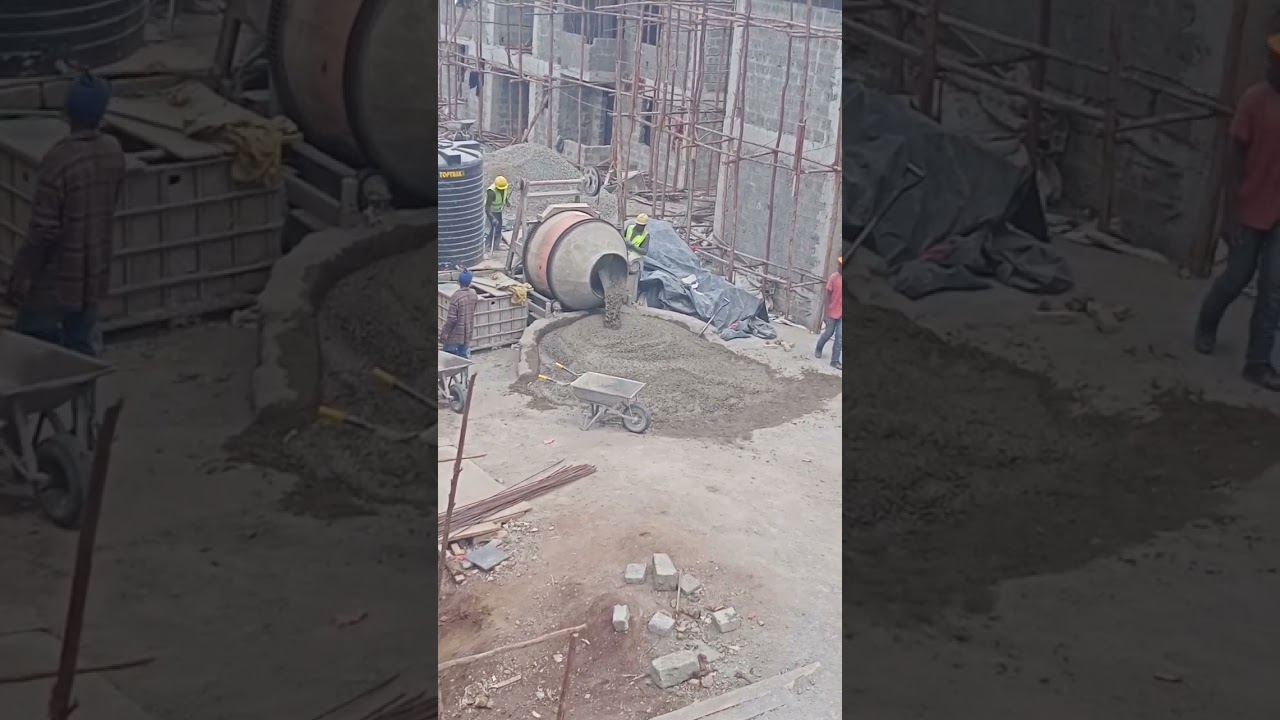

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Free Fall Non-Tilting Reversible Mixers
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Your RMC transit mixer, it is also an example of free fall non-tilting reversible mixer. So, here also, you can see, there is only one opening. You have spiral blade arrangement inside.
Detailed Explanation
A Free Fall Non-Tilting Reversible Mixer is a type of concrete mixer that features a single opening for both feeding and discharging materials. The design includes a spiral blade arrangement inside the mixer drum, which plays a crucial role in mixing the concrete effectively. In this type of mixer, materials are fed into the drum, which then rotates in one direction to mix them thoroughly. To discharge the mixed concrete, the drum rotates in the opposite direction.
Examples & Analogies
You can think of this mixer like a two-way street. When you want to go into town (feeding materials), you drive in one direction, but when it's time to come back home (discharging concrete), you reverse direction. Just as the street serves a purpose both ways, the reversible mixer facilitates both mixing and discharging tasks efficiently.
Mechanism of Operation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, when you feed in the material, you have to rotate in one direction. So, when you want to discharge the concrete out, you have to rotate in the opposite direction.
Detailed Explanation
The operation of the mixer is straightforward. First, the mixer drum is rotated in one direction to mix the ingredients - cement, sand, gravel, and water. Once the mixing is complete, the direction of rotation is reversed to allow the freshly mixed concrete to flow out of the drum. This mechanism ensures that the materials are mixed thoroughly and can be easily discharged without any blockage.
Examples & Analogies
Imagine a blender in your kitchen. When you're blending smoothie ingredients, you turn the blender one way to mix everything together. But when you want to pour out the smoothie, you might tilt the blender or pour it in another direction to make it easier. Similarly, this mixer uses rotational movement to efficiently mix and then discharge concrete.
Characteristics of the Spiral Blade Arrangement
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, it is mainly because of the spiral blade arrangement inside the drum.
Detailed Explanation
The spiral blades inside the drum are a key feature of the Free Fall Non-Tilting Reversible Mixer. These blades are designed to lift and move the concrete mixture as the drum rotates. As the drum spins, the spiral blades create motion that helps to thoroughly combine all ingredients to achieve a homogeneous mix. This is important because inconsistencies in the mixture can lead to structural weaknesses in the concrete.
Examples & Analogies
Think of a spiral staircase. As you move up or down the staircase, the spiral shape helps guide your movement in a smooth, upward or downward motion. In a similar way, the spiral blades help guide and mix the concrete effectively within the mixer, ensuring everything gets combined properly.
Advantages of the Non-Tilting Mixer System
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
These are reversible drum rotating in one direction for mixing and the direction of rotation is reversed while discharging.
Detailed Explanation
One of the primary advantages of the Free Fall Non-Tilting Reversible Mixer is its dual rotation mechanism. By having the ability to mix in one direction and discharge in another, the mixer minimizes wasted time and maximizes efficiency. This design ensures a continuous workflow, making it ideal for Ready-Mix Concrete (RMC) applications where time and efficiency are crucial.
Examples & Analogies
Imagine a multi-functional tool that can both cut and slice, reducing the need to switch tools constantly. The reversible mixer acts like this tool, combining the functions of mixing and discharging into one unit, which saves both time and resources on-site.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
FREE FALL MIXERS: They utilize gravity to mix materials and require at least a certain slump.
-
NON-TILTING: These mixers do not tilt for discharging; they use reversible mechanisms.
-
REVERSIBLE MIXERS: Can rotate in both directions, facilitating effective discharge.
-
MIXING DURATION: Integral for achieving a uniform blend, must meet specific guidelines.
-
PRODUCTIVITY: Influenced by the type of mixer, size, and operational efficiency.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
RMC transit mixers are typical examples of free fall non-tilting reversible mixers.
-
Pan mixers are utilized in batching plants for efficient concrete production.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When the mixer turns, concrete churns; reverse the flow, and out it spurns.
📖 Fascinating Stories
-
Imagine a chef mixing batter—when he wants to blend, he stirs one way. But to pour the cake, he flips the bowl around, that's how mixers mix and serve!
🧠 Other Memory Gems
-
M-Mix, D-Discharge for free fall mixers—remember the process of how they operate!
🎯 Super Acronyms
FNRM - Free fall, Non-tilting, Reversible Mixer.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Free Fall Mixer
Definition:
A mixer that relies on the natural fall of materials for mixing.
-
Term: NonTilting
Definition:
A type of mixer that does not tilt to discharge the contents.
-
Term: Reversible Mixer
Definition:
A mixer that can rotate in both directions for mixing and discharging.
-
Term: Slump
Definition:
A measure of the consistency or workability of concrete.
-
Term: Power Mixer
Definition:
A mixer that achieves high mixing speeds through rapid rotation.
-
Term: Pan Mixer
Definition:
A mixer with a horizontal axis that uses paddles for mixing.
-
Term: Trough Mixer
Definition:
A mixer with a trough-shaped drum and horizontal arrangement for mixing.
-
Term: Mixing Duration
Definition:
The time taken to mix concrete adequately.
-
Term: IS 4925
Definition:
A set of guidelines for concrete batching and mixing in India.
-
Term: Productivity
Definition:
The rate at which concrete is produced.
