Introduction to Pile Hammer Types
Unlock Audio Lesson
Today, we are going to explore pile hammer selection. Can anyone tell me what types of hammers we might consider?
I've heard of drop hammers and vibratory hammers.
Exactly! We mainly use drop, single acting, double acting hammers, and vibratory hammers based on pile materials and soil type. What do you think could be the reason behind choosing a heavier hammer for concrete piles?
Maybe to reduce the driving stresses?
Spot on! The heavier the hammer, the less height it needs to fall, which helps minimize the impact on the concrete pile head.
What about for steel and timber piles?
Great question! Timber piles also benefit from heavier hammers, while steel piles can use double acting hammers effectively because they allow for rapid blow rates.
So, choosing a hammer depends on both the material of the pile and the type of soil?
Exactly! Soil conditions play a critical role in selection. We will delve into that next.
Soil Types and Hammer Selection
Unlock Audio Lesson
Let’s now look at how soil classification impacts our hammer choice. Can someone tell me the main types of soil?
Cohesive and non-cohesive?
Correct! Non-cohesive soils like sand can be categorized further based on the number of blows recorded during penetration tests. Why might we want to consider these blow counts when selecting a hammer?
To see how dense the soil is? More blows mean denser soil.
Yes! Higher blow counts indicate more resistance, often requiring heavier hammer options. For instance, what would you use in very loose sand?
You could possibly use a double acting hammer even for concrete?
Exactly! That’s an exception worth remembering. If the soil is loose enough, even concrete piles can adapt to double acting hammers.
What’s the guideline for cohesive soils?
Generally, heavier hammers like single acting hammers are recommended for all types of piles. This is crucial for tough soil conditions.
Blow Energy Considerations
Unlock Audio Lesson
Now let's shift our focus to hammer sizing. What do we use to measure hammer size?
Blow energy?
That's correct! We calculate blow energy as the weight of the hammer multiplied by the height of fall. Why do you think heavier piles require more blow energy?
Because they need more force to drive them into denser soil?
Exactly! More weight and tougher soil means we need heavier hammers. Can anyone summarize how pile material influences hammer selection?
Concrete needs heavier hammers to prevent damage, while lighter materials like timber can use milder options.
Well said! Understanding these nuances helps in making informed decisions in pile driving.
Practical Guidelines for Selection
Unlock Audio Lesson
As we conclude, let’s review some practical guidelines from the U.S. Army Corps of Engineers for selecting hammers. Why is it important to refer to these guidelines?
To make sure we follow best practices and avoid mistakes in selection?
Exactly! Guidelines help clarify exceptions, like using double acting hammers in certain loose sand conditions. Can anyone recall the types of hammers recommended for specific soil types?
Single acting hammers for concrete in medium non-cohesive sand!
Great memory! We also discovered that vibratory hammers are particularly effective in loose, saturated soils. Always consider these factors.
So what’s our final takeaway?
Choosing the right pile hammer hinges on understanding both the pile material and soil conditions—always do preliminary geo-technical investigations first!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section elaborates on the relationship between pile hammer selection and the type of pile material (concrete, timber, steel) and soil (cohesive and non-cohesive). It provides guidelines on choosing the appropriate hammer types, including drop, single acting, double acting, and vibratory hammers, based on various soil conditions and the properties of the piles.
Detailed
Introduction to Pile Hammer Selection
In this section, we explore the factors influencing the selection of pile hammers essential for effective foundation work. The selection process is governed predominantly by the type of pile material—concrete, timber, or steel—and the classification of soil, which can be divided into cohesive and non-cohesive categories.
Key Points Covered:
- Hammer Types: The discussion highlights the types of hammers suitable for different pile materials:
- Concrete Piles: Preferable use of heavier drop or single acting hammers with a limited fall height to minimize stresses on the pile head.
- Timber Piles: Similar recommendations as concrete.
- Steel and Sheet Piles: Suitability of double acting hammers for their rapid blow rates and vibratory methods for quiet operation.
- Soil Classification: Soil is classified based on tests like the Standard Penetration Test, which categorizes it into non-cohesive (sand) and cohesive types, guiding hammer selection.
- Guidelines from US Army Corps of Engineers: Specific recommendations exist for each soil type and pile material.
- For example, in loose sands, double acting hammers may be acceptable for concrete piles; however, single acting hammers are generally preferred to avoid damage.
- Blow Energy Criteria: The section also discusses the energy required for pile installation based on soil type and pile dimensions, recommending heavier hammers for tougher soils and larger piles.
By assessing both soil and pile materials, one can confidently select the appropriate hammer type to ensure effective drive without compromising the integrity of the piles.

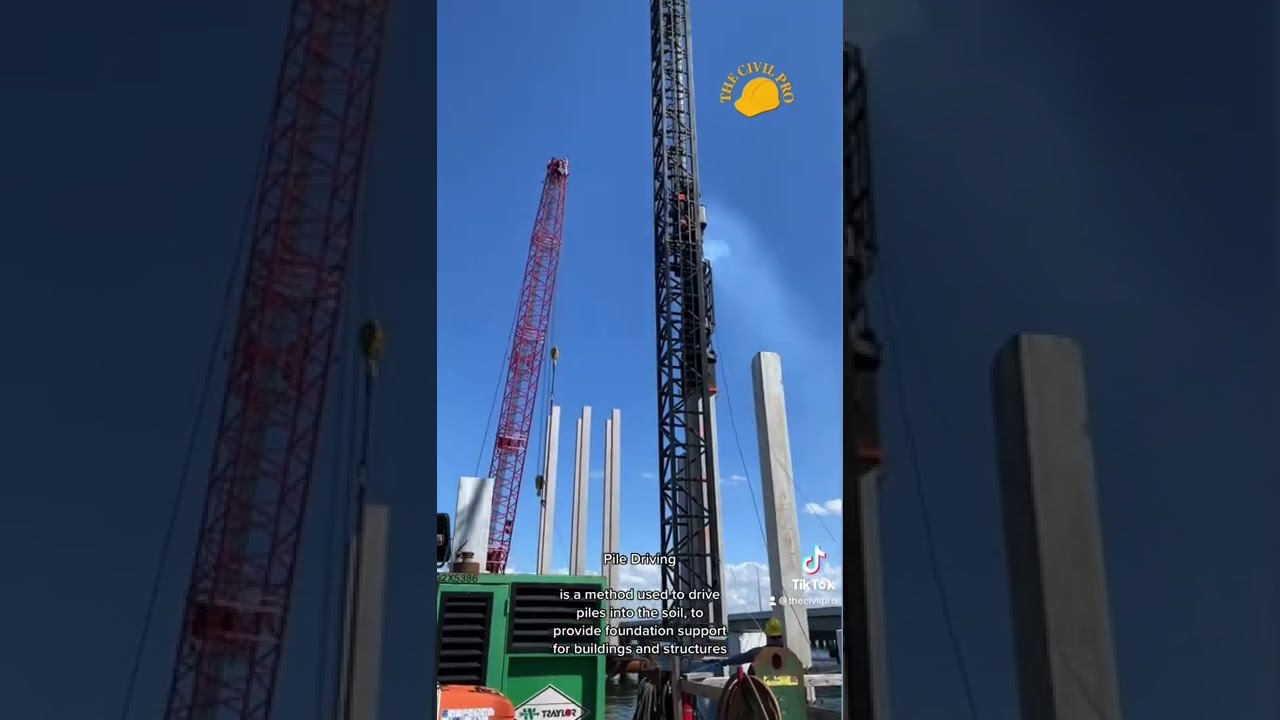

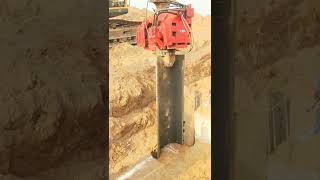

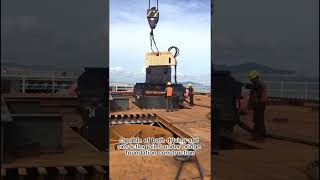

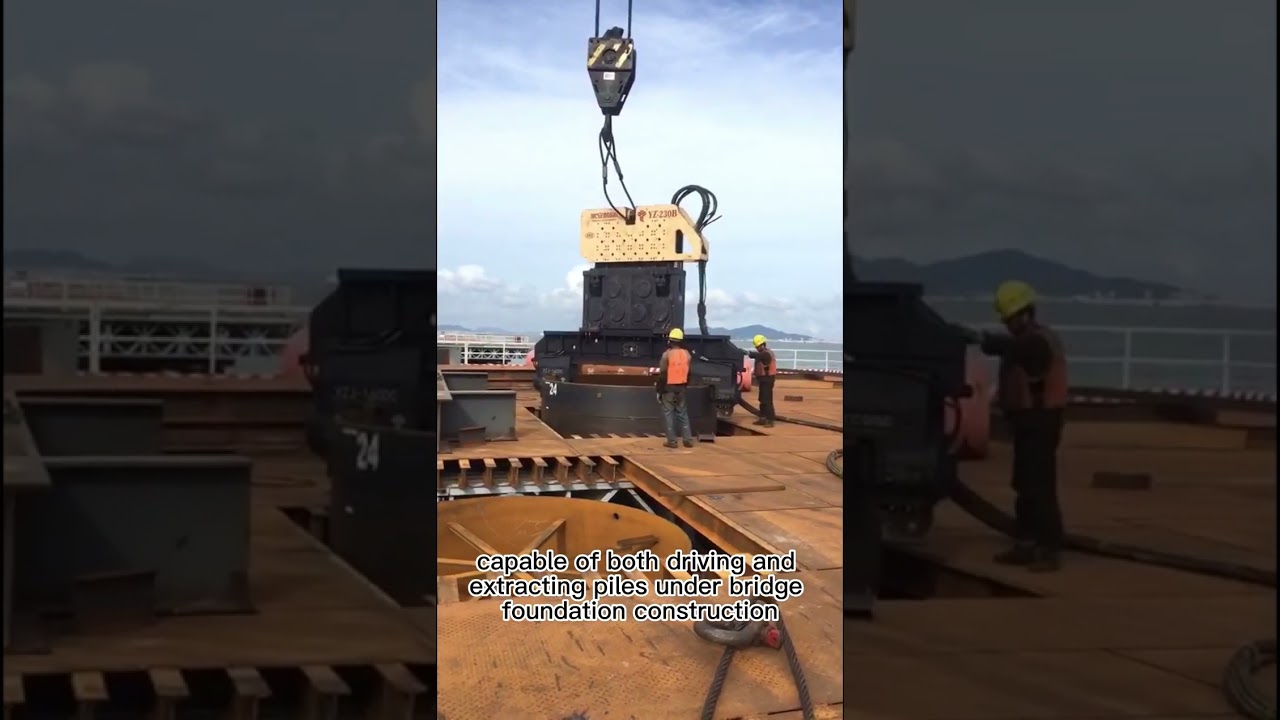

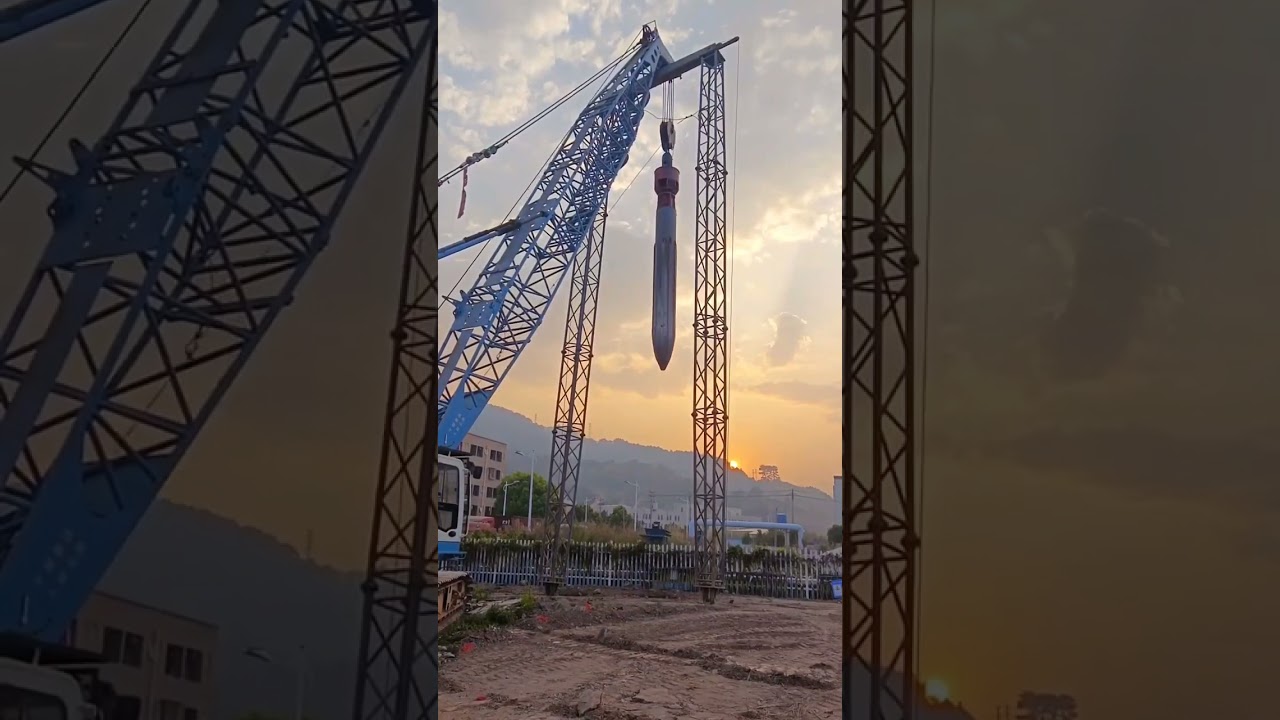

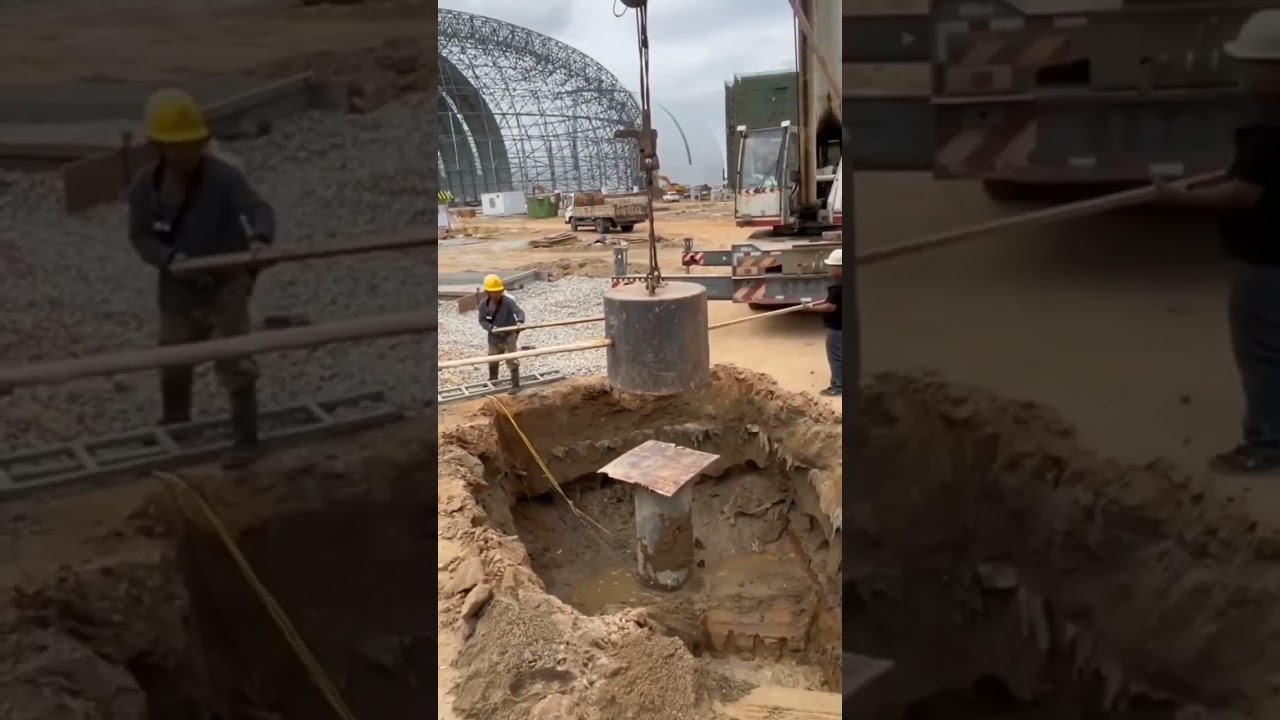

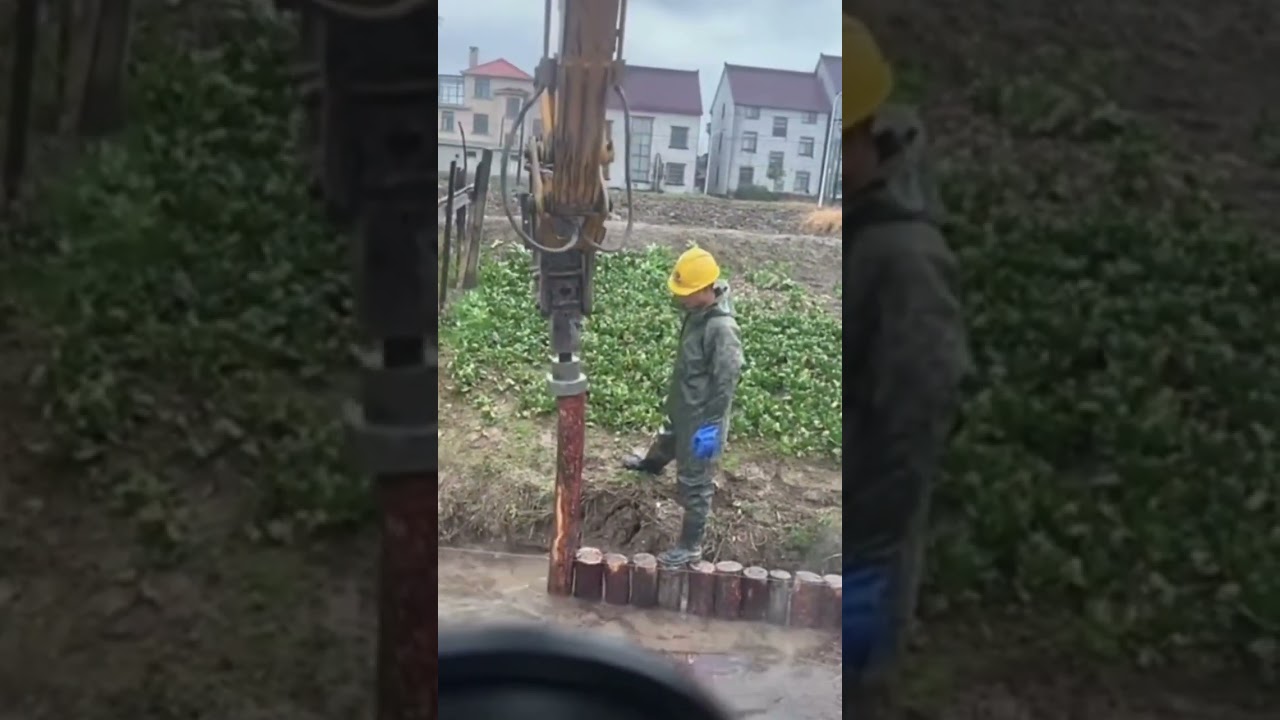

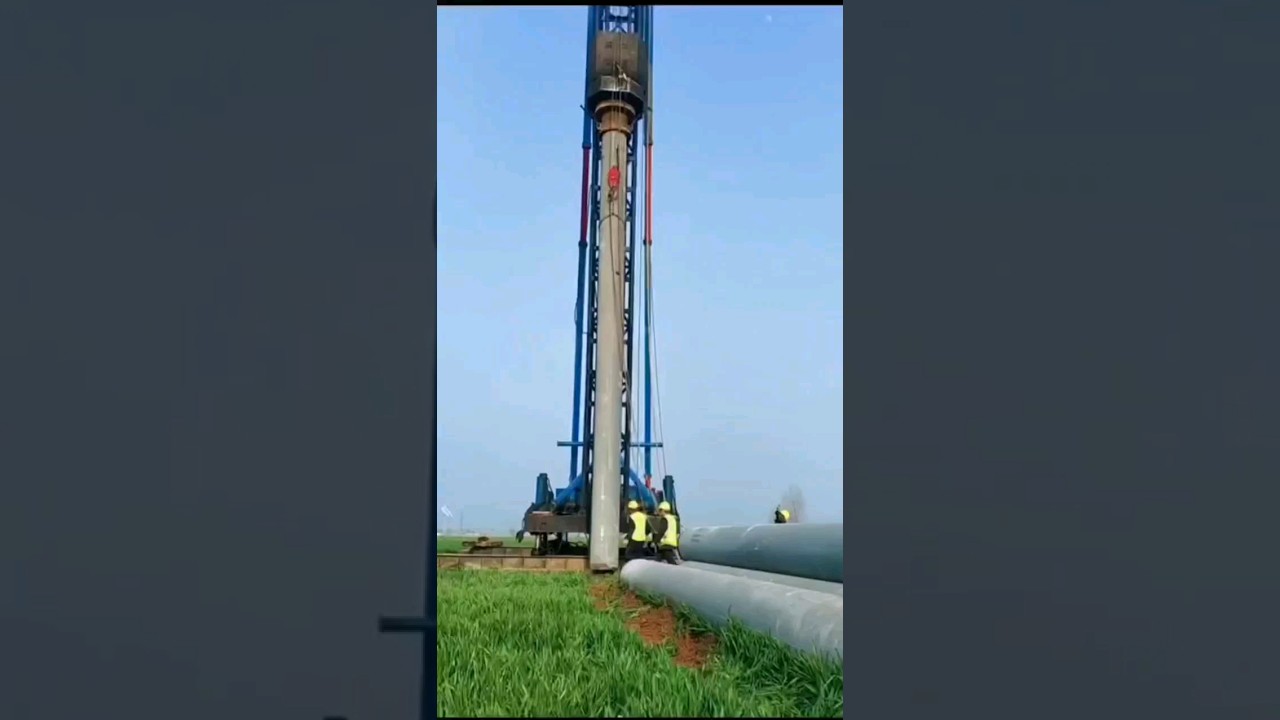

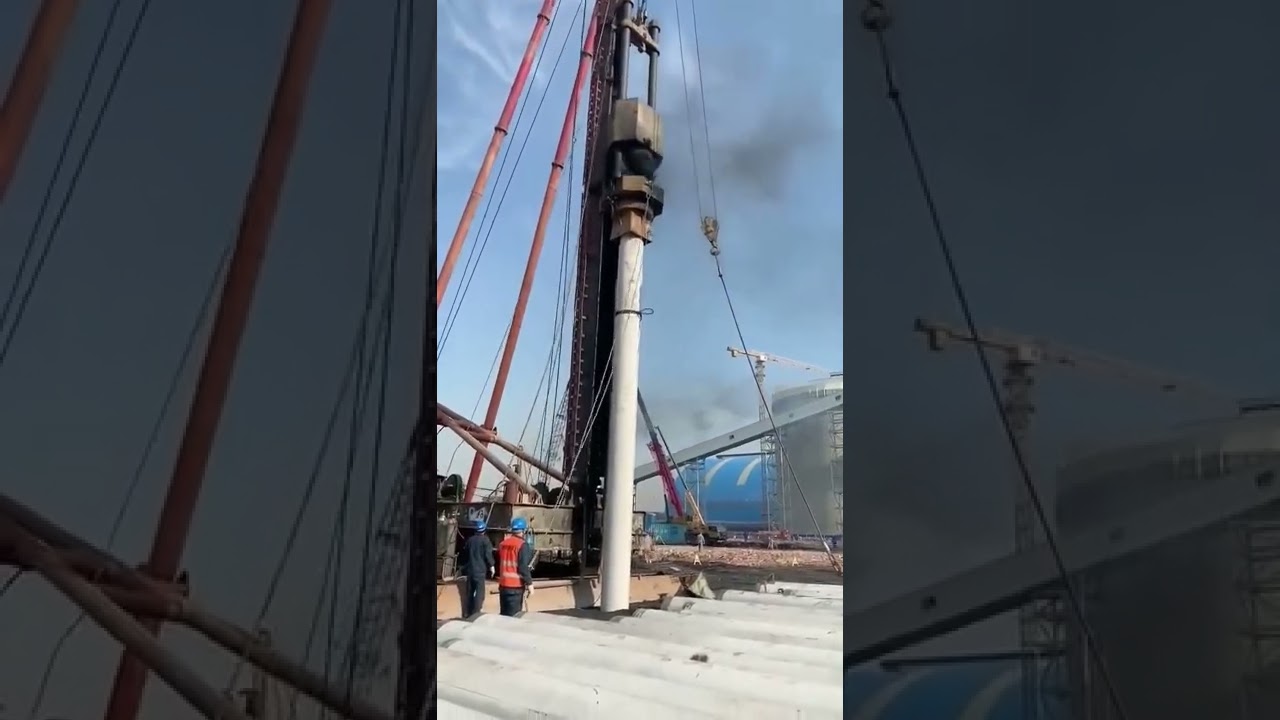

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Factors Governing Hammer Selection
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Your pile material type, the soil type, everything is going to govern your selection of your pile hammer.
Detailed Explanation
The choice of a pile hammer is influenced primarily by the type of material used for the pile (e.g., concrete, timber, steel) as well as the type of soil where the pile will be driven. Different materials and soil types require different approaches for effective installation.
Examples & Analogies
Think of it like choosing the right tool for construction work. For example, if you're hammering a nail into wood, you would use a standard claw hammer, but if you’re driving a stake into the ground, you would use a sledgehammer. Similarly, the type of pile and soil dictates the choice of hammer.
Hammer Types for Specific Pile Materials
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For concrete piles, you should go for drop or single acting hammers which are basically heavier. If you go for heavier hammer, you can reduce the height of fall, which will reduce the driving stresses on the concrete pile head.
Detailed Explanation
When dealing with concrete piles, it is crucial to use a heavier hammer. Heavier hammers lower the required height for effective driving, thereby minimizing stress and potential damage to the pile head. This is important in ensuring the integrity of the pile during installation.
Examples & Analogies
Imagine trying to pound a heavy tent stake into the ground with a lightweight hammer; it would take a lot of effort, and you might bend the stake. However, using a heavier hammer would allow you to drive the stake effectively without damage. This concept applies similarly to using hammers for concrete piles.
Hammer Selection Based on Soil Type
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We can classify the soil into different categories based on standard tests like the standard penetration test. You classify the soils into cohesive soil and non-cohesive soil.
Detailed Explanation
Soil classifications greatly affect hammer selection. Cohesive soils hold together well, while non-cohesive soils do not. Determining the soil type through tests helps in understanding how a pile will interact with the soil, influencing the choice of hammer used for driving.
Examples & Analogies
Think of the difference between building on sand compared to clay. If you build on sand, your foundation might shift easily, requiring a different approach (like a lighter hammer) compared to clay, which is more stable and would need a heavier hammer for effective driving.
Guidelines for Loose to Dense Non-Cohesive Sands
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For very loose to loose sand, use a double acting hammer for wood or concrete piles. As density increases to medium and dense non-cohesive sand, single acting hammer should be used for concrete piles.
Detailed Explanation
Guidelines specify different hammer types based on soil density. In very loose conditions, lighter hammers are suitable, while denser conditions require heavier hammers. This ensures that the pile is driven properly without either over-driving or under-driving, which can lead to structural issues.
Examples & Analogies
Consider how you would drive a spike into loose sand compared to solid ground. In soft sand, a lighter approach may work, but as the ground becomes firmer, you would need a stronger force to ensure that the spike doesn’t bend or break. The same principle applies in selecting hammers based on soil density.
Cohesive Soil Hammer Guidelines
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Cohesive soil is also classified into three different categories. For very stiff to hard cohesive soil (15 to 30+ blows), it is preferable to go for heavy hammer, always use single acting hammer for all types of piles.
Detailed Explanation
When dealing with cohesive soil, the guidelines recommend using single acting hammers for all types of piles, especially when the soil is very stiff. The energy needed to penetrate dense soil is higher, and heavier hammers provide the necessary force for driving piles effectively.
Examples & Analogies
Driving a spike into thick, dense mud is tough; a lightweight hammer simply won't have the impact needed to drive it in. You would need a much heavier hammer to apply sufficient force. This analogy reflects the importance of selecting the right hammer type based on soil density.
Selecting Hammer Size and Energy
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Hammer size is generally defined in terms of blow energy, which is calculated as Weight (W) x Height (H) of fall. Heavier piles require a higher blow energy.
Detailed Explanation
The size of the hammer is not arbitrary; it's calculated based on how much energy is required to drive a pile into the soil effectively. The blow energy must be sufficient to overcome the resistance presented by the soil and pile material. Larger, heavier piles therefore necessitate hammers that provide higher energy.
Examples & Analogies
Think of a heavy-duty construction vehicle. Just as larger vehicles need a stronger engine to move, a hammer needs to exert greater energy as its weight and the resistance from the soil increase. This ensures that piles are driven effectively without compromising their structure.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Hammer Types: Understanding the different types of hammers necessary for various materials.
-
Soil Classification: Importance of classifying soil types for optimal hammer selection.
-
Blow Energy: How blow energy requirements vary based on pile material and soil conditions.
-
Guidelines: Standards and practices recommended for pile hammer selection.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
For concrete piles in very loose sand, using a double acting hammer can be effective despite general guidelines recommending single acting hammers.
-
In cases of non-cohesive dense sand requiring higher blow counts, a single acting hammer becomes necessary for both concrete and steel piles.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
To choose the right hammer, let’s take a stand,
📖 Fascinating Stories
-
Imagine a construction site guided by experts, where concrete is laid. The team knows that a drop hammer for heavy piles prevents cracks, while a vibratory for soft soil keeps it serene.
🧠 Other Memory Gems
-
C for Concrete, T for Timber; both prefer heavier hammers, don't forget to remember!
🎯 Super Acronyms
SHE
- Soil type
- Hammer type
- Engineer guidelines – Remember these factors in hammer selection!
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Pile Hammer
Definition:
A tool used to drive piles into the ground, available in various types such as drop, single acting, double acting, and vibratory.
-
Term: Blow Energy
Definition:
The energy delivered by the hammer to the pile, calculated as the product of the hammer's weight and the height of its fall.
-
Term: Cohesive Soil
Definition:
Soil that exhibits cohesive properties, such as clay, which holds together due to intermolecular forces.
-
Term: NonCohesive Soil
Definition:
Soil that does not exhibit cohesive properties, such as sand, that relies on friction for its stability.
-
Term: Standard Penetration Test
Definition:
A test to determine the number of blows required to penetrate a specific soil depth, helping to classify soil types.
-
Term: Vibratory Hammer
Definition:
A hammer that uses vibrations to drive piles, known for being quieter and effective in certain soil conditions.
