1 - Safe Crane Operations
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Importance of Outriggers
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we’re going to discuss the importance of outriggers in crane operations. Can anyone tell me why they’re so crucial?
I think they help stabilize the crane?
Exactly! Properly extended outriggers prevent the crane from tipping. In fact, statistics show that about 50% of crane incidents happen due to improper outrigger extensions.
Is it important to check the ground where we set them up, too?
Yes! Assessing soil conditions is essential. Weak soil can lead to instability, so using mats can help distribute the crane's weight.
What happens if the outriggers aren't set correctly?
That’s when accidents can occur! Ensuring proper setup and supporting conditions is vital for safety.
Are there any tips for remembering outrigger setup?
A helpful mnemonic is 'S.O.S.: Set, Observe, Stabilize' to remind you to Set the outriggers, Observe soil conditions, and stabilize the crane.
To summarize, proper outrigger setup combined with assessing ground conditions significantly reduces the risk of crane incidents.
Load Capacity Considerations
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s talk about how to determine a crane's load capacity. Who can tell me about load capacity charts?
They show how much weight a crane can lift, right?
Absolutely! But it's essential to consider the boom's angle and the operating radius as they affect the lifting limits significantly.
What if we overload the crane?
Overloading can lead to accidents! Modern cranes have load moment indicators that warn operators when the limits are exceeded.
Are we supposed to measure the radius every time?
Yes, checking the radius before operations is essential, as the lifting capacity decreases as the load moves further away from the crane's center.
How can we remember to check these factors?
You can use the acronym 'C.L.A.R.K.': Capacity, Load, Angle, Radius, Keep checking!
In summary, always evaluate load capacity along with the operating radius and boom angle to ensure safe crane operations.
Safety from Electrical Hazards
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's consider electrical safety. Why is maintaining a distance from power lines important?
Because of electrocution risks?
Exactly! OSHA mandates that cranes must stay at least 3 meters away from high voltage power lines.
What about cranes with longer reach?
Good question! Always ensure that the load stays clear of those lines because even the booms can come into contact.
How do we remember that distance?
You can think of '3 meters = Safe Zone' to help remember the spacing!
In summary, always keep a minimum of 3 meters from high voltage lines to prevent accidents.
Wind Speed Effects on Operations
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let’s discuss how wind impacts crane operations. Can anyone tell me what to do in high wind?
We should stop operations if it’s too windy?
Correct! If wind speeds exceed 72 km/h, crane operation should halt. Additionally, you should release the slewing brake.
Why release the brake?
To allow the crane to pivot with the wind and prevent brake damage.
Is there anything else to consider?
Always adjust the lifting capacity according to wind conditions as well.
Remember, ‘Wind means Wait’, to reinforce the idea of safety during windy conditions.
To summarize, always monitor wind conditions during crane operations and follow specific procedures to ensure safety.
Utilizing Crane Range Diagrams
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s wrap up with crane range diagrams. Who can explain what they are used for?
They help determine the boom length we need?
That's right! The diagrams plot the horizontal distance and height needed for a particular load, allowing you to find the appropriate boom length to carry out tasks safely.
So they help with planning the lift?
Exactly! They show maximum capabilities based on your needs. For example, if you know the height is 53m and the reach is 20m, the diagram will help you identify the required boom length.
How can we remember how to use them?
You can think of it as the 'B.H.D. Method' - Boom, Height, Distance, to remember how to read the diagram.
In summary, crane range diagrams are vital tools that help operators efficiently plan and execute lifts safely by considering the appropriate boom length.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section outlines critical safety measures for operating cranes, highlighting the significance of properly extending outriggers, considering soil conditions, monitoring load capacities with boom angles, and adhering to guidelines regarding proximity to power lines and wind speeds. The section also discusses using crane range diagrams for efficient lifting operations.
Detailed
Detailed Summary
In this section on Safe Crane Operations, various guidelines are presented to mitigate the risk of accidents related to crane usage, which are alarmingly frequent in the industry. Key points include:
- Outriggers: Proper extension of outriggers is crucial for stability. Approximately 50% of crane incidents occur due to improper outrigger setup. It is necessary to ensure outriggers are placed on firm supports and to assess soil conditions. If the ground is weak, utilization of timber or steel mats is recommended.
- Load Capacity: Operators must consult safe lifting capacity charts, considering the entire range of the planned swing. It's important to note that lifting capacity varies depending both on the boom's position and the crane's operating radius. Modern cranes are equipped with load moment indicators that alert operators when limits are exceeded.
- Electrical Safety: Cranes must maintain a distance of at least 3 meters from high voltage power lines (carrying 50 kilowatts) as per OSHA guidelines to prevent electrocution hazards.
- Wind Speed Consideration: The effects of wind load on crane operations cannot be underestimated. Operations should cease if wind speeds exceed 72 kilometers per hour. Operators should also release the slewing brake in high wind situations to minimize damage to the crane.
- Crane Range Diagrams: Understanding crane range diagrams is vital for determining the necessary boom length and evaluating the working range for lifting. The diagrams plot the horizontal distance from the crane's center to the load line against the height of the boom tip above ground, allowing operators to ascertain requirements for specific lifting tasks.

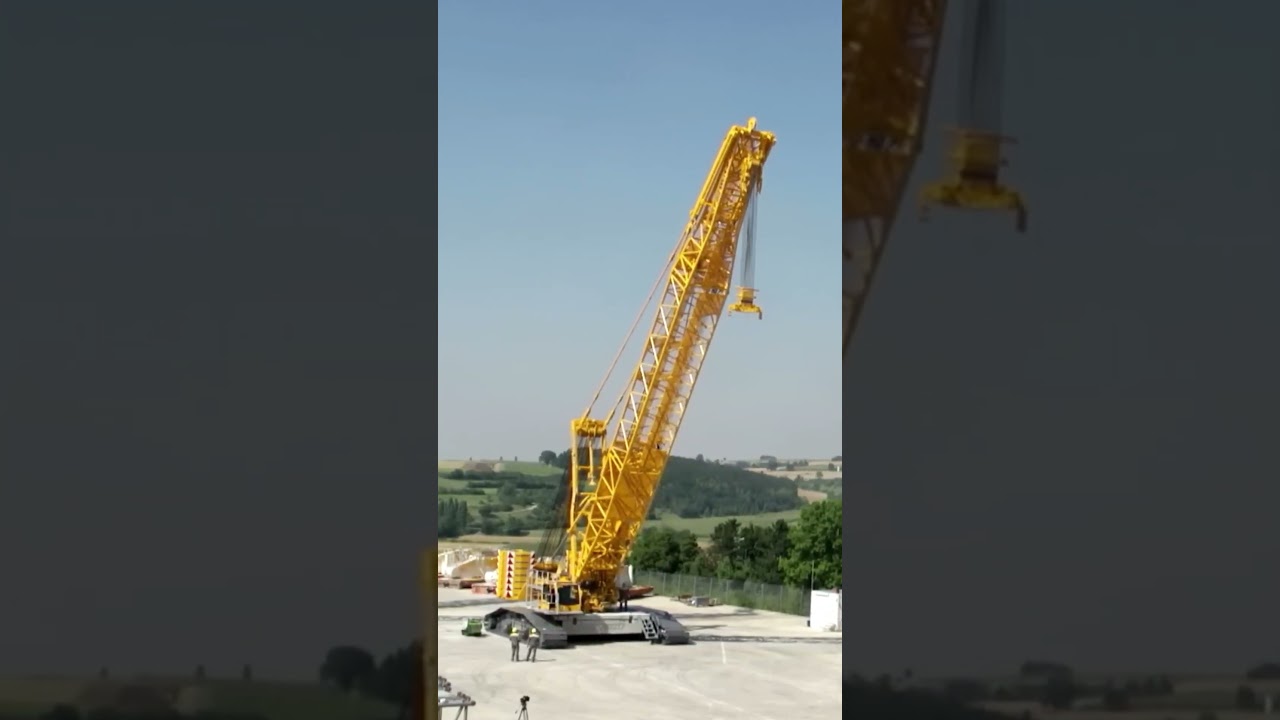

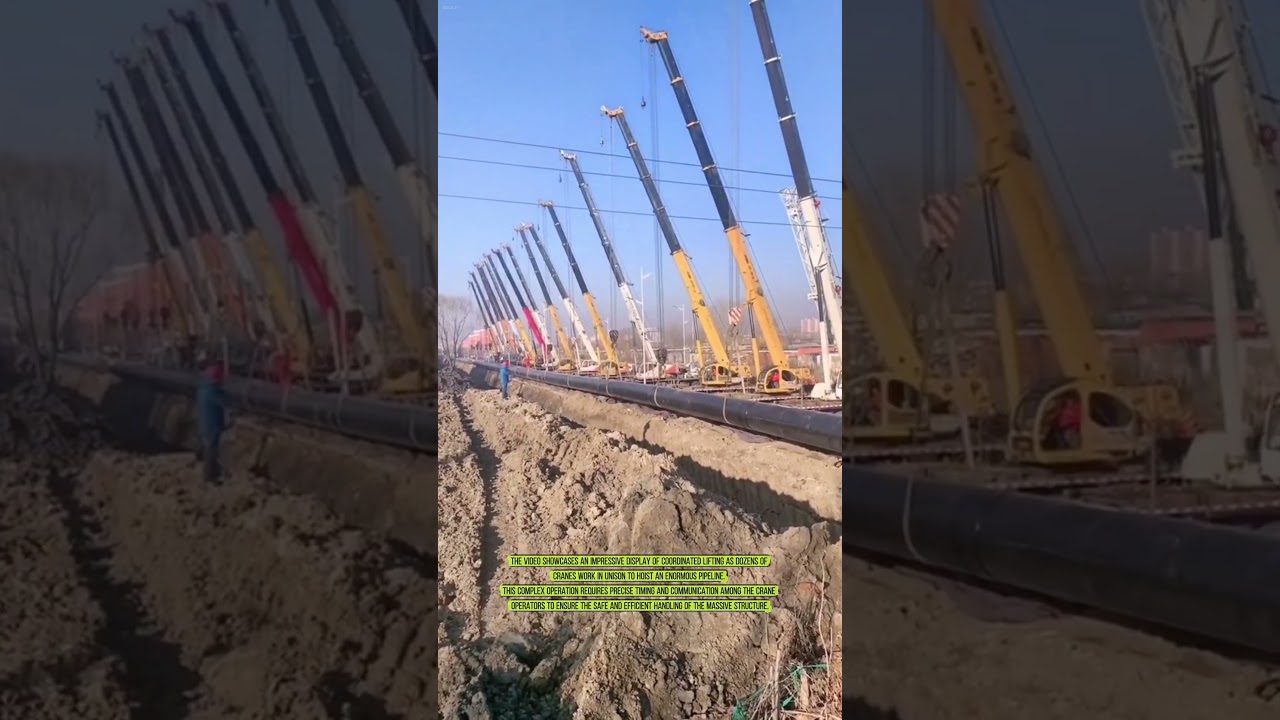

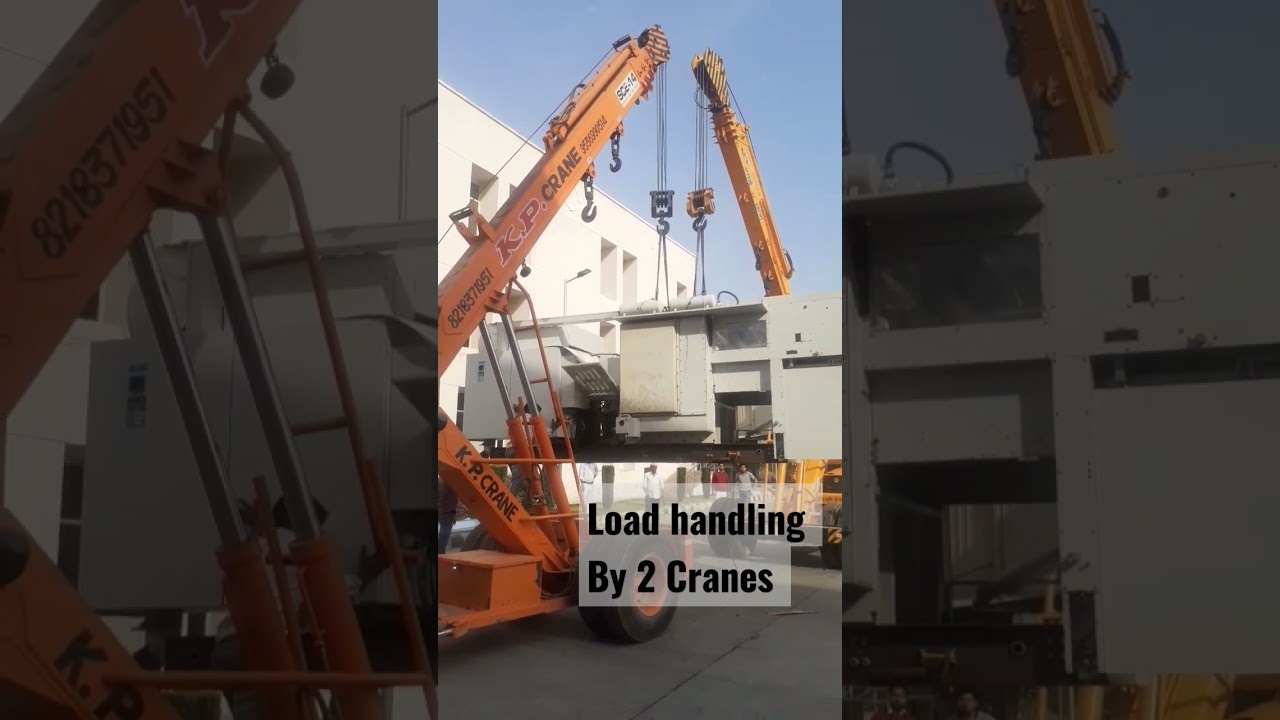

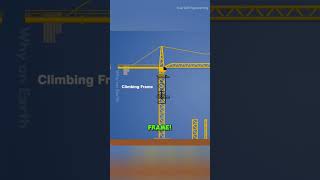

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Guidelines for Crane Safety
Chapter 1 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
There are also some guidelines given for the safe crane operations because you know that there are so many accidents related to crane reported very commonly. So, that is why we should follow some safe guidelines when you operate the crane.
Detailed Explanation
This chunk emphasizes the importance of following safety guidelines while operating cranes due to the high incidence of accidents. It highlights the need for standard procedures to ensure the safety of the operators and those nearby.
Examples & Analogies
Imagine a restaurant kitchen where health and safety guidelines are strictly followed to prevent accidents. With cranes, similar strict guidelines are essential to prevent serious mishaps on construction sites.
Setting Up the Outriggers
Chapter 2 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Carefully set the outriggers on firm supports because statistics shows that at least 50% of crane incidents occur because outriggers are not extended properly. Check for the soil condition. If the soil is going to be weak, provide some timber mats or steel mats.
Detailed Explanation
Outriggers are stabilizing legs that are extended from the crane to provide support. Properly setting them up on solid ground is crucial because failure to do so is a common cause of crane accidents. If the ground is weak, using mats can help distribute the weight more evenly and prevent the crane from tipping.
Examples & Analogies
Think of a table with wobbly legs; placing a heavy object on it could cause it to tip over. Similarly, cranes need solid support to operate safely and effectively.
Understanding Lifting Capacity
Chapter 3 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Check the safe lifting capacity charts for the entire range of planned swing. Lifting capacity varies with the operating radius and the position of the boom with respect to the carrier.
Detailed Explanation
This chunk discusses the importance of understanding lifting capacities indicated in capacity charts. The maximum weight a crane can lift changes based on how far the load is from the center (operating radius) and the angle of the crane's boom. This information is essential for safe operations.
Examples & Analogies
Think of a seesaw. The farther you sit from the center, the harder it is to lift someone on the other side. Similarly, cranes have varying capacities based on weight distributions and distances.
Using Load Moment Indicators
Chapter 4 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
In modern cranes, there are load moment indicators. If the load is getting exceeded at a particular operating radius, it gives you a warning or indication.
Detailed Explanation
Load moment indicators are crucial safety devices in modern cranes that alert the operator when the lifting capacity is at risk of being exceeded. This helps prevent accidents by notifying the operator before reaching unsafe limits.
Examples & Analogies
It’s like a car that alerts you when you're speeding. The alarm prompts you to slow down before any harmful consequence occurs. Similarly, the load moment indicator alerts crane operators to ensure safety.
Electrocution Hazards
Chapter 5 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Some accidents are reported due to electrocution when crane booms are in contact with high voltage power lines. According to OSHA, prohibitions are set on the crane or the load approaching closer than 3 meters to high voltage lines.
Detailed Explanation
This section highlights the danger of cranes coming too close to power lines, which can lead to electrocution. OSHA regulations require maintaining a safe distance to prevent such accidents.
Examples & Analogies
Imagine standing too close to a rolled-up electric wire; it's dangerous. The guidelines exist to ensure that cranes maintain a safety buffer to protect operators and coworkers from harm.
Impact of Wind Loads
Chapter 6 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Wind load should also be considered. If the wind speed is very high, say greater than 72 kilometers per hour, you should stop the crane operation. According to the wind speed prevailing, the lifting capacity should be reduced.
Detailed Explanation
This part discusses how windy conditions can affect crane operations. High winds can destabilize cranes, so operators must monitor wind conditions and be ready to stop operations if it becomes too dangerous.
Examples & Analogies
When strong winds blow, it's unsafe to fly a kite because it can get out of control. Similarly, cranes must be securely managed during high winds to prevent accidents.
Understanding the Crane Range Diagram
Chapter 7 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
As a name indicates, if you know your working range needed, you can find out the boom length needed to satisfy the working range in my project site.
Detailed Explanation
The crane range diagram is a tool used to figure out the necessary boom length for different lifting ranges. It allows operators to understand the capabilities and limitations of the crane's reach for their specific needs.
Examples & Analogies
Consider a map that shows the distance from a starting point to various locations. The crane range diagram serves a similar purpose, providing essential data for crane operation planning.
Calculating the Required Boom Length
Chapter 8 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
If your operating radius working radius needed is 20 meters and you want to reach a height of 53 meters, the boom length needed is approximately 55 meters.
Detailed Explanation
This chunk outlines a practical issue regarding how to determine the appropriate boom length. Based on project requirements such as operating distance and height, the necessary boom length can be calculated to ensure effective and safe lifting.
Examples & Analogies
Just as you would measure the height of a tree before choosing a ladder to reach its top, crane operators must calculate the boom length needed to reach their load safely.
Maximum Load Calculations
Chapter 9 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Determine the maximum net weight of the load that can be hoisted by the crane. It is important to include the weight of the hook, block, sling, and everything as the crane has to lift that also.
Detailed Explanation
This section stresses the importance of considering the total weight when evaluating a crane's lifting capacity. The total includes the load itself and all rigging equipment, ensuring safe operations.
Examples & Analogies
Think of carrying groceries; you need to consider not just the bags but also your own weight. Similarly, cranes must account for every aspect of the lifted load to function safely.
Conclusion and Summary of Crane Safety
Chapter 10 of 10
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The importance of crane range diagram helps you find the boom length needed for a particular working range or what a working range boom length can offer.
Detailed Explanation
In conclusion, understanding crane operations involves recognizing safety guidelines, correctly operating the equipment, calculating lift capacities, and using tools like the crane range diagram to optimize performance.
Examples & Analogies
Remember how in school, you learned that following rules helps you succeed? Similarly, following operational guidelines and safety measures is crucial for effective crane operation.
Key Concepts
-
Proper Outrigger Setup: Essential for crane stability and preventing accidents.
-
Load Capacity: Varies based on boom angles and operating radius; critical for safe lifts.
-
Electrical Safety: Maintaining a safe distance from high voltage lines is vital to protect against electrocution.
-
Effects of Wind: High winds can compromise crane stability; operations must halt under certain conditions.
-
Crane Range Diagrams: Tools to determine the necessary boom length for specific lift requirements.
Examples & Applications
When setting up a crane on a construction site, workers should always place outriggers on solid ground to ensure maximum stability. If the ground is unstable, using timber or steel mats can help distribute the weight effectively.
If a crane operator checks the load capacity chart before lifting a heavy load and finds that lifting the load at a 20-meter reach exceeds the available capacity, the operator should adjust the setup to ensure safety.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Keep the crane upright and sound, solid ground must be found.
Stories
Once there was a crane operator named Carl. He always checked the wind and set his outriggers well. His safety ensured every load he carried fell, making him the hero with no stories to tell.
Memory Tools
C.L.A.R.K. = Capacity, Load, Angle, Radius, Keep checking.
Acronyms
S.O.S. = Set, Observe, Stabilize for crane operations.
Flash Cards
Glossary
- Outriggers
Stabilizing equipment extended from the sides of a crane to enhance stability and prevent tipping.
- Load Capacity
The maximum weight a crane can safely lift, influenced by boom angle and operating radius.
- OSHAD
Occupational Safety and Health Administration; a U.S. agency setting regulations for workplace safety.
- High Voltage Power Lines
Electrical lines carrying a high level of voltage, requiring precautions to avoid electrocution.
- Slewing Brake
A mechanism that stops the rotation of the crane's boom, pivotal in controlling movements during wind.
- Crane Range Diagram
A graphical representation that helps determine the required boom length based on horizontal distance and height.
