Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Surface Vibrators
Unlock Audio Lesson
Welcome everyone! Today, we're diving into surface vibrators. Can anyone tell me what a surface vibrator does in concrete construction?
Isn't it used to compact concrete by applying vibrations?
Exactly! Surface vibrators apply vibration to the top surface of concrete, helping consolidate it downwards. Why might someone choose a surface vibrator over an internal one?
Because sometimes the internal vibrators can't fit, right?
Correct! Internal vibrators are limited in situations like very thin slabs or when there's too much reinforcement. Can anyone provide an example of where a surface vibrator would be particularly useful?
Like in a thin slab that doesn’t allow for the insertion of a needle vibrator?
Exactly! Great example. So let's remember the motto: Surface vibrators for shallow slabs and dense rebar.
Types of Surface Vibrators
Unlock Audio Lesson
Now, let's talk about the two main types of surface vibrators. Can anyone name one of them?
There's the plate type surface vibrator, right?
Great! The plate type is commonly used for slab construction. What would you say the second type is?
The screed type vibrator, which also levels the concrete while consolidating it?
Exactly! The screed type vibrator serves a dual purpose, leveling while it vibrates. Why is that important?
It makes the job quicker and ensures a smooth finish!
Yes, efficiency is key in construction. Remember, both types enhance the quality and performance of slabs!
Limitations of Surface Vibrators
Unlock Audio Lesson
Let’s look at limitations now. Why might using a surface vibrator not be advisable?
If the concrete has high workability, like a slump over 75 mm?
Correct! High workability can lead to segregation, weakening the top surface of the slab. Can anyone elaborate on how high workability affects concrete?
It can cause water and fine material to rise to the top, which makes the slab weaker.
Exactly! And this is crucial for floor slabs where durability matters. Always check workability before opting for surface vibrators!
Performance and Frequency of Surface Vibrators
Unlock Audio Lesson
Now, let's talk about performance. What’s the normal frequency range for surface vibrators?
It ranges between 3,000 to 6,000 vibrations per minute?
Right! And how does that compare to internal vibrators?
Internal vibrators can go above 12,000 vibrations per minute!
Exactly! So knowing the frequency can help in selecting the right vibrator for the application. Can anyone tell me the effective depth of a surface vibrator?
It’s effective for slabs up to 150 mm thick.
Very good! Remember these performance metrics when working with concrete!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section discusses the role of surface vibrators in concrete consolidation. While internal vibrators are more effective, surface vibrators are essential for thin slabs and densely reinforced areas. Key points include their operation, limitations due to concrete workability, and the types of surface vibrators like plate and screed types.
Detailed
Surface Vibrators
Surface vibrators are vital tools in the process of concrete consolidation, applying vibrations directly at the surface of concrete structures. Unlike internal vibrators, which deliver vibrations directly to the concrete layers, surface vibrators propagate vibrations from the surface downwards through the depth of the concrete.
Key Features of Surface Vibrators
- Effectiveness: Although internal vibrators are generally more effective, surface vibrators are critical in conditions where internal vibrators cannot be used, such as in slabs that are very thin or have congested reinforcement.
- Usage Limitations: They should not be utilized for concrete with high workability, specifically when the slump exceeds 75 mm, as this can lead to segregation of materials, weakening the surface layer.
- Depth Limitations: Surface vibrators are effective for slabs up to a thickness of 150 mm. Beyond this, the vibration transfer becomes inefficient.
Types of Surface Vibrators
- Plate Type Surface Vibrator: Commonly used for slab construction, this vibratory mechanism flattens and consolidates the concrete.
- Screed Type Vibrator: This dual-purpose equipment combines screeding and consolidation, leveling excess concrete and enhancing uniformity while consolidating the slab.
In summary, surface vibrators play a crucial role in concrete construction, addressing specific challenges where internal vibration methods are not possible, ensuring quality and strength in concrete slabs.

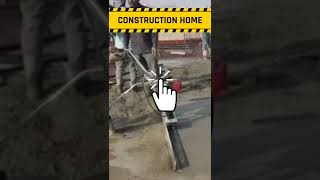

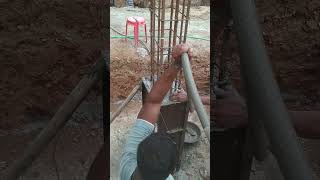

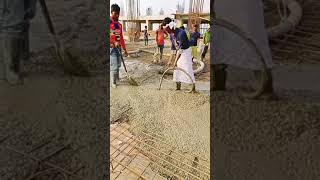

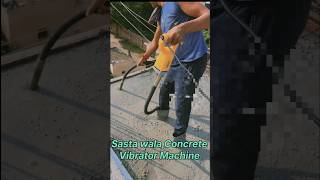

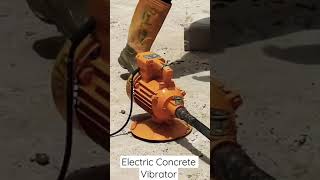

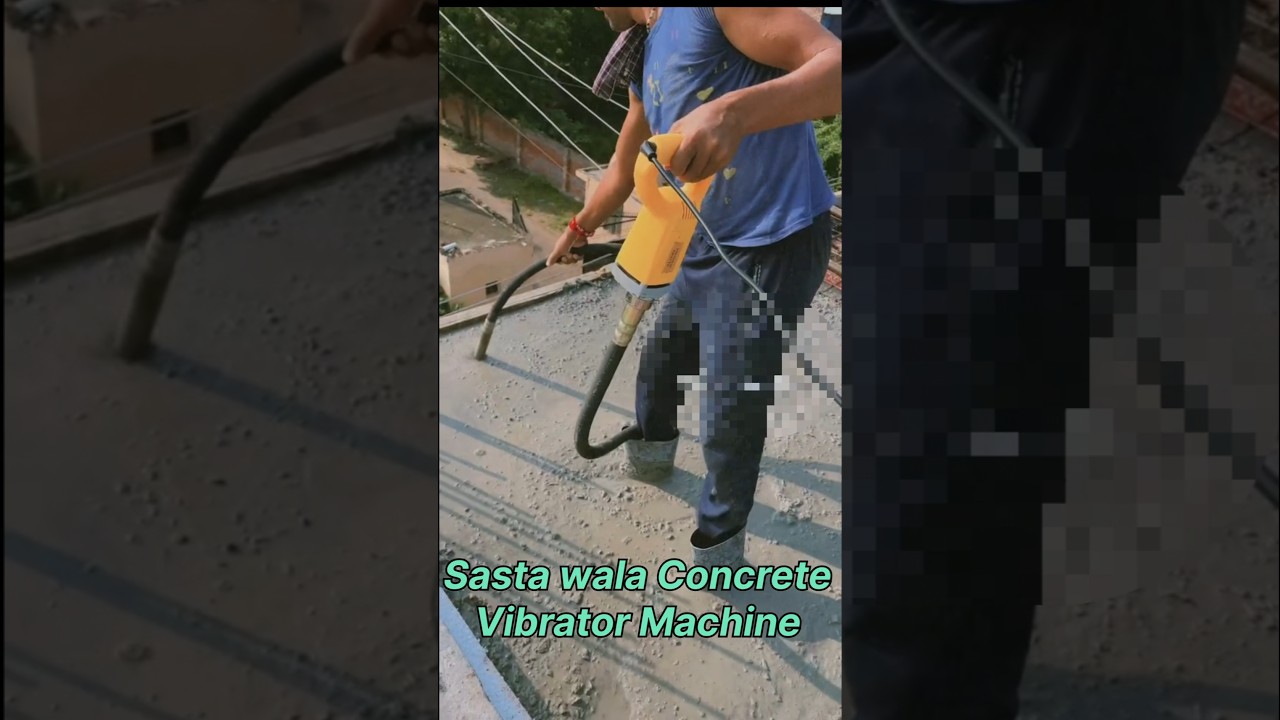

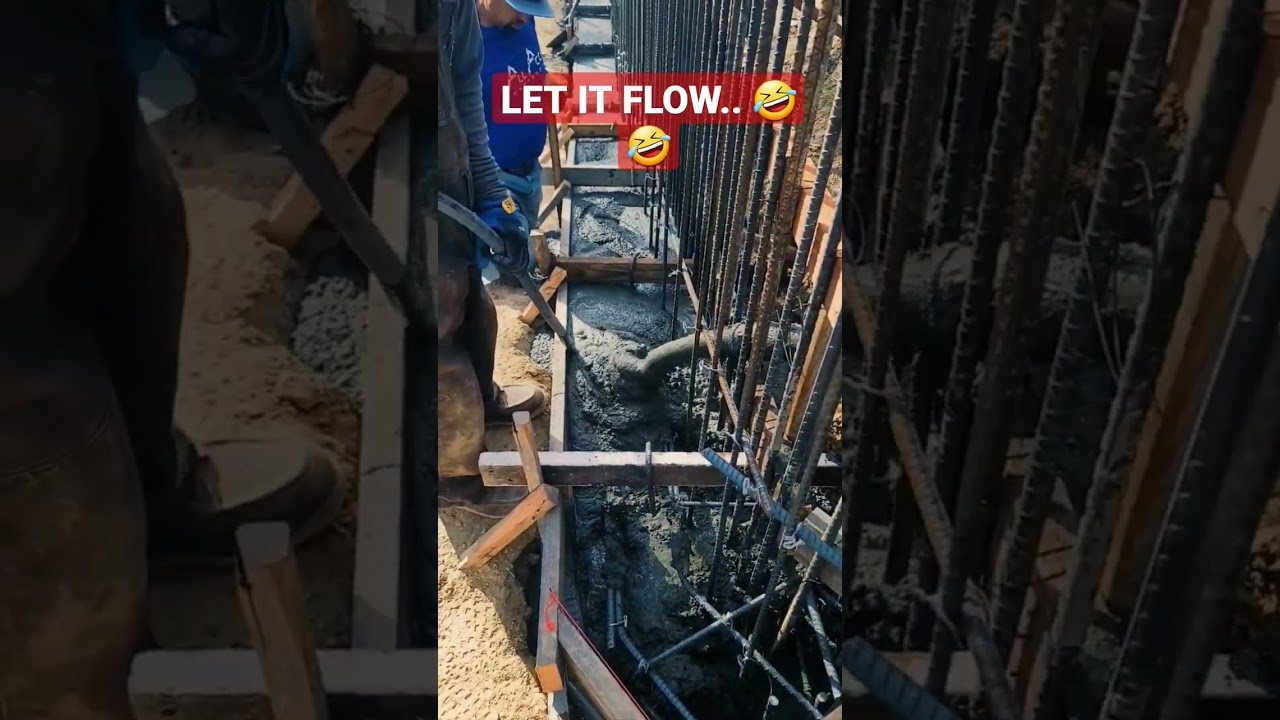

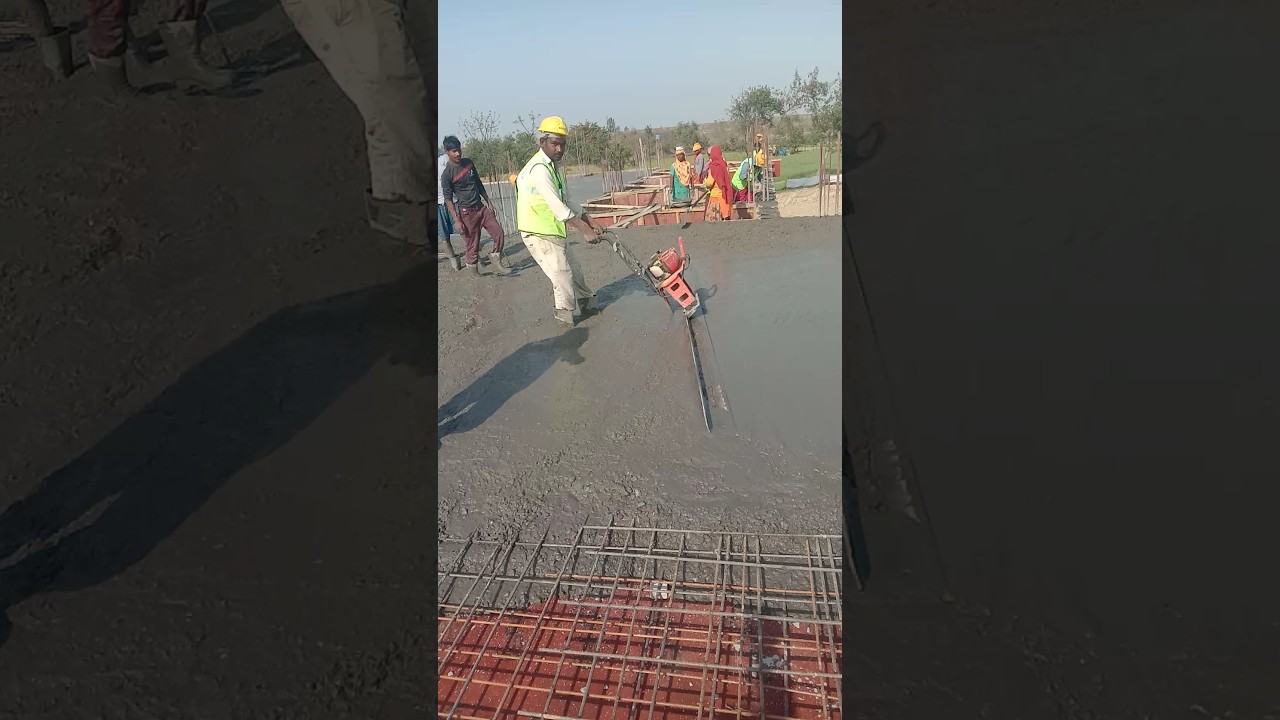

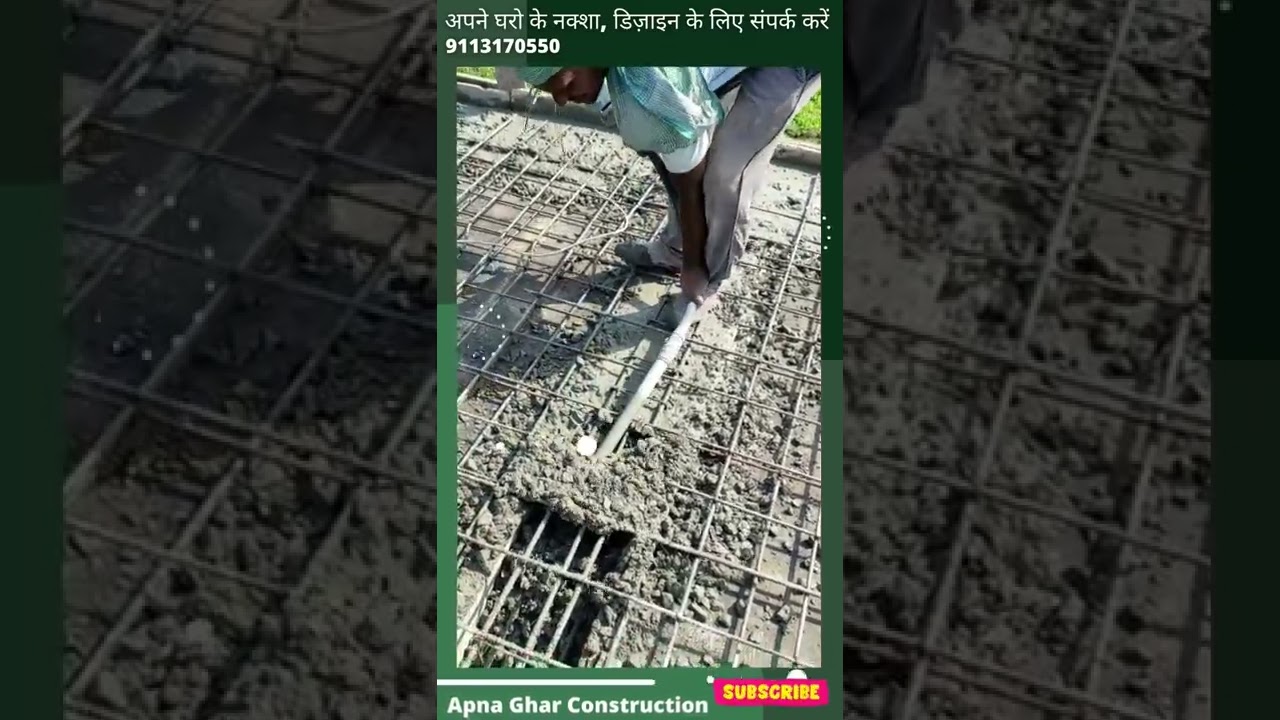

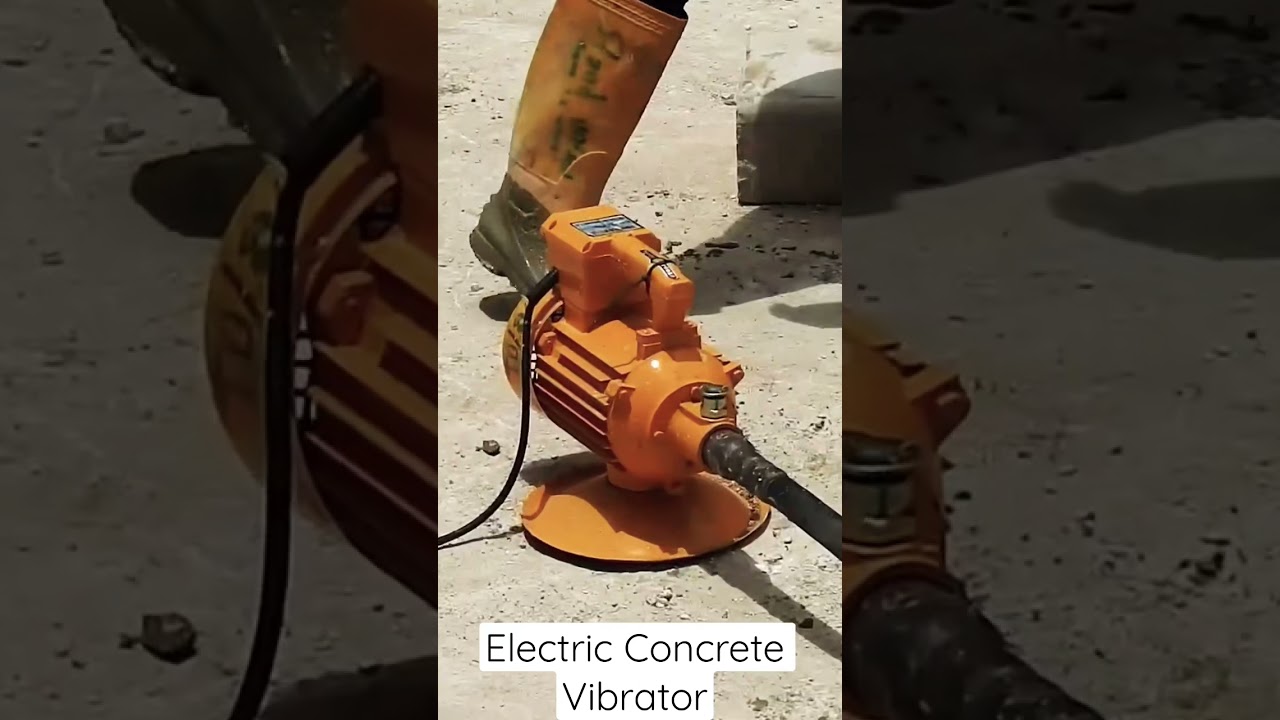

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Surface Vibrators
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now, let us move on to the surface vibrators. So, let us see how to do the consolidation of the concrete using surface vibrators. So, these vibrators as the name indicates the vibration is applied at the surface of the concrete and from the surface the vibration will be transferred throughout the entire depth of the concrete.
Detailed Explanation
Surface vibrators are tools used in the construction industry to consolidate concrete. Vibration is applied directly at the top surface of the concrete, and this vibration travels downward through the entire depth. This process is essential for ensuring that the concrete is solidified, eliminating air pockets, and achieving a uniform density.
Examples & Analogies
Think of a surface vibrator like the way a speaker sends sound through the air. The vibrations from the speaker (like the vibrator) travel through the air (the concrete) so that you can hear the music clearly. Just like the sound fills the space around you, the vibration from the surface vibrator helps evenly distribute the concrete.
Comparison with Internal Vibrators
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Generally speaking the internal vibrators are the best one. They are more effective, because we are directly applying the consolidation at the actual layer of concrete where the vibration is needed. But here the vibration is getting transferred from the surface to the entire depth of the concrete in the case of surface vibrators.
Detailed Explanation
Internal vibrators are often preferred because they provide direct vibration to the concrete where it is needed most, inside the concrete mass. This direct application increases the effectiveness of the consolidation process. In contrast, surface vibrators transfer vibrations from the surface, which may not be as effective but are necessary when internal vibrators cannot be used.
Examples & Analogies
Imagine trying to stir a thick soup. If you stir right in the middle, you're more likely to mix everything up compared to if you just swirl the spoon around the rim. That’s like the difference between internal and surface vibrators: the internal vibrator is stirring directly in the mix, while the surface vibrator tries to mix from the top.
Limitations of Internal Vibrators
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In some cases we cannot use the internal vibrators. Say for example, if the slab thickness is very small and if the casing or the head of the needle vibrator is not completely immersed in this slab because the thickness of the slab is very small. So, in that case we cannot use a needle vibrator for such thin slabs.
Detailed Explanation
There are specific situations where internal vibrators cannot be utilized effectively, such as when working with very thin slabs of concrete. If the vibrators are not fully submerged, they will not work correctly. Similarly, if the area is densely reinforced with steel bars, inserting the vibrator can become difficult, leading to the need for surface vibrators.
Examples & Analogies
Consider trying to fit a large tool in a small toolbox. If the toolbox (the slab) is too small, you won’t be able to insert the tool (the internal vibrator) effectively. Just like you would need a different approach, like a smaller tool, to get the job done in a limited space.
Application of Surface Vibrators
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So wherever internal vibrators are not possible where it is not feasible to use internal vibrators, then we go for other form of vibrators like surface vibrators. So, these are mostly used in the slab construction. So, you can see that the surface vibrators are applied at the top surface of the concrete. And it consolidates the concrete from top down.
Detailed Explanation
Surface vibrators are specifically useful in slab construction when internal vibrators cannot be used. They work by applying vibrations to the top layer of the concrete, allowing the vibrations to travel downward and evenly consolidate the material. This method is vital for achieving the necessary strength and durability in the concrete structure.
Examples & Analogies
Think of a sponge soaking up liquid from the top. The surface vibrators act like the sponge, absorbing and spreading the vibration down through the concrete, ensuring that every layer gets consolidated effectively.
Frequency Differences
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When you compare it with the frequency of the internal vibrator, you can see here the frequency range is only 3,000 to 6,000 vibrations per minute. But your needle vibrators are having very high frequency as high as more than 12,000 vibrations per minute.
Detailed Explanation
Surface vibrators typically operate at a frequency of 3,000 to 6,000 vibrations per minute, which is significantly lower than the frequencies of internal needle vibrators that often exceed 12,000 vibrations per minute. This lower frequency impacts how effectively the surface vibrator can consolidate the concrete compared to internal options.
Examples & Analogies
Imagine applying pressure on a trampoline: a low frequency offers slower, softer bounces, while a high frequency delivers rapid, energetic bounces. Similarly, the different vibration frequencies of these vibrators lead to varying levels of consolidation effectiveness.
Types of Surface Vibrators
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

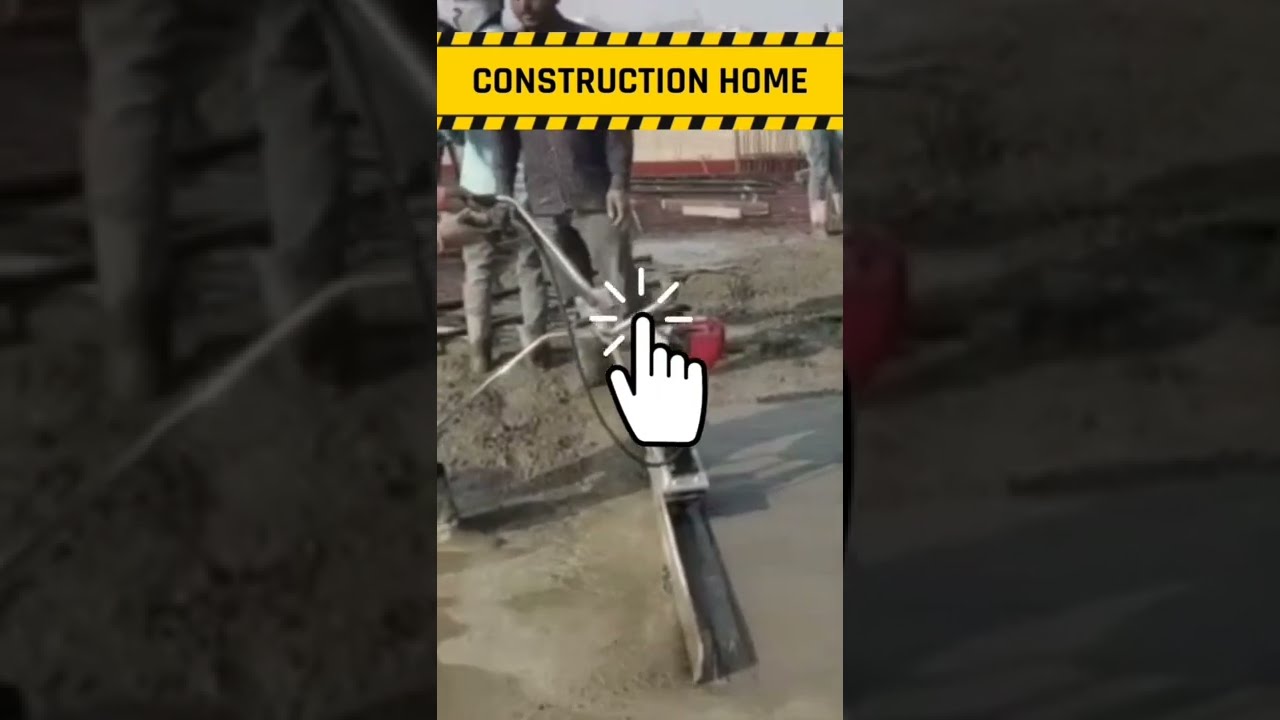

Here, this is a picture of the plate type surface vibrator. It resembles a plate. So, it is a plate type surface vibrator more commonly used for the slabs. Another type of surface vibrator is screed type vibrator vibrating screed. Screed in the sense it is a kind of finishing operation.
Detailed Explanation
There are different types of surface vibrators, including the plate type surface vibrator, which is flat and typically used for slabs. Another type is the screed type vibrator, which combines the functions of finishing and consolidating concrete. Screeding levels excess concrete and prepares the surface for finishing, which makes it an important tool in construction.
Examples & Analogies
Imagine a sweeping tool to smooth a dirty floor. The plate type vibrator does the consolidating work, while the screed type vibrator also levels the surface to ensure it’s clean and ready for finishing.
Limitations with High Workability Concrete
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
One thing to be noted here is this surface vibrators should not be used for a concrete with a very high workability above 75 mm. If the workability is above 75 mm for such high workable concrete mixes, we are not supposed to use surface vibration.
Detailed Explanation
It is important to avoid using surface vibrators with concrete that has high workability, specifically mixes with a slump over 75 mm. The reason is that high workability can lead to segregation, where water and fine particles rise to the surface, weakening the surface layer of the concrete, which is problematic for structural integrity.
Examples & Analogies
Consider making a thick smoothie. If you blend too much, the solid ingredients separate and float to the top. Similarly, if you apply too much vibration to highly workable concrete, the water will separate and rise, weakening the final product.
Effective Depth of Vibration
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, the vibration transfer will be effective only for a depth of 150 mm. So, they are recommended for consolidating slabs up to 150 mm thick. Beyond that the transfer will not happen effectively.
Detailed Explanation
Surface vibrators are effective for consolidating concrete to a depth of about 150 mm. When the thickness exceeds this, the ability of vibrations to penetrate and effectively consolidate the layers below diminishes significantly, making them less useful for thicker slabs.
Examples & Analogies
Think about trying to play a game of ‘whack-a-mole’ at a fair — if the mole is too deep, your mallet doesn’t reach it. Similarly, if a slab of concrete is too thick, the vibrations won't reach the deeper layers effectively.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Surface Vibrators: Tools applied to the concrete surface to aid consolidation by transferring vibrations throughout its depth.
-
Plate Type Vibrator: A common surface vibrator used for slab construction facilitating leveling.
-
Screed Type Vibrator: A tool that combines both consolidation and leveling tasks.
-
High Workability: Concrete with slump above 75 mm, where surface vibrators are not recommended due to the risk of segregation.
-
Effective Depth: Surface vibrators are effective for consolidating slabs up to 150 mm thick.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Using a surface vibrator on a concrete slab with a thickness of 100 mm helps ensure proper consolidation without causing damage.
-
Employing a screed type vibrator during floor construction allows for simultaneous leveling and consolidation.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Surface vibrators, oh so fine, consolidate slabs and make them shine!
📖 Fascinating Stories
-
Imagine a thin concrete slab on a busy construction site; the workers choose surface vibrators to ensure it stands the test of time.
🧠 Other Memory Gems
-
VFC - Vibration, Frequency, Consolidation: The key factors in choosing a vibrator.
🎯 Super Acronyms
SVC - Surface Vibrators are for Thin Slabs and congested areas.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Surface Vibrator
Definition:
A tool that applies vibrations at the surface of concrete to aid in its consolidation.
-
Term: Plate Type Vibrator
Definition:
A type of surface vibrator used primarily for slab construction.
-
Term: Screed Type Vibrator
Definition:
A type of vibrator that consolidates and levels excess concrete at the same time.
-
Term: Workability
Definition:
The ease with which fresh concrete can be mixed, placed, compacted, and finished.
-
Term: Segregation
Definition:
The separation of components in a concrete mix, typically resulting in a weak surface.
