Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Exploring the Magnetic Effect of Current
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we'll explore how electric current produces a magnetic effect. Can anyone tell me what happens to a compass when we bring it close to a current-carrying wire?
The compass needle moves, right? What causes that?
Great question! The deflection of the compass needle occurs because the electric current generates a magnetic field around the wire. This field influences the compass, which is essentially a small magnet itself.
Wow, how do we know the direction of that magnetic field?
We can use the Right-Hand Thumb Rule to determine the direction. If you point your thumb in the direction of the current, your fingers will curl in the direction of the magnetic field.
Can we try a demonstration to see that in action?
Absolutely! Letβs set that up in the next activity and observe!
To summarize, electric current does generate a magnetic field, and we can visualize it using a compass and rules like the Right-Hand Thumb Rule.
Understanding Magnetic Field Lines
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's focus on how we visualize magnetic fields. Who can explain what happens when we sprinkle iron filings around a magnet?
The filings align along the magnetic field lines!
Exactly! This alignment shows us the invisible magnetic field around a magnet. Each line indicates the direction a north pole would move.
Can we draw these lines ourselves?
Yes, we can! By placing a compass around a magnet and marking the directions of the compass needle, we can visualize the field clearly. Letβs do that right after this discussion.
In summary, magnetic field lines help us visualize and understand the behavior of magnetic fields and their sources.
Activities Reinforcing Concepts
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now that we understand the concepts, letβs conduct some activities to reinforce what we've learned about magnetic fields.
What activity are we doing first?
First, we'll set up a circuit with a straight copper wire and a battery and observe the effect on a compass needle.
Will we see how reversing the current changes the needle's direction?
Yes! That's a crucial part of understanding how magnetic fields respond to changes in current.
I'm excited to see that!
To wrap this up, these hands-on activities help us reinforce the links between electric current and magnetism, demonstrating fundamental electromagnetic principles.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section investigates the magnetic field generated by a current-carrying wire by performing various activities, such as observing compass needle deflections. It explains the foundational principles of electromagnetism, including the work of Hans Christian Oersted and the concept of magnetic field lines.
Detailed

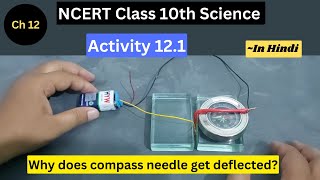

Activity 12.1: Magnetic Effects of Electric Current
In this section, we explore how electric current interacts with magnetism through hands-on activities. By using simple setups involving a compass and a straight copper wire, students learn that when current flows through the wire, it produces a magnetic effect, causing a nearby compass needle to deflect.
Key Concepts:
- Oersted's Experiment: Hans Christian Oersted's pivotal discovery that electric current affects a compass, linking electricity to magnetism.
- Compass and Magnetic Field: A compass's behavior helps visualize the presence of a magnetic field around conductors.
- Magnetic Field Lines: The alignment of iron filings around a magnet illustrates the magnetic field pattern, demonstrating that field lines are continuous loops, emerging from the north and merging into the south pole.
Conclusion:
Understanding these principles reveals the foundational link between electricity and magnetism, paving the way for advanced concepts in electromagnetism.

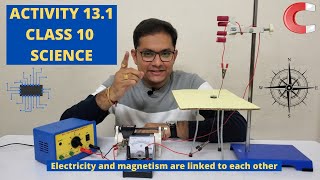

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
The Setup for Demonstrating Magnetic Effects
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

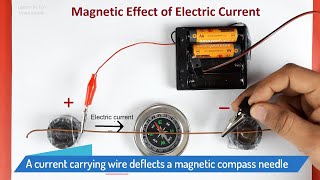

n Take a straight thick copper wire and place it between the points X and Y in an electric circuit, as shown in Fig. 12.1. The wire XY is kept perpendicular to the plane of paper.
nHorizontally place a small compass near to this copper wire. See the position of its needle.
nPass the current through the circuit by inserting the key into the plug.
Detailed Explanation
In this activity, we start by setting up a simple electric circuit. A thick copper wire is placed between two points (X and Y) within the circuit. This wire should be arranged so that it stands straight up, making it perpendicular to the paper. Next, we position a small compass horizontally next to this copper wire to observe its needle's position before and after passing current through the wire. Finally, when we insert the key into the circuit, we allow current to flow.
Examples & Analogies
Think of the compass as a small sailor on a sea of invisible magnetic waves. Before current flows, the sailor is calm, oriented north. However, once we turn on the 'engine' by inserting the key, itβs like stirring the sea, and the compass needle reacts, showing how electric currents can affect its orientation.
Observing the Deflection of the Compass Needle
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
n Observe the change in the position of the Compass needle is deflected on passing an electric current through a metallic conductor. We see that the needle is deflected. What does it mean? It means that the electric current through the copper wire has produced a magnetic effect. Thus we can say that electricity and magnetism are linked to each other.
Detailed Explanation
Once the current flows through the copper wire, we observe a significant change: the compass needle moves or 'deflects.' This deflection indicates that the electric current has created a magnetic field around the wire. It shows us a fundamental principle of electromagnetism: when electricity flows, it generates magnetism. Hence, we can conclude that electricity and magnetism are connected phenomena.
Examples & Analogies
Imagine if every time you plugged in a lamp, it not only lit up the room but also turned a nearby fan. This is a bit like what happens with electricity and magnetismβtheir relationship is so intertwined that one affects the other dynamically.
Historical Context: Hans Christian Oersted
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Hans Christian Oersted (1777β1851) played a crucial role in understanding electromagnetism. In 1820 he discovered that a compass needle got deflected when an electric current passed through a metallic wire placed nearby. Through this observation, Oersted showed that electricity and magnetism were related phenomena.
Detailed Explanation
Oersted's discovery in 1820 was groundbreaking. By observing that a compass needle shifted position when near a current-carrying wire, he established a vital connection between electricity and magnetism. This connection leads to various technologies we use today, confirming that both phenomena are manifestations of the same underlying principle.
Examples & Analogies
Think of Oersted's discovery as a surprise revelation. Itβs like figuring out that your two favorite songs share the same melodyβsuddenly, you see how interconnected everything is, leading to delightful new insights and innovations in musicβand in this case, in science.
Magnetism Basics: Compass Needle
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A compass needle is, in fact, a small bar magnet. The ends of the compass needle point approximately towards north and south directions. The end pointing towards north is called north seeking or north pole. The other end that points towards south is called south seeking or south pole.
Detailed Explanation
Understanding a compass needleβs structure is crucial for grasping how magnetic fields work. A compass needle itself is a miniature magnet with two poles: the north-seeking pole and the south-seeking pole. When placed in a magnetic field, these points align with the field, enabling us to determine the direction of the magnetic force acting nearby.
Examples & Analogies
Consider a compass needle like a tiny friend who always knows where north is. It travels with you on adventures, pointing the way just like a friend who can navigate through the woods by the stars.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Oersted's Experiment: Hans Christian Oersted's pivotal discovery that electric current affects a compass, linking electricity to magnetism.
-
Compass and Magnetic Field: A compass's behavior helps visualize the presence of a magnetic field around conductors.
-
Magnetic Field Lines: The alignment of iron filings around a magnet illustrates the magnetic field pattern, demonstrating that field lines are continuous loops, emerging from the north and merging into the south pole.
-
Conclusion:
-
Understanding these principles reveals the foundational link between electricity and magnetism, paving the way for advanced concepts in electromagnetism.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Observing a compass needle deflect when placed near a current-carrying wire.
-
Sprinkling iron filings around a bar magnet to visualize the magnetic field pattern.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
With wires and current, the fields will twirl; The compass will move, watch it whirl!
π Fascinating Stories
-
Imagine a brave little compass, feeling lost until it met a wire. When current flowed through the wire, it found its direction once more, dancing along the magnetic fields.
π§ Other Memory Gems
-
Think of 'CAMP' to remember: Compass, Amperes (current), Magnetism, and Patterns (field lines).
π― Super Acronyms
CAMP = **C**urrent, **A**mplifies, **M**agnetic **P**ower.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Compass Needle
Definition:
A small magnet used to indicate the direction of magnetic fields.
-
Term: Magnetic Field
Definition:
The area around a magnet where magnetic forces can be detected.
-
Term: RightHand Thumb Rule
Definition:
A method to determine the direction of magnetic fields generated by current-carrying wires.
-
Term: Magnetic Field Lines
Definition:
Imaginary lines used to represent the direction and strength of a magnetic field.
