Introduction to Consolidation Process
Unlock Audio Lesson
Today, we’re going to discuss the consolidation process in soils, particularly using the Spring Analogy. Can anyone tell me what consolidation means?
Is it the process of soil volume changing when a load is applied?
Exactly! Consolidation refers to the change in soil volume that occurs when pore water is expelled due to applied loads. Now, why might it be useful to compare this process to a spring?
Because a spring compresses and then expands, similar to how soil compresses and then stabilizes after pore water drains?
Correct! Just as a spring responds to force, soil reacts to loads through a sequence of adjustments in volume and stress. Let’s dive deeper into this analogy.
Components of Settlement
Unlock Audio Lesson
Can anyone name the three components of total settlement?
Immediate, primary consolidation, and secondary consolidation?
Great job! So, how does our spring analogy help us understand these components?
The immediate settlement happens right away, just like a spring compresses immediately when a load is applied?
Exactly! And primary consolidation occurs as water drains away, similar to a spring slowly returning to its original shape. What about secondary consolidation?
That's like the long-term adjustments the spring makes even after the load is off.
Correct! It involves the fabric rearrangement of soil particles over time, independent of pore water. Let’s summarize what we know.
Consolidation Stages and the Spring Analogy
Unlock Audio Lesson
In our spring analogy, can someone explain the stages of consolidation during loading?
First, the container is filled with water and is closed. This represents the fully saturated soil.
Exactly! Now, what happens when a load is applied?
Water pressure rises because it’s resisting the load, just like the spring compressing under weight.
Correct! And once the hole is opened, water drains out, leading to what?
The spring shortens, indicating volume is changing as pore water is expelled.
Right! Eventually, the water's drainage stops, and the spring only supports the load. Let’s summarize this consolidation sequence.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, the consolidation process of saturated soils is explained using a spring analogy. As load is applied, pore water pressure initially resists the load, followed by drainage leading to reduced volume and increased effective stress, highlighting each stage of the process.
Detailed
In civil engineering, the consolidation of saturated fine-grained soils is critical for understanding settlement under load. The Spring Analogy effectively illustrates this process through an idealized system comprising a spring, a container, and water. When the container is filled, the pore water represents the null compressibility, responding to applied pressures. With the application of load, excessive pore water pressure develops, which subsequently drains when the system is allowed. This drainage leads to a decrease in volume and stability, characterized by the effective stress of the soil. The analogy helps students visualize and comprehend how pore water pressure and soil structure interact during consolidation, emphasizing the importance of these concepts in practical engineering applications.

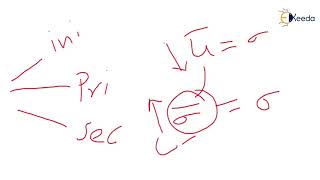

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of the Spring Analogy
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

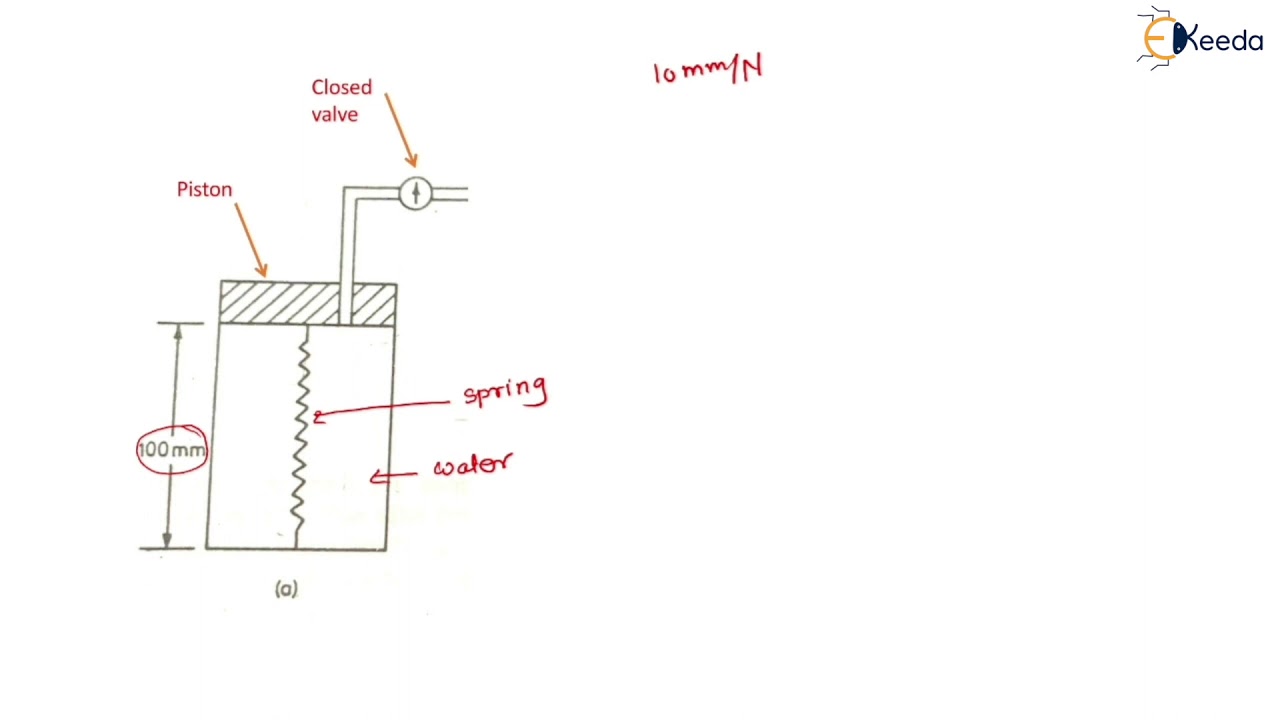

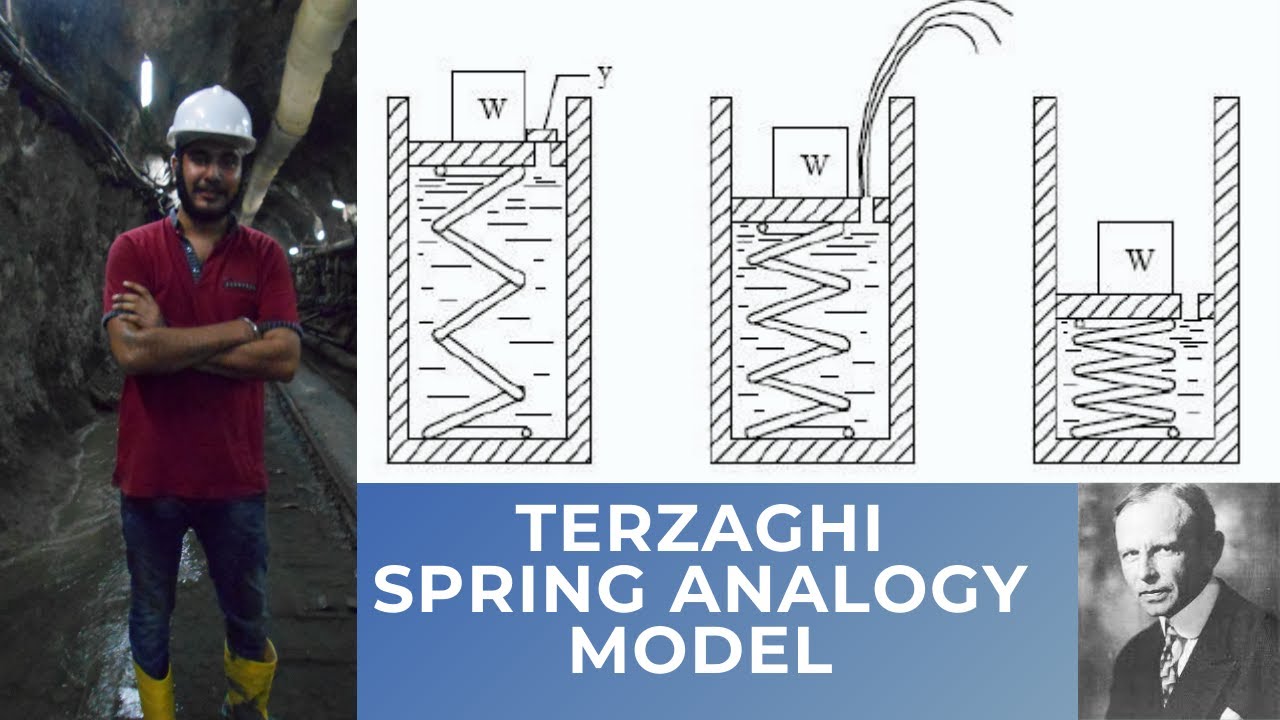

The consolidation process is often explained with an idealized system composed of a spring, a container with a hole in its cover, and water. In this system, the spring represents the compressibility or the structure itself of the soil, and the water which fills the container represents the pore water in the soil.
Detailed Explanation
In this analogy, the consolidation process of soil loading is likened to a simple mechanical system. The spring in this analogy stands for the compressible nature of soil, which can change shape and size under different loads. The container filled with water illustrates the pore water present in saturated soil. Hence, both components—spring and water—highlight the behavior of a saturated soil mass when subjected to external pressure.
Examples & Analogies
Think of a sponge soaked in water. When you press down on the sponge, you feel resistance (like the spring) because of the water inside. Only when you release the pressure does the sponge return to its original form (like the spring adjusting to the applied load), and water starts to seep out, similar to pore water in soil.
State 1: Fully Saturated Condition
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- The container is completely filled with water, and the hole is closed. (Fully saturated soil)
Detailed Explanation
In the first state, the container is filled with water, signifying that the soil is fully saturated. This implies that all the pores in the soil are occupied by water. When the soil is in such a condition, it cannot compress further without expelling some of the water, which leads to changes in volume. This state represents the initial condition of saturated soils before any load is applied.
Examples & Analogies
Imagine a water balloon that is filled to the brim. No more water can be added without bursting it; this represents a fully saturated soil mass unable to compress further until some water is expelled.
State 2: Application of Load
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- A load is applied onto the cover, while the hole is still unopened. At this stage, only the water resists the applied load. (Development of excessive pore water pressure)
Detailed Explanation
In the second state, once a load is applied, the pressure builds up within the water in the container because the hole is closed. As the water cannot escape, it creates excessive pore water pressure. This pressure must be overcome by the water until it either drains or dissipates, leading to no immediate volume change in the soil even though a load is applied.
Examples & Analogies
Consider stepping on a fully inflated beach ball. As you apply your weight, the air inside the ball resists that weight, just as water does in a saturated soil. The ball won't really change in size until you allow some air to escape by releasing pressure.
State 3: Drainage and Spring Action
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- As soon as the hole is opened, water starts to drain out through the hole and the spring shortens. (Drainage of excessive pore water)
Detailed Explanation
When the hole is opened, the pore water can finally drain, which leads to a reduction in pore water pressure. Consequently, as water exits, the soil particles rearrange, causing the spring (representing the soil structure) to compress, demonstrating how the consolidation process begins. This stage signifies the transition from the water carrying the entire load to the soil structure taking over the load-bearing role.
Examples & Analogies
Think about an over-inflated balloon with a small pinhole. When the pinhole opens, air escapes, and the balloon starts to deflate. The same idea applies to the soil as it drains the excess water, allowing the soil's structural properties to come into play as it begins to support the weight.
State 4: Full Dissipation of Pore Water Pressure
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- After some time, the drainage of water no longer occurs. Now, the spring alone resists the applied load. (Full dissipation of excessive pore water pressure. End of consolidation)
Detailed Explanation
In the final state, as drainage completes, the pore water pressure stabilizes. The soil now fully bears the applied load and any remaining voids of water have been emptied. This illustrates the end of the consolidation phase where the deformation due to compression ceases, and the effective stress becomes equal to the total stress applied. The consolidation process can be considered complete after all excess pore pressure has dissipated.
Examples & Analogies
Returning to the balloon analogy, once all the air has escaped and the balloon has shrunk to its smallest size, it no longer changes shape. At this point, the structure of the balloon supports itself without any remaining air pressure. Similarly, once the pore water is fully drained, the soil settles into its new configuration under the applied load.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Compressibility: The property of soil that allows for volume change under applied load.
-
Pore Water Pressure: The pressure exerted by water within the soil voids; vital for understanding consolidation.
-
Settlement Components: Understanding the distinction between immediate, primary, and secondary settlement.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A building’s foundation settling over time due to consolidating clay beneath it, illustrating primary consolidation.
-
A spring compressing under weight, which rebounds slowly as water (analogue to pore water) drains from a saturated soil.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
A spring so tight, under weight it bends, / With time it will settle, as pressure ends.
📖 Fascinating Stories
-
Imagine a spring under a load, it compresses swiftly; the water beneath it, like a secret potion, must drain slowly for the spring to rebound.
🧠 Other Memory Gems
-
I-P-S: Immediate, Primary, Secondary - to remember three types of settlement.
🎯 Super Acronyms
P-W-P
- Pore Water Pressure - helps recall the importance of water in soil consolidation.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Consolidation
Definition:
The process of volume change in saturated soils due to expulsion of pore water under load.
-
Term: Immediate Settlement
Definition:
Settlement that occurs immediately upon load application due to elastic deformation of the soil.
-
Term: Primary Consolidation
Definition:
Settlement caused by the expulsion of pore water and rearrangement of soil particles over time after a load is applied.
-
Term: Secondary Consolidation
Definition:
Gradual settlement occurring due to the rearrangement of soil particles at constant effective stress over time.
-
Term: Effective Stress
Definition:
The stress carried by soil skeleton, calculated as total stress minus pore water pressure.
