1.2.2 - Under Consolidated Soils
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Preconsolidation Pressure
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we will be discussing preconsolidation pressure, which is the maximum effective stress a soil has experienced in its stress history. Think of it as the soil's stress 'memory.' Can anyone tell me why this concept is important?
Isn’t it important to know how much stress the soil can handle?
Exactly! Understanding preconsolidation pressure helps engineers predict how soils will behave under new loads. For example, if we know a soil is normally consolidated, we can anticipate how it will react when a building is constructed on it.
What happens if the soil is under consolidated?
Great question! Under consolidated soils haven’t fully adjusted to the current pressure, making them susceptible to deformation, which can cause structural problems.
So, if a building is placed on that, it might sink or shift?
Exactly! Remember, understanding the type of soil you are working with is essential for safety and stability.
To summarize: Preconsolidation pressure is crucial for predicting soil behavior under load, especially in construction. Always consider the soil's historical stress!
Classification of Soils
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s classify soils based on their stress history. We have three main categories. Who can tell me what they are?
I think there are normally consolidated, over consolidated, and under consolidated soils.
Spot on! Let’s dive deeper into each. First, normally consolidated soils have never been subjected to vertical effective stresses greater than the current stress. Can someone explain why this is significant?
It means they are stable under current conditions?
Correct! Now, what about over consolidated soils?
Those have experienced more stress than they currently have.
Exactly! This history affects how they behave under load; they can handle more stress than they currently face. Lastly, what are the implications of under consolidated soils?
They may deform heavily when additional stress is applied?
Precisely! Under consolidated soils are particularly dangerous for construction since they haven't settled correctly.
In summary, understanding these classifications helps engineers make informed decisions regarding soil management and construction.
Practical Implications
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s talk practical implications. Why is it crucial to know whether a soil is normally, over, or under consolidated?
It affects building design and safety, right?
Exactly! Engineers must consider soil classification to prevent failure. For instance, how might you approach a site known to have under consolidated soils?
We would need to reinforce the foundations, right?
That's one approach! Ensuring proper consolidation before building is vital. Can anyone think of a specific example of a building that failed due to poor soil conditions?
Like in the case of leaning buildings?
Yes! The Leaning Tower of Pisa is a classic example. It was built on under consolidated and soft soils, leading to its famous lean. Always remember the relationship between soil behavior and structural integrity!
Therefore, soil classification plays a fundamental role in safe engineering and construction practices.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section outlines the concept of preconsolidation pressure as the maximum effective stress in a soil's history and explains how soils are classified based on their stress history. It emphasizes the characteristics and significance of normally consolidated, over consolidated, and under consolidated soils, especially concerning their behavior and susceptibility to deformation.
Detailed
Under Consolidated Soils
This section focuses on the concept of preconsolidation pressure, defined as the maximum effective stress that soil has experienced during its history. The effective stress is crucial for understanding soil behavior under load.
A key graphical representation is the void ratio versus effective stress plotted on a logarithmic scale. When a soil is loaded along a recompression curve, the effective stress near a particular point reflects the preconsolidation pressure. For example, in a loading sequence from AB to BC and unloading along CD, then reloading along DC, the stress at point C becomes a new preconsolidation pressure.
Soils are categorized based on their stress history:
- Normally Consolidated Soils: Soils that have never been subjected to a stress greater than their current effective stress. These soils exhibit stable behavior under current loads.
- Under Consolidated Soils: Deposits that have not consolidated fully under the current overburden pressure, leading to potential large deformations, which can cause structural issues in buildings located on these soils.
- Over Consolidated Soils: Soils that have been subjected to a vertical effective stress greater than the current vertical effective stress, indicating a history of past compression and altering their behavior under loading conditions.

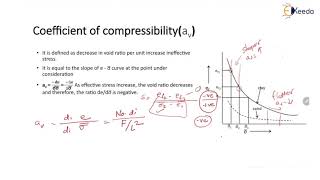

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Under Consolidated Soils
Chapter 1 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
A soil deposit that has not consolidated under the present overburden pressure (effective stress) is called Under Consolidated Soil.
Detailed Explanation
Under consolidated soils are those which have not yet undergone the level of compression that they would typically experience under their current weight. This can occur when the soil has been loaded recently or has not had enough time to compress properly due to various factors, such as a rapid increase in load from a building or insufficient drainage.
Examples & Analogies
Imagine filling a sponge with water. If you press down on the sponge gently, it may not absorb all the water immediately and could appear expanded. Similarly, under consolidated soils have not yet adjusted to the weight sitting above them, akin to a sponge that hasn't fully released all the stored water.
Deformation of Under Consolidated Soils
Chapter 2 of 2
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
These soils are susceptible to larger deformation and cause distress in buildings built on these deposits.
Detailed Explanation
Under consolidated soils can undergo significant changes in shape or volume when they experience additional stress from structures placed on them. Because they have not settled adequately, adding a new load can lead to unexpected sinking or shifting, which can cause cracks in buildings and roadways.
Examples & Analogies
Think of a pile of uncompressed cotton balls. If you place a heavy book on top of them, they will squish down significantly. If the cotton balls had already settled under other weights, they might support the book without much change. In the same way, under consolidated soils behave unpredictably under new loads until they consolidate properly.
Key Concepts
-
Preconsolidation Pressure: The peak effective stress that soil has endured in its history.
-
Normally Consolidated Soils: Soils that are currently stable under existing loads.
-
Under Consolidated Soils: Soils at risk of large deformations due to insufficient consolidation.
-
Over Consolidated Soils: Soils with a history of higher effective stress that impacts their current stability.
Examples & Applications
A normally consolidated soil is stable beneath a newly constructed highway, allowing for safe transport.
An under consolidated soil beneath a shopping mall leads to unintended settling, requiring additional foundation supports.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Under pressure, soils may bend, / Understanding helps our buildings mend.
Stories
Once in a town by the leafy glade, a builder learned soil history before he laid. To avoid distresses, he studied with care, keeping his structures stable and rare.
Memory Tools
NOU: Normal, Over, Under - remembering the soil types based on stress history.
Acronyms
SOIL
Stress
Overburden
Influence
Load - remember the impact of soil conditions.
Flash Cards
Glossary
- Preconsolidation Pressure
The maximum effective stress experienced by soil in its past history.
- Normally Consolidated Soils
Soils that have never been subjected to a vertical effective stress greater than the present vertical stress.
- Under Consolidated Soils
Soils that have not consolidated under the present effective stress, making them susceptible to deformation.
- Over Consolidated Soils
Soils that have experienced vertical effective stress greater than the present effective stress.
- Effective Stress
The stress that contributes to the strength of soil.
