Understanding Terzaghi’s Model
Unlock Audio Lesson
Today, we're diving into Terzaghi's Spring Mass Analogy, which helps us understand soil consolidation. Can anyone tell me what the model consists of?
It's a cylindrical vessel with springs and water, right?
Exactly! The springs act as the soil skeleton, and the water represents the voids. Now, what do you think happens when we apply pressure?
The springs get compressed, and the pressure goes into the water.
Correct! This process illustrates how excess pore water pressure is affected by the applied load.
Pore Water Pressure Dynamics
Unlock Audio Lesson
Now let's focus on the pressure dynamics. What do you think happens to the excess pore water pressure as water flows from one compartment to another?
I think it decreases because the water moves out.
Precisely! As time passes and water flows, the effective stress in the upper segments increases. Can someone explain how that impacts the lower compartments?
The lower compartments don't experience any dissipation of excess hydrostatic pressure at first.
Good observation! Over time, even the lower segments will reach equilibrium by allowing time-dependent compression.
Comparison of Soil Types
Unlock Audio Lesson
Let's compare sand and clay. How does each react when an external load is applied?
Sand compresses immediately, while clay takes longer to show significant changes.
Exactly! Sand exhibits instant compression due to its structure. What about the magnitude of compression in clay?
Clay compresses more over time, so it takes longer but results in greater compression overall.
Great insights! Remember that understanding these differences is crucial when working with various soil types.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section discusses Terzaghi's model with cylindrical vessels, springs, and piezometers that demonstrate the relationship between soil compression and pore water pressure. It outlines how different soil types, like sand and clay, respond to applied loads over time.
Detailed
Terzaghi’s Spring Mass Analogy
Terzaghi’s model, which consists of a cylindrical vessel with a series of pistons separated by springs and filled with water, serves as an important analogy in geotechnical engineering. In the model, the springs represent the soil skeleton, while the water fills the voids between the soil grains. When an external load is applied, the springs compress in a one-dimensional manner, and the pressure from this load is transmitted through the water filling the compartments.
Piezometers inserted at the centers of different compartments measure the pressure head resulting from excess pore water pressure. Initially, the excess pore water pressure is significant, but as time passes, water flows upward through the perforated pistons, leading to a gradual reduction in pore pressure and an increase in effective stress in the upper compartments. Eventually, once the excess pore water pressure reaches zero, all load is carried by the springs, demonstrating the critical process of consolidation in fine-grained soils, predominantly clay.
The section also contrasts the instantaneous compression of sand under load with the time-dependent compression experienced by clay, highlighting the distinct behaviors of these soil types under load.

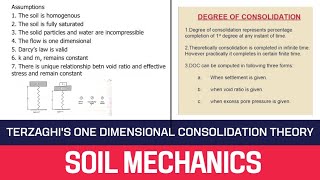

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.

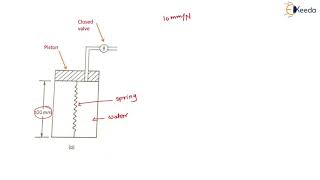

Overview of Terzaghi's Model
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Terzaghi’s model consists of a cylindrical vessel with a series of pistons separated by springs. The space between springs is filled with water; the pistons are perforated to allow for passage of water. Piezometers are inserted at the centers of different compartments to measure the pressure head due to excess pore water pressure.
Detailed Explanation
Terzaghi's model illustrates the behavior of saturated soil during consolidation. The model involves a cylindrical vessel filled with water and separated by springs. Each piston within the vessel allows for water to flow through it, representing how pore water in soil moves. Piezometers are included to measure the pressure, helping us understand the changes in pore water pressure during consolidation. This setup is crucial in visualizing the concepts of soil mechanics and consolidation related to external loads.
Examples & Analogies
Think of this model like a balloon filled with water. When you press on the balloon (the external load), the water inside does not disappear; it just gets displaced and can flow to different parts of the balloon. Similarly, the springs in Terzaghi's model illustrate how soil can support loads while water flows through it.

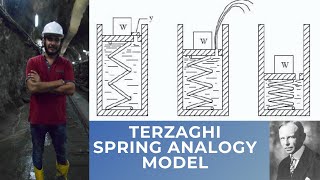

Compression and Flow Dynamics
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Terzaghi has correlated the spring mass compression process with the consolidation of saturated clay subjected to external load. The springs and the surrounding water represent the saturated soil. The springs represent the soil skeleton networks of soil grains and water in the vessels represents the water in the voids. In this arrangement, the compression is one-dimensional and flow will be in the vertical direction.
Detailed Explanation
In Terzaghi's analogy, the compression of the springs mimics how saturated clay consolidates under an applied load. The springs showcase the structure of soil grains, while the water in the vessel represents pore water within the soil. When a load is applied to the system, the compression occurs mainly in a vertical direction, reflecting the behavior of real-world saturated soils as they experience changes in stress and volume.
Examples & Analogies
Imagine a stack of sponges (the springs), piled on top of one another and soaked in water. When you apply pressure from above, the sponges compress and some water gets squeezed out, just like how soil behaves under an external load – the structure supports the load, but water must manage the changes as well.

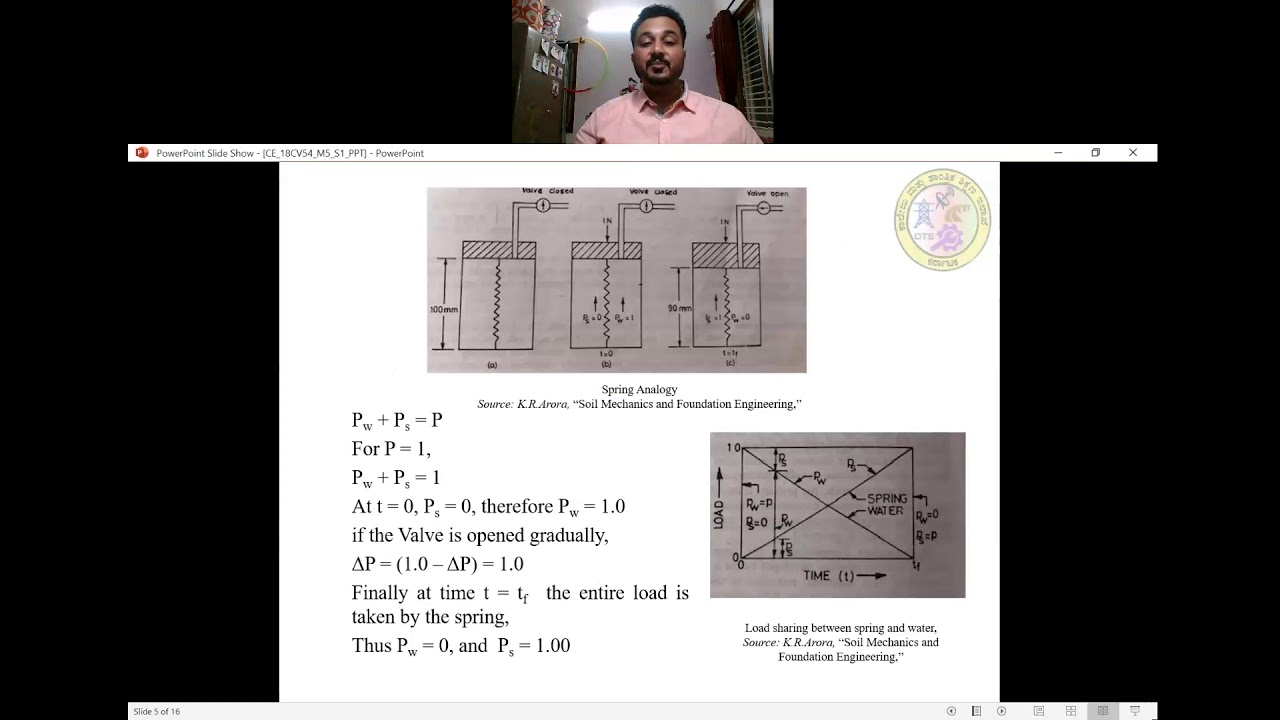

Effects of Water Flow on Pressure
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When pressure is applied, this will be borne by the water surrounding the spring. There will be no volume change. After some time ‘t’, there will be flow of water through perforation beginning from upper compartment. In the lower compartment, the volume of water remains constant since the flow is in upward direction.
Detailed Explanation
As pressure is applied to the system, it is mainly transferred through water, and initially there is no volume change. After a certain period, water starts to flow from the upper compartments through the perforated pistons, indicating that pore water pressure is being relieved. Meanwhile, water volume in the lower compartments remains unchanged, demonstrating the upward movement of water due to pressure differences.
Examples & Analogies
Consider a water bottle with a nozzle. If you squeeze the bottle, the water will shoot out the nozzle; similarly, the applied pressure makes the water flow out of the compartments above, while the water below doesn’t change volume immediately. This constant change over time is crucial for understanding how soil consolidates.
Impact of Water Flow on Effective Stress
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Due to flow of water in the upper segment, there will be reduction in volume due to the spring’s getting compressed, and they begin to carry a portion of the applied load. This signifies a reduction in excess hydrostatic pressure or pore water pressure and an increase in effective stress in the upper segments.
Detailed Explanation
As water flows out from the upper segments, the volume reduces because the springs compress more to take on some of the applied load. This leads to a decrease in excess pore water pressure, which means the effective stress—the stress carried by the soil particles—increases. This concept is vital in understanding how soil strength and stability are affected during consolidation.
Examples & Analogies
Picture an overloaded trampoline (the spring system). As people jump on it (the load), some of them must push off and space out to allow the trampoline to absorb the load effectively. As they shift their weight, the areas of great pressure decrease, allowing the trampoline to bounce back, much like how soil behaves under varying loads.
Isochrones and Pore Water Pressure Dissipation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The isochrones indicate that with the passage of time there is flow of water from the lower compartments leading to gradual dissipation of excess hydrostatic pressure. At time t = 0, when no more pore water flows out, the excess hydrostatic pressure will be zero in all compartments and the entire load is carried by springs.
Detailed Explanation
Isochrones represent lines of equal time in the flow of water within the model. Over time, water progressively flows from lower compartments, reducing excess hydrostatic pressure throughout the system. Eventually, when no more pore water can escape, the entire load is borne by the springs, indicating the end of consolidation.
Examples & Analogies
Think of a sponge that has been soaking in water. Initially, it can absorb more water, but after a while, it becomes saturated and cannot hold any more moisture. This is like how soil reaches its limit of excess pore pressure; when the pressure dissipates, it can support the weight above without squeezing out any more water.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Terzaghi’s Model: A representation using springs and a fluid to demonstrate consolidation.
-
Pore Water Pressure: The pressure exerted by water in the soil pores.
-
Effective Stress: The stress that contributes to the strength of the soil.
-
Consolidation: The process of volume change in soil over time with excess pore water dissipation.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Example 1: When a load is applied to clay, it takes time for any noticeable compression to occur as excess pore pressure dissipates.
-
Example 2: In sand, immediate compression occurs upon loading, indicating less resistance to volume change compared to clay.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
If springs compress and water flows, effective stress will start to grow.
📖 Fascinating Stories
-
Imagine a garden where the soil is saturated with water. A heavy rock is placed, and over time, the water drains, allowing the soil to support the rock more effectively.
🧠 Other Memory Gems
-
PICS: Pore pressure, Increase effective stress, Compress springs, Saturated soil.
🎯 Super Acronyms
SEEP
- Stress
- Effective stress
- Equilibrium
- Pore water.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Piezometer
Definition:
An instrument used to measure the pressure head of groundwater or pore water pressure within soil.
-
Term: Effective Stress
Definition:
The stress carried by the soil skeleton, calculated as the difference between total stress and pore water pressure.
-
Term: Consolidation
Definition:
The process by which soil changes in volume in response to a change in pressure, typically due to the expulsion of pore water.
-
Term: Void Ratio
Definition:
The ratio of the volume of voids to the volume of solids in a soil mass, indicative of its compressibility.
