Introduction to Vane Shear Test
Unlock Audio Lesson
Today, we’re diving into the Vane Shear Test. Can anyone tell me why we might want to measure the undrained shear strength of soil?
Isn't it important for construction and civil engineering?
Exactly! Understanding how soil behaves under undrained conditions is critical for safe structural designs. The Vane Shear Test helps us obtain this important information.
What does 'undrained' mean in this context?
Great question! 'Undrained' means we're assessing the soil’s strength without allowing any water to drain out. This is vital for saturated soils during construction.
Test Apparatus and Procedure
Unlock Audio Lesson
The apparatus for the Vane Shear Test consists of a shear vane with four thin plates. Can anyone describe how the test is conducted?
First, we push the vane into the soil, right?
Yes! Then, we apply torque to rotate it at a uniform speed until the soil fails. This is key to getting reliable results.
How do we know when the soil has failed?
Good observation! We measure the maximum torque applied at the vane before failure. This torque helps us calculate the undrained shear strength.
Shear Strength Mobilizations
Unlock Audio Lesson
Now let's talk about how shear strength mobilization affects our calculations. Can anyone recall the types of shear strength mobilization we consider?
Is it triangular, uniform, and parabolic?
Correct! Each type represents how shear strength varies from the edge of the soil cylinder to the center. Knowing this helps us refine our results.
Why is it important to use different models?
Using varied models allows for a more accurate representation of the soil's behavior under different conditions, giving us better design insights.
Understanding Torque Calculations
Unlock Audio Lesson
Let’s discuss how we calculate the maximum torque. Can someone summarize what the torque represents in this test?
It represents the resistance of the soil against the torque we apply to the vane.
Exactly! The torque at failure is critical and directly relates to the shear strength of the soil. The formula helps us combine resisting moments from the side surface and both ends.
What are M_s and M_e in that formula?
Great question! M_s refers to the resisting moment from shear forces along the side of the soil cylinder, while M_e is from the forces at the ends. Understanding these helps ensure accurate measurements.
Significance of the Vane Shear Test
Unlock Audio Lesson
To sum up, how does the Vane Shear Test aid us in engineering projects?
It helps evaluate the stability of soil before construction!
Exactly! This test gives us vital information about soil strength in areas where building might occur. It's crucial for preventing failures.
So, we can better design foundations and excavation?
Precisely! By understanding the undrained shear strength, we ensure safe and efficient engineering practices.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section discusses the Vane Shear Test, a practical procedure for measuring the undrained shear strength of very soft to medium cohesive soils. It covers the test apparatus, the application of torque, and the calculation methods based on different shear strength mobilization distributions.
Detailed
The Vane Shear Test provides a reliable means of assessing the undrained shear strength (c_u) of cohesive soils, which is essential in geotechnical engineering for understanding soil behavior under undrained conditions. The test employs a shear vane, typically consisting of four thin steel plates attached to a steel torque rod. During the test, the vane is inserted into the soil, and torque is applied to rotate it at a consistent speed. The test measures the torque at which the soil fails, which directly correlates with its undrained shear strength. The analysis accounts for different shear strength mobilization profiles—triangular, uniform, and parabolic—to obtain accurate results.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Vane Shear Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Fairly reliable results for the undrained shear strength, c,, (S : 0 concept), of very soft to medium cohesive soils may be obtained directly from vane shear tests.
Detailed Explanation
The Vane Shear Test is a method used to determine the undrained shear strength of cohesive soils. This test is particularly useful for very soft to medium soils, providing reliable data for engineering projects. Undrained shear strength is essential for assessing how well soil can support structures without undergoing significant deformation.
Examples & Analogies
Imagine trying to determine how firm the ground is before building a playground. The Vane Shear Test acts like a special tool that helps engineers figure out how strong the soil is, much like testing the sand on a beach to see if it can support a sandbox.
Apparatus Used in the Vane Shear Test
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

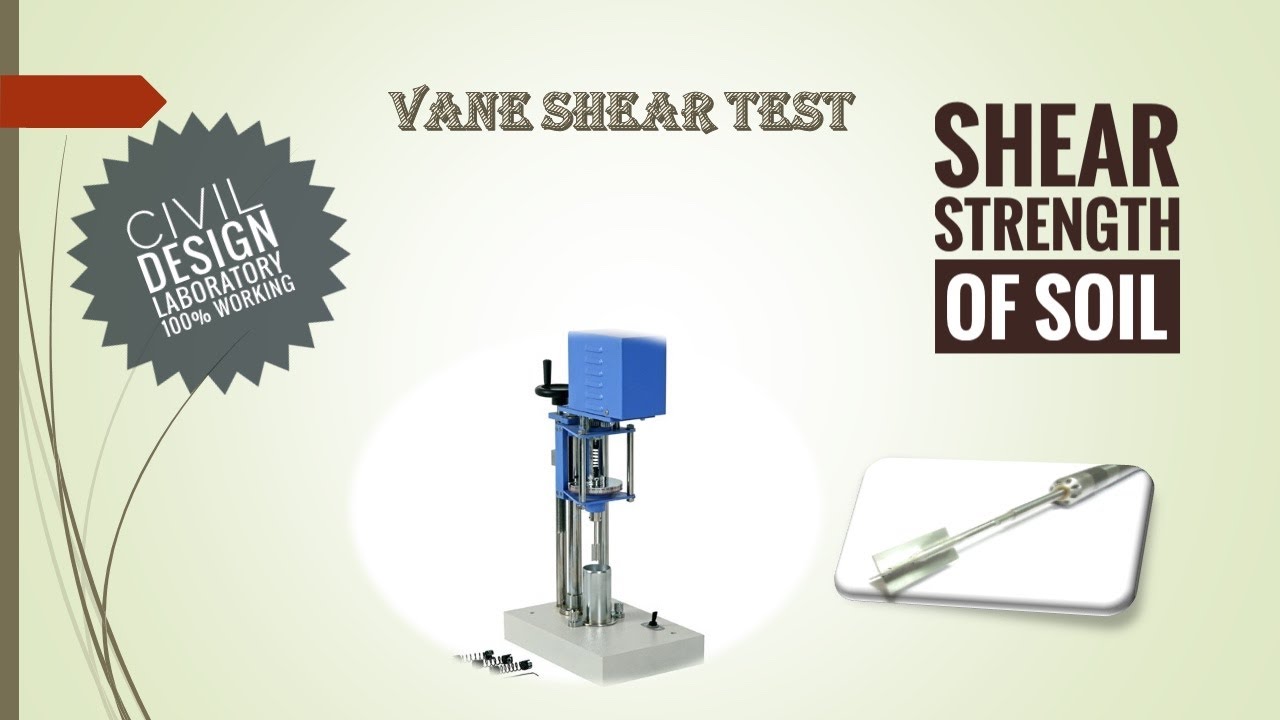

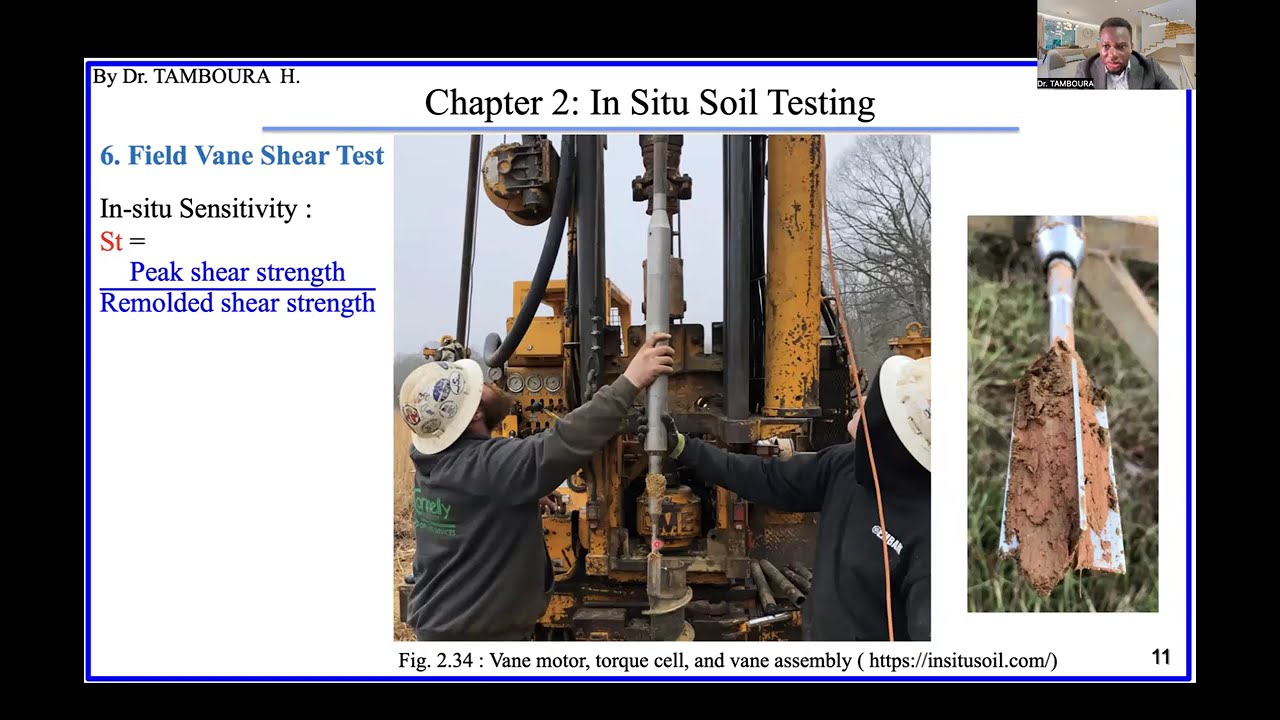

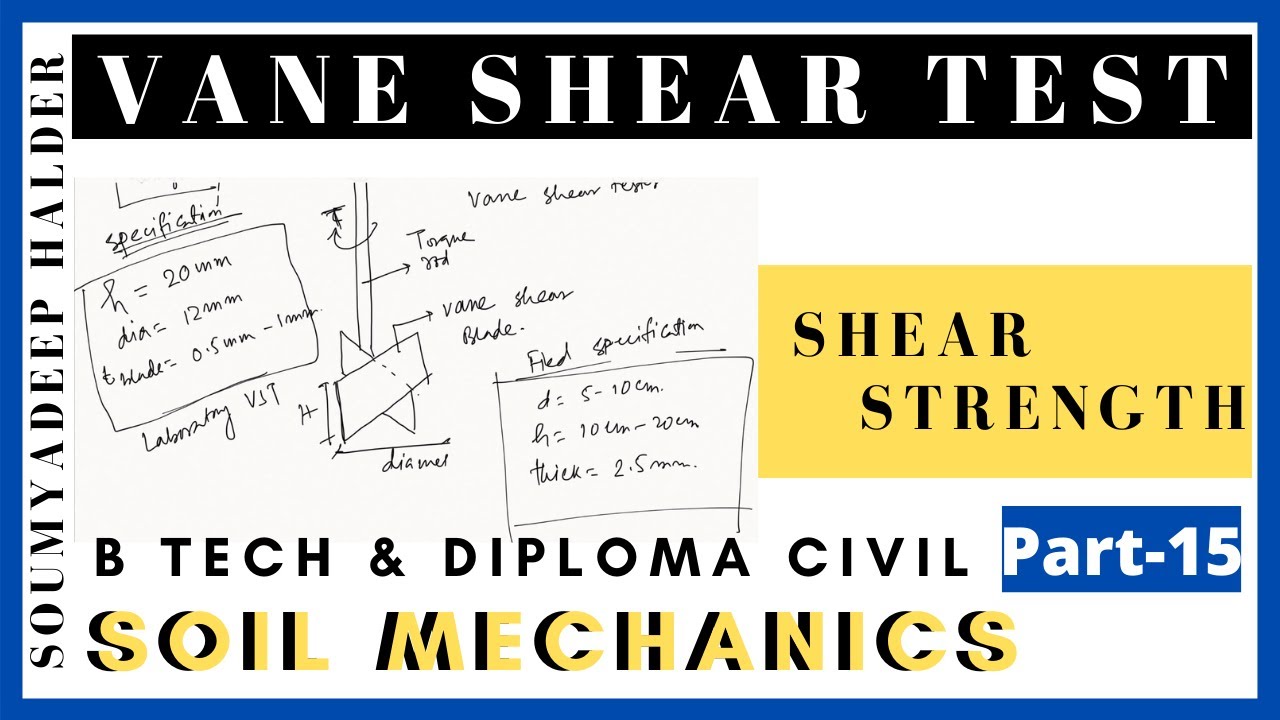

The shear vane usually consists of four thin, equal-sized steel plates welded to a steel torque rod.
Detailed Explanation
The apparatus for the Vane Shear Test includes a shear vane made up of four thin, flat steel plates that are attached to a central rod. The design of the vane allows it to be inserted into the soil and rotated, which is crucial for measuring the torque required to cause the soil to fail. This structure enables testers to apply and measure the torque effectively.
Examples & Analogies
Think of the shear vane as a small propeller that digs into the soil. Just like how a propeller spins to move a boat through water, the shear vane spins to test how tough the soil is. The stronger the soil, the more effort it takes to spin the vane.
Soil Insertion and Failure
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

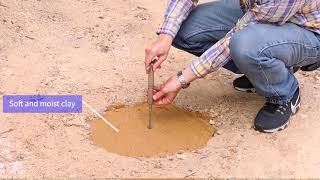

First, the vane is pushed into the soil. Then torque is applied at the top of the torque rod to rotate the vane at a uniform speed.
Detailed Explanation
To conduct the test, the vane is carefully inserted into the soil until it reaches the required depth. Afterward, a consistent torque is applied, causing the vane to rotate slowly. The resistance of the soil against this torque is critical since it indicates how much force the soil can withstand before failing, which directly relates to its shear strength.
Examples & Analogies
This process is a bit like screwing a lid onto a jar. The more tightly the lid is twisted, the more resistance you feel. Similarly, as the vane rotates, the soil resists the rotation until it can no longer hold, indicating its strength.
Calculating Undrained Shear Strength
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

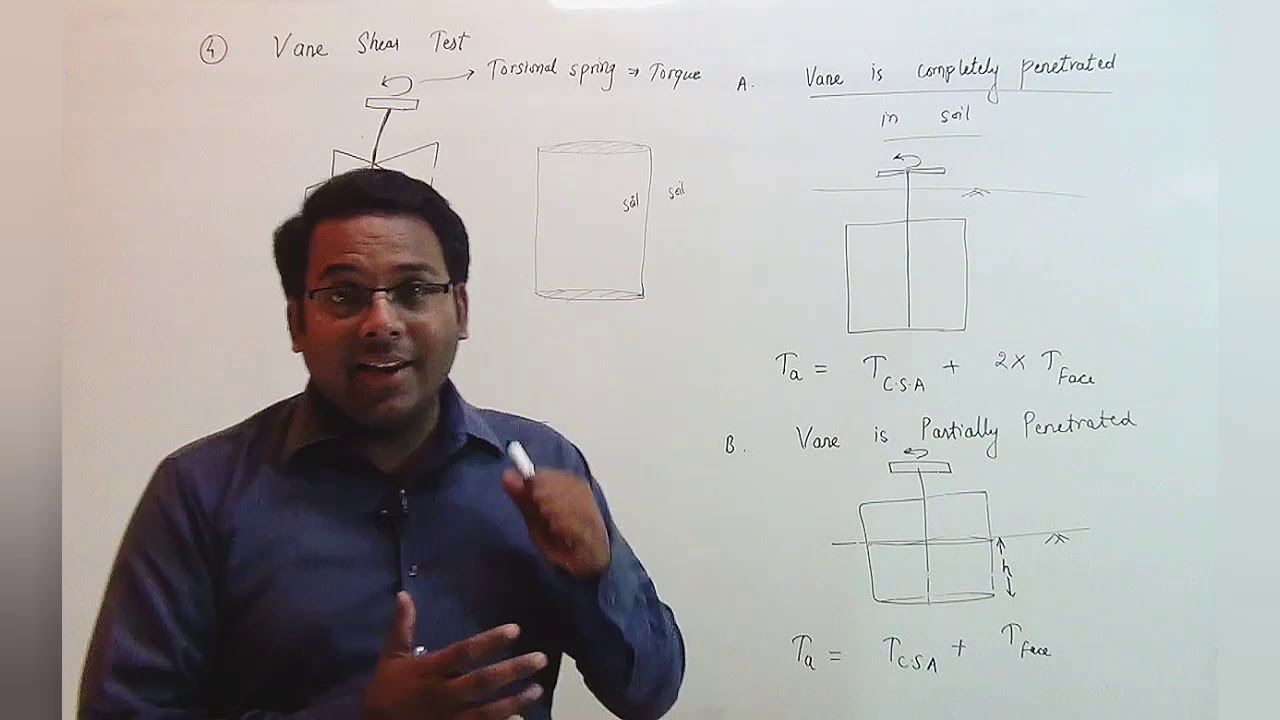

The undrained shear strength of the soil can be calculated as follows. If I is the maximum torque applied at the head of the torque rod to cause failure, it should be equal to the sum of the resisting moment of the shear force along the side surface of the soil cylinder (M.) and the resisting moment of the shear force at each end (M,,)
Detailed Explanation
Once the maximum torque (I) is achieved to cause soil failure, the undrained shear strength is calculated based on the moments generated by the soil's resistance. The total resisting torque is determined by considering both the shear forces acting along the sides of the cylindrical soil mass and at its ends, which helps to quantify how strong the soil is under those conditions.
Examples & Analogies
Imagine a tug-of-war where one team holds a steady rope against the pull of the other team. The stronger the team (the soil) is, the more they can resist without breaking. The calculation helps us determine how strong the soil team is during our ‘tug-of-war’ experiment.
Variations in Shear Strength Mobilization
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For the calculation of M., investigator sh avea everal t ypeso f distributicln of shear strength mobilization at thc ends of the soil cylinder: 1. Triangular. Shear strength mobilization is c,, at the periphery of the soil cylinder and decreases linearly to zero at the center. 2. IJniform. S hears trengthm obilization is constant ( that is, c)f rom the periphery to the center of the soil cylinder. 3. Parabolic. Shear strength mobilization is c,, at the periphery of the soil cylinder and dccreases parabolically to zero at the center.
Detailed Explanation
Different models can describe how shear strength is distributed in the soil cylinder during the test. The triangular model represents a gradual decrease of strength from the edges to the center, implying less resistance at the core. The uniform model suggests that strength is the same throughout, while the parabolic model shows that strength reduces in a more complex manner. Understanding these different distributions can help engineers better apply the test results in real-world scenarios.
Examples & Analogies
Think of spreading frosting on a cake. If you start at the edges (where it’s stronger) and move toward the center, the thickness of the frosting may change in different patterns. Just like with frosting, the way soil strength decreases varies depending on how we analyze it during the test.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Vane Shear Test: A method to measure the undrained shear strength of cohesive soils using torque.
-
Soil Cylinder: The portion of soil evaluated during the test.
-
Torque: The force applied to the vane that leads to the soil failure.
-
Shear Strength Mobilization: The pattern of strength distribution in the soil during the test.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
When constructing a foundation for a building on soft clay, using the Vane Shear Test helps identify if the soil can support the loads safely.
-
In an excavation project, the test can indicate whether the surrounding soil is stable enough to prevent collapse.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When measuring soil's undrained might, the Vane Shear Test does it right!
🧠 Other Memory Gems
-
Imagine a gardener using a small vane to test soil strength before planting a tree; it helps him know if the roots will grow strong or if they'll be weak and feeble.
-
Remember the acronym VST: Vane Shear Test - Very Strong Torque measures soil strength.
🎯 Super Acronyms
RUM
- Resistance
- Uniformity
- Measurement – key to understanding soil strength.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Undrained Shear Strength (c_u)
Definition:
The shear strength of the soil when excess pore water pressure exists without drainage.
-
Term: Vane Shear Test
Definition:
A test used to determine the undrained shear strength of cohesive soils.
-
Term: Torque
Definition:
A measure of the rotational force applied during the test.
-
Term: Shear Vane
Definition:
An apparatus used in the Vane Shear Test consisting of four steel plates.
-
Term: Shear Strength Mobilization
Definition:
The distribution of shear strength along the soil during the shear vane test.
-
Term: Resisting Moment
Definition:
The moment generated by the shear forces resisting the applied torque.
-
Term: Soil Cylinder
Definition:
The column of soil contained between the shear vane plates during the test.
