Transition from Laminar to Turbulent Boundary Layer
Unlock Audio Lesson
Today, we're focusing on the transition from a laminar to a turbulent boundary layer. Can anyone recall what a laminar boundary layer is?
Isn’t it when the flow is smooth and the fluid particles move in parallel layers?
Exactly! When we talk about boundary layers, laminar flow is characterized by smooth, orderly fluid movement. Now, as we move downstream, this flow can transition into turbulence. What does this transition zone indicate?
The change in the Reynolds number, right? It increases as we go downstream.
Correct! As the Reynolds number increases, the flow becomes turbulent, significantly affecting the layer's characteristics.
What about that thin layer near the wall you mentioned? The laminar sub-layer?
Great question! The laminar sub-layer is a region within the turbulent boundary layer that's very close to the solid surface, where viscous effects are dominant.
Distortion of Fluid Particles
Unlock Audio Lesson
Let's delve into fluid particle behavior within the boundary layer. How do you think fluid particles behave as they transition into turbulence?
Do they retain their shape?
Outside the boundary layer, yes. But as they enter the boundary layer, they start to distort due to velocity gradients.
What causes this distortion?
The different velocities at the top and bottom of the fluid particles lead to non-zero vorticity, which causes rotation. This effect is crucial in understanding the fluid dynamics within the boundary layer.
Boundary Layer Thickness and Important Parameters
Unlock Audio Lesson
Now, let's discuss boundary layer thickness. Can anyone explain what it signifies?
It’s the distance from the plate to where the fluid velocity reaches the free stream value, isn’t it?
Exactly! It's defined at the point where velocity is approximately 99% of the free stream velocity. Why do you think this specific percentage is chosen?
To standardize the definition? Other values like 0.98 or 0.96 might lead to confusion.
That's right! We also use terms like displacement thickness, momentum thickness, and energy thickness to analyze flow behavior. Who can tell me what displacement thickness is?
Is it the amount by which the free stream flow is displaced by the presence of the boundary layer?
Great summary! Understanding these concepts is essential for solving problems in fluid dynamics.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section covers the transition zone where the boundary layer shifts from laminar to turbulent flow. It introduces crucial concepts like the laminar sub-layer, which is close to the solid boundary, and discusses the physical understanding of fluid particle distortion due to velocity gradients within the boundary layer. The section also defines boundary layer thickness and its significance, along with critical terms such as displacement thickness, momentum thickness, and energy thickness.
Detailed
Detailed Summary of Boundary Layer Transition
In fluid mechanics, the boundary layer transition refers to the critical change from a laminar flow regime to a turbulent flow regime. This transition occurs over a short length termed the transition zone, where the Reynolds number increases as one moves downstream. As a performance consequence, above this zone, the boundary layer develops distinctive turbulent characteristics.
A key feature within the turbulent boundary layer is the laminar sub-layer, a thin layer of flow adjacent to the solid boundary where viscous effects dominate. This sub-layer exhibits a linear velocity profile, meaning that the velocity increases uniformly from zero at the surface to approximately the free stream velocity as you move outwards.
Fluid particles experience distortion when moving from the uniform flow outside the boundary layer into the turbulent regime. This distortion is caused by varying velocities across the particle due to velocity gradients inside the boundary layer, leading to non-zero vorticity and inducing a rotational flow behavior.
Another essential concept is that of boundary layer thickness, which defines the distance from the surface to a point where the fluid velocity approaches the free stream velocity. Typically, this is considered when the velocity reaches about 99% of the free stream value.
The section further elaborates on important characteristics of boundary layers, including displacement thickness, momentum thickness, and energy thickness, which are crucial for analyzing flow behavior and design considerations in hydraulic engineering.

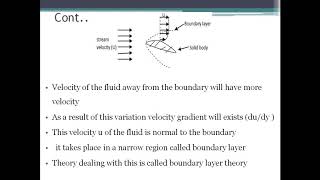

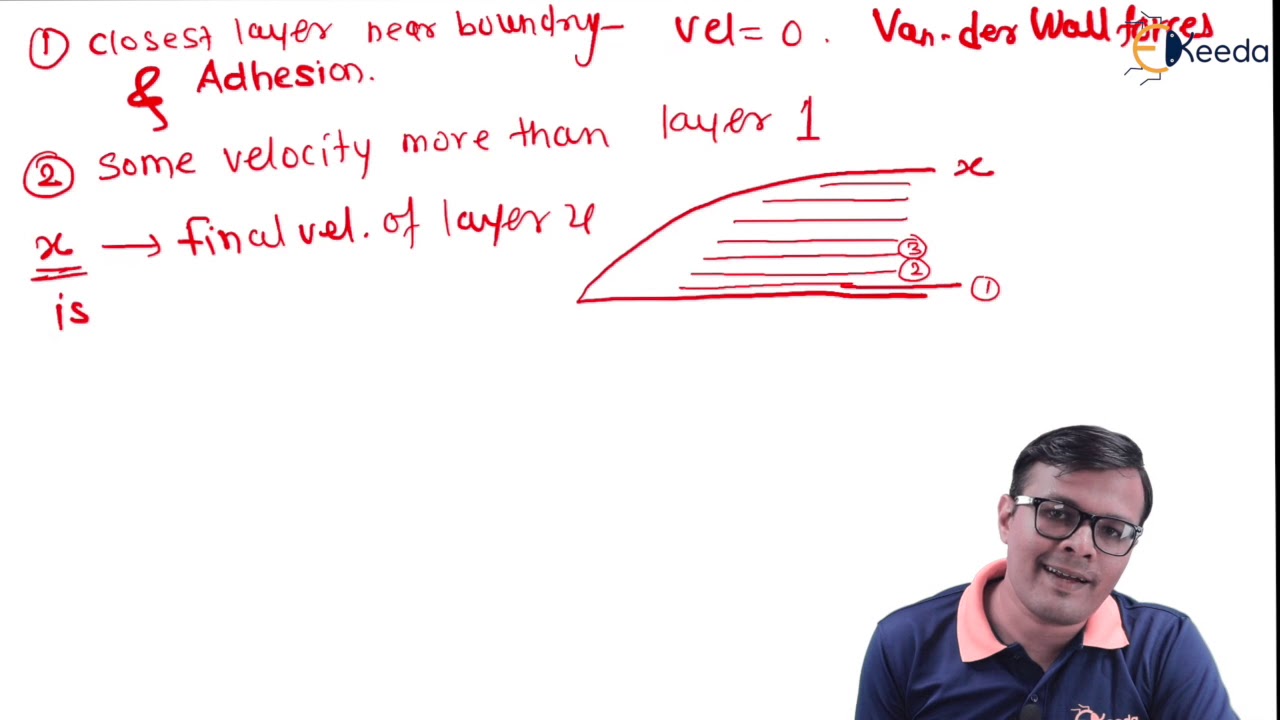

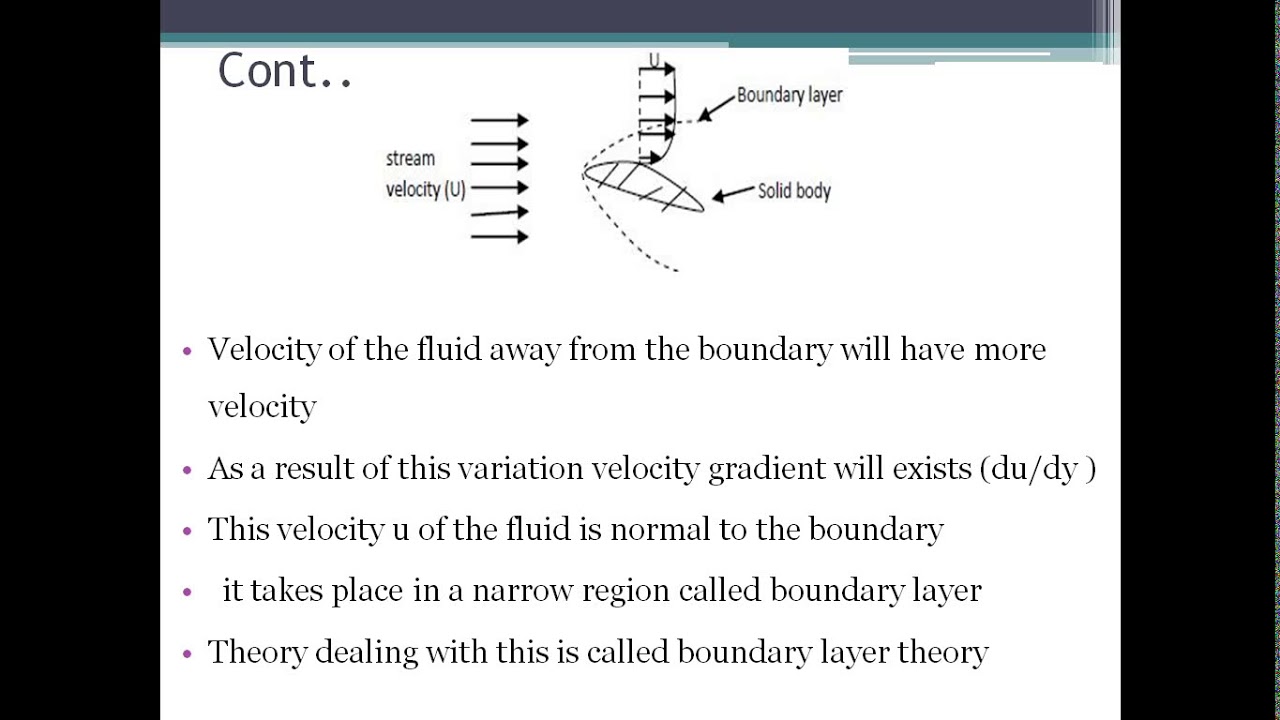

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Transition from Laminar to Turbulent Flow
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
And then there is a transition from laminar to turbulent boundary layer. So, this is the transitional zone here. So, this short length over which the laminar boundary layer changes to turbulent is called the transition zone, indicated by this distance here. Now, downstream of the transition zone, the boundary layer becomes turbulent because x keeps on increasing and therefore, Reynolds number increases leading to fully turbulent region.
Detailed Explanation
This chunk explains how a flow changes from laminar to turbulent. In fluid dynamics, a laminar flow is smooth and orderly, while a turbulent flow is chaotic and irregular. The transition zone is the specific distance along the flow where this change occurs. As the flow moves downstream, the Reynolds number, which predicts flow patterns, increases. When it exceeds a certain value, the flow transitions to turbulence.
Examples & Analogies
Imagine water flowing smoothly out of a faucet (laminar flow). As you turn the faucet more, the water starts to splash, creating a chaotic flow (turbulent flow). This change in flow pattern corresponds to the transition zone mentioned.
Laminar Sublayer
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now, as you see in this diagram, there is something called laminar sub-layer. And what is that laminar sub-layer? This is a region where the turbulent boundary layer zone and it is very close to the solid boundary. So, basically it is a region in the turbulent boundary layer zone. Therefore, the viscous effects are dominant; they are much more than the other type of forces. Since, the thickness of this layer, as we can see, this is very, very small compared to this, the variation of the velocity can be assumed to be linear. So, in laminar sub-layer, velocity profile is assumed linear.
Detailed Explanation
The laminar sub-layer is a thin region within the turbulent boundary layer, located close to the solid boundary (e.g., the wall of a pipe). Within this layer, the influence of viscosity becomes significant, overpowering other forces. The velocity of fluid in this layer increases in a linear fashion with distance from the wall, which means the speed changes gradually.
Examples & Analogies
Think of the laminar sub-layer as the smooth surface of a smooth, slow-moving stream right next to the bank of a river. While the water in the middle flows quickly and chaotically, the water at the edges moves slowly and smoothly, resembling the laminar sub-layer.
Shear Stress in Laminar Sublayer
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Therefore, for linear variation of velocity, we can write. Now, the shear stress in this layer is constant and is equal to the boundary shear stress given by tau not.
Detailed Explanation
In the laminar sub-layer, the shear stress (a measure of how much adjacent layers of fluid slide past each other) remains constant. This shear stress is referred to as boundary shear stress (represented as tau not) and is determined by the linear velocity profile in this region.
Examples & Analogies
Imagine a layer of smooth butter being spread with a knife. The consistent pressure and angle of the knife create a uniform shear across the layer of butter, similar to how constant shear stress functions within the laminar sub-layer.
Fluid Particle Distortion
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now, we will talk about another phenomenon, that is, distortion of a fluid particle within the boundary layer. The fluid particle retains its original shape in the uniform flow outside the boundary layer. So, this is the fluid particle above the boundary layer, this is the fluid particle that is going to be in the boundary layer. So, when it moves in this direction, there is no problem at all because all the points will have equal velocities. However, this particle here, after entering the boundary layer the particles begin to distort.
Detailed Explanation
When a fluid particle is in uniform flow outside the boundary layer, it maintains its shape. However, as it enters the boundary layer, it experiences different velocities on its top and bottom surfaces. This velocity gradient causes the particle to become distorted as it moves through the layer.
Examples & Analogies
Consider a surfboard in a wave. When the board is outside the turbulence of the wave, it stays parallel to the surface of the water. But as it rides the wave, the pressure and flow change the shape of the water around it, creating turbulence and distortion.
Vorticity and Rotation in Boundary Layer
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Therefore, the flow inside the boundary layer has a non-zero vorticity. Because what does vorticity cause? It causes rotation and this is what we see, the fluid particle will rotate.
Detailed Explanation
Vorticity is a measure of the local rotation of a fluid. Inside the boundary layer, due to the velocity differences acting on a fluid particle, vorticity becomes non-zero, meaning that fluid particles begin to rotate. This rotational motion contributes to the complexity of the flow within the boundary layer.
Examples & Analogies
Think of a swirling pool of water. As a toy boat moves through, it will rotate and spiral as it encounters faster and slower currents, reflecting the rotational dynamics caused by vorticity in the boundary layer.
Boundary Layer Thickness Definition
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Now, we are going to see, what the boundary layer thickness is. Boundary layer thickness is the distance from the plate at which the fluid velocity is within some arbitrary value of the free stream velocity.
Detailed Explanation
Boundary layer thickness (delta) is defined as the distance from a surface (such as a flat plate) at which the fluid's velocity approaches a significant percentage of the free stream velocity. It effectively marks where the impact of the solid boundary diminishes, usually at about 99% of the free stream velocity.
Examples & Analogies
Consider the rise of the tide at a beach. As the water approaches the shore, it slows down near the sand but flows faster further out. The point where the water is almost at the same speed as the ocean's flow represents the boundary layer thickness.
Definitions of Boundary Layer Parameters
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
To remove this confusion, we will now look at some of the definitions. Some of the definitions are displacement thickness, given by delta star, momentum thickness (theta), and energy thickness (delta double star).
Detailed Explanation
In boundary layer analysis, three important parameters are defined: displacement thickness (delta star), momentum thickness (theta), and energy thickness (delta double star). These parameters help to quantify how the boundary layer alters flow characteristics and energy transfer in fluid mechanics.
Examples & Analogies
Think of these definitions as different scales for measuring area on a map. Each parameter—displacement, momentum, and energy thickness—provides insights into how the boundary layer affects fluid behavior and helps engineers design better systems.
Velocity Profiles in Boundary Layer
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
So, we consider 2 velocity profiles for flow past a flat plate. The first is a uniform profile, where mu is zero, meaning there is no viscosity and slip occurs at the wall. The second is the boundary layer profile, where viscosity is not zero and there is no slip at the wall.
Detailed Explanation
This chunk discusses two velocity profiles around a flat plate. The uniform velocity profile assumes there is no viscosity, allowing fluid to flow freely without interaction with the surface. In contrast, the boundary layer profile includes viscid effects, resulting in a non-slip condition where fluid adheres to the surface.
Examples & Analogies
Imagine ice sliding over a smooth surface, where it slides easily (uniform profile), versus honey spreading over a toast (boundary layer profile). The honey clings to the bread (no slip), while the ice can slide without friction when there's no resistance.
Velocity Deficit and Displacement Thickness
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Within the boundary layer there is a velocity deficit, meaning the flow rate across section b - b is less than the flow rate across section a - a due to reduced velocity in the boundary layer. If the plate is displaced at section a - a by an amount delta dash, this is called the displacement thickness.
Detailed Explanation
The velocity deficit refers to how the fluid's speed within the boundary layer is less than the uniform velocity profile outside. This reduced speed means the flow rate across a cross-section in the boundary layer is lower than in the free-stream flow. When considering this reduction, if you imagine pushing the plate further into the fluid, the new effective position leads to a concept called displacement thickness, which quantifies the adjustment in fluid dynamics.
Examples & Analogies
Consider pushing a cake deeper into frosting. As you push the cake, you create an area where the frosting layer is disturbed, reflecting how the displacement due to boundary conditions affects flow speed.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Boundary Layer Transition: The process of the flow moving from a laminar state to a turbulent state.
-
Laminar Sub-Layer: A thin layer within the turbulent flow where viscosity significantly affects the flow.
-
Boundary Layer Thickness: The height above the surface where the flow velocity approaches the free stream value.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
The transition from laminar to turbulent flow around a flat plate in a fluid stream.
-
The change in shear stress behavior due to the formation of a turbulent boundary layer.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In a flow that's smooth, not rough, the laminar phase is just enough; but as the speed does shift and sway, turbulence is here to stay.
📖 Fascinating Stories
-
Imagine a smooth river flowing gently. As you reach a bend, the water starts swirling and creating waves - that's like the transition from laminar flow to turbulence.
🧠 Other Memory Gems
-
Remember the acronym T-BLADES: Turbulent Boundary Layer And Distorted Energy Shear - to identify crucial boundary layer concepts.
🎯 Super Acronyms
For boundary layer thickness remember DELTA
- Distance for Energy Level To Approach.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Boundary Layer
Definition:
The layer of fluid in the immediate vicinity of a bounding surface where effects of viscosity are significant.
-
Term: Laminar SubLayer
Definition:
The region within a turbulent boundary layer very close to the solid boundary where viscous effects dominate.
-
Term: Reynolds Number
Definition:
A dimensionless number used to predict flow patterns in different fluid flow situations.
-
Term: Boundary Layer Thickness
Definition:
The distance from the plate to a point where the fluid velocity is approximately equal to free stream velocity.
-
Term: Displacement Thickness
Definition:
A measure of how much the free stream flow is displaced due to the presence of the boundary layer.
-
Term: Momentum Thickness
Definition:
A measure of the loss of momentum due to the presence of the boundary layer.
-
Term: Energy Thickness
Definition:
A measure of the loss in total kinetic energy of the flow due to the boundary layer.
