Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Listing Variables
Unlock Audio Lesson
Welcome! Today, we're diving into the critical first step of dimensional analysis—listing all variables involved in pipe flow. Can anyone recall what variables we should consider?
We should include pressure drop, diameter, density, viscosity, and velocity, right?
Exactly, Student_1! So, can someone explain why each of these variables is significant?
The pressure drop indicates how much energy is lost in the system, while diameter affects flow rate.
Great points! Remember, measuring all these variables will help us understand the fluid dynamics involved. Let's keep this list handy as we progress.
Determining Dimensions
Unlock Audio Lesson
Now that we've listed our variables, can someone explain how we can express them in terms of basic dimensions?
We can write them in terms of Mass, Length, and Time. For example, velocity is expressed as length per time.
Spot on! For viscosity and density, how would we express those?
Viscosity is force times length squared over time, and density is mass over volume, which translates to mass per length cubed.
Excellent! So, after determining dimensions, what’s our next step?
Buckingham Pi Theorem
Unlock Audio Lesson

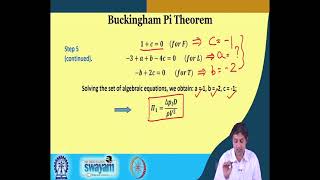

Next, we’ll apply the Buckingham Pi theorem. Can anyone explain its purpose?
It helps us find dimensionless groups called Pi terms by reducing the number of variables.
Exactly right! Can anyone tell me how we determine the number of Pi terms we need?
We subtract the number of fundamental dimensions from the total number of variables.
Correct! And how many Pi terms should we expect in our example?
We have five variables and three fundamental dimensions, so we should have two Pi terms.
Excellent job! Remember this, as it’s a crucial part of the analysis.
Choosing Repeating Variables
Unlock Audio Lesson
Now, let’s discuss how to choose our repeating variables. Why is it important that they are independent?
If we choose dependent variables, we won't be able to form dimensionless groups correctly.
Exactly! What might be some suitable choices for our pipe flow analysis?
Perhaps diameter, viscosity, and velocity could all be good choices?
Great combinations! Choosing wisely ensures that we construct meaningful dimensionless groups.
Forming Pi Terms and Final Relationships
Unlock Audio Lesson
Finally, let’s form our Pi terms. Who can remind us how we should multiply our variables?
We multiply our non-repeating variable by the product of repeating variables raised to the appropriate power.
Correct! After forming the Pi terms, how do we express the relationship between them?
We express it as Pi 1 being a function of Pi 2.
Well said! This method of analysis will really help us understand hydraulic systems better.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, the instructor outlines the systematic approach to solve pipe flow problems using dimensional analysis and the Buckingham Pi theorem. Key steps include listing variables, determining dimensions, and forming dimensionless groups, which ultimately connect physical phenomena through mathematical relationships.
Detailed
Dimensional Analysis and Hydraulic Similitude
This section elaborates on the principles of dimensional analysis, particularly in the context of hydraulic engineering, with a focus on pipe flow problems. Dimensional analysis serves as a critical tool for establishing relationships between different physical variables through dimensionless numbers. The steps outlined include:
- Listing of Variables: Identify all relevant variables affecting the pipe flow, such as pressure drop per unit length, diameter, density, viscosity, and velocity.
- Determining Basic Dimensions: Express each variable in terms of fundamental physical dimensions (Mass, Length, Time), which is crucial for understanding the relationships among variables.
- Applying Buckingham Pi Theorem: Calculate the number of dimensionless Pi terms by subtracting the number of fundamental dimensions from the total number of variables, leading to a streamlined analysis.
- Choosing Repeating Variables: Select independent variables that will form the basis for dimensionless groups, ensuring that they are dimensionally independent.
- Forming Pi Terms: Construct Pi terms by combining non-repeating variables with repeating variables, solved through dimensional analysis.
- Checking Dimensional Consistency: Each resulting Pi term must be dimensionless, validating the analysis.
- Establishing Relationships: Finally, express relationships among the Pi terms, providing insight into how pressure drop is influenced by factors like the Reynolds number, thus underlining the relevance of dimensional analysis in hydraulic engineering.

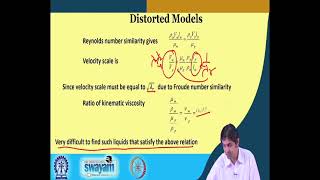

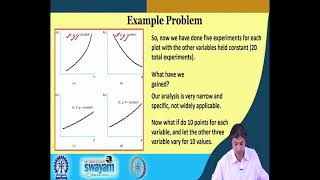

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Step 1: Listing Variables
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We have to list all the variables that are involved in the problem. In our case, we know that listing the variables was, one is pressure per unit length, something that needs to be find out. Then there is a diameter D, there is the density ρ, then there is viscosity µ and the velocity V.
Detailed Explanation
The first step in dimensional analysis is to identify and list all the relevant variables that will affect the problem at hand. In this example, we have five key variables: pressure per unit length (delta p/l), diameter (D), fluid density (ρ), viscosity (µ), and flow velocity (V). Each of these variables will have a role in the analysis.
Examples & Analogies
Think about a recipe. Listing ingredients is akin to noting down variables in a problem. Just as you cannot cook without knowing what ingredients you need, you cannot analyze a flow problem without identifying the key variables that impact it.
Step 2: Expressing Variables in Basic Dimensions
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We have to express each of these variables in terms of basic dimensions. Velocity is L T^-1, µ is F L^-2 T, delta p/l is F L^-3, D is L, and ρ is F L^-4 T^2.
Detailed Explanation
In this step, we convert our identified variables into their respective basic dimensions. Basic dimensions include length (L), mass (F), and time (T). For example, velocity has dimensions of length divided by time (L T^-1), while viscosity is a force divided by area and velocity, resulting in dimensions of F L^-2 T. Each variable must be correctly translated into its fundamental components to proceed with dimensional analysis.
Examples & Analogies
Imagine measuring distances in a construction project. You might have distances in meters (length), kilograms (mass), and hours (time). Just as you would need to convert all measurements to one standard unit to avoid confusion, variables in dimensional analysis must be expressed in consistent basic dimensions.
Step 3: Determining the Number of Pi Terms
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We determine the unique number of pi terms. The number of Pi terms is k (the total number of variables) minus r (the number of reference dimensions). Here, k=5 and r=3, thus there will be 2 Pi terms.
Detailed Explanation
This step involves applying the Buckingham Pi Theorem to determine the number of dimensionless groups, known as Pi terms. The theorem states that the number of Pi terms (dimensionless groups) in a problem equals the number of variables minus the number of basic dimensions. For this case, we have 5 variables and 3 basic dimensions, giving us 2 Pi terms to work with.
Examples & Analogies
Think of organizing a racing event with different cars. If you count the number of different cars (variables) and the race categories (dimensions), the remaining combinations (Pi terms) will tell you how many unique racing classes you can create, just as you calculate Pi terms to find unique relationships between variables.
Step 4: Selecting Repeating Variables
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We have to select a number of repeating variables, where the number required is equal to the number of reference dimensions. In our case, there are 3 repeating variables.
Detailed Explanation
In this step, we select independent repeating variables from our list that will serve as a foundation for forming dimensionless Pi terms. The number of repeating variables must equal the number of basic dimensions; here, we have three basic dimensions (F, L, T), so we select three repeating variables. These variables should be independent of each other to ensure accurate analysis.
Examples & Analogies
Imagine writing a story that requires a specific number of characters to represent different traits. If you have three traits to highlight (like bravery, wisdom, and strength), you'll choose three characters to embody these traits. Similarly, in dimensional analysis, you choose three independent variables that will serve as the foundation for forming Pi terms.
Step 5: Forming Pi Terms
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book

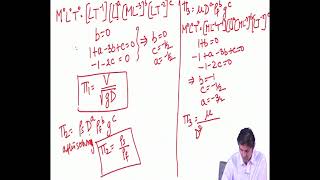

We form a Pi term by multiplying one of the non-repeating variables by the product of the repeating variables each raised to an exponent that will make the combination dimensionless.
Detailed Explanation
Now, we create dimensionless terms called Pi terms. To do this, we take one non-repeating variable and multiply it by a combination of the repeating variables raised to certain powers (exponents). The challenge is to choose the exponents such that the final term is dimensionless, meaning that it does not have units.
Examples & Analogies
Think of building a model airplane. You need to combine different parts (like the wings and body) that have specific measurements. If you want to ensure the plane flies and doesn’t weigh too much, you have to balance the sizes of those parts. Similarly, in dimensional analysis, you combine variables with precise exponents to create dimensionless terms that reveal deeper relationships.
Step 6: Repeating for Remaining Variables
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Repeat step 5 if there are more non-repeating variables. We can always have different configurations of repeating and non-repeating variables.
Detailed Explanation
If you have more non-repeating variables left after forming your first Pi term, you can repeat the process to create additional Pi terms using the same method. Each time you can potentially generate new combinations that will provide deeper insights into the fluid system, depending on how you choose your variables.
Examples & Analogies
Think of a chef creating a new dish. Once you’ve combined your main ingredients (like chicken and spices) to make a signature flavor (first Pi term), you can always add a new ingredient (like vegetables) and create additional variations of the dish that highlight different flavors (new Pi terms).
Step 7: Checking Dimensions
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Check all the resulting Pi terms to ensure that they are dimensionless.
Detailed Explanation
After forming your Pi terms, it is crucial to verify that they are dimensionless. This means that when you break down each Pi term into its fundamental dimensions (length, mass, time), the net result should yield a dimensionless form with no units remaining. This verification step is vital to confirm that your analysis is correct and reliable.
Examples & Analogies
Imagine double-checking a recipe before serving a dish. You taste it to ensure it has balanced flavors without being too salty or bland—an adjustment that ensures each ingredient contributes positively. Similarly, checking your Pi terms confirms that the relationships you’ve derived from your variables yield meaningful and accurate insights.
Final Expression of Pi Terms
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Express the final form as a relationship among Pi terms. For instance, Pi1 is a function of Pi2. The pressure drop depends on the Reynolds number as derived from our analysis.
Detailed Explanation
The final step involves expressing the relationship derived from your Pi terms. Essentially, you'll establish equations that show how one Pi term relates to another. For example, in the context of fluid dynamics, you can observe how pressure drop in a pipe flow can be expressed in terms of the Reynolds number, highlighting the significance of each variable.
Examples & Analogies
Think of how relationships work in a family. You might express that your success (Pi1) is a function of your hard work (Pi2). Just like in fluid analysis, where your final expressions highlight critical relationships among the variables, relationships in life illustrate how one factor influences another.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Dimensionless Groups: These groups, formed through dimensional analysis, help in understanding relationships between variables.
-
Repeating Variables: Selecting appropriate variables that are independent and cover the essential dimensions in dimensional analysis is critical.
-
Application of Buckingham Pi Theorem: This theorem facilitates the derivation of dimensionless terms from dimensional analysis, enabling simplified modeling of fluid systems.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
When analyzing pipe flow, the pressure drop is examined as a function of fluid viscosity, diameter, and velocity, leading to the formation of the Reynolds number.
-
In a model dam study, both real and model flows can be compared effectively using dimensionless Pi terms, provided they maintain hydraulic similitude.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In pipe flow, we find the way,\ By listing variables day by day.\ Dimensions help keep them in line,\ Pi terms emerge, like stars they shine.
📖 Fascinating Stories
-
Imagine a fluid engineer named Sam, who faces a complex pipe flow problem. By listing important variables and determining their dimensions, Sam successfully forms dimensionless groups, solving the mystery of pressure loss in a jiffy!
🧠 Other Memory Gems
-
Remember this: VDP (Variables, Dimensions, Pi-term) - it's the flow to form dimensionless terms.
🎯 Super Acronyms
Pi = (D + V + ρ) (_P) - where D is Diameter, V is Velocity, and ρ is Density.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Dimensional Analysis
Definition:
A method to analyze the relationships between variable quantities by identifying their fundamental dimensions.
-
Term: Buckingham Pi Theorem
Definition:
A theorem that provides a systematic way to derive dimensionless quantities from the relationships among physical variables.
-
Term: Pi Terms
Definition:
Dimensionless groups formed through dimensional analysis which exhibit relationships between physical variables.
-

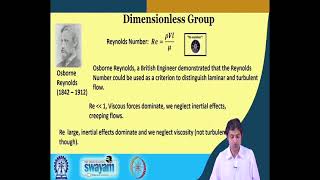

Term: Reynolds Number
Definition:
A dimensionless number that gives an indication of flow regime in fluid mechanics; it is defined as the ratio of inertial forces to viscous forces.
-
Term: Hydraulic Similitude
Definition:
The principle that states that the behavior of fluid systems can be studied through models, as long as the relevant dimensionless parameters are matched.
