Introduction to Pipe Flow

Unlock Audio Lesson

0:00
Teacher
Teacher

Welcome everyone! Today we'll start with pipe flow. Can anyone tell me the primary characteristic of flow in pipes?

Student 1
Student 1

Is it that the pipe is filled with fluid?

Teacher
Teacher

Exactly! Pipe flow occurs when a pipe is completely filled with fluid, like water or oil. What drives the flow in pipes?

Student 2
Student 2

The pressure gradient?

Teacher
Teacher

Correct! Unlike open channels where gravity is the main force, in pipes, it's the pressure gradient. Remember the acronym 'PPG' for Pressure-Driven Pipe Flow!

Student 3
Student 3

So pressure is actually more important in pipes?

Teacher
Teacher

Absolutely, pressure plays a vital role in maintaining flow in confined systems like pipes. Let's push forward and explore laminar versus turbulent flow!

Types of Flow: Laminar vs Turbulent

Unlock Audio Lesson

0:00
Teacher
Teacher

Now, who can explain the difference between laminar and turbulent flow?

Student 1
Student 1

Laminar flow is smooth and orderly, while turbulent flow is chaotic.

Teacher
Teacher

Great! The Reynolds number helps us define these flows. What do we know about it?

Student 4
Student 4

A Reynolds number below 2100 indicates laminar flow, and above 4000 means turbulent, with a transition phase in between.

Teacher
Teacher

Exactly! Let's remember '2100 for Laminar' and '4000 for Turbulent' as crucial thresholds!

Student 2
Student 2

What happens during transitional flow?

Teacher
Teacher

Transitional flow is between laminar and turbulent, where disturbances start to appear. Keep these flow types in your mind as we move to practical applications!

Entrance Region and Fully Developed Flow

Unlock Audio Lesson

0:00
Teacher
Teacher

Who can explain what happens when fluid first enters a pipe?

Student 3
Student 3

There's an entrance region where flow stabilizes?

Teacher
Teacher

Yes! The entrance length is where velocity profiles are still developing and depends on the Reynolds number. Does anyone remember the formulas?

Student 1
Student 1

For laminar flow, it's le/D = 0.06 Re, and for turbulent flow, it's le/D = 4.4 Re^(1/6).

Teacher
Teacher

Perfect! These formulas help us determine how long that entrance region is. Let's not forget how crucial these calculations are in pipe design.

Student 4
Student 4

So, after the entrance region, we get fully developed flow?

Teacher
Teacher

Exactly! In fully developed flow, velocity depends purely on the radius, not position along the pipe. Excellent engagement, everyone!

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section covers the concept of pipe flow in hydraulic engineering, emphasizing the difference between laminar and turbulent flow, and the importance of pressure gradients.

Standard

In this section, we explore pipe flow characteristics, highlighting the significance of pressure gradients in contrast to gravity-driven open channel flow. Key distinctions between laminar and turbulent flow are drawn through the Reynolds number, and the implications of these flow types on fluid dynamics and engineering applications are discussed.

Detailed

Pipe Flow in Hydraulic Engineering

In hydraulic engineering, pipe flow represents a crucial area of study, as it comprises a significant portion of fluid dynamics. Pipe flow is defined as the complete filling of a pipe with a fluid, which may range from water to oil or gases, forming a system driven primarily by pressure gradients rather than gravitational pull, which dominates open channel flows.

A critical distinction in pipe flow involves identifying whether the flow is laminar or turbulent, which is quantified using the Reynolds number. With laminar flow (Re < 2100), fluid particles move in parallel layers with minimal disruption, whereas turbulent flow (Re > 4000) exhibits chaotic fluid motion characterized by fluctuations and eddies. The transitional phase, where the Reynolds number ranges between 2100 and 4000, signifies a gradual shift from laminar to turbulent behavior.

The section further elaborates on the significance of the entrance region and fully developed flow in a pipe system, where the boundary layer develops as the fluid starts moving from the reservoir into the pipe. The velocity profile shifts from uniform entry to a parabolic distribution upon reaching fully developed flow. The entrance length, dependent on the Reynolds number, determines how quickly this fully developed state can be achieved, making it crucial for the design and analysis of hydraulic systems.

Youtube Videos

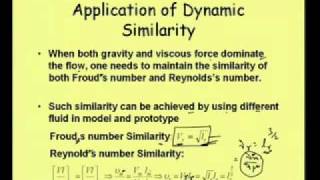

Mod-9 Lec-2 Pipe Flow: Losses in Pipe
Mod-9 Lec-2 Pipe Flow: Losses in Pipe

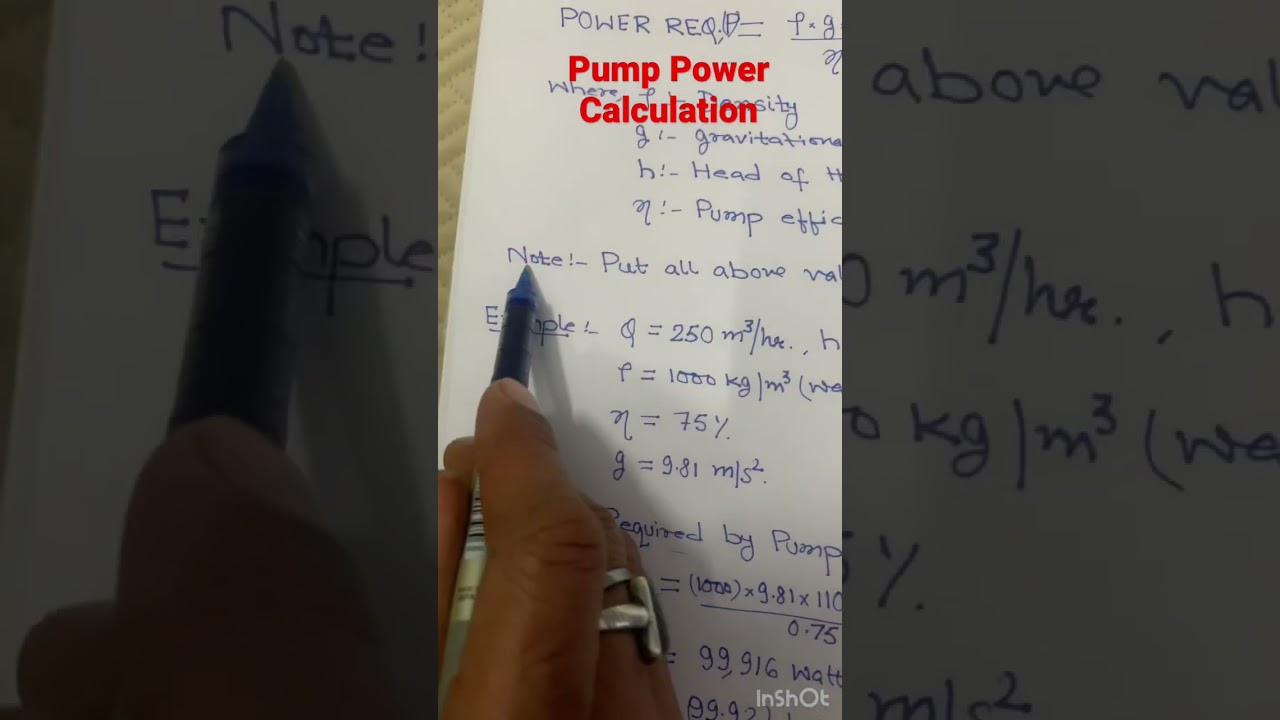

Pump Power Calculation #shorts #ytshorts #india #pump #oilandgas
Pump Power Calculation #shorts #ytshorts #india #pump #oilandgas
Flow and Pressure in Pipes Explained
Flow and Pressure in Pipes Explained

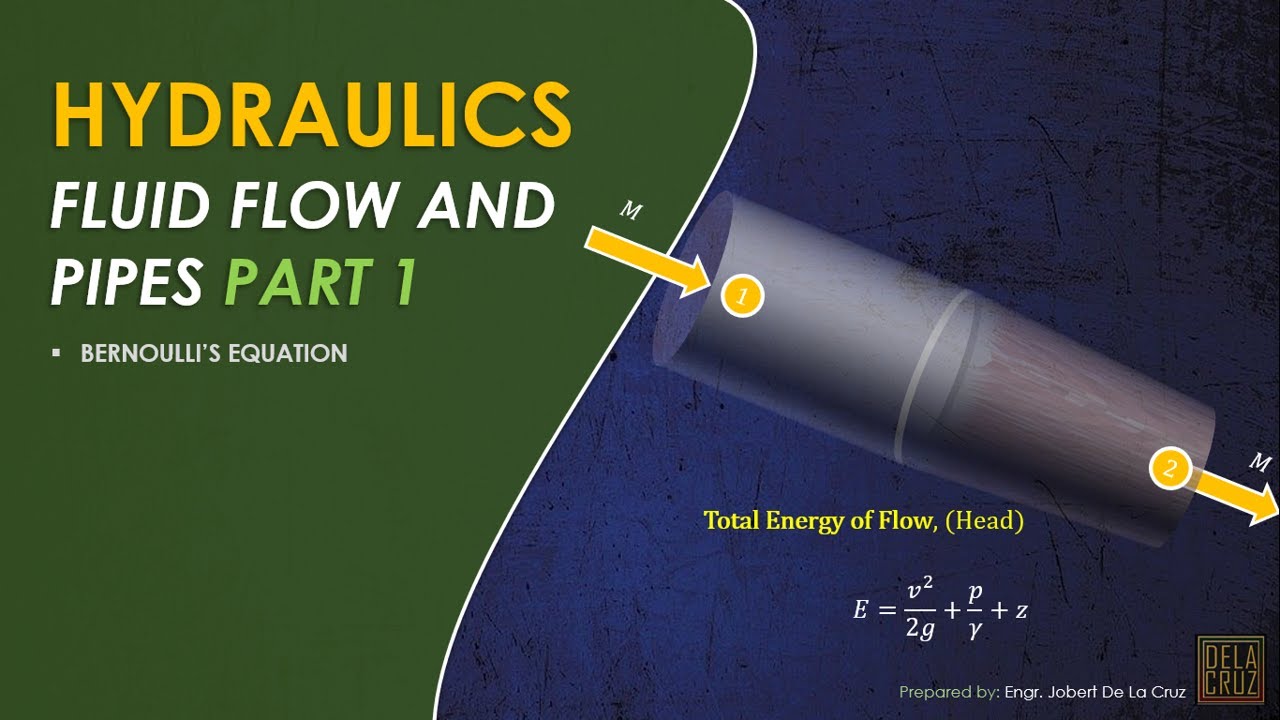

HYDRAULICS | FLUID FLOWS AND PIPE | DE LA CRUZ TUTORIALS
HYDRAULICS | FLUID FLOWS AND PIPE | DE LA CRUZ TUTORIALS
Hydraulics & Fluid mechanics | chapter-7 Flow through pipes | Last Moment Batch | polytechnic
Hydraulics & Fluid mechanics | chapter-7 Flow through pipes | Last Moment Batch | polytechnic
chapter -2 Simple pipe flow problems and solutions|| three types of pipe flow problems|| Hydraulic
chapter -2 Simple pipe flow problems and solutions|| three types of pipe flow problems|| Hydraulic
Lecture 38: Pipe flow
Lecture 38: Pipe flow

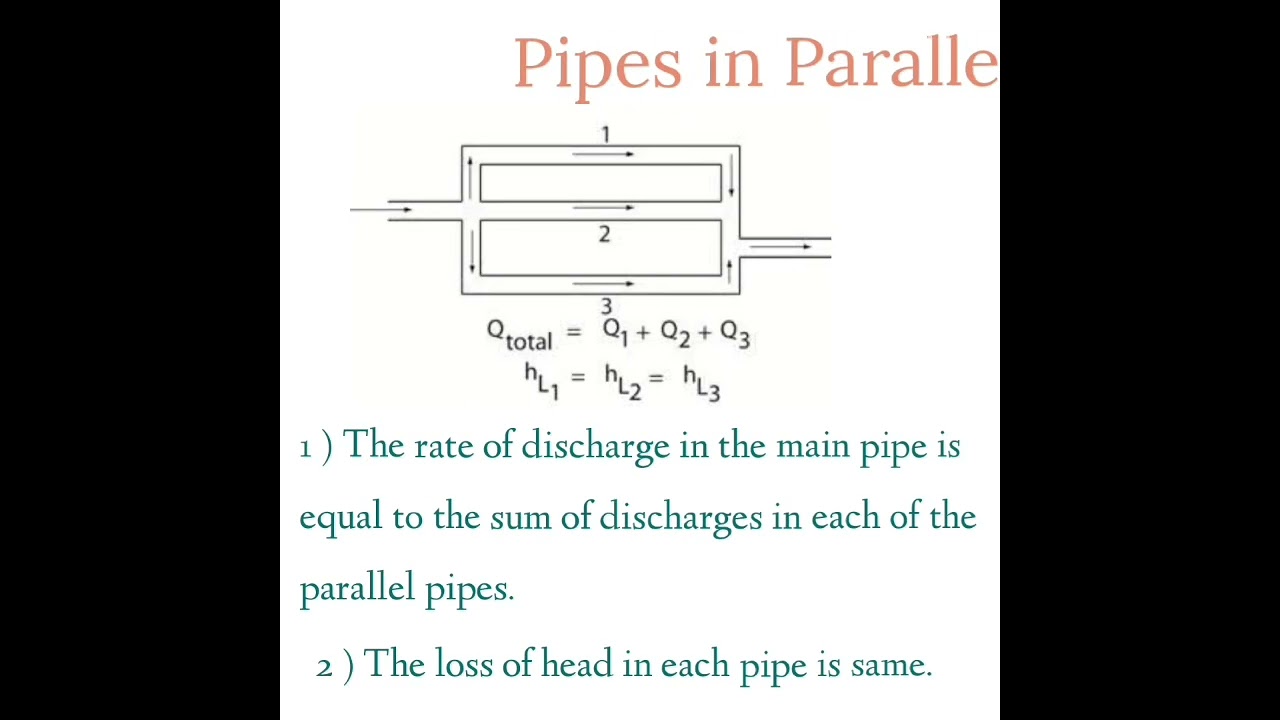

Pipes in Parallel| Flow Through pipes| Fluids|Civil Engineering #sscje #rrbje#shorts #daily #concept
Pipes in Parallel| Flow Through pipes| Fluids|Civil Engineering #sscje #rrbje#shorts #daily #concept
Why water tank has open pipe? explained practically
Why water tank has open pipe? explained practically

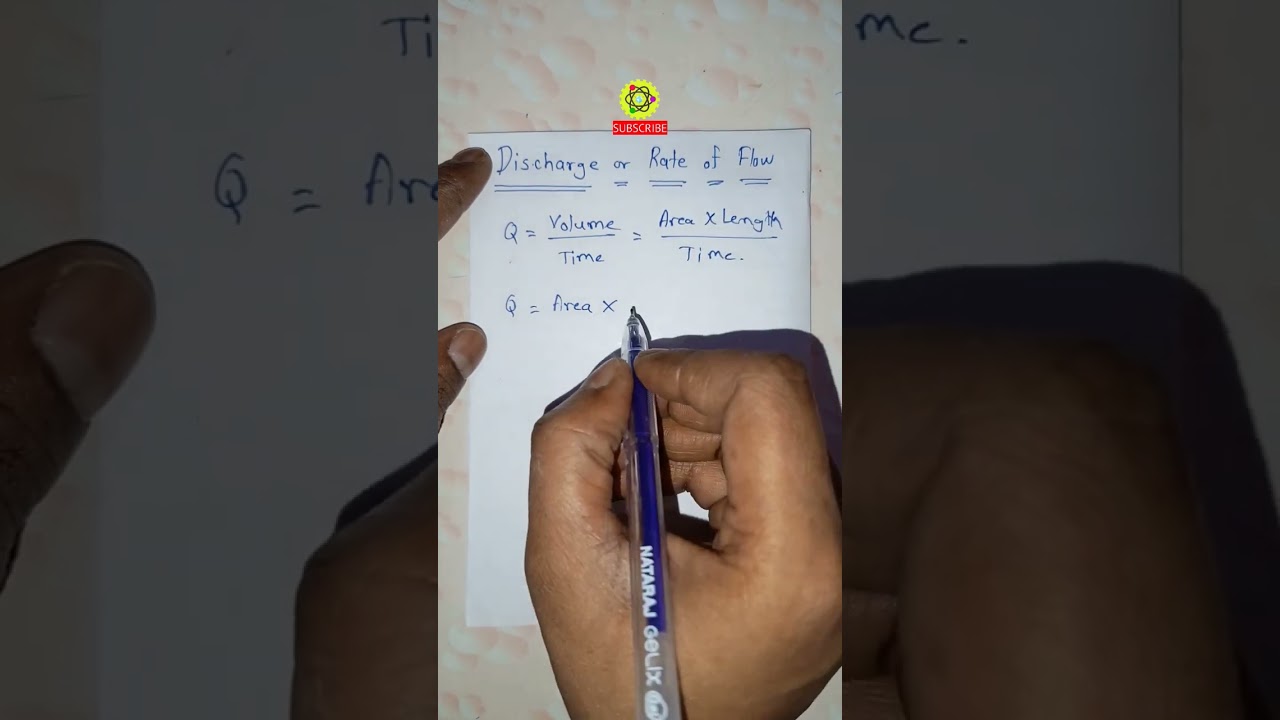

Volumetric Flow Rate | Formula | Discharge | Rate of Flow | #shorts
Volumetric Flow Rate | Formula | Discharge | Rate of Flow | #shorts

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Introduction to Pipe Flow

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

Welcome students. This week we are going to study a module that is called pipe flow, which will go on for another week. This is a very long and important chapter of hydraulic engineering, same as open channel flow. So, this comprises of almost one sixth of the portion of the entire course.

Detailed Explanation

This section introduces the topic of pipe flow in hydraulic engineering. It emphasizes the importance of this module as it covers a substantial part of the course material. Students should recognize that understanding pipe flow is essential for grasping hydraulic concepts effectively, as it is roughly one-sixth of the overall syllabus.

Examples & Analogies

Think of learning hydraulic engineering like baking a cake. If pipe flow is one-sixth of the recipe, it’s a crucial ingredient like flour—without it, the cake won’t hold together!

Characteristics of Pipe Flow

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

One of the important things that you must know is that the flow in the pipes is viscous in nature. Therefore, we call it viscous flow in pipes. An important property of a pipe flow is that the pipe is completely filled with water or any other fluid, whichever can be; it can be with oil or anything, but the pipe should be completely filled with it. The main driving force is usually a pressure gradient along the pipe.

Detailed Explanation

This chunk explains that pipe flow is characterized by its viscous nature which means that the fluid's viscosity (internal friction) is significant enough to influence the flow. It defines the condition that the pipe must be completely filled with fluid, contrasting it with open channel flow, where the fluid can be partially exposed. Here, the main force driving the flow is the pressure gradient rather than gravity, making it crucial for students to understand how pressure influences flow in hydraulic systems.

Examples & Analogies

Imagine squeezing toothpaste out of a tube. The toothpaste flows smoothly (like a viscous fluid), and it only comes out when you apply pressure to the tube. Similarly, in pipes, a pressure difference creates flow.

Pressure Gradient and Flow Measurement

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

If you remember, in open channel flow the main driving gradient was gravity. But here, it is pressure gradient along the pipe. The pressure gradient must be there. If there is flow occurring and if you put pressure transducers here and here, this will say that p2 is not equal to p1. That means, there is a pressure gradient along this length.

Detailed Explanation

This chunk discusses how flow in pipes is driven by the pressure difference between two points, indicating that p2 (pressure at point 2) will usually be different from p1 (pressure at point 1). If these pressures are equal, it indicates there is no flow, reinforcing that a pressure gradient is necessary for fluid movement in pipes.

Examples & Analogies

Think of a water slide: if the start (point 1) is higher than the end (point 2), water flows down due to gravity. In pipes, the pressure difference acts similarly, pushing the fluid through the pipe.

Flow Types: Laminar vs Turbulent

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

The important question is, whether it is laminar or turbulent flow because that is one of the classifications of flows. For laminar flow, the Reynolds number should be less than 2100. For turbulent flow, if the Reynolds number is greater than 4000, that flow is definitely turbulent. For the range between 2100 and 4000, the flow is transitional.

Detailed Explanation

This section introduces the classification of flow based on the Reynolds number, a dimensionless quantity that helps predict flow patterns. Laminar flow, which is smooth and orderly, occurs at lower Reynolds numbers (less than 2100), while turbulent flow, which is chaotic and irregular, occurs at higher values (greater than 4000). The transitional flow state exists between these two ranges, providing students with a framework for understanding how flow behaves under different conditions.

Examples & Analogies

Consider a calm lake (laminar flow) versus a rushing river (turbulent flow). The calm water flows smoothly while the river splashes and churns. This analogy helps visualize how fluid flows can vary dramatically under different conditions.

Behavior of Dye in Flow

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

In a pipe flow experiment, we drop a little bit of dye to visualize the flow. At low velocities, the dye will flow smoothly, indicating laminar flow. As velocity increases, the dye streak becomes wavy, showing transitional flow, and at high velocities, the dye disperses randomly, indicating turbulent flow.

Detailed Explanation

This experiment visually demonstrates the differences between laminar, transitional, and turbulent flow using dye. At low velocities, the dye maintains a clear and defined path, reflecting predictable laminar behavior. As velocity increases, disturbances in the dye’s path indicate a transition in flow types, and at very high velocities, the dye is dispersed, showing chaotic turbulent flow.

Examples & Analogies

Think of how dropping a colored ink drop in still water forms a distinct swirl (laminar) versus how it spreads out dramatically in a fast-moving river (turbulent) - this helps you visualize flow behavior under different conditions.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Pipe Flow: Fluid entirely fills the pipe, driven by pressure gradient.

  • Laminar Flow: Characterized by a smooth, predictable movement of fluid, revolved by Reynolds number below 2100.

  • Turbulent Flow: Chaotic fluid movement with significant fluctuations, typically noted with a Reynolds number above 4000.

  • Reynolds Number: A dimensionless value determined by fluid properties, velocity, and characteristic length, critical for identifying flow regimes.

  • Entrance Region: The section of pipe where fluid flow stabilizes and develops a predictable pattern, influenced by Reynolds number.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • When water flows through a 2-inch diameter pipe, the pressure at the inlet is higher than at the outlet, demonstrating the pressure gradient driving pipe flow.

  • In a laboratory setting, students can observe different behaviors of fluid streams by injecting dye into both laminar and turbulent flow setups using the same pipe diameter.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • Pressure gradient's powerful pull keeps the pipe flow steady and full.

📖 Fascinating Stories

  • Once upon a time in a smoothly flowing pipe, water would glide in laminar types, but as speeds rose high, chaos would thrive, marking turbulent waves with every dive.

🧠 Other Memory Gems

  • L for Laminar (under 2100), T for Turbulent (over 4000). Remember LTT for flow types!

🎯 Super Acronyms

Use the acronym PPG for 'Pressure Pushes the Gas' to remember that pressure is key in pipe flow.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Pipe Flow

    Definition:

    The flow of fluid within a confined pipe, where the pipe is completely filled with fluid, driven primarily by pressure.

  • Term: Laminar Flow

    Definition:

    A type of flow where fluid particles move in parallel layers with minimal disruption, characterized by a Reynolds number less than 2100.

  • Term: Turbulent Flow

    Definition:

    A chaotic flow regime characterized by eddies and fluctuations, typically occurring when the Reynolds number exceeds 4000.

  • Term: Reynolds Number

    Definition:

    A dimensionless number used to predict flow patterns in different fluid flow situations, calculated as the ratio of inertial forces to viscous forces.

  • Term: Pressure Gradient

    Definition:

    The rate of change of pressure in a fluid along a pipe, which is the primary driving force for flow in pipes.

  • Term: Entrance Region

    Definition:

    The initial portion of a pipe where the fluid flow transitions from uniform velocity to a velocity profile, dependent on the Reynolds number.

  • Term: Fully Developed Flow

    Definition:

    A flow condition in which the velocity profile is stable and consistent across a cross-section, independent of the position along the length of the pipe.
