Sudden Enlargement of Pipes
Unlock Audio Lesson
Let's discuss the sudden enlargement of pipes. Imagine a pipe flowing into a larger reservoir - when the fluid transitions from a narrow to a wide section, there is an energy loss. Can anyone tell me how we can calculate the head loss in this scenario?
Isn't the formula related to the velocity in the narrower section?
Exactly! We use the equation: h = K_L * (V_1^2) / (2g). Here, K_L is the loss coefficient. Do you remember how K_L can be determined?
Is K_L calculated as 1 - (A1/A2)²?
Correct! And this highlights how energy loss increases as the area ratio approaches zero. It's vital to remember this when assessing energy losses in pipe networks.
Gradual vs Abrupt Expansion
Unlock Audio Lesson
We also have gradual expansions. Can someone define the difference between abrupt and gradual expansions?
I think abrupt expansion causes a significant energy drop compared to gradual expansion.
Right! Abrupt expansion leads to rapid drops in the energy line. Gradual expansions, using diffusers, minimize this loss. Let's memorize these differences—think of abrupt as ‘quick fall’ and gradual as ‘smooth transition’.
Does that mean we lose less energy in gradual expansions?
Precisely! That's why they're often preferred in design considerations.
Head Loss at Pipe Entrances
Unlock Audio Lesson
Now, let’s move to entrance losses. What’s the general method for calculating head loss at the entrance of a pipe?
I believe it uses the velocity head similar to other forms of head loss?
Exactly! The formula is h = (V² / (2g)) * K_entrance, where K_entrance varies based on the shape. Can anyone recall the default value if none is specified?
Is it 0.5?
Right on! Remember that K_entrance can influence your calculations significantly.
Minor Losses from Pipe Fittings
Unlock Audio Lesson
Moving on to minor losses from fittings. What do you imagine is included in minor losses?
Bends, elbows, and valves, right?
Exactly! Each fitting has a loss coefficient, K. What happens to the energy loss when you have multiple fittings?
We need to sum the losses from each fitting?
Correct! You'll use K from the table in your calculations for each fitting.
Practical Example Problem
Unlock Audio Lesson
Let’s apply what we learned with a practical problem involving a pipeline. What factors will we consider to find head loss?
We have to consider both major and minor losses, right?
Yes! And we’ll need to calculate them using the previous formulas we discussed. Also, how does the flow rate impact our calculations?
It affects the velocity, which is key in the head loss formulas.
Great! Always remember that flow rate influences your head loss calculations significantly.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section elaborates on the phenomena of head loss in pipe networks due to sudden enlargements and entrances, providing key equations and factors such as loss coefficients. It emphasizes the importance of understanding different types of losses to effectively calculate the energy drops in fluid flows.
Detailed

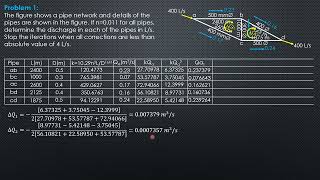

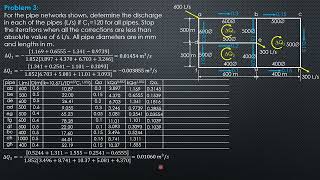

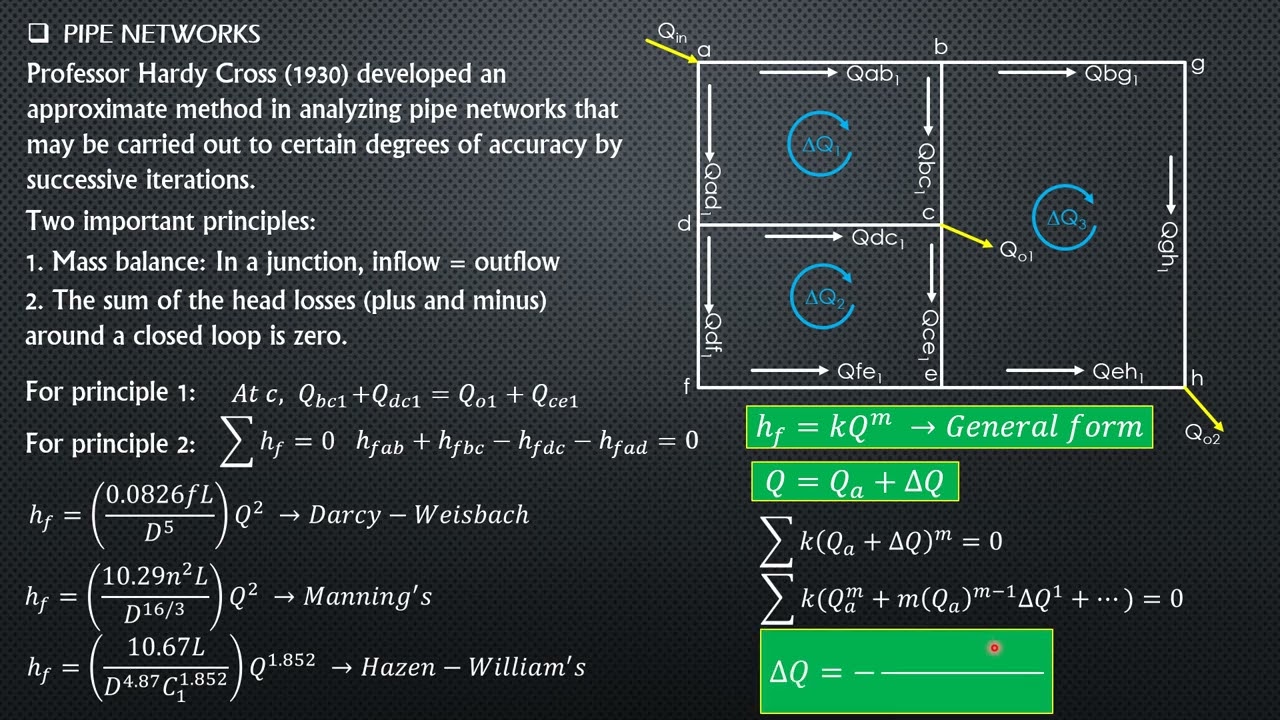

Pipe Networks (Contd.)
In hydraulic engineering, understanding head loss is crucial for designing efficient pipe networks. This section continues from previous discussions by introducing the concept of sudden enlargement of pipes. Sudden enlargement occurs when fluid flows from a narrower pipe into a wider one, leading to potential energy loss, identifiable by the head loss represented by equations that include the velocity of the fluid in the narrower section. A crucial formula is given for calculating head loss due to sudden enlargement:
h = K_L * (V_1^2) / (2g), where K_L is the loss coefficient, which can be calculated from the areas of the pipe sections involved. The section further distinguishes between abrupt and gradual expansions, the latter being associated with reduced head loss when using conical diffusers.
Additionally, losses at pipe entrances and exits are significant. The general head loss formula at the pipe entrance is discussed in terms of velocity head, introducing coefficients depending on the entrance shape. For pipe exits, it’s a straightforward energy loss as the fluid enters a larger reservoir.
Minor losses in pipe fittings, bends, and valves are summarized with coefficients to assist in calculations. Finally, an example problem is presented that integrates the concepts of major and minor head losses to determine pressure at the end of a pipeline. Overall, this section lays the foundation for calculating head losses, essential for effective hydraulic system design.
