Introduction to Canal Outlets
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Good morning class! Today we're diving into canal outlets, specifically focusing on their types — non-modular, semi-modular, and modular. Can someone tell me why canal outlets are essential in an irrigation system?
They help deliver water from the main canals to the fields!
Exactly! They're the final point of water delivery. Now, can anyone summarize the general objectives of these outlets?
To make sure water is distributed equitably and to minimize loss during conveyance.
Right again! Remember the acronym EDC – Equitable distribution, Discharge control, and minimal water Loss. Let's move on to the types of outlets.
Non-Modular Outlets
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let's discuss non-modular outlets first. What do you all think is a defining feature of these outlets?
Their discharge varies with both the upstream and downstream water levels, right?
Correct! They are also simple and cost-effective but can lead to inequitable distribution. Can anyone give me an example of a non-modular outlet?
A simple pipe outlet that is submerged at both ends!
Great example! Remember, while they're inexpensive, their dependency on water levels can sometimes create challenges in distribution.
Semi-Modular Outlets
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now let's move to semi-modular outlets. How do their characteristics differ from non-modular outlets?
They depend only on the distributary canal's water level and are less affected by the watercourse level!
Exactly! They offer better control over discharge. What are some common examples?
Gibb’s Module or an open flume that falls freely into the watercourse.
Spot on! They’re used for more equitable distribution, but can still incur costs. Keep this in mind when selecting outlet types.
Modular Outlets
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Lastly, let's discuss modular outlets. Who can describe how they're different from the other types?
Their discharge remains constant regardless of water levels upstream or downstream!
Correct! This makes them ideal for precision irrigation. Can anyone think of a disadvantage?
They can be complex and costly to construct and maintain.
Exactly! Efficiency can come at a cost. Remember, when choosing an outlet, consider the budget and the irrigation requirements.
Selecting the Right Outlet
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Let’s wrap up by discussing how we select the appropriate canal outlet. What factors should we consider?
The type of irrigation policies in place and the topography!
Yes! Plus, maintenance capabilities and economic constraints. Can anyone summarize why it’s essential to choose the right type?
Choosing the right outlet can help ensure equitable water distribution and maintain system efficiency!
Excellent summary! Remember, the performance of our irrigation systems hinges significantly on these choices.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore the classification of canal outlets which are crucial for water distribution in irrigation systems. It explains the objectives, features, and practical applications of non-modular, semi-modular, and modular outlets, detailing how each type functions under varying conditions and their respective advantages and disadvantages.
Detailed
Canal Outlets: Non-Modular, Semi-Modular, and Modular Outlets
Canal outlets serve as critical components in an irrigation setup, facilitating the distribution of water from distributary canals to agricultural fields. The efficiency and effectiveness of these outlets significantly impact water management practices within a farming context. This chapter discusses three primary types of canal outlets:
1. Non-Modular Outlets
Definition: In a non-modular outlet, the water discharge is influenced by both the water levels in the distributary canal and the watercourse, leading to fluctuating output.
Features: These outlets are simple, inexpensive, and highly sensitive to changes in water levels, but tend to be inefficient and do not allow for controlled discharge.
2. Semi-Modular Outlets
Definition: Semi-modular outlets maintain discharge based solely on the distributary canal, providing partial independence from the watercourse levels.
Features: These outlets allow for more predictable flows and equitable distributions than non-modular ones, although they still require maintenance to ensure optimal performance.
3. Modular Outlets
Definition: Modular outlets deliver a constant discharge that is independent of both the distributary canal and watercourse water levels.
Features: They provide true hydraulic independence and are often employed in precision irrigation where control and measurement are critical.
The choice of the appropriate outlet type considers various criteria, including the level of irrigation automation, economic factors, and the specific irrigation policy in place. Additional considerations include maintenance capabilities and the topographical challenges faced in specific areas.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Canal Outlets
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
In an irrigation system, water is conveyed from the source (dam or reservoir) to the agricultural fields through a network of canals. The final point of delivery from the distributary canal to the field channel or watercourse is known as the canal outlet. These outlets play a crucial role in ensuring the proper distribution of water to the farmers. The efficiency and flexibility of water delivery depend greatly on the design and operational type of canal outlet. Outlets are classified based on their hydraulic behavior into three types: non-modular, semi-modular, and modular. Each of these has specific features, functions, and applications depending on the level of control desired over water delivery under varying canal and field channel conditions.
Detailed Explanation
Canal outlets are vital components of irrigation systems, acting as the last link to deliver water effectively to agricultural fields. There are three types of canal outlets: non-modular, semi-modular, and modular, each serving different needs based on how water is managed and controlled. The choice of outlet impacts how well water is distributed and can adapt to different conditions.
Examples & Analogies
Think of a canal outlet as a faucet on a sink. Just as the faucet controls the flow of water and can be adjusted based on the amount needed, different types of canal outlets control the flow of irrigation water to fields, impacting how effectively farmers can irrigate their crops.
Objectives of Canal Outlets
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
• To ensure equitable and controlled distribution of water to individual farmers or groups.
• To minimize water losses during conveyance.
• To deliver water under required discharge and head conditions.
• To allow for flexible operation during variable upstream or downstream conditions.
• To serve as a measuring and regulating device where necessary.
Detailed Explanation
The objectives of canal outlets highlight their importance in irrigation systems. They aim to provide fair access to water for farmers, reduce water wastage, and enable the delivery of water under specific conditions. Furthermore, they allow adjustments to be made depending on the circumstances, and some outlets even include features for measuring the water flow, which helps in managing resources effectively.
Examples & Analogies
Consider a classroom where each student needs a different amount of water for their plants. The teacher uses a water dispenser with measuring cups to ensure everyone gets the right amount while preventing spills. Similarly, canal outlets regulate water to ensure that every farmer has access to the amount they need without wasting resources.

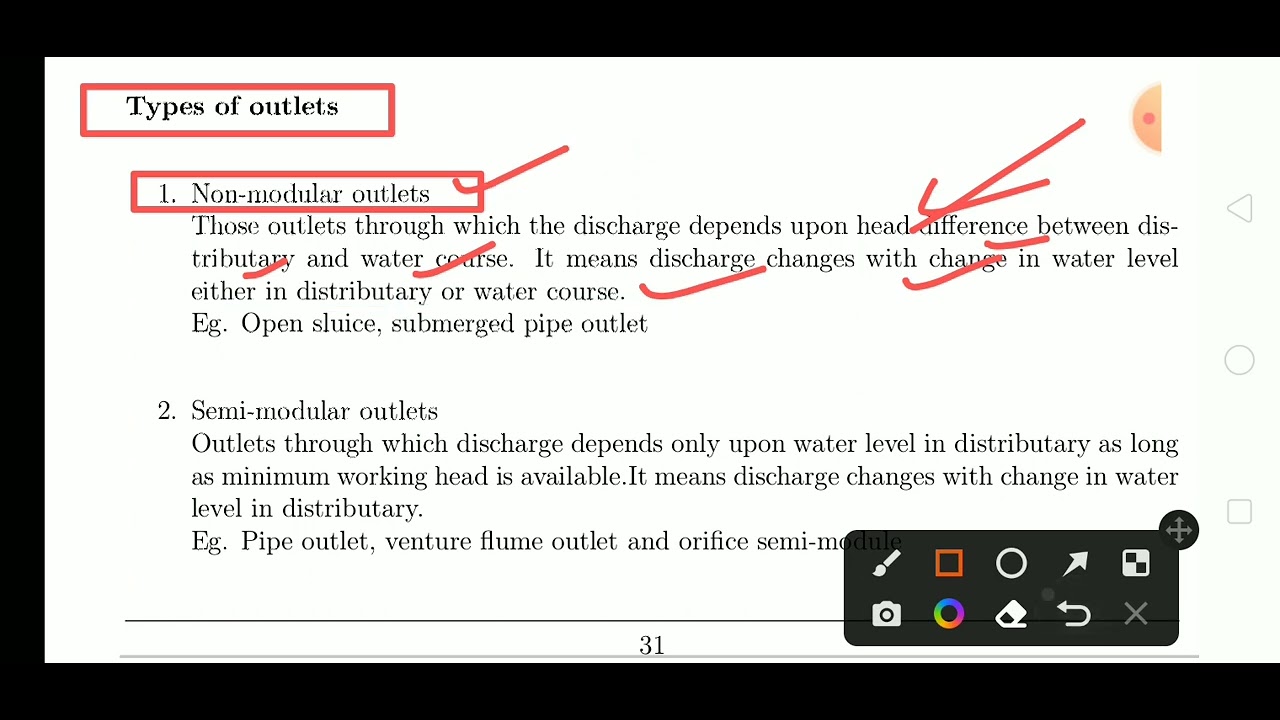

Classification of Canal Outlets
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Canal outlets are broadly classified based on the degree of dependence of outlet discharge on the water levels in the parent canal and the watercourse (field channel). The classification is as follows:
1. Non-Modular Outlet
2. Semi-Modular Outlet
3. Modular Outlet
Detailed Explanation
The classification of canal outlets allows for a better understanding of how they function under varying conditions. Non-modular outlets rely on both the upstream and downstream water levels for discharge, while semi-modular outlets primarily depend on the upstream level. Modular outlets provide constant discharge, independent of both levels, making them preferable for precision irrigation.
Examples & Analogies
Imagine a balanced scale where one side is affected by weights from both sides (non-modular), while the other can weigh independently of one side’s weight (modular). This analogy illustrates how these outlets function with respect to water levels, similar to how a balancing act works.
Non-Modular Outlets
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A non-modular outlet is one in which the discharge depends on both the water level in the distributary canal and the water level in the water-course.
Features
• Discharge varies with both upstream and downstream heads.
• Highly sensitive to changes in water levels at both ends.
• Simple and inexpensive design.
• No independence of control; affected by tailwater submergence.
• Requires supervision and regulation for uniform delivery.
Common Examples
• Simple pipe outlet submerged at both ends.
• Openings without control devices.
Advantages
• Cost-effective for small-scale irrigation.
• Easy to construct and install.
Disadvantages
• Inequitable distribution if downstream level rises.
• Inaccuracy in discharge due to dependency on both heads.
• Not suitable for modern irrigation systems requiring precision.
Detailed Explanation
Non-modular outlets are straightforward systems where the water flow is influenced by levels on both sides. While they are easy and inexpensive to build, they tend to distribute water inconsistently and can be impacted by changes in downstream conditions. Thus, they require careful management to maintain proper delivery to farmers.
Examples & Analogies
Think of a non-modular outlet as a garden hose that you can only control by changing the pressure at the source and by the height of the nozzle. If someone else squeezes the hose down the line, you may not get the water flow you need, similar to how non-modular outlets can be affected by varying water levels.
Semi-Modular Outlets
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A semi-modular outlet is one in which the discharge depends only on the water level in the distributary canal, and is independent of the watercourse water level.
Features
• Flexible control over discharge.
• Functions properly regardless of tailwater conditions.
• Partial hydraulic independence.
• Often used with discharge measuring devices (e.g., flumes or weirs).
• Suitable for equitable water distribution and volumetric control.
Examples
• Gibb’s Module
• Khanna’s Module
• Open flume with a free fall into the watercourse.
Design Criteria
• Discharge should not be affected by moderate backflow from the water-course.
• The outlet crest is kept sufficiently high to ensure free flow.
• Provision of drop or fall to achieve energy dissipation and prevent tailwater impact.
Advantages
• More accurate than non-modular outlets.
• Allows controlled and predictable flow.
• Fairly equitable.
Disadvantages
• Discharge still varies with canal level changes.
• Requires precise setting during installation.
• Slightly higher cost than non-modular types.
Detailed Explanation
Semi-modular outlets provide a better solution than non-modular ones by allowing water flow to be influenced primarily by the upstream conditions with reduced impact from the downstream. This makes them more reliable for managing water distribution effectively while still requiring some precision during installation.
Examples & Analogies
Imagine a water fountain that uses a valve to control how much water flows out, regardless of how full the basin below is. This highlights the semi-modular outlet’s ability to manage water flow based on upstream conditions, similar to how the fountain operates.
Modular Outlets
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A modular outlet is one in which the discharge is constant and independent of both distributary canal water level and watercourse water level, within certain permissible limits.
Features
• True hydraulic independence.
• Discharge remains constant over a range of upstream and downstream conditions.
• Ideal for volumetric water delivery systems.
• Typically complex and more expensive.
• May include self-regulating components.
Examples
• Warabandi outlets with self-regulation mechanisms.
• Pipe outlet with a floating gate or orifice with constant head chamber.
Design Principles
• Incorporate a regulating mechanism that compensates for level variations.
• Use of differential head to maintain constant discharge.
• Often combined with discharge metering devices.
Advantages
• Ensures equitable distribution of water.
• Ideal for precision irrigation and automated control systems.
• Good for data-based and digital irrigation schemes.
Disadvantages
• Complex and costly to construct and maintain.
• Sensitive to wear and mechanical issues.
• Requires skilled operation and maintenance.
Detailed Explanation
Modular outlets provide the best control over water distribution, maintaining a consistent flow regardless of changing upstream or downstream conditions. While they offer significant advantages in precision irrigation systems, they are also more complex and costly to construct and maintain, requiring skilled operators.
Examples & Analogies
Think of modular outlets like a smart thermostat in your home, which maintains a stable temperature regardless of changes in the outside weather. This analogy illustrates how modular outlets keep water flow constant no matter how conditions change upstream or downstream.
Comparison of Canal Outlet Types
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
| Feature | Non-Modular | Semi-Modular | Modular |
|---|---|---|---|
| Dependence on Canal Level | Yes | Yes | No |
| Dependence on Watercourse Level | Yes | No | No |
| Hydraulic Efficiency | Low | Moderate | High |
| Cost | Low | Moderate | High |
| Discharge Control | Poor | Fair | Excellent |
| Maintenance Needs | Low | Moderate | High |
| Accuracy | Low | Moderate | High |
Detailed Explanation
This comparison table outlines the key differences between the three types of canal outlets. Non-modular outlets depend on water levels on both ends, leading to lower efficiency and control. Semi-modular outlets offer moderate efficiency with some level of independence from downstream conditions. In contrast, modular outlets provide the highest efficiency and accuracy, being independent of water level changes in both the canal and watercourse.
Examples & Analogies
Think of these types as modes of public transportation. Non-modular outlets are like old buses that stop often and depend on passenger flow, semi-modular outlets are like trains that run on a schedule but are still affected by external factors, and modular outlets are like autonomous vehicles that operate on fixed routes without outside influences.
Criteria for Outlet Selection
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The choice of canal outlet depends on several factors:
• Irrigation policy (e.g., rotational or demand-based).
• Topography and head availability.
• Level of canal regulation and automation.
• Farmer participation and field layout.
• Economic constraints and maintenance ability.
In general:
• Non-modular outlets are used in older, traditional systems or low-budget areas.
• Semi-modular outlets are widely used for balanced control and affordability.
• Modular outlets are preferred for precision and volumetric irrigation schemes.
Detailed Explanation
Selecting the right canal outlet involves assessing a variety of factors that influence irrigation effectiveness, such as the policies in place for managing water resources, the physical terrain, and the willingness and ability of farmers to maintain these systems. Different outlets suit different contexts, reflecting a balance between cost, control, and operational complexity.
Examples & Analogies
Choosing a car based on your needs can be likened to selecting an outlet. If you do a lot of off-roading (irrigation in rough terrain), you might choose an SUV (semi-modular or modular), while if you're just commuting (traditional systems), a simple car (non-modular) suffices.
IS Code Recommendations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The Indian Standard IS: 7980 provides design recommendations for canal outlets including:
• Crest level setting.
• Discharge coefficient estimation.
• Permissible submergence limits.
• Material specifications for construction.
• Hydraulic performance parameters.
Detailed Explanation
The IS Code provides essential guidelines to ensure that canal outlets function effectively and meet the necessary standards. These recommendations cover various aspects, from where to set the outlet crest to the materials used in constructing these outlets, ensuring that they perform hydraulically according to expected standards.
Examples & Analogies
Think of the IS Code as a recipe in a cookbook. Just as a recipe guides you on ingredients and steps to create a successful dish, the IS Code outlines what is necessary for building effective canal outlets that achieve their intended purpose.
Maintenance and Calibration
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Regular inspection and calibration of canal outlets are critical for ensuring:
• Consistent and equitable water delivery.
• Detection of siltation or blockage.
• Functional regulation mechanisms.
• Fair distribution between farmers.
Modern canal systems increasingly incorporate sensors and automation for monitoring outlet performance in real-time.
Detailed Explanation
Ongoing maintenance and calibration are essential for keeping canal outlets working efficiently. It helps in spotting issues like blockages and ensures that the technology used for monitoring and regulating water flow remains functional, which is increasingly supported by modern technology such as sensors that allow for real-time performance tracking.
Examples & Analogies
Maintaining canal outlets is similar to regular check-ups for a car. Just like regular maintenance keeps the car running smoothly and can catch minor issues before they become serious, maintaining outlets ensures efficient water delivery without interruptions.
Innovations in Canal Outlets
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
With the advent of smart irrigation systems, canal outlets are now being integrated with:
• Flow sensors.
• Automated gates.
• Remote control systems.
• IoT-based monitoring.
• Data logging for irrigation audits.
Detailed Explanation
Recent developments in technology are being applied to canal outlets, enabling improved accuracy and efficiency in water distribution. Innovations such as IoT-based monitoring and automated controls allow for better management of water resources, essential for regions facing water scarcity.
Examples & Analogies
Consider how smartphones have transformed communication. Just as smartphones allow for more immediate and efficient interactions through apps, the integration of technology into canal outlets makes managing irrigation more efficient and responsive to immediate conditions.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Equitable Distribution: Ensuring all farmers receive fair water supply.
-
Hydraulic Independence: The ability of an outlet to operate without influence from upstream or downstream water levels.
-
Discharge Control: The capability of an outlet to manage the flow rate effectively.
-
Cost-Benefit Analysis: Evaluating the financial implications of different canal outlet types.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A non-modular outlet can be a simple pipe that releases water directly into a field without any control systems.
-
A semi-modular outlet like a Gibb's module allows farmers to manage the water flow more effectively against varying canal water levels.
-
A modular outlet, such as a pipe with a floating gate, provides precision irrigation with automated control to maintain consistent discharge.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In fields where water flows, choose your outlet, it surely shows.
📖 Fascinating Stories
-
Imagine a farmer at dawn, watching his fields as they yawn. The canal outlet brings water near, for a harvest that's plenty, without fear.
🧠 Other Memory Gems
-
Remember the acronym 'SIMPLE' to recall the factors: Size, Independence, Maintenance, Precision, Level of control, and Economics.
🎯 Super Acronyms
MODULAR - Maintainable, Optimized, Dependency-free, Uniform, Load-balanced, Affordable, Reliable.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: NonModular Outlet
Definition:
An outlet where discharge depends on the water levels at both the distributary canal and the watercourse, characterized by fluctuating output.
-
Term: SemiModular Outlet
Definition:
An outlet whose discharge relies only on the water level in the distributary canal, allowing for partial independence from the watercourse.
-
Term: Modular Outlet
Definition:
An outlet that offers a constant and independent discharge regardless of the water levels in the distributary canal or the watercourse.
-
Term: Crest Level
Definition:
The highest point of an outlet that determines the flow and function of the discharge.
-
Term: Hydraulic Performance
Definition:
The measure of the effectiveness and efficiency of the outlet in delivering the required water flow.
