Today, we're going to discuss how we measure soil moisture and why it's crucial for effective plant growth and irrigation management. Can anyone tell me why soil moisture measurement is important?
I think it helps farmers know when to water their crops.
Exactly! Measuring soil moisture helps in determining the right time for irrigation, helping conserve water. Now, let's look at the first method: the gravimetric method. Who can describe what it involves?
It involves drying soil samples in an oven, right? To find out how much water is in them.
Great point! And what are the limitations of this method?
It might not be practical for on-site measurements since it’s destructive.
Correct! Let's recap: the gravimetric method is accurate but requires sample collection. Now, we will discuss tensiometers.
Understanding Tensiometers
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Tensiometers are next on our list. They measure matric suction. Why is this significant for measuring soil moisture?
Because it tells how much effort plants need to exert to take up water.
Exactly! Tensiometers are suited for coarse to medium soils. What might be a limitation of using them?
They can't measure very well in very dry soils?
That's right! They work best at specific moisture levels. Let’s summarize: tensiometers measure the force of water in soil but have limitations at very dry conditions.
Electrical Resistance Blocks
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, we have electrical resistance blocks. Who can explain how they work?
They measure how much electricity flows through them, which changes with moisture content.
Exactly! The resistance changes as moisture content varies. What can be a potential challenge with these blocks?
They might need calibration to work accurately, right?
Correct! It's essential to calibrate for varying soil types. Excellent discussion, everyone!
Neutron Probe Technology
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let’s dive into neutron probes. Why do you think this method is considered highly accurate?
Because it measures the hydrogen content, and that's directly related to the amount of water!
Exactly! It’s used in research and detailed irrigation studies. However, what do you think is a downside?
Probably that it requires special equipment and might be expensive?
Right again! Let’s recap: neutron probes offer accuracy at a cost. Now, let’s move to Time Domain Reflectometry.
Time Domain Reflectometry (TDR)
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let’s discuss Time Domain Reflectometry, or TDR. How does it work?
It uses wave reflections to measure the dielectric constant of the soil.
Exactly! This method provides rapid and accurate readings. What advantages do we gain from using TDR?
It’s non-invasive, so it doesn’t require digging up soil samples.
Correct! Non-invasive methods are particularly beneficial for continuous monitoring. Great job today, everyone! Let’s summarize what we covered.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
Different techniques for measuring soil moisture are discussed, including gravimetric methods, tensiometers, electrical resistance blocks, neutron probes, and Time Domain Reflectometry (TDR). Each method's principles, advantages, and limitations are also highlighted, providing a comprehensive overview for practical applications in irrigation and soil management.
Detailed
Measurement of Soil Moisture
Soil moisture measurement is pivotal in understanding water availability for agricultural practices and managing watershed resources. This section covers five primary techniques:
- Gravimetric Method: This traditional method requires oven-drying soil samples to determine moisture content by weight. It is highly accurate but destructive as it requires sample collection.
- Tensiometers: These devices measure matric suction and are effective for monitoring soil moisture in coarse to medium-textured soils up to 0.85 atmospheres. They help in understanding the moisture status and irrigation timing.
- Electrical Resistance Blocks: These blocks, made from gypsum or fiberglass, are inserted into the soil. The electrical resistance changes in response to moisture levels, allowing for real-time monitoring but may require calibration.
- Neutron Probe: This sophisticated method measures hydrogen content in the soil, which correlates to water content. It is known for accuracy and is primarily used in research and advanced irrigation systems.
- Time Domain Reflectometry (TDR): TDR measures the dielectric constant of the soil using wave reflections, enabling rapid and accurate soil moisture readings in various conditions. This technique is increasingly favored due to its non-invasive nature.
These methods collectively enable effective irrigation planning, crop management, and water conservation strategies.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Gravimetric Method
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
41.7.1 Gravimetric Method
- Oven-drying a soil sample at 105°C.
- Moisture content by weight:
\[
\theta = \frac{W_w}{W_d} \times 100
\]
Detailed Explanation
The Gravimetric Method is a traditional approach to measure soil moisture by determining the weight of the water contained in a specific volume of soil. To perform this method, a sample of soil is collected and dried in an oven at a temperature of 105°C (221°F) until all moisture is removed. After drying, the weights are recorded: the weight of the wet soil (W_w) and the weight of the dry soil (W_d). The moisture content is then calculated using the formula: θ = (W_w / W_d) × 100, which provides the moisture content as a percentage of the dry weight of the soil. This method is accurate because it precisely measures the water by weight.
Examples & Analogies
Imagine baking a sponge cake. At first, the cake batter (wet soil) weighs a lot because it contains water and other ingredients. Once you bake it (just like drying the soil), it loses water, and the weight decreases. The change in weight gives you a sense of how much water was in the batter just like the Gravimetric Method tells us how much water was in the soil.
Tensiometers
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
41.7.2 Tensiometers
- Measure matric suction up to 0.85 atm.
- Suitable for coarse to medium soils.
Detailed Explanation
Tensiometers are devices used to measure the matric suction of soil, which indicates how tightly water is held in the soil. They work by using a sealed tube filled with water, with a porous ceramic tip that is placed in the soil. As the soil dries and the matric suction increases, water is drawn out of the tensiometer, creating a vacuum that can be measured. Tensiometers can measure suction levels up to 0.85 atmospheres and are most effective in coarse to medium-textured soils. The readings from a tensiometer help farmers or researchers understand when irrigation is necessary.
Examples & Analogies
Think of a sponge. When it is fully soaked with water and you squeeze it (measuring the suction), it takes a lot of force to get the water out. As it dries, it becomes harder to squeeze out any more water. A tensiometer is like a tool that measures how much force is needed to pull water out of the soil, just like experiencing different levels of resistance when trying to squeeze the sponge at various moisture levels.
Electrical Resistance Blocks
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
41.7.3 Electrical Resistance Blocks
- Gypsum or fiberglass blocks inserted in soil.
- Resistance varies with moisture content.
Detailed Explanation
Electrical resistance blocks consist of gypsum or fiberglass materials embedded in soil. These blocks measure soil moisture based on how much electrical resistance changes as the moisture content changes. When the soil is wet, it conducts electricity better, resulting in lower resistance. As the soil dries out, the resistance increases. This relationship allows for continuous monitoring of soil moisture levels. Electrical resistance blocks are widely used for irrigation management as they provide important data about soil moisture conditions.
Examples & Analogies
Consider how a light bulb works depending on the amount of electricity flowing through it. In moist soil, the electrical current flows easily (like a bright light), while in dry soil, the current struggles to flow (like a dim light). By using electrical resistance blocks, farmers can determine how 'bright' or 'dim' the soil's condition is regarding moisture, which helps them decide when to irrigate.
Neutron Probe
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
41.7.4 Neutron Probe
- Measures hydrogen content (indicative of water).
- Highly accurate; used in research and irrigation management.
Detailed Explanation
The Neutron Probe is a sophisticated tool that measures the hydrogen content in the soil to determine its moisture level. It works by emitting fast neutrons into the soil, which collide with hydrogen atoms found in water molecules. The resulting interactions slow down the neutrons, and the probe detects these slow neutrons to estimate the moisture content. The Neutron Probe is highly accurate and is commonly used in agricultural research and effective irrigation management.
Examples & Analogies
Think of playing a game of billiards, where when you hit the ball (neutrons), it collides with other balls (hydrogens/water) and slows down. The more balls present, the slower the original ball moves, giving you an idea of how many are there. Similarly, the Neutron Probe gauges water content in soil by seeing how much the neutrons slow down when they meet the hydrogen atoms in the water.
Time Domain Reflectometry (TDR)
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content

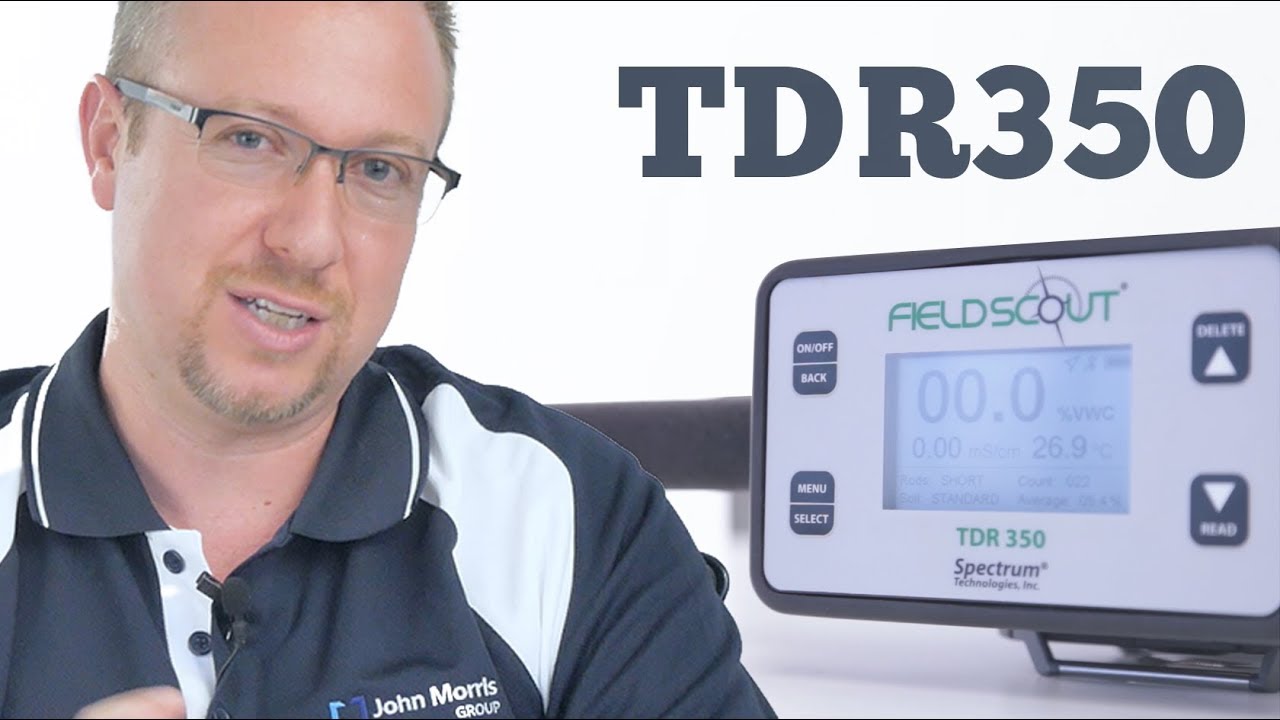

41.7.5 Time Domain Reflectometry (TDR)
- Measures dielectric constant of soil using wave reflections.
- Rapid and accurate for real-time monitoring.
Detailed Explanation
Time Domain Reflectometry (TDR) is a method of measuring soil moisture by sending electromagnetic waves through the soil. As these waves pass through the soil, they reflect back differently depending on the soil's moisture content. Specifically, the dielectric constant of the soil changes with moisture levels, which affects how the waves are reflected. TDR is known for providing rapid and highly accurate measurements, making it an excellent tool for real-time monitoring of soil moisture conditions.
Examples & Analogies
Imagine sending a text message on your phone. The time it takes for your message to get sent and received can change based on how congested the network is (analogous to moisture levels). Just like a faster response indicates a clearer connection, TDR uses wave reflections to quickly and accurately gauge the soil's moisture levels, helping farmers keep tabs on their fields in real-time.
Key Concepts
-
Gravimetric Method: A technique for measuring moisture content by drying a soil sample.
-
Tensiometer: Measures water tension in the soil to indicate moisture levels.
-
Electrical Resistance Blocks: Use resistive changes to measure soil moisture content.
-
Neutron Probe: A highly accurate tool for measuring hydrogen content in soil.
-
Time Domain Reflectometry (TDR): A rapid method to assess soil moisture via dielectric constant.
Examples & Applications
Example of using a gravimetric method involves taking a soil sample from the field, drying it in an oven, and weighing it to determine moisture content.
An irrigation manager may use a tensiometer to check the soil moisture before watering crops, ensuring efficient use of water resources.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Gravimetric's a weighty affair, / For water in soil, it's quite rare. / Tensiometer pulls, holds tight, / To gauge the water, just right.
Stories
Once in a field, Farmer Joe faced a drought. He used the gravimetric method to find out how much water his crops needed. Then, with the tensiometer's help, he knew when to irrigate. By the end of the season, his harvest was bountiful thanks to the right moisture measurements!
Memory Tools
To remember the methods: GTE-N-T, where G = Gravimetric, T = Tensiometer, E = Electrical Resistance, N = Neutron Probe, T = Time Domain Reflectometry.
Acronyms
For the 5 methods, think of 'GREATN'
for Gravimetric
for Resistance blocks
for Electrical
for Accuracy (referring to Neutron Probe)
for Tensiometer
for Number (indicating TDR).
Flash Cards
Glossary
- Gravimetric Method
A technique that measures soil moisture by drying a soil sample and calculating moisture content based on weight loss.
- Tensiometer
An instrument that measures soil water potential by assessing the tension of water in the soil.
- Electrical Resistance Block
A soil moisture sensor that uses changes in electrical resistance to determine moisture content.
- Neutron Probe
A device that measures hydrogen concentration in the soil, indicating water content, using neutron scattering techniques.
- Time Domain Reflectometry (TDR)
A method that measures the dielectric constant of soil to determine its moisture content.
