1. Coordinate System in 3D Space

Welcome, class! Today, we are going to discuss the Cartesian coordinate system in three-dimensional space. Could anyone explain what coordinates we use in 3D?

Is it (x, y, z)?

Exactly! Each point in 3D space is represented by three coordinates: x, y, and z. The point where all three axes meet is called the origin. Can anyone tell me what the coordinates of the origin are?

I think it’s (0, 0, 0).

Correct! Now, remember this as O for Origin to help you recall this point. It serves as the reference for all other points in 3D.

How do we plot points in this space?

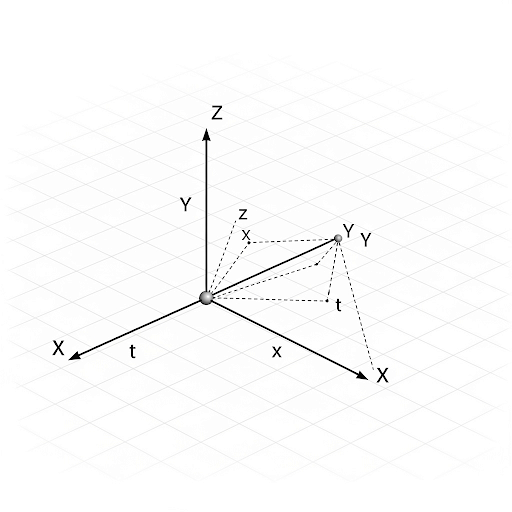

Great question! To plot a point like (x, y, z), you move x units along the x-axis, y units parallel to the y-axis, and then z units parallel to the z-axis. Can we visualize it together with a graph?

Alright, let's summarize today’s discussion: In 3D, we use three coordinates: (x, y, z) where the origin is at (0, 0, 0). We plot points by sequentially moving along the axes!

Now, let’s move on to calculating the distance between two points in 3D. Who can recall the distance formula?

Isn’t it based on the Pythagorean theorem?

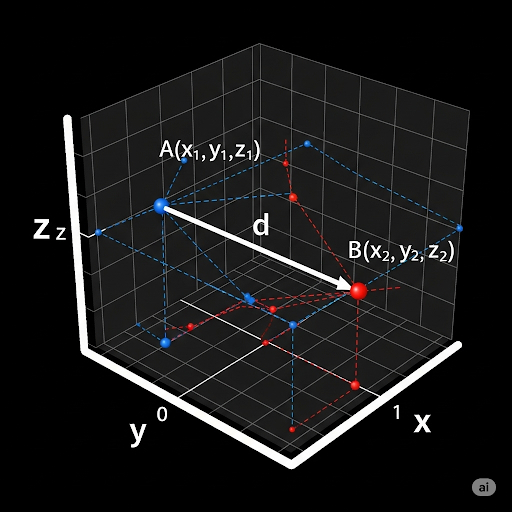

That's right! The distance (𝑑) between two points A(𝑥1, 𝑦1, 𝑧1) and B(𝑥2, 𝑦2, 𝑧2) is given by 𝑑 = √((𝑥2−𝑥1)² + (𝑦2−𝑦1)² + (𝑧2−𝑧1)²).

Could you show us an example using that formula?

Sure! Let’s take points A(2, 3, 4) and B(5, 7, 1). Plugging these values into the formula, we get d = √((5-2)² + (7-3)² + (1-4)²). What does it simplify to?

It simplifies to √34!

Exactly! And you can remember the formula as 'Distance = the Square Root of the difference squared'. Let's quickly recap: The distance formula is foundational for finding the length between any two points in 3D space.

Who remembers how we can find the midpoint of a line segment in 2D?

You add the coordinates of the endpoints and divide by two.

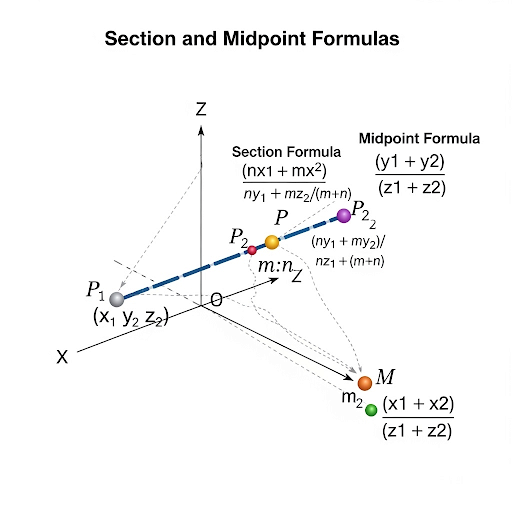

Right! We do the same in 3D but with three coordinates. The midpoint M of points A(𝑥1, 𝑦1, 𝑧1) and B(𝑥2, 𝑦2, 𝑧2) is calculated as M = ((𝑥1 + 𝑥2)/2, (𝑦1 + 𝑦2)/2, (𝑧1 + 𝑧2)/2). How would that look using points (2, 3, 4) and (6, 8, 10)?

That would be M = (4, 5.5, 7)!

Fantastic! Now, let’s discuss the section formula. If a point P divides the line segment AB in the ratio 𝑚:𝑛, the formula is P = (mx2 + nx1)/(m+n), (my2 + ny1)/(m+n), (mz2 + nz1)/(m+n).

So it’s similar to the midpoint formula but accounts for ratios?

Precisely! Summarizing what we've learned, to find midpoints we average coordinates, and to find a dividing point we apply the section formula based on ratios.

Moving on, let’s talk about how we represent lines in 3D geometry. What do you think are the forms we can use?

I remember parametric form and maybe symmetric form?

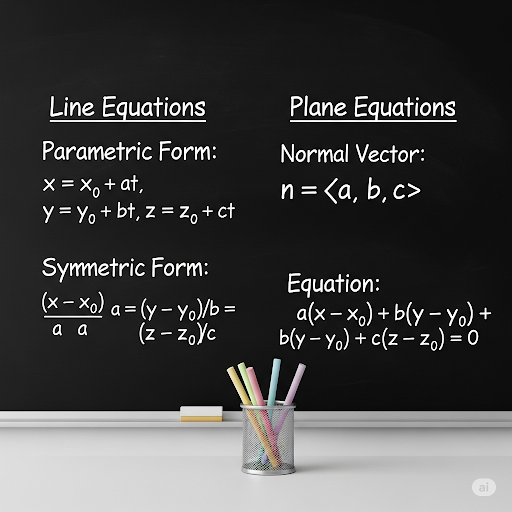

Correct! The parametric form describes a line passing through a point and being parallel to a vector. For example, if it passes through P₀(𝑥₀, 𝑦₀, 𝑧₀), the equations become 𝑥 = 𝑥₀ + 𝑎𝑡, 𝑦 = 𝑦₀ + 𝑏𝑡, 𝑧 = 𝑧₀ + 𝑐𝑡. Does that make sense?

Yes! And I think symmetric form comes from that when a, b, c are not zero?

Exactly! Symmetric form is (𝑥−𝑥₀)/a = (𝑦−𝑦₀)/b = (𝑧−𝑧₀)/c. Now, what about planes? Who can tell me the general representation of a plane?

It’s A𝑥 + B𝑦 + C𝑧 + D = 0, right?

Correct! Let's recap: We discussed how to represent lines using parametric and symmetric forms, and how planes are defined using the equation of plane form.

To finish our session today, I’d like to highlight the applications of our subject. Where do you think 3D geometry is useful?

In architecture and engineering!

And in computer graphics for modeling objects!

Very good! 3D geometry is pivotal in these fields among many others. We learned today how foundational concepts like points, lines, and planes in 3D geometry provide the basis for various applications. Can anyone summarize our key takeaways?

The key points include the Cartesian coordinate system, distance formulas, line and plane equations, and real-world applications!

Excellent! Remember, math is not just theoretical; it applies fundamentally to our understanding of the world around us.
