5.5 - Experimental Verification of Archimedes’ Principle

Interactive Audio Lesson

Listen to a student-teacher conversation explaining the topic in a relatable way.

Understanding Archimedes' Principle

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Today we'll learn about Archimedes' Principle and how we can verify it through simple experiments. Can anyone tell me what Archimedes' Principle states?

Student 1
Student 1

It says that an object submerged in a fluid experiences an upward force equal to the weight of the fluid it displaces, right?

Teacher
Teacher

Exactly! This upward force is what we call the buoyant force. Does anyone know why this principle is significant in physics?

Student 2
Student 2

It helps us understand why things float or sink in water!

Teacher
Teacher

Correct! Let’s move on to verifying this principle experimentally.

Experimental Setup for Verification

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

To verify Archimedes' Principle, we'll need specific equipment. Who can list some of the materials we require?

Student 3
Student 3

An overflow can and a measuring cylinder?

Student 4
Student 4

And a spring balance to measure weight!

Teacher
Teacher

Great job! We also need a solid object, like a stone. Let's think about how we will use these materials in our procedure.

Steps of the Experiment

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

Now, let’s go through the steps. First, we will measure the weight of our solid object in air. Why is this step important?

Student 1
Student 1

To have a reference weight before it's submerged, right?

Teacher
Teacher

Exactly! Next, when we immerse the object in water, we need to record the loss in weight. Why do you think this is important?

Student 2
Student 2

To find out how much buoyancy it experiences!

Teacher
Teacher

Well done! And what about the displaced water?

Student 4
Student 4

We need to weigh that too to compare it with the loss in weight.

Teacher
Teacher

Exactly! Then we’ll conclude that the loss in weight must equal the weight of the water displaced.

Conclusions and Implications

Unlock Audio Lesson

Signup and Enroll to the course for listening the Audio Lesson

Teacher
Teacher

After our experiment, what can we conclude about Archimedes’ principles based on what we've learned?

Student 3
Student 3

The buoyant force on the object is equal to the weight of displaced water!

Student 1
Student 1

And this is really important for things like ships and submarines!

Teacher
Teacher

Absolutely! Understanding buoyancy is vital for various scientific and engineering applications.

Introduction & Overview

Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.

Quick Overview

This section outlines the procedure and apparatus required to experimentally verify Archimedes' Principle, demonstrating that the buoyant force on a submerged object equals the weight of the displaced fluid.

Standard

In this section, the experimental setup for verifying Archimedes' Principle is discussed, including necessary apparatus such as an overflow can and a measuring cylinder. The procedure involves weighing an object in air and then weighing it again when it is fully submerged in water, demonstrating that the loss of weight equals the weight of the displaced water.

Detailed

Youtube Videos

What is the Archimedes’ Principle? | Gravitation | Physics | Infinity Learn
What is the Archimedes’ Principle? | Gravitation | Physics | Infinity Learn
Archimedes’ Principle: Made EASY | Physics
Archimedes’ Principle: Made EASY | Physics
Upthrust In Fluids & Archimedes Principle And Floatation | ICSE Class 9 | @sirtarunrupani
Upthrust In Fluids & Archimedes Principle And Floatation | ICSE Class 9 | @sirtarunrupani
Fluids, Buoyancy, and Archimedes' Principle
Fluids, Buoyancy, and Archimedes' Principle

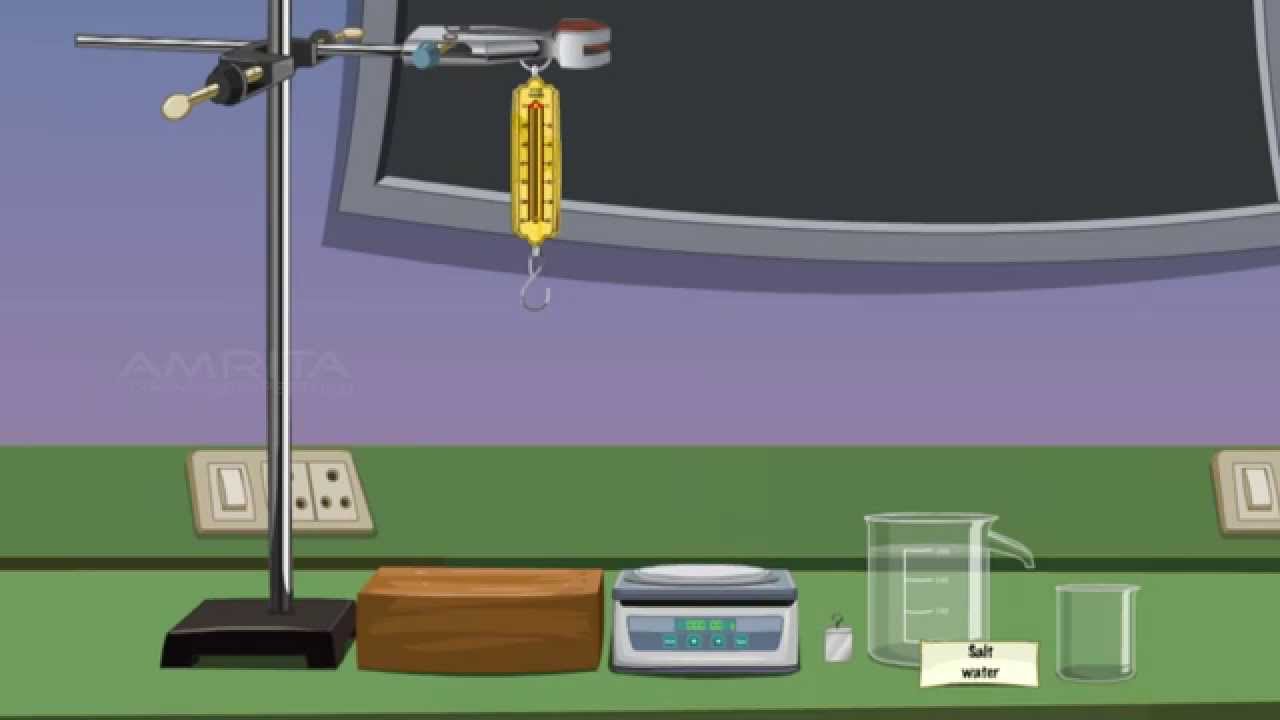

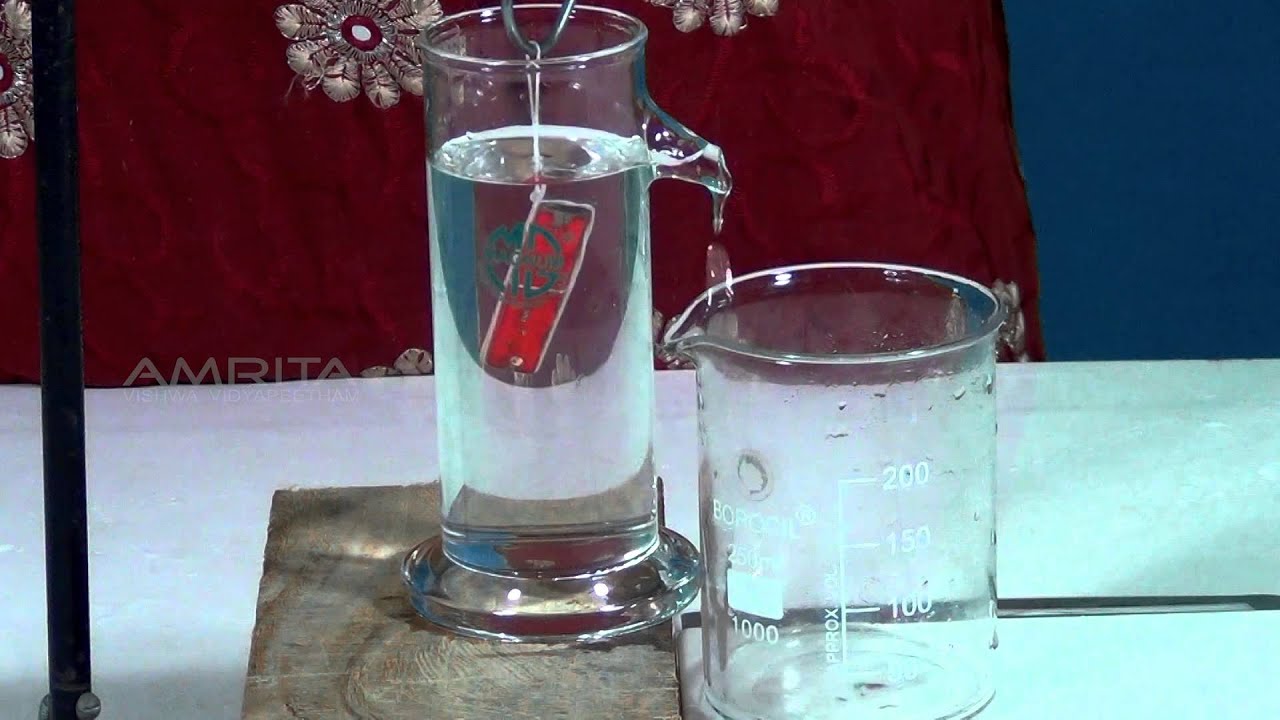

Verification of Archimedes' Principle - MeitY OLabs
Verification of Archimedes' Principle - MeitY OLabs
Verification of Archimedes' Principle - MeitY OLabs
Verification of Archimedes' Principle - MeitY OLabs
UPTHRUST IN FLUID, ARCHIMEDE'S PRINCIPLE AND FLOTATION in One Shot | Class 9 Physics | ICSE Board
UPTHRUST IN FLUID, ARCHIMEDE'S PRINCIPLE AND FLOTATION in One Shot | Class 9 Physics | ICSE Board
Buoyancy and Archimedes' Principle | Class 9 Gravitation | Science | BYJU'S
Buoyancy and Archimedes' Principle | Class 9 Gravitation | Science | BYJU'S
Upthrust in Fluids, Archimedes' Principle and Floatation Class 9 ICSE Science | Selina Chapter 5
Upthrust in Fluids, Archimedes' Principle and Floatation Class 9 ICSE Science | Selina Chapter 5

Audio Book

Dive deep into the subject with an immersive audiobook experience.

Apparatus Needed for the Experiment

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

● Overflow can
● Measuring cylinder
● Solid object (stone)
● Spring balance

Detailed Explanation

To verify Archimedes' Principle experimentally, we need specific equipment. An overflow can helps to collect displaced water when an object is immersed. A measuring cylinder allows us to measure the volume of the displaced water accurately. A solid object, like a stone, acts as the test subject to observe buoyancy, while a spring balance measures the weight of the object both in air and when submerged in water.

Examples & Analogies

Imagine going to a science lab where you want to test how a stone behaves in water. You gather a bucket (overflow can), a tall graduated container (measuring cylinder), the stone itself, and a scale (spring balance)—just like gathering the tools before starting a recipe in cooking!

Procedure for the Experiment

Unlock Audio Book

Signup and Enroll to the course for listening the Audio Book

  1. Note the weight of the solid in air using a spring balance.
  2. Immerse it fully in water – record the loss in weight.
  3. Collect the displaced water and weigh it.
  4. Show:
    Loss in weight of body=Weight of displaced water

Detailed Explanation

The experiment involves a series of steps. First, we weigh the stone in the air using the spring balance. Once we have that weight recorded, we immerse the stone in water. When the stone is submerged, we notice it seems lighter; this is the loss in weight, which we also record. Next, we need to find out how much water was displaced when the stone was placed in the can. The collected water's weight gives us the weight of the displaced water. According to Archimedes' Principle, the loss in weight of the stone in water should equal the weight of the displaced water, proving the principle.

Examples & Analogies

Think of this experiment like cooking with a pot of water. When you drop a potato into the pot, the water rises, and you can measure how much it has risen—that's the 'displaced' water! In our experiment, the weight loss of the stone represents the same effect, where the water level change shows how much water the stone pushed up.

Definitions & Key Concepts

Learn essential terms and foundational ideas that form the basis of the topic.

Key Concepts

  • Buoyant Force: It is the upward force that opposes the weight of an object immersed in a fluid.

  • Archimedes’ Principle: The principle describing the relationship between an object submerged in fluid and the weight of the fluid it displaces.

Examples & Real-Life Applications

See how the concepts apply in real-world scenarios to understand their practical implications.

Examples

  • A stone submerged in water displaces a volume of water equivalent to its own volume, experiencing a buoyant force equal to the weight of the displaced water.

  • A ship floats because it displaces a large volume of water, creating a buoyant force sufficient to support its weight.

Memory Aids

Use mnemonics, acronyms, or visual cues to help remember key information more easily.

🎵 Rhymes Time

  • In water, you float and glide, as Archimedes' laws are our guide!

📖 Fascinating Stories

  • Imagine a curious child who drops a stone into a pond, watching it push the water away – learning that the stone feels lighter and the pond water rises, revealing the buoyant force at work!

🧠 Other Memory Gems

  • For Archimedes: A = E (A body submerged = Equal weight of the displaced fluid).

🎯 Super Acronyms

B.F.E. = Buoyant Force Equals the fluid Displaced.

Flash Cards

Review key concepts with flashcards.

Glossary of Terms

Review the Definitions for terms.

  • Term: Buoyant Force

    Definition:

    The upward force exerted by a fluid on an object immersed in it.

  • Term: Archimedes’ Principle

    Definition:

    A principle stating that a body partially or fully immersed in a fluid experiences an upward force equal to the weight of the fluid displaced.

  • Term: Measuring Cylinder

    Definition:

    A laboratory glassware used to measure the volume of a liquid accurately.

  • Term: Overflow Can

    Definition:

    A device used to measure the volume of liquids displaced by objects submerged in them.

  • Term: Spring Balance

    Definition:

    An instrument that measures weight by the force exerted on a spring.
