1. Fundamentals of Measurement, Sensing and Instrumentation

Measurement is the process of obtaining the magnitude of a physical quantity relative to a unit standard. Instrumentation refers to the devices and systems used for measuring, monitoring, and controlling physical variables.

Measurement is a fundamental process used to quantify physical quantities, like length, pressure, or temperature. It involves comparing these quantities to a defined standard unit, like meters for length or degrees Celsius for temperature. Instrumentation encompasses the tools and systems employed to carry out these measurements. This includes everything from simple tools, like rulers or thermometers, to more complex systems that automatically monitor and control conditions in various environments. In the context of civil engineering, measurement and instrumentation are crucial for collecting data that leads to informed decision-making regarding structures and systems.

Think of measurement like using a kitchen scale to weigh ingredients when baking. The scale provides the magnitude of the ingredient's mass, just as measurement gives you the value of a physical quantity. Instrumentation, in this case, is like the entire kitchen setup you use for various tasks—utensils, scales, and baking tools—working together to help you bake a cake successfully.

Displacement/Position Strain/Stress Force/Load Pressure Acceleration/Vibration Temperature Flow rate Level (liquid, solids) Humidity Time/Frequency

Various physical variables are critical in monitoring environments and structures. Displacement relates to how far something has moved from a set point. Strain refers to the deformation of materials under stress, while force/load measures how much weight or pressure something can support. Pressure measures the force exerted by fluids within a container or environment. Acceleration/Vibration tracks movement speed changes, and temperature measures how hot or cold something is. Flow rate is crucial for understanding how quickly a liquid or gas moves, while level measures the height of fluids or solids. Humidity quantifies moisture content in the air, and time/frequency measures events over a period, which is essential for periodic assessments.

Imagine a weather station. It measures various physical variables: temperature tells you how hot or cold it is outside, humidity measures the moisture in the air, and pressure helps predict weather changes. Each measurement is essential in understanding the current weather conditions and making forecasts, similar to how engineers monitor structures to ensure safety and performance.

Physical Variable Sensor Type Basic Function and Application Measured Measures small changes in length/strain of a Strain Gauge Strain (deformation) structural member, used in stress analysis and Structural Health Monitoring (SHM). Detects motion, vibrations, shocks, and dynamic Accelerometer Acceleration/Vibration responses in structures and machines. Displacement Sensor (e.g., LVDT) Measures relative movement between two points; widely used in structural deformation monitoring.

Physical Variable Sensor Type Basic Function and Application Measured Converts applied force into an electrical signal, used Load Cell Force/Load in load monitoring of bridges, cranes, and foundations. Measures hydraulic or pneumatic pressure in pipes Pressure Sensor Fluid/gas pressure or soil pore pressure. Temperature Sensor (e.g., Thermocouples, RTDs) Monitors temperature changes affecting material properties or environmental conditions. Measures rate of water or air flow in pipes and Flow Sensor Flow rate of fluids conduits, essential for water management. Detects presence or absence of an object; used in Proximity Sensor Position or presence automated doors, safety systems. Monitors environmental humidity affecting materials Humidity Sensor Moisture in air or indoor air quality.

Different sensors are designed to measure specific physical variables. For instance, strain gauges measure deformation in materials, helping engineers assess structural integrity. Accelerometers are useful for detecting vibrations and dynamic responses, vital for understanding how structures react to forces like wind or earthquakes. Displacement sensors track the movement between two points, which is important in monitoring structural shifts. Load cells convert physical forces into electrical signals, making them essential in construction applications. Pressure sensors measure fluid pressures, while temperature sensors monitor environmental impacts. Flow sensors track liquid or gas flow rates, critical for resource management, and proximity sensors detect object presence, enhancing safety in various systems. Humidity sensors help maintain optimal conditions indoors.

Consider the sensors in your car. The temperature sensor helps monitor engine heat, preventing overheating, while the pressure sensors check tire pressure for safety. These sensors work together and provide essential data that keeps the car functioning safely and smoothly, similar to how civil engineers use sensors to ensure structures are safe and effective.

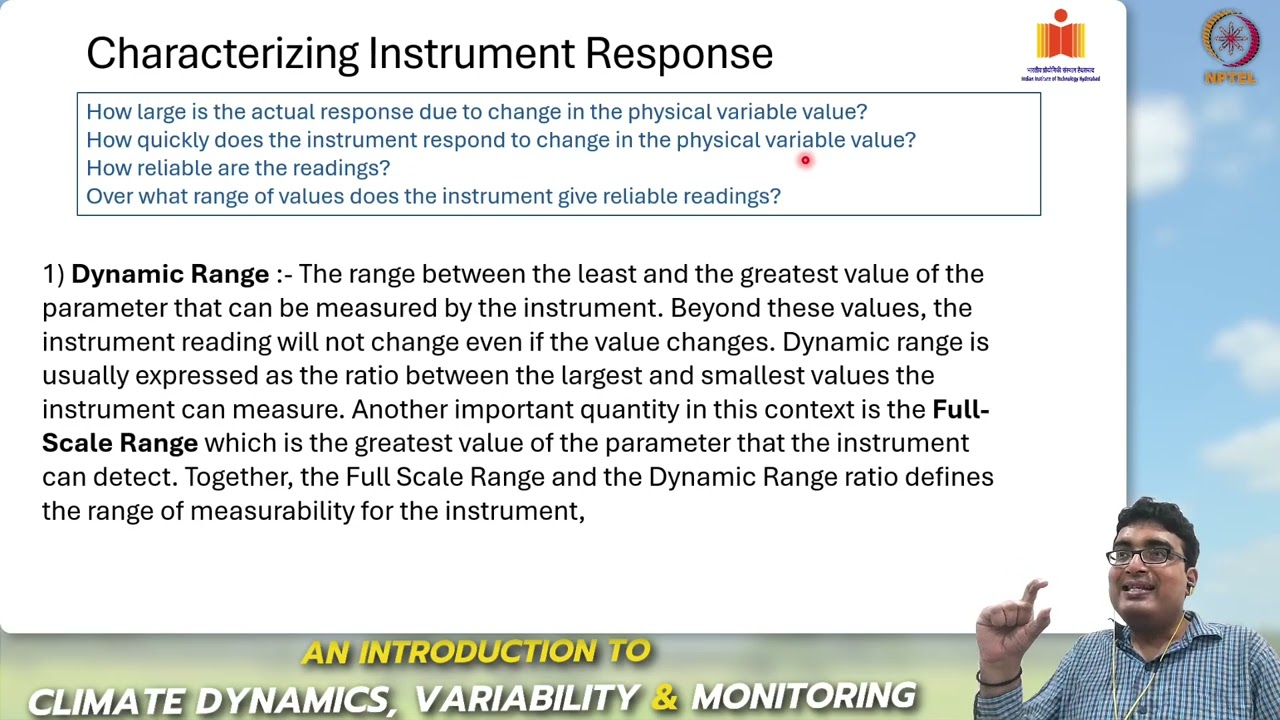

Range: The minimum and maximum values the sensor can reliably measure. Accuracy: Degree of closeness of measurements to the true value. Resolution: Smallest detectable change. Sensitivity: Output change per unit of measured input. Linearity: How output changes proportionally with input. Repeatability: Ability to provide consistent readings under unchanged conditions. Drift: Slow change of output over time without change in measured variable.

Understanding specific sensor attributes is crucial for reliable measurement. The range defines the limits of what a sensor can measure accurately. Accuracy reflects how close a sensor's measurement is to the actual value of the quantity. Resolution indicates the smallest difference a sensor can detect, which affects precision. Sensitivity measures how responsive the sensor's output is to changes in input. Linearity ensures that changes in output are proportionate to changes in input, which is essential for predictability. Repeatability means that the sensor gives the same reading each time under the same conditions, while drift refers to gradual changes in output over time, highlighting the need for regular calibration.

Think of a ruler. Its range is defined by the length it can measure, while accuracy ensures it gives the actual length of an object. Resolution is like finding the smallest measurement difference between two objects, while sensitivity could be likened to how responsive the ruler is to lightness versus heaviness. Just as a ruler requires careful handling to avoid bending (drift), sensors require regular checks for consistent measurements.

Analog Instrumentation: Produces continuous signals proportional to the measured variable. Digital Instrumentation: Converts physical signals to digital values for processing and analysis. Instrumentation setups can include: Single Sensor Systems: Isolated measurement of one variable. Multi-sensor Systems: Integration for comprehensive monitoring (e.g., Structural Health Monitoring combines strain, acceleration, displacement sensors). Data Acquisition Systems - DAQ: Interface sensors with computers for real-time monitoring and recording.

Instrumentation systems can be either analog or digital. Analog systems provide continuous signals that reflect the measure, useful for real-time assessments. Digital systems convert these signals into numbers, facilitating easier processing and analysis through computers. Single sensor systems focus on measuring just one variable, whereas multi-sensor systems integrate data from multiple sensors to provide a more comprehensive analysis, essential for both structural health monitoring and environmental studies. Data Acquisition Systems (DAQ) play a critical role by linking sensors to computers, allowing data collection, monitoring, and analysis in real-time.

Consider your smartphone as a digital instrumentation device. It collects data on various aspects—like temperature, light, and movement—using multiple sensors. The smartphone processes this data, allowing you to understand your environment better, just like multiple sensors in a bridge collect data to ensure its safety.

Installation Type Characteristics Applications Fixed sensors/systems mounted for long- term monitoring; durable wiring, continuous weatherproof housing. Permanent Installation

Bridges, dams, buildings, tunnels, structural health monitoring, environmental monitoring. Portable, removable sensors for short-term tests; often wireless or easily connected/disconnected. Temporary Installation

Construction phase testing, pre- and post-construction structural assessments, site characterization, experimental measurements.

Instrumentation installations can be categorized as either permanent or temporary. Permanent installations involve fixed sensors designed for long-term monitoring of structures, such as bridges and buildings, ensuring durability and reliability under harsh conditions. They are crucial for ongoing structural health and environmental monitoring. On the other hand, temporary installations are more flexible, allowing for short-term assessments during specific phases of construction or during experiments. These portable sensors, often wireless, offer convenience and adaptability in various field scenarios.

Imagine a weather station placed on top of a mountain. It would be a permanent installation, gathering continuous data across seasons. In contrast, a portable weather station used during a construction project to monitor conditions would represent a temporary installation, providing valuable data only for that phase. This balance ensures that essential data is gathered in both stable and changing environments.

Example: Strain Gauge Signal Electrical resistance changes as strain alters the sensor's geometry. The sensor produces a voltage output proportional to strain. Interpretation involves understanding that an increase in output indicates tensile strain, decrease indicates compression.

Example: Accelerometer Signal Produces voltage or digital output proportional to acceleration. Peaks can indicate transient shocks; periodic signals may indicate vibration frequencies. Signal analysis helps identify structural resonances or faults. Understanding signal types (analog voltage, frequency, digital counts) and calibrating the sensors is essential for correct interpretation and decision-making.

Interpreting sensor signals is vital for effective measurement analysis. For a strain gauge, electrical resistance changes with strain, generating a voltage output. An increase in this output suggests that the structure is under tension, while a decrease indicates compression. For accelerometers, the output helps assess motion and vibration; peaks in the output signal can signify sudden shocks, while consistent patterns indicate regular vibrations. Analyzing these signals enables engineers to detect structural problems or performance issues accurately. Proper calibration and understanding the types of signals generated—like analog voltages and digital counts—are crucial for making informed decisions based on these measurements.

Think of interpreting signals like listening to music. Just as different instruments produce various sounds, sensors generate different signals. A strain gauge is like a guitar string that vibrates differently under tension, while an accelerometer is akin to a drum that beats stronger with sudden hits. Understanding how each instrument (or sensor) contributes to the overall performance is essential for capturing the complete picture of structural integrity.

Principle & Output Sensor Type Measures Typical Installation Signal Nature Type Resistance change Bonded to structural Analog Strain Gauge Strain - Wheatstone elements voltage bridge) Piezoelectric, Mounted on structure Accelerometer Acceleration/Vibration Analog/Digital capacitive or equipment Displacement Installed at critical Analog Linear displacement Inductive variation - LVDT joints/elements voltage Analog Load Cell Force/Load Strain gauge based Foundation/load points voltage Pressure Piezo- Piping/soil pore Pressure Analog/Digital Sensor resistive/capacitive pressure Temperature Analog Temperature Thermocouple/RTD Environment/structures Sensor voltage In essence, Module 1 introduces the core concepts of measurement and instrumentation relevant to civil engineering. It covers sensor types, their operating principles, applications, instrumentation types, and practical aspects of their installation for monitoring and control purposes. Familiarity with these fundamentals is foundational to advanced instrumentation and structural health monitoring topics.

This summary table consolidates key information about various sensors used in civil engineering instrumentation. It details how each sensor measures specific physical variables, the types of outputs they generate, and where they are typically installed. For instance, strain gauges measure strain, accelerometers detect vibrations, load cells quantify force, and temperature sensors monitor thermal conditions. The integration of these sensors is essential for advancing compared to traditional practices and lays the foundation for more complex instrumentation systems in civil engineering. Understanding these fundamentals is crucial for applying advanced techniques in structural monitoring and analysis.

Consider this summary table as a cookbook with various recipes, where each recipe represents a different measurement. Just as a chef needs to understand each ingredient and its role in a dish, engineers must know how different sensors function to monitor and ensure the integrity of structures effectively.

--
