Definition of Mechanisms
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today we're discussing mechanisms. A mechanism is a combination of linked rigid bodies that produce motion or transmit forces. Can anyone tell me why understanding mechanisms is essential in engineering?
They are important because they help us design machines.
Exactly! They are the building blocks of machines, allowing for controlled motion. Does anyone know what connects these rigid bodies?
Are they connected by joints?
Correct! These connections allow for different types of movement. Let's remember this with the acronym J.M. - 'Joints for Movement.'
Types of Joints
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now, let's talk about the types of joints or kinematic pairs. There are 'Lower' pairs, which involve surface contact. Can anyone name a lower pair?
A revolute joint?
Great! A revolute joint allows rotation. Lower pairs also include prismatic and cylindrical joints. These help in translating motion. Now, what's a higher pair?
Those would include cam and follower mechanisms?
Exactly! They involve line or point contacts. Remember, higher pairs offer more flexibility in design. How can we summarize these types of joints?
Lower for surfaces and higher for points or lines!
Classification of Mechanisms
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Mechanisms can be classified based on function and constraints. Can someone tell me some functional classifications?
Motion generation, force transmission, and path generation?
Correct! And what about constraints? What do you think is a fully constrained mechanism?
One where the motion is uniquely defined?
Well done! Understanding these classifications helps engineers choose the right mechanisms for their designs. Letβs memorize this concept with the mnemonic FC = F + C: 'Fully Constrained equals Function and Constraints.'
Common Planar Mechanisms
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Letβs move on to some common planar mechanisms, like the four-bar mechanism. Can anyone describe its function?
It's used to convert rotary motion into oscillatory motion.
Exactly! Itβs the simplest closed-chain mechanism. What about the slider-crank mechanism?
Isn't it used in engines to convert rotary to reciprocating motion?
Well done! Let's remember these mechanisms with the acronym M.C.: 'Motion Conversion.' Keep in mind their inversions can lead to different applications, too!
Special Purpose Mechanisms
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
To wrap up our introduction, letβs discuss special-purpose mechanisms. Quick return mechanisms are commonly used in shaping machines. Can anyone explain why this is beneficial?
Because the return stroke is faster than the cutting stroke!
Exactly! It enhances efficiency. Other special mechanisms like universal joints and steering systems have unique roles in machinery. Letβs remember these through the mnemonic S.P.M. - 'Special Purpose Mechanisms.'
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section details the definition and significance of mechanisms in engineering. It explores the types of joints, classifications based on function and constraints, common planar mechanisms, and special purpose mechanisms that embody various engineering applications.
Detailed
Introduction to Mechanisms
In this section, we explore the fundamental concept of mechanisms, defined as combinations of rigid bodies (links) linked by joints. These structures are essential for producing desired motion or transmitting forces. Mechanisms serve as the foundational elements of machines.
Types of Joints (Kinematic Pairs)
Mechanisms consist of kinematic pairs, which can be categorized into:
- Lower Pairs: These joints have surface contact. Examples include:
- Revolute (Pin) Joint - allows rotational movement around a fixed axis.
- Prismatic (Sliding) Joint - allows linear sliding motion.
- Cylindrical, Spherical, and Screw Joints - facilitating various types of movement.
- Higher Pairs: These involve line or point contact, such as:
- Cam and Follower - used in various applications where driven motion is required.
- Gear Teeth Contact - critical for force transmission in machinery.
- Rolling Wheel on Surface - enables movement over a surface.
Classification of Mechanisms
Mechanisms can also be classified based on their functions and constraints:
- Based on Function: Includes motion generation (linkages), force transmission (gears), and path generation (robotic arms).
- Based on Constraints:
- Fully Constrained - allows no freedom of motion,
- Partially Constrained - allows some freedom,
- Unconstrained - permits any relative motion.
Common Planar Mechanisms
Two fundamental common planar mechanisms are:
- Four-Bar Mechanism: A simple closed-chain mechanism used primarily for converting rotary motion into oscillatory or reciprocating motion, it can take on various configurations (e.g., double crank, crank-rocker, and double rocker).
- Slider-Crank Mechanism: A pivotal mechanism converting rotary to reciprocating motion, critical in internal combustion engines and compressors.
- Inversions: Different fixed links can lead to various implementations, such as Whitworth quick return, oscillating cylinder engines, and beam engines.
Special Purpose Mechanisms
This subsection outlines specialized mechanisms, including:
- Quick Return Mechanism: Used in shaping machines, allowing for faster return strokes than cutting strokes (e.g., Whitworth mechanism).
- Straight Line Generators: Such as PeaucellierβLipkin and Scott-Russell mechanisms, they approximate or realize straight-line motion.
- Rocker Mechanism: Converts rotary motion into oscillatory motion, commonly found in valve gears and suspension systems.
- Universal Joint: Facilitates torque transmission between shafts at angle variations, widely utilized in automobiles.
- Steering Mechanisms: Like the Ackermann steering mechanism, these ensure that all wheels maintain the correct turning radius during turns.
By understanding and applying these concepts, one gains insight into the mechanics that govern motion in various engineering applications.

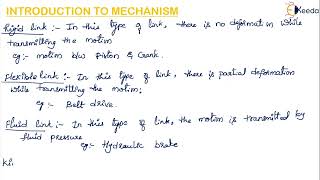

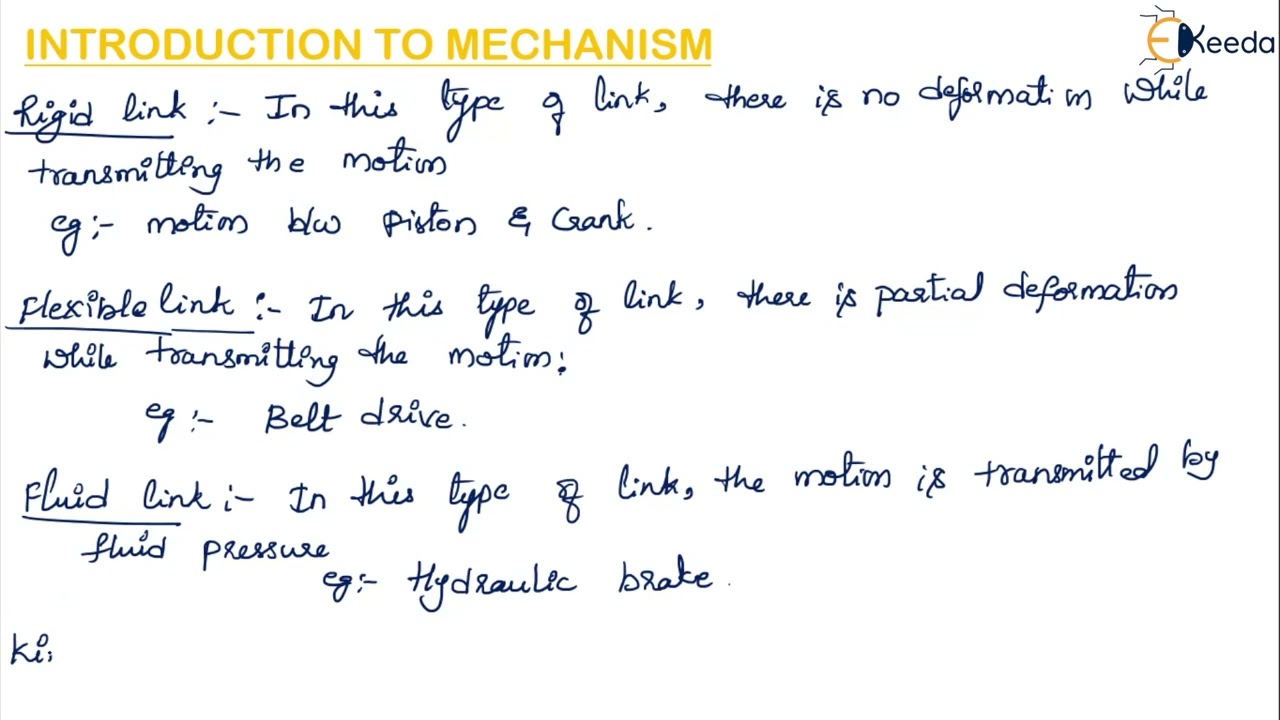

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of a Mechanism
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A mechanism is a combination of rigid bodies (links) connected by joints to produce a desired motion or force transmission.
Detailed Explanation
A mechanism consists of multiple rigid parts called links that are interconnected by joints. These joints allow the links to move relative to each other. The main purpose of a mechanism is to create a specific type of motion or to transmit a force from one part to another. Mechanisms can be seen in many types of machines, where they play critical roles in their functioning.
Examples & Analogies
Think of a bicycle. The pedals, chain, and wheels are all parts of a mechanism. When you pedal, the motion of your legs goes through the chain (the joint) to turn the wheels (another link), allowing the bicycle to move forward. This is a simple example of how mechanisms work together to achieve a desired movement.
Role of Mechanisms in Machines
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Mechanisms are the building blocks of machines.
Detailed Explanation
Mechanisms are fundamental components of machines because they perform specific functions related to motion and force. Every machine utilizes one or more mechanisms to convert energy into mechanical motion, perform tasks, or transmit load. This makes understanding mechanisms crucial for designing and troubleshooting machines.
Examples & Analogies
Consider an automatic washing machine. Inside, there are various mechanisms working together: some are responsible for agitating the clothes, others for spinning them, and some for filling and draining water. Without these mechanisms, the washing machine wouldn't be able to clean clothes effectively.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Mechanism: A system comprising linked bodies that facilitates motion.
-
Kinematic Pairs: The joints between links that dictate movement.
-
Four-Bar Mechanism: The simplest mechanism translating rotary to oscillating motion.
-
Slider-Crank Mechanism: A converter of rotary motion to reciprocating motion.
-
Special Purpose Mechanisms: Unique configurations designed to perform specific functions.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
An internal combustion engine uses a slider-crank mechanism to convert the rotary motion of the crank into the reciprocating motion of the piston.
-
A four-bar mechanism can be found in the swinging arm of a bicycle, converting motion effectively.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
Mechanisms connect like friends play, rotating, sliding, every day!
π Fascinating Stories
-
Imagine a village where all machines work together, moving like dancers in a grand performance. Each mechanism has its role, spinning, sliding, or turning, and they help the entire village thrive.
π§ Other Memory Gems
-
Remember J.M and S.P.M. for joints in mechanisms and special purpose mechanisms.
π― Super Acronyms
FC = Fully Constrained, ensuring motion is defined perfectly.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Mechanism
Definition:
A system of interconnected components designed to produce a specific motion or function.
-
Term: Kinematic Pair
Definition:
A joint connecting two links where relative motion occurs.
-
Term: Revolute Joint
Definition:
A joint that allows rotation around a fixed axis.
-
Term: Prismatic Joint
Definition:
A joint that allows linear sliding motion between its components.
-
Term: FourBar Mechanism
Definition:
The simplest closed-chain mechanism consisting of four links.
-
Term: SliderCrank Mechanism
Definition:
A mechanism that converts between rotary and reciprocating motion.
-
Term: Quick Return Mechanism
Definition:
A mechanical setup that allows for a faster return stroke than the cutting stroke.
-
Term: Universal Joint
Definition:
A joint that allows the transmission of torque between shafts at angles.
-
Term: Steering Mechanism
Definition:
A device that controls the direction of a vehicleβs movement.
