Step 3: Sub-100nm Scaling – Leakage Takes Over
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Leakage Currents
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we're discussing the pivotal role of leakage currents in sub-100nm scaling. Who can tell me what leakage current means?
Isn't it the current that flows through a transistor when it's supposedly off?
Exactly! That's correct. Leakage current represents metrics of performance during off-states and becomes increasingly significant as we scale down. Remember - L for Leakage and L for Loss! Why do you think this is a problem?
Because it contributes to overall power consumption even when the device is idle?
Right again! Static power becomes the real problem when referring to larger percentages of total power usage. Let's explore how subthreshold leakage, gate oxide tunneling, and junction leakage contribute!
Challenges with Scaling Voltage
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Moving on, let's talk about supply voltage scaling. Why do you think scaling voltage isn't as effective anymore?
Is it because lower voltages could increase noise and variability?
Bingo! As transistors shrink, noise margins tighten, and variability becomes a significant challenge. It affects our design choices significantly. Can anyone elaborate on the potential solutions we have?
High-Vt transistors could help decrease leakage, right?
Exactly, and what other methods can we think of?
Body biasing could also help control leakage currents.
Great points! Remember: 'Bias for Stability'! As we delve deeper, we’ll learn how designers adapt to these challenges.
Innovative Solutions for Power Management
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let’s discuss some innovative strategies for managing these leakage currents. Who can share a method we've talked about?
Power gating helps shut down parts of the circuit that aren't active.
Exactly, that's very efficient! The memory aid here is to think 'Gate Off, Power Gone'. What else can be done?
Sleep transistors can disconnect power completely during idle states.
Absolutely! These methodologies allow circuits to conserve power. Let’s summarize: Leakage has a significant impact, supply voltage scaling reaches a limit, and powering down idle states is vital for efficiency.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
As semiconductor technology transitions to nodes below 100nm, the impact of leakage currents, including subthreshold leakage and gate oxide tunneling, becomes critical, making it difficult to scale voltages without compromising performance and reliability. Solutions such as high-Vt transistors and body biasing emerge to manage these challenges effectively.
Detailed
Detailed Summary
In this section, we examine the transition of CMOS technology as it scales down to sub-100nm nodes, particularly focusing on how leakage currents have begun to dominate power consumption. With the introduction of nodes at 90nm and below, the semiconductor industry has encountered several critical challenges:
- Subthreshold Leakage: The reduction in supply voltage as a scaling strategy has reached its limits without introducing significant static power consumption due to leakage currents.
- Gate Oxide Tunneling: As the gate insulator thickness decreases, tunneling currents contribute further to leakage.
- Junction Leakage: Increased leakage currents within the junctions of transistors become a significant source of power loss.
Key considerations in this era include:
- The realization that high-performance designs cannot solely depend on reducing supply voltage (Vdd) as a method for power savings.
- Innovative solutions such as using high-Vt transistors to minimize leakage during standby, body biasing techniques for leakage control, and power gating with sleep transistors to disconnect power in idle states.
- Notably, in 65nm CMOS technology, leakage could represent over 30% of total power during idle periods.
Understanding these factors is essential for engineers to innovate future low-power devices while managing the complexities introduced by smaller transistor sizes.

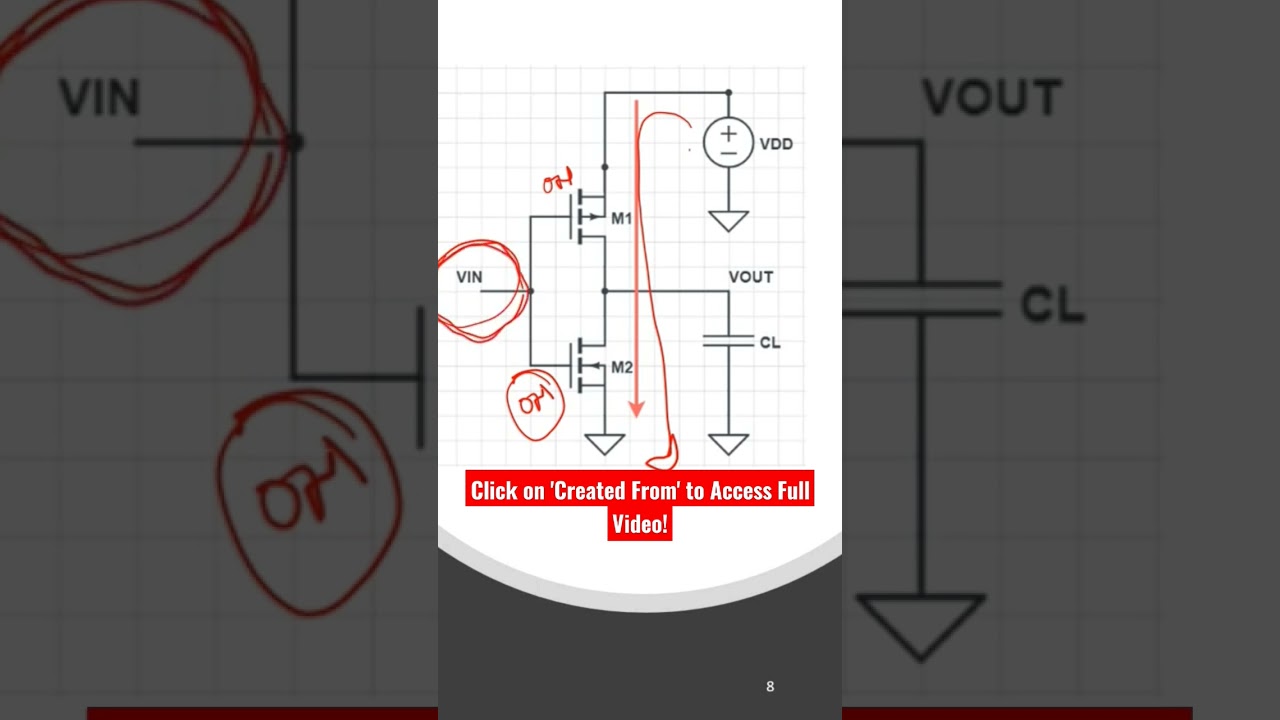

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Leakage Issues
Chapter 1 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
With the advent of 90nm and below:
● Static power due to subthreshold leakage, gate oxide tunneling, and junction leakage became substantial.
Detailed Explanation
As semiconductor technology progressed to the 90nm process node and smaller, new challenges arose in managing power consumption. Specifically, the term 'leakage' refers to unwanted current that flows through a transistor even when it is turned off. Subthreshold leakage occurs in transistors that are near the threshold of being turned on. Gate oxide tunneling involves leakage through the thin insulating layer around the gate of a transistor, and junction leakage happens at the regions where different semiconductor materials meet. These kinds of leakage currents contribute significantly to the overall static power consumption in chips, especially as transistors are made smaller.
Examples & Analogies
Imagine a leaky faucet that drips water when it’s turned off. Even though the faucet is supposed to be closed (like the transistor being off), water (or current, in this case) still manages to escape, wasting resources just like leakage currents waste power in electronic devices.
Limitations of Voltage Scaling
Chapter 2 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
● Supply voltage scaling hit limits due to noise margins and variability.
Detailed Explanation
As efforts were made to reduce the supply voltage (Vdd) to lessen power consumption, engineers encountered significant obstacles. Lowering the voltage improves power efficiency but can also decrease the noise margins of a circuit, making it more susceptible to errors. Additionally, manufacturing variations can cause some transistors to respond differently to voltage adjustments, which leads to inconsistencies in performance across chips. Hence, simply reducing Vdd was no longer a viable solution for high-performance designs.
Examples & Analogies
Think of a tightrope walker trying to balance on a dish that becomes increasingly smaller. The lower the dish gets (analogous to reducing Vdd), the harder it becomes to maintain balance without tipping over (representing increased susceptibility to errors).
Adaptations to High-Performance Designs
Chapter 3 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
● High-performance designs could no longer rely on just reducing Vdd.
Detailed Explanation
As power consumption from leakage became a more pressing issue, engineers had to innovate beyond just lowering the voltage of their devices. The complexity of modern chips required more sophisticated strategies to manage both performance and power consumption. Instead of relying solely on voltage scaling for power efficiency, designers began to explore a variety of other solutions to address the growing leakage issue while still achieving desired performance levels.
Examples & Analogies
Imagine a car that gets poorer mileage as the speed increases; simply driving slower isn't enough if you want to keep speed and still save fuel. In this case, you have to focus on improving other aspects of the car, like aerodynamics or engine efficiency, paralleling how engineers had to adapt their designs beyond voltage reduction.
Solutions to Manage Leakage
Chapter 4 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Solutions included:
● High-Vt transistors for standby.
● Body biasing for leakage control.
● Power gating and sleep transistors to fully disconnect power in idle modes.
Detailed Explanation
To combat leakage issues, engineers developed several strategies. High-Vt (high threshold voltage) transistors are employed to reduce leakage when the circuit is inactive; these transistors allow for lower leakage currents in standby states. Body biasing is another technique used to control the threshold voltage of a transistor dynamically, effectively managing leakage during different operational modes. Power gating uses sleep transistors that completely cut off power to sections of the chip that are not in use, ensuring that no energy is wasted when those parts are inactive.
Examples & Analogies
Think of these solutions like a smart home: when you're not in a room, you can turn off the lights (power gating) and adjust the temperature on your thermostat (body biasing), ensuring energy isn't wasted when it's not needed, similar to how these techniques minimize leakage power in circuitry.
Impact of Leakage Power
Chapter 5 of 5
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Insight: In 65nm CMOS, leakage power could account for >30% of total power in idle state.
Detailed Explanation
As chips evolved to the 65nm node, the significance of leakage power became increasingly apparent. Data indicated that more than 30% of the total power consumed by the chip while in a non-active (idle) state came from leakage alone. This highlighted the urgency for efficient designs and strategies to minimize leakage, as the cumulative effect of idle power leakage could critically impact overall device performance and energy consumption.
Examples & Analogies
Just like a smartphone that continues to drain battery life even when not in use due to background processes, leakage power in chips represents wasted energy that can lead to significant efficiency losses, demanding advanced management to keep power usage low.
Key Concepts
-
Subthreshold Leakage: Current through a transistor when off, increases power consumption as nodes shrink.
-
Gate Oxide Tunneling: Increased leakage through thin gate oxide layers in smaller nodes.
-
High-Vt Transistors: Designed to reduce leakage currents in standby mode.
-
Power Gating: Disconnecting power in idle states to conserve energy.
Examples & Applications
In a 65nm process, leakage power can account for more than 30% of the total power during idle states.
Using a sleep transistor can effectively disconnect parts of a circuit from the power rail when not in active use.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When devices shrink, pay heed to leakage's stench, it can drain your power without a wrench.
Stories
Imagine a busy city at night where streetlights are supposed to turn off but keep shining. That’s like leakage current! Even when off, it still steals energy.
Memory Tools
Remember: 'GHS' for 'Gate, High-Vt, Sleep' to recall key techniques for managing leakage!
Acronyms
L.O.W. - Leakage, Overhead, Waste to remind us what leakage results in!
Flash Cards
Glossary
- Subthreshold Leakage
The current that flows through a transistor when it is turned off, significant at smaller nodes.
- Gate Oxide Tunneling
Tunnel current that occurs through the gate oxide layer of a transistor as its thickness decreases.
- Junction Leakage
The current that leaks at the junctions of a transistor, which can rise significantly as device dimensions shrink.
- HighVt Transistors
Transistors designed with a higher threshold voltage to reduce leakage current in standby mode.
- Body Biasing
The process of changing the bias voltage on a semiconductor body to control the threshold voltage and leakage current.
- Power Gating
A method of disconnecting power from idle parts of a circuit.
- Sleep Transistors
Transistors used to completely turn off power to parts of circuits when they are not in use.
