Objectives of Casting Process Modeling
Enroll to start learning
Youβve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Metal Flow Dynamics
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we'll start with metal flow dynamics. Why do you think the flow of molten metal is crucial in casting?
Because it affects how the metal fills the mold, right?
Exactly! If the flow is turbulent, it can lead to poor surface finish and defects. Remember the acronym T.H.E. - Turbulence Harms Efficiency. Can anyone tell me what might happen with poor flow?
We could get air traps or inclusions.
Correct! Poor gating design can lead to those issues. Let's remember this: good design = fewer defects. Can anyone think of how we can control this flow better?
Maybe adjusting the velocity of the metal as it enters the mold?
Spot on! Controlling the velocity is key to preventing cold shuts and misruns. Always think of Velocities when designing your system! Letβs summarize: understanding metal flow is vital for preventing defects and enhancing efficiency.
Solidification and Cooling
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, letβs discuss solidification. Why is the cooling rate significant in casting?
Because it can change the properties of the material?
Exactly! A faster cooling rate can lead to different microstructures. Remember Chvorinov's Rule for calculating solidification time. Can anyone remember the formula?
It has the volume and surface area in it, right?
Yes! Itβs about $ t_s = C rac{V}{A} $. And what does this tell us about design choices?
We should design molds with larger surface areas to cool faster?
Yes, but we must be careful not to create thermal stress. Summarizing, understanding solidification helps determine ideal designs to achieve desired material properties.
Gating System Design
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, letβs talk about gating systems. Whatβs the primary purpose of a gating system?
To control the flow of molten metal into the mold?
Exactly! A well-designed system minimizes turbulence and ensures directional solidification. What components does a typical gating system include?
Sprue, runner, and gates?
Right! Remember the rule: **Control, Minimize, Ensure** - these are key considerations in design. Can anyone think of a design flaw that could occur?
If the runner is too narrow, it could restrict flow.
Absolutely! And that could lead to cold shuts. So, in summary, effective gating design is critical for quality casting.
Predicting and Eliminating Defects
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Letβs discuss defects. What are some common defects in casting?
Cold shuts and gas porosity?
Correct! The key is to predict and address these defects upfront using simulations. How does this differ from traditional methods?
It helps to fix problems before physically casting, which saves time.
Exactly! Itβs all about reducing trial and error. Let's remember this: **Simulate to Eliminate** defects. So, what have we learned today about defects?
That we can minimize them through careful modeling.
Exactly right! Learning about defects and simulation is vital for improving yield and quality.
Improving Quality and Yield
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, letβs discuss how simulation can improve quality and yield. Why is this important?
More yield means less waste and better profits?
Absolutely! Simulation allows for resource optimization. Can anyone think of a specific example?
The aluminum alloy engine block case study?
Yes! Letβs recall: by simulating the casting process, porosity was reduced by 70% and yield went from 65% to 83%. Can we see why integrating simulation is powerful?
It saves a lot of resources and improves the end product.
Exactly! To wrap up, simulation is a game changer in casting, improving quality, yield, and overall efficiency.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The section provides an overview of the objectives of casting process modeling, which include analyzing metal flow dynamics, studying solidification characteristics, designing effective gating systems, predicting defects, and using simulation to improve quality and yield in casting operations.
Detailed
Objectives of Casting Process Modeling
This section delves into the primary aims of modeling the casting process in manufacturing. The objectives focus on critical aspects such as:
- Analyzing Metal Flow: Understanding how molten metal flows can help minimize turbulence, which is vital for achieving a smooth surface finish.
- Solidification Characteristics: Studying solidification helps avoid common defects like shrinkage porosity.
- Designing Gating and Feeding Systems: The design ensures optimal flow and heat distribution, crucial for effective solidification.
- Defect Prediction and Elimination: A significant part of modeling is to predict and find solutions for defects such as cold shuts and gas porosity.
- Simulation-Driven Design for Quality Improvement: Utilizing simulations allows for preemptive measures to be taken to enhance yield and quality before physical trials.
Through these objectives, engineers can optimize the casting processes, reduce waste, and improve finished product quality.
Youtube Videos

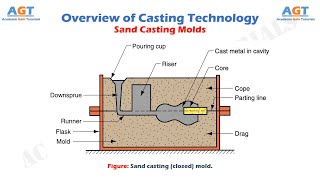

Audio Book
Dive deep into the subject with an immersive audiobook experience.
Analyzing Metal Flow
Chapter 1 of 5
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Analyze metal flow and minimize turbulence.
Detailed Explanation
This objective focuses on understanding how molten metal moves when it is poured into a mold. The goal is to ensure that the metal flows smoothly without creating turbulence, which can lead to defects in the casting. Analyzing metal flow involves studying the path that metal takes as it fills the mold and identifying any potential obstacles that may disrupt this flow.
Examples & Analogies
Imagine pouring a thick liquid, like syrup, into a narrow bottle. If you pour too quickly or at the wrong angle, the syrup may splash or create bubbles, which would be similar to turbulence in metal flow. By pouring slowly and at the right angle, you can fill the bottle smoothly without any issues.
Studying Solidification Characteristics
Chapter 2 of 5
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Study solidification characteristics to avoid shrinkage porosity.
Detailed Explanation
Solidification is the process where molten metal turns into a solid shape. Understanding how this process occurs is crucial to preventing shrinkage porosity, which happens when the metal cools and shrinks, creating voids or holes in the casting. By studying the cooling rate and solidification characteristics, engineers can design molds that ensure an even cooling process, reducing the risk of defects.
Examples & Analogies
Think of making ice cubes in a tray. If you pour hot water into an ice tray and put it in the freezer, the outside may freeze quickly while the inside remains liquid, leading to uneven ice. If the water cools evenly, you get solid ice cubes without cracks. Similarly, controlling the cooling of molten metal helps achieve defect-free castings.
Designing Gating and Feeding Systems
Chapter 3 of 5
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Design gating and feeding systems for optimal flow and heat balance.
Detailed Explanation
Gating and feeding systems are critical components in the design of a mold for casting. The gating system controls how molten metal enters the mold, and the feeding system provides additional metal to compensate for shrinkage during solidification. Effective design of these systems ensures that metal flows correctly into the mold, maintains an even temperature throughout the process, and improves the overall quality of the casting.
Examples & Analogies
Imagine a water slide at an amusement park. The slideβs design ensures that water flows smoothly from the top to the bottom. If there are blockages or sharp turns, the water might splash out or create problems. Similarly, a well-designed gating system ensures that molten metal flows smoothly and consistently into the mold.
Predicting and Eliminating Defects
Chapter 4 of 5
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Predict and eliminate defects like cold shuts, misruns, shrinkage, gas porosity.
Detailed Explanation
Casting defects such as cold shuts, misruns, shrinkage, and gas porosity can significantly affect the quality of the final product. This objective focuses on using modeling to predict these defects before the casting process begins, allowing engineers to make adjustments to the design or process to prevent them from occurring. Identifying and addressing potential flaws early can save time and resources.
Examples & Analogies
Consider making a pizza. If your dough is too thick in one spot, it won't cook evenly, leading to some parts being overcooked while others remain doughy. By predicting where the dough may need more heat or adjusting the cooking time based on thickness, you can ensure a perfectly cooked pizza. This is analogous to predicting casting defects and adjusting the process to improve quality.
Improving Casting Quality and Yield
Chapter 5 of 5
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Improve casting quality and yield using simulation-driven design.
Detailed Explanation
Simulation-driven design allows engineers to create virtual models of the casting process. By running simulations, they can visualize and address potential issues in the design, resulting in improved quality of the casted parts and higher yield rates. This means that a larger percentage of produced castings will meet quality standards and be usable, reducing waste and improving efficiency.
Examples & Analogies
Think of a video game where you can practice a level multiple times before actually playing it on hard mode. Each time you practice, you learn where the traps are and how to avoid them, leading to a better score on the real attempt. Similarly, using simulations in casting helps engineers to refine their design and processes before actual production, leading to better end results.
Key Concepts
-
Metal Flow Dynamics: Understanding how molten metal flows is crucial to preventing turbulence and defects.
-
Solidification Characteristics: The cooling rate affects solidification and ensuing material properties.
-
Gating System Design: An effective gating system minimizes turbulence and ensures proper metal flow.
-
Defect Prediction: Predicting and eliminating defects is key to improving overall casting quality.
-
Simulation-Driven Design: Utilizing simulations enhances quality and yield in the casting process.
Examples & Applications
The use of simulation software like MAGMASOFT helped reduce porosity by over 70% in an aluminum engine block casting.
Chvorinov's Rule is used to estimate the solidification time, impacting the cooling and material properties.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
In casting, metal flows with grace, / Smooth and steady, it finds its place. / If it stirs with a troubling pace, / Defects will show β that's a tough case.
Stories
Imagine a wizard pouring molten metal into a mold. If he makes the metal flow smoothly, the final statue will be flawless. But if it bubbles and twists, the statue might have cracksβlike cold shutsβmaking it worthless!
Memory Tools
Remember the acronym G.A.M.E. for gating, analyzing, modeling, and execution β vital steps in successful casting!
Acronyms
R.A.S. helps us remember
Reduce turbulence
Analyze flow
Solidify correctly β key strategies!
Flash Cards
Glossary
- Casting
A manufacturing process where molten metal is poured into a mold and allowed to solidify into a desired shape.
- Turbulence
Irregular or chaotic flow of liquid that can lead to defects within the casting.
- Solidification
The process of a material transitioning from a liquid to a solid state.
- Chvorinov's Rule
A formula used to estimate the solidification time based on the volume and surface area of the casting.
- Gating System
The system consisting of sprues, runners, and gates that guides molten metal into the mold.
- Defect
An imperfection in the casting that adversely affects quality.
- Yield
The amount of usable product obtained from a manufacturing process.
- Simulationdriven design
Design processes that incorporate simulations to predict outcomes and improve quality.
