Metal Casting Processes
Enroll to start learning
Youβve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Casting Processes
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today, we will discuss metal casting processes. Casting involves pouring molten metal into a mold where it can solidify into the desired shape. Does anyone know why casting is essential in manufacturing?
It allows for creating complex shapes that might be hard to make using other methods.
Exactly! Casting can produce intricate shapes that are both challenging and cost-prohibitive with subtraction methods. Let's start with sand casting. Who can tell me about it?
Sand casting uses sand molds formed around patterns.
Correct! Sand casting is versatile, cost-effective and can be used with various metals. Remember the acronym 'SAND' for Sand casting - it stands for 'Simple, Affordable, Noteworthy Designs.'
What are the limitations of sand casting?
Good question! The limitations are a rough surface finish and lower dimensional accuracy. Thus, while it's affordable and adaptable, it might not suit all projects. To recap, sand casting is a low-cost method for complex shapes but lacks finish quality.
Die Casting
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's move to die casting. Can anyone explain how it differs from sand casting?
Die casting uses metal injected into molds, right? It sounds faster.
Absolutely! Die casting injects molten metal under pressure, leading to higher production rates and better dimensional accuracy. However, it's primarily used for non-ferrous metals like zinc and aluminum. What's an advantage you can think of for die casting?
High surface finish and precision!
Exactly! But remember, the setup costs are significant. Think of 'DIE' for Die Casting - 'Detailed Injection Engineered.' What does that highlight?
It emphasizes precision and detail.
Great! So, die casting gives high-quality outputs but comes with high costs.
Investment Casting
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, we'll talk about investment casting, also known as lost-wax casting. What do you know about this method?
It's where a wax model is used, and then replaced with metal?
Correct! The wax model is coated, wax is melted out, and the metal fills the mold. It's excellent for detailed and complex shapes. Can anyone share its advantages?
It has excellent surface finishes and high dimensional accuracy!
Right! However, itβs more costly due to the process complexity and tooling. Think of 'WAX' for Investment Casting - 'Wonders of Accurate eXtraction.' These highlights showcase its detailed and precise nature.
What type of products is it mostly used for?
Great question! It's frequently used for aerospace components and dental implants. In summary, it allows for intricate designs with a high-quality finish, albeit at a higher cost.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section explores the different metal casting processes used in manufacturing, focusing on methods such as sand casting, die casting, and investment casting. Each method is examined for materials used, advantages, and limitations, providing a clear understanding of their applications in creating complex geometries.
Detailed
Metal Casting Processes
Metal casting is a crucial manufacturing process that transforms molten metal into solid shapes by pouring it into molds. The major casting processes include:
-
Sand Casting: Utilizes sand molds formed around patterns. It is economically viable and suitable for complex shapes but results in rough surface finishes and lower dimensional accuracy.
- Materials: Aluminum, cast iron, brass, steel.
- Advantages: Low cost, versatility.
- Limitations: Rough finish, dimensional inaccuracy.
-
Die Casting: Involves injecting molten metal under pressure into steel molds. It offers high accuracy and surface quality but is limited to non-ferrous metals.
- Materials: Zinc, aluminum, magnesium.
- Advantages: High production rates and precision.
- Limitations: High setup costs, only for low-melting-point metals.
-
Investment Casting (Lost-wax casting): A technique where a wax model is coated with ceramic material. After the wax is removed, molten metal is introduced for solidification, allowing for intricate designs and excellent finishes.
- Materials: Stainless steel, aluminum, tool steels.
- Advantages: High accuracy, excellent finish.
- Limitations: Expensive due to tooling and process complexity.
Understanding these processes is essential for engineers and designers to choose the appropriate method based on material properties, shape requirements, and production volumes, leading to efficient manufacturing.

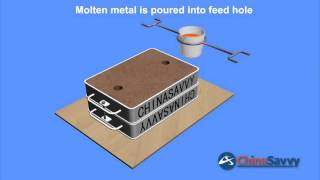

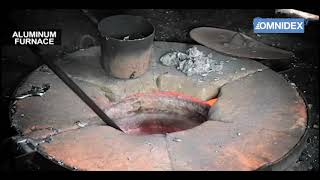

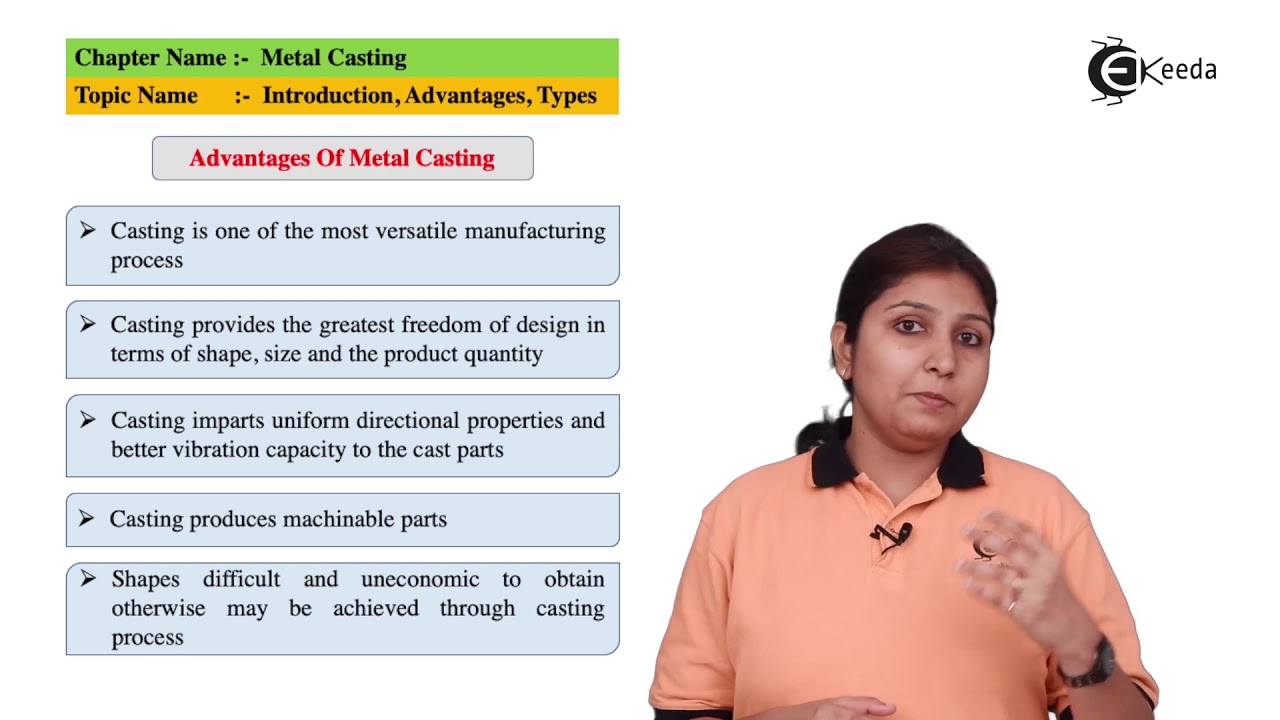

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Metal Casting
Chapter 1 of 4
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Casting involves pouring molten metal into a cavity (mold) where it solidifies into the shape of the mold.
Detailed Explanation
Metal casting is a manufacturing process where liquid metal is poured into a pre-shaped cavity, called a mold. When the metal cools, it solidifies and takes on the shape of the mold, creating a solid object. This process allows for the creation of complex shapes and is widely used in various industries to produce components.
Examples & Analogies
Think of metal casting like making a chocolate mold. When you pour melted chocolate into a mold shaped like a bunny and let it cool, the chocolate takes on the shape of the mold. Similarly, molten metal shapes itself into the form of the mold and becomes a solid object once cooled.
Sand Casting
Chapter 2 of 4
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
a) Sand Casting
Process: Uses a sand mold that forms a cavity around the pattern of the desired shape.
Materials: Commonly used with aluminum, cast iron, brass, steel.
Advantages:
- Low tooling and production cost.
- Suitable for complex shapes and large components.
Limitations:
- Rough surface finish.
- Lower dimensional accuracy.
Detailed Explanation
Sand casting is a method that utilizes sand as the molding material. A pattern of the desired shape is made, and sand is packed around it to create a mold. Once the pattern is removed, molten metal is poured into the mold cavity. It's cost-effective, especially for large parts, but has disadvantages like a rough surface finish and less precise dimensions compared to other casting methods.
Examples & Analogies
Imagine making a sandcastle at the beach. You create a shape by packing wet sand around a bucket (the pattern). Once you lift the bucket, you have a cavity where you can pour in water (the molten metal), and when it hardens, you get a solid shape, albeit with a sandy texture.
Die Casting
Chapter 3 of 4
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
b) Die Casting
Process: Molten metal is injected under pressure into a steel mold (die), then allowed to solidify.
Materials: Typically non-ferrous metals like zinc, aluminum, magnesium.
Advantages:
- High accuracy, surface finish, and production rate.
Limitations:
- High setup cost.
- Limited to low-melting-point metals.
Detailed Explanation
Die casting is a process where molten metal is forced into a rigid mold under high pressure, enabling the production of detailed shapes with high precision and smooth surfaces. The resolution is excellent, making it suitable for high-volume production. However, the initial cost of setting up the die is significant, and it is only feasible for metals that melt at lower temperatures.
Examples & Analogies
Consider using a syringe to inject juice into a popsicle mold. You apply pressure to get the liquid into the mold quickly and precisely. When the juice freezes (solidifies), you have a well-formed popsicle. Similarly, in die casting, using pressure creates highly detailed and accurate metal components.
Investment Casting (Lost-wax Casting)
Chapter 4 of 4
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
c) Investment Casting (Lost-wax casting)
Process: A wax model is coated with ceramic material. After the wax is melted and removed, molten metal is poured into the ceramic mold.
Materials: Metals like stainless steel, aluminum, and tool steels.
Advantages:
- Excellent surface finish and complex shapes.
- High dimensional accuracy.
Limitations:
- Higher cost due to the process and tooling.
Detailed Explanation
Investment casting involves creating a detailed wax model, coating it with a ceramic material, and then melting away the wax to leave a precise mold. This technique is known for producing intricate shapes and high-quality finishes but comes with higher costs due to the intensive process and materials used.
Examples & Analogies
Think of investment casting like creating a beautiful piece of jewelry using a wax model. You carefully carve and shape the wax, then cover it in a material that hardens. When you remove the wax, youβre left with a detailed mold, ready for pouring in molten metal (like gold), resulting in a refined jewelry piece.
Key Concepts
-
Sand Casting: A low-cost method for creating complex shapes, using sand molds.
-
Die Casting: A precision casting process that injects molten metal under pressure into steel molds, primarily for non-ferrous metals.
-
Investment Casting: A method that uses a wax pattern that is replaced by metal, allowing for excellent finish and accuracy.
Examples & Applications
Sand casting is commonly used to create engine blocks and pump housings, particularly for its adaptability to complex shapes.
Die casting is often used for high-volume production of consumer goods like automotive parts due to its speed and precision.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Casting creates shapes, from large to fine, molten metal flows, in molds it will shine.
Stories
Once, a craftsman named Sam poured molten bronze into a mold to create a unique statue. This statue, made through casting, became famous for its complex features, symbolizing both artistry and engineering.
Memory Tools
Remember 'SAND' for Sand Casting: Simple, Affordable, Noteworthy Designs.
Acronyms
For Die Casting, think 'DIE' - which stands for Detailed Injection Engineered.
Flash Cards
Glossary
- Casting
The process of pouring molten metal into a mold to create specific shapes.
- Sand Casting
A casting process that uses sand molds formed around patterns for producing metal shapes.
- Die Casting
A method where molten metal is injected into steel molds under pressure for precision and high-speed production.
- Investment Casting
A process using a wax model that is coated, melted away, and replaced with metal in a mold for high accuracy.
