Basics of Pressure Vessels
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Today, we're going to learn about pressure vessels, which are containers that hold gases or liquids under pressure. Can anyone give me examples of where we might find pressure vessels?
Boilers and gas cylinders!
What about hydraulic tanks?
Exactly! Boilers, gas cylinders, and hydraulic tanks are all crucial applications. The design of these vessels is essential to maintain structural integrity under different pressure and temperature conditions. Remember, a key factor is that these pressures are often very different from the surrounding atmosphere.
Thin-Walled vs. Thick-Walled Cylinders
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Now let's dive into thin-walled cylinders. When do we consider a cylinder to be thin-walled?
When the wall thickness is much less than the radius?
Exactly! In such cases, the stress can be calculated with simpler formulas. Can anyone state what the hoop stress formula is?
It's \(\sigma_h = \frac{pr}{t}\)!
Great! And how about thick-walled cylinders, where the wall thickness is not negligible?
We need to use Lame's Equations!
Correct! The stress distribution becomes non-uniform, and we calculate radial and hoop stresses differently.
Spherical Shells and Their Applications
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
Letβs explore spherical shells. Why do you think they are used in certain applications?
Because they can withstand pressure uniformly in all directions?
Exactly! This uniformity makes them popular for storing gases. In fact, whatβs the hoop stress formula for a thin spherical shell?
It's \(\sigma = \frac{pr}{2t}\)!
Right! Now, letβs see how this all ties into high-temperature applications like boilers where both mechanical and thermal stresses are critical.
Thermal Stress and Boiler Applications
Unlock Audio Lesson
Signup and Enroll to the course for listening the Audio Lesson
In boilers, we have to consider thermal expansion. Can anyone tell me the formula for calculating thermal stress?
Itβs \(\sigma_{thermal} = E \alpha \Delta T\)!
Excellent! The total stress in a boiler is the combination of mechanical and thermal stress. Why is it important to consider both?
Because high temperatures can weaken materials, and we need to ensure safety!
Exactly! That's an important consideration for designing safe and efficient pressure vessels.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
This section covers the fundamental concepts of pressure vessels, including their definitions, types such as thin-walled and thick-walled cylinders, and their applications in systems like boilers and gas storage. It highlights the importance of stress analysis and material selection based on operating conditions.
Detailed

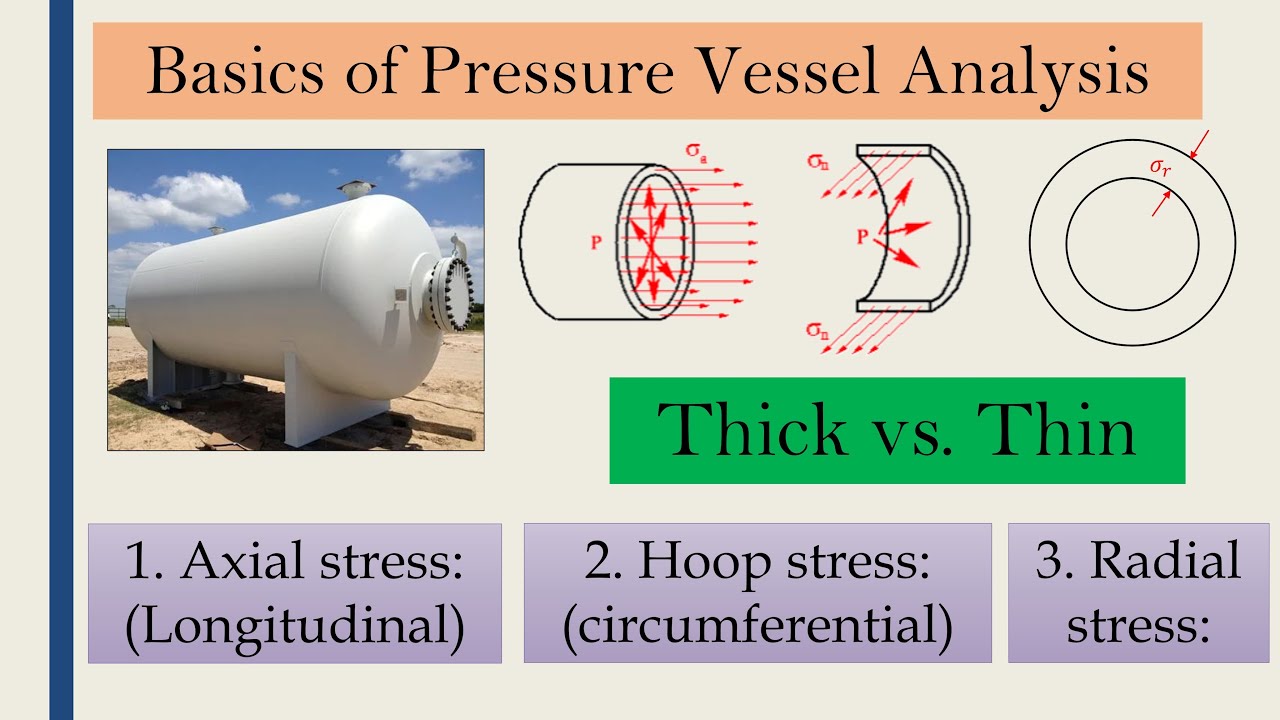

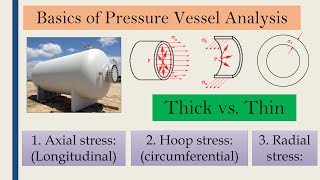

Introduction to Pressure Vessels
Pressure vessels are integral structures designed to safely contain gases or liquids at pressures significantly different from the surrounding environment. Examples include boilers, gas cylinders, and hydraulic tanks. Their design prioritizes structural integrity, particularly under varying internal pressure and temperature conditions. This section introduces various types of pressure vessels:

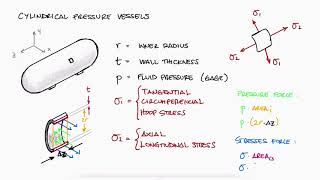

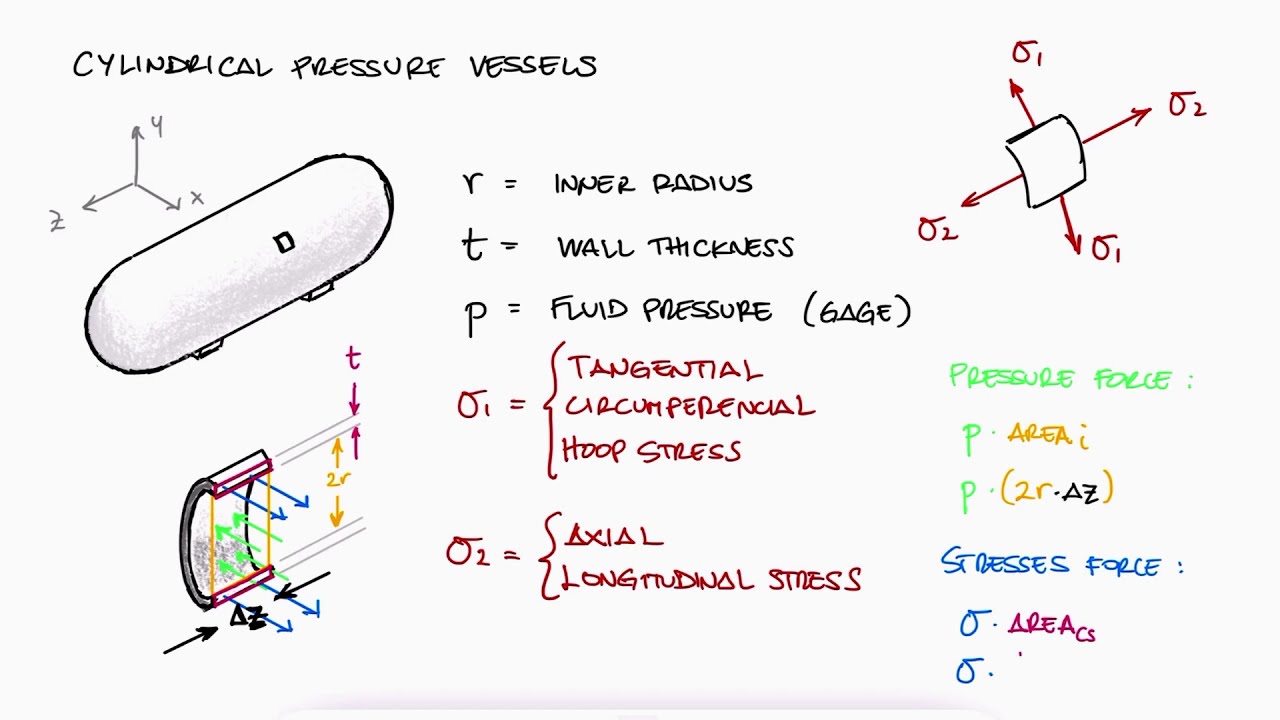

Thin-Walled Cylinders
For thin-walled cylinders, where wall thickness is much smaller than radius (tβͺr), stress can be calculated using simplified equations:
- Hoop Stress (Circumferential): \(\sigma_h = \frac{pr}{t}\)
- Axial Stress (Longitudinal): \(\sigma_a = \frac{pr}{2t}\)
These stresses are uniformly distributed and perpendicular to each other, forming the foundation for understanding pressure vessel resilience.
Thick-Walled Cylinders
In thick-walled cylinders (where \(t \geq \frac{r}{10}\)), stress variations need to be analyzed using Lame's Equations:
- Radial Stress: \(\sigma_r = A - \frac{B}{r^2}\)
- Hoop Stress: \(\sigma_h = A + \frac{B}{r^2}\)
The non-uniform stress distribution is crucial for safety assessments, particularly as maximum stresses occur at the inner radius.

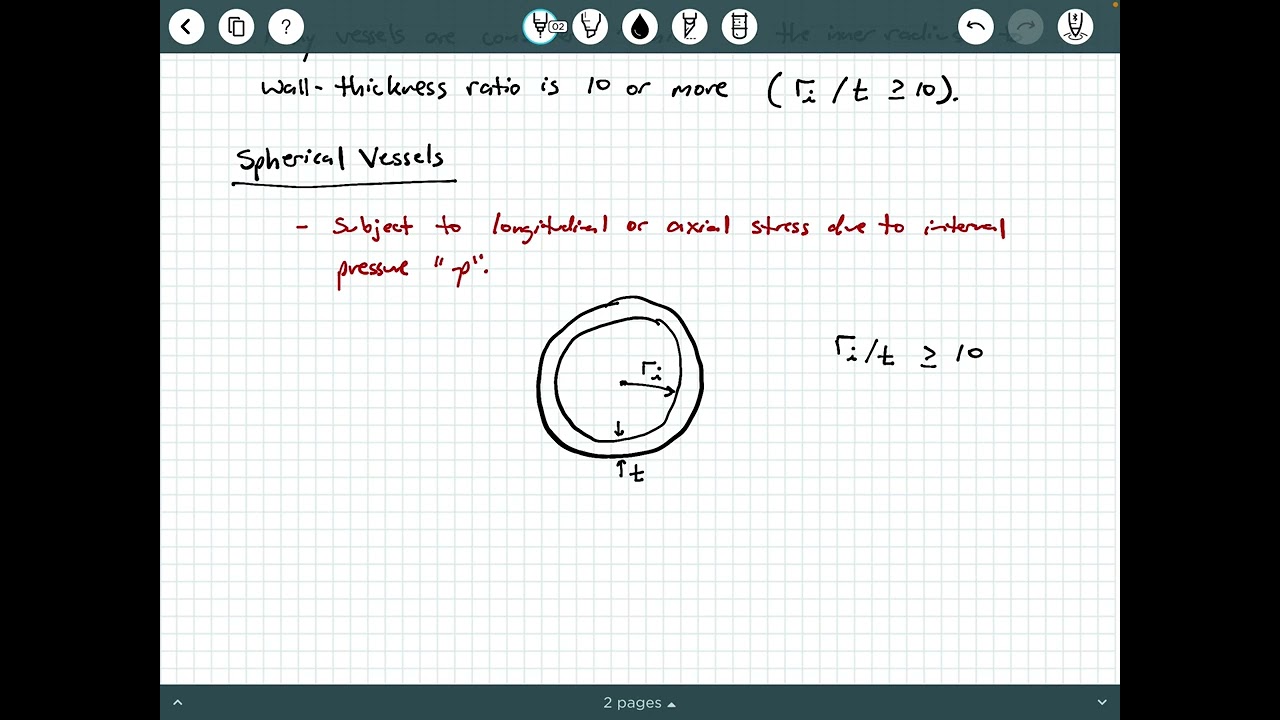

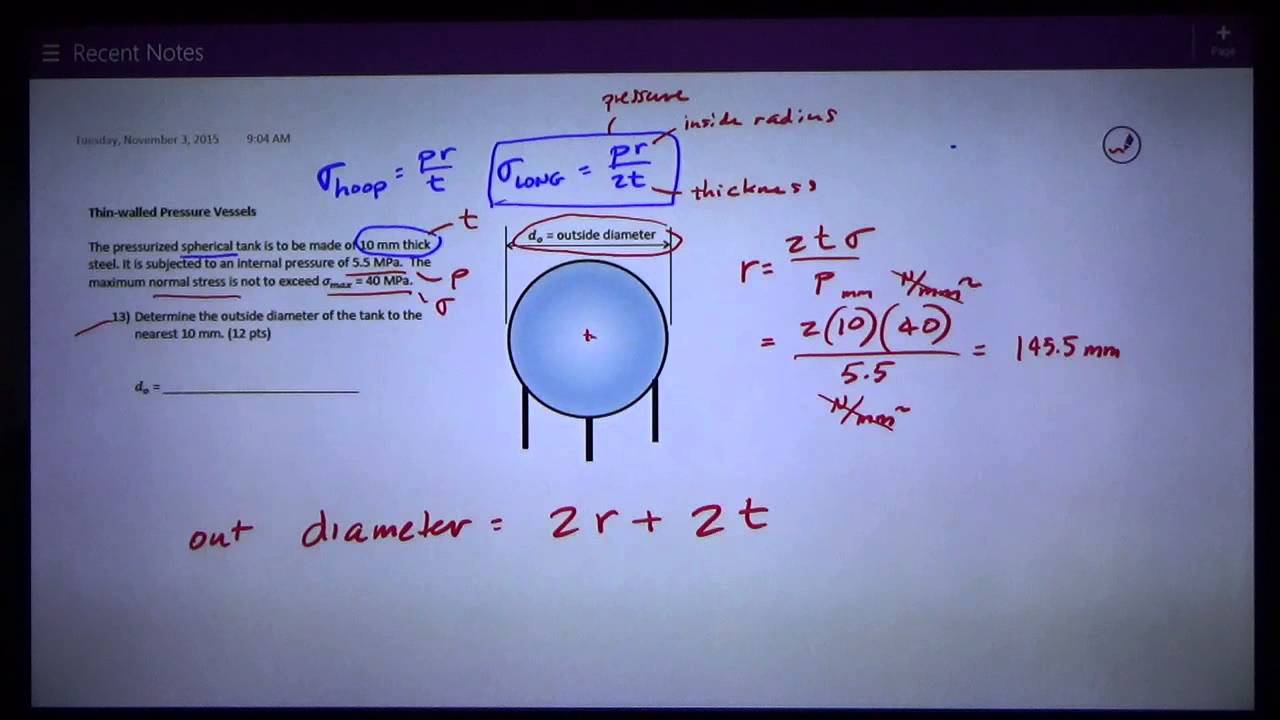

Spherical Shells
Spherical pressure vessels provide uniform strength in all directions. For thin shells, hoop stress is:
- \(\sigma = \frac{pr}{2t}\)
Combined Thermo-Mechanical Stress
In high-temperature applications like boilers, thermal stresses are also significant and calculated as:
- Thermal Stress: \(\sigma_{thermal} = E \alpha \Delta T\)
Applications: Boilers
Boilers exemplify the complex interplay of internal pressure and temperature, necessitating careful material selection and adherence to design codes like the ASME Boiler & Pressure Vessel Code, which set forth standards to ensure safety in pressure vessel design.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Definition of Pressure Vessels
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Pressure vessels are containers designed to hold gases or liquids under pressure significantly different from ambient conditions.
Detailed Explanation
A pressure vessel is a special type of container that can safely hold liquids or gases that are under higher pressure than the surrounding atmosphere. This βpressureβ means that the liquids or gases are stored at a pressure that varies from normal atmospheric conditions. This is crucial because the materials and design of the vessel must accommodate the internal pressure to prevent any leakage or potential explosion.
Examples & Analogies
Think of a soda can. The carbonation inside the can creates pressure that keeps the soda fizzy. If the can is punctured, the pressure is released quickly, resulting in soda spraying out. In a similar way, pressure vessels are designed to hold in the pressure safely.
Common Examples of Pressure Vessels
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Common examples include boilers, gas cylinders, and hydraulic tanks.
Detailed Explanation
Pressure vessels come in many forms, with some of the most common being boilers (which produce hot water or steam), gas cylinders (for storing gases like oxygen or propane), and hydraulic tanks (used in machinery to store hydraulic fluids). Each of these examples is built to manage the pressures they encounter in service while maintaining safety for users.
Examples & Analogies
Consider a gas cylinder used for cooking. It holds propane gas under high pressure, and when you open the valve, it allows controlled release of the gas for the stove. Just like a car tire is designed to safely hold and control air pressure, so too are pressure vessels designed to manage and contain gases and liquids safely.
Design Requirements
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The design must ensure structural integrity under internal pressure and temperature variations.
Detailed Explanation
Designing pressure vessels involves careful calculations and considerations to ensure that the vessel can withstand not only the internal pressure exerted by the contents but also any changes in temperature that might affect the material and pressure. Engineers must account for these variables to prevent failure, ensuring that the materials used are strong and durable under such conditions.
Examples & Analogies
Imagine making a balloon animal. If you blow too much air into the balloon, it might pop due to the pressure and the material stretching too much. Similarly, when engineers design pressure vessels, they ensure that they are made from materials that will not 'pop' or fail under the internal pressures and varying temperatures they experience.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Pressure Vessel: A container for holding gases or liquids under pressure.
-
Hoop Stress: Stress due to internal pressure acting circumferentially.
-
Axial Stress: Stress acting along the length of the cylinder.
-
Thin-Walled Cylinder: A cylinder where wall thickness is negligible compared to the radius.
-
Thick-Walled Cylinder: A cylinder where wall thickness is significant relative to the radius.
-
Lameβs Equations: Formulas used for calculating stresses in thick-walled cylinders.
-
Spherical Shell: A pressure vessel that is spherical in shape, offering uniform strength.
-
Thermal Stress: Stress induced by temperature changes and expansion.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A gas cylinder is a classic example of a pressure vessel that holds gas under pressure.
-
A boiler operates under high pressure and temperature conditions, requiring detailed stress analysis.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
π΅ Rhymes Time
-
Pressure vessels strong and round, containing fluids all around.
π Fascinating Stories
-
Imagine a gas cylinder sitting on a shelf. It holds gas tightly inside, even under pressure, ensuring safety like a superhero's shield.
π§ Other Memory Gems
-
To remember thermal stress: EAT (E, Ξ±, T) - Energy, Coefficient of thermal expansion, Temperature difference.
π― Super Acronyms
THICK for thick-walled
- Tension
- Hydraulics
- Internal
- Cylinder
- Keep (pressure).
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Pressure Vessel
Definition:
A container designed to hold gases or liquids under pressure significantly different from ambient conditions.
-
Term: Hoop Stress
Definition:
The circumferential stress experienced by a thin-walled cylinder due to internal pressure.
-
Term: Axial Stress
Definition:
The longitudinal stress experienced along the axis of a cylinder due to internal pressure.
-
Term: Lameβs Equations
Definition:
Equations used to determine stress distributions in thick-walled cylinders.
-
Term: Thermal Stress
Definition:
Stress developed due to thermal expansion and temperature differences within a material.
-
Term: Boiler
Definition:
A pressure vessel that heats liquids or gases, usually steam, for various applications.
