Today, we will explore positive displacement compressors. Can anyone tell me what this type of compressor does?
It compresses a fixed volume of refrigerant, right?
Exactly! The key feature of positive displacement compressors is that they trap a specific quantity of refrigerant vapor and then compress it. What are some examples of types within this category?
There are reciprocating compressors and rotary compressors.
Great job! Let's dive deeper into reciprocating compressors. Who can explain how they work?
They use a piston-cylinder mechanism to compress the vapor?
Correct! Reciprocating compressors can have hermetic or open-drive types. What applications might we see this type used in?
Domestic refrigerators and small commercial applications!
Exactly! To help remember these applications, think of 'R for Refrigerators.' Let's summarize: Positive displacement compressors compress a fixed volume, are effective for different loads, and include reciprocating and rotary types.
Dynamic Compressors
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's shift our focus to dynamic compressors. Can anyone recall what makes them different from positive displacement compressors?
They increase pressure by accelerating the refrigerant instead of just compressing a fixed volume!
Right! Dynamic compressors use energy from velocity, enabling us to categorize them further into centrifugal and axial compressors. What operations involve centrifugal compressors?
They're typically used in large-scale HVAC systems, right?
Exactly! They have a high capacity and operate quietly, which is a significant advantage. How about the applications for axial compressors?
They're less common in refrigeration, mostly found in jet engines due to their high flow and low-pressure ratios.
Well done! To summarize, dynamic compressors utilize high velocity for pressure increase and include centrifugal and axial types. Remember, 'D for Dynamic means speedy!'
Comparison and Applications of Compressors
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
We have learned about both compressor types. Can someone summarize the key differences in applications between them?
Positive displacement is for varied load situations, while dynamic ones are better for steady, high-capacity applications.
That's an excellent observation! For example, home air conditioning systems often employ rotary compressors, which are compact and efficient. Can anyone give another example?
Centrifugal compressors are used in large chiller plants.
Perfect! Let's recap: Positive displacement compressors excel in fluctuating load capacity; dynamic compressors dominate in high-flow, constant-load applications.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The compressors in refrigeration systems play a key role by raising the pressure and temperature of the refrigerant vapor. They are classified into positive displacement and dynamic compressors, each with various types, applications, advantages, and limitations, tailored for different refrigeration needs.
Detailed
Compressors in Refrigeration Systems
Compressors are essential components in refrigeration systems, responsible for compressing refrigerant vapor to elevate its pressure and temperature before it moves into the condenser for heat rejection. This section covers the two main types of compressors: Positive Displacement Compressors and Dynamic Compressors, including subtypes such as reciprocating, rotary, centrifugal, and axial compressors. Understanding these compressors is crucial for their effective application in residential and commercial systems.
Key Points:
- Positive Displacement Compressors:
- Compress a fixed volume of refrigerant.
-
Includes:
- Reciprocating Compressors: Effective for varied loads; types include hermetic and open-drive.
- Rotary Compressors: Smoother operation, suited for constant loads; includes scroll and screw types.
- Dynamic Compressors:
- Increase pressure by converting velocity energy to pressure.
- Includes:
- Centrifugal Compressors: Suitable for large-scale applications with quieter operations.
- Axial Compressors: Rare in refrigeration but used in high-flow applications.
In summary, a compressor's selection will significantly impact the efficiency and effectiveness of the refrigeration system.

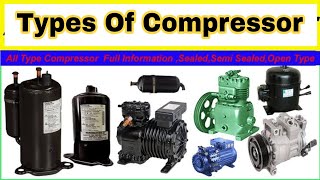

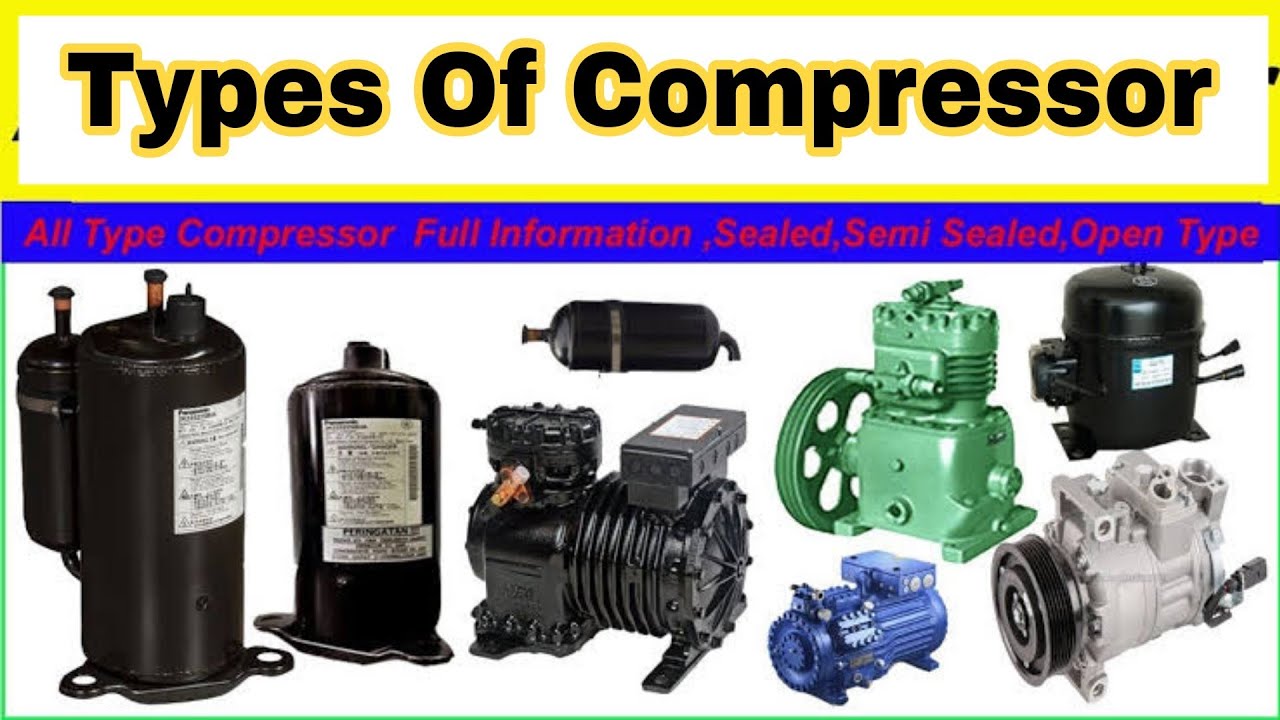

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Compressors
Chapter 1 of 7
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Compressors raise the pressure and temperature of the refrigerant vapor, enabling heat rejection in the condenser.
Detailed Explanation
Compressors are a critical component in refrigeration systems. Their primary function is to increase the pressure and temperature of the refrigerant vapor. This increase is necessary because it allows the refrigerant to effectively release heat in the condenser, which is a separate part of the system. By raising the vapor's pressure and temperature, the compressor prepares the refrigerant for the next stage in the cooling process.
Examples & Analogies
Think of a compressor like a bicycle pump. When you push down the pump, you compress the air into the tire, raising its pressure. Similarly, the compressor compresses the refrigerant, allowing it to do its job in cooling and heat management.
Positive Displacement Compressors
Chapter 2 of 7
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
A. Positive Displacement Compressors
These trap a fixed quantity of refrigerant vapor and compress it by decreasing the volume.
Detailed Explanation
Positive displacement compressors work by trapping a specific amount of refrigerant vapor in a chamber and then reducing the volume of that chamber. This action increases the pressure of the trapped vapor, which is essential for the refrigeration cycle. There are two main types: reciprocating and rotary compressors, each with their unique mechanisms and applications.
Examples & Analogies
Consider a syringe as an analogy for positive displacement compressors. As you push down the plunger, you reduce the volume of the space holding the liquid inside, which increases the liquid's pressure. In the same way, positive displacement compressors decrease the volume of the refrigerant vapor to raise its pressure.
Reciprocating Compressors
Chapter 3 of 7
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
i. Reciprocating Compressors
Operation: Use a piston-cylinder mechanism, with the piston moving back and forth to compress vapor.
Types: Hermetic (sealed) and open-drive.
Applications: Domestic refrigerators, small commercial applications.
Advantages: High pressure ratios, robust operation at varying loads.
Limitations: More moving parts mean higher maintenance, moderate capacities.
Detailed Explanation
Reciprocating compressors utilize a piston that moves within a cylinder, compressing the refrigerant vapor as it travels back and forth. They come in two main types: hermetic, which are sealed units, and open-drive, which have a drive mechanism outside the compressor housing. These compressors are commonly used in domestic refrigerators and small commercial settings due to their ability to maintain high pressure ratios. However, they have more moving parts, which can lead to higher maintenance needs and moderate capacity limits compared to other types.
Examples & Analogies
Imagine a bicycle pump again, where the piston moves up and down inside the pump cylinder. Every time you pump, you're compressing air, just like a reciprocating compressor compresses refrigerant in its cylinder.
Rotary Compressors
Chapter 4 of 7
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
ii. Rotary Compressors
Operation: Use rotating elements (such as vanes, scrolls, helical screws, or rolling pistons) to compress refrigerant.
Types: Scroll, screw, rotary vane, and rolling piston compressors.
Applications: Household air conditioners (scroll, rotary vane), large commercial and industrial systems (screw).
Advantages: Compact, smoother operation, fewer moving parts than reciprocating types, better suited for continuous load.
Detailed Explanation
Rotary compressors operate by utilizing rotating elements to compress the refrigerant. Various designs include scrolls, screws, and rolling pistons. They are known for being more compact than reciprocating compressors and offering smoother operation with fewer moving parts, which translates to lower maintenance and better efficiency for continuous load applications. They are widely used in household air conditioners and larger commercial and industrial systems.
Examples & Analogies
Think of a rotary compressor like a hamster wheel. As the hamster runs, it continuously rotates, producing movement. Similarly, the rotating parts of a rotary compressor move continuously to compress the refrigerant, making it efficient for prolonged operation.
Dynamic Compressors
Chapter 5 of 7
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
B. Dynamic Compressors
These increase refrigerant pressure by accelerating it to high velocity and converting velocity energy into pressure.
Detailed Explanation
Dynamic compressors function differently from positive displacement ones. They achieve pressure increase by accelerating the refrigerant to a high velocity and then converting that kinetic energy into pressure. This type of compressor includes centrifugal and axial compressors, which are typically used for very high flow rates and are commonly found in large HVAC systems.
Examples & Analogies
Imagine a garden hose with a nozzle. When you quickly squeeze the nozzle, the water shoots out at high speed. As the water accelerates, it builds pressure in the hose before it exits. Dynamic compressors work similarly, converting velocity into pressure.
Centrifugal Compressors
Chapter 6 of 7
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
i. Centrifugal Compressors
Operation: An impeller spins refrigerant outward, increasing velocity; volute or diffuser transforms this velocity into pressure.
Applications: Large-scale HVAC, chiller plants, industrial cooling.
Advantages: High capacity, quiet operation, fewer reciprocating parts.
Limitations: Less effective at low capacities, sensitive to performance drop-off at low loads.
Detailed Explanation
Centrifugal compressors utilize an impeller that spins and throws the refrigerant outward, which increases its velocity. The high-speed vapor then enters a volute or diffuser that converts this kinetic energy into increased pressure. These compressors are suitable for large cooling applications like HVAC systems and chiller plants, earning praise for their high capacity and quieter operation. However, they may struggle to operate efficiently at low capacities.
Examples & Analogies
You can liken this to a merry-go-round. As it spins faster, the children on it feel pushed outward, akin to how the impeller in the centrifugal compressor pushes the refrigerant outward to increase its velocity and pressure.
Axial Compressors
Chapter 7 of 7
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
ii. Axial Compressors
Operation: Multiple rows of rotating and stationary blades accelerate and compress the refrigerant along the axis.
Applications: Rare in refrigeration, primarily used in jet engines and gas turbines due to high flow, low-pressure ratio characteristics.
Detailed Explanation
Axial compressors consist of several rotating and stationary blades that work together to accelerate and compress the refrigerant in a linear fashion along the axis of the compressor. They are less common in refrigeration systems but found more frequently in applications like jet engines and gas turbines, where they handle large volumes of air at lower pressure ratios effectively.
Examples & Analogies
Consider a wind turbine. As the wind blows through, it pushes the blades, generating forward motion. In an axial compressor, the refrigerant is similarly pushed through the blades, gaining speed and pressure as it moves along the axis.
Key Concepts
-
Compressors elevate the refrigerant's pressure and temperature, facilitating effective heat rejection.
-
Positive displacement compressors include reciprocating and rotary types, tailored for equipment ranging from domestic refrigerators to larger systems.
-
Dynamic compressors such as centrifugal and axial types, are primarily used in high-capacity applications.
Examples & Applications
A reciprocating compressor is commonly found in home refrigerators, effectively managing varying load demands.
Centrifugal compressors are often utilized in industrial cooling applications due to their high efficiency in steady-state operations.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
Compress to impress, whether big or small, use the right type, youβll win overall!
Stories
Imagine a race between a rotary and a reciprocating compressor. The rotary glides smoothly on the track, while the reciprocating struggles, fixing its pistons. In the end, the rotary wins for consistent speed!
Memory Tools
Remember RD for Rotary Dynamic when you think speed, RP for Reciprocating Pressure when you need adaptability.
Acronyms
CPR
Compressors for Pressure Raising in refrigerants!
Flash Cards
Glossary
- Compressor
A mechanical device that raises the pressure and temperature of refrigerant vapor.
- Positive Displacement Compressors
Compressors that trap a fixed amount of refrigerant and compress it by reducing volume.
- Dynamic Compressors
Compressors that increase refrigerant pressure by converting high velocity into pressure.
- Reciprocating Compressors
Compressors using piston-cylinder mechanisms for vapor compression.
- Rotary Compressors
Compressors that employ rotating elements to compress refrigerant.
- Centrifugal Compressors
Compressors using impellers to increase refrigerant velocity and convert it to pressure.
- Axial Compressors
Compressors that use rows of rotating blades to compress refrigerant.
