Introduction to Local Volumetric Strain
Unlock Audio Lesson
Today, we will explore the concept of local volumetric strain. Can anyone tell me what happens to a body when it’s deformed?
It changes shape, right? But how does the volume get affected?
Exactly! As a body deforms, its volume changes. We define local volumetric strain as the change in volume per unit original volume at a specific point.
So, it’s like comparing the new volume to the old one?
Yes, you got it! We can use the formula B5 = (v - V) / V, where 'v' represents the deformed volume, and 'V' is the original volume.
Can this strain be different in various parts of the body?
Good question! Yes, local volumetric strain varies across different locations depending on how much each part has deformed.
To summarize, local volumetric strain is essential for understanding material deformation, with the formula helping to quantify this change.
Mathematical Representation of Volumetric Strain
Unlock Audio Lesson
Now that we understand what volumetric strain is, let’s discuss how we represent it mathematically.
How is the deformation related to the mathematical expressions?
Great question! The scalar triple product of the vectors forming the volume provides a way to determine the volume in both original and deformed states. Can someone remind me what a scalar triple product is?
It involves three vectors and gives us a scalar that corresponds to the volume of the parallelepiped they form!
Exactly! To derive the volumetric strain, we can use the determinant of a matrix constructed from the displacement gradient components.
Does that mean we can neglect higher-order terms in the gradient?
Yes, since we are often dealing with small displacements, those higher-order terms can be ignored.
Importance of Volumetric Strain in Solid Mechanics
Unlock Audio Lesson
To wrap up, let’s talk about why local volumetric strain is significant in solid mechanics.
I believe it helps in understanding how materials behave under different loads?
Exactly! Knowing the volumetric strain allows engineers to predict how materials will perform and where they might fail.
Can it be applied to different materials, though?
Yes, it applies to all deformable materials and is essential for various fields, including engineering and physics.
Let's summarize: local volumetric strain captures changes in volume during deformation, which is critical for material analysis.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Local volumetric strain describes how the volume of a small region in a deformed body changes relative to its original volume, defined mathematically using the scalar triple product. This section also explores the formula for volumetric strain using displacement gradients.
Detailed
Local Volumetric Strain
In deformable solid mechanics, local volumetric strain quantifies the change in volume of a small region (local volume element) of a body subjected to deformation. Defined at a specific point in the material, this measure is significant as the volume change varies across different parts of the body.
Local volumetric strain, typically denoted as B5, can be expressed using the formula:
\[ B5 = \frac{v - V}{V} \]
where \(v\) is the deformed volume and \(V\) is the original volume of the point of interest.
As a crucial aspect of continuum mechanics, volumetric strain is independent of the choice of line elements at a point, making it unique to that point. The calculation employs the scalar triple product, allowing the transition from the original volume to the deformed configuration by involving the displacement gradient and its determinant, which informs us how the body corporally behaves under stress.

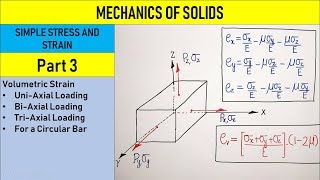

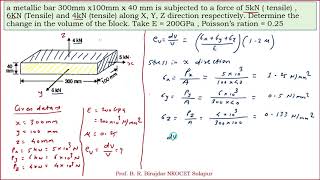

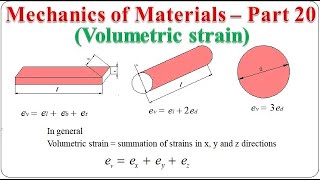

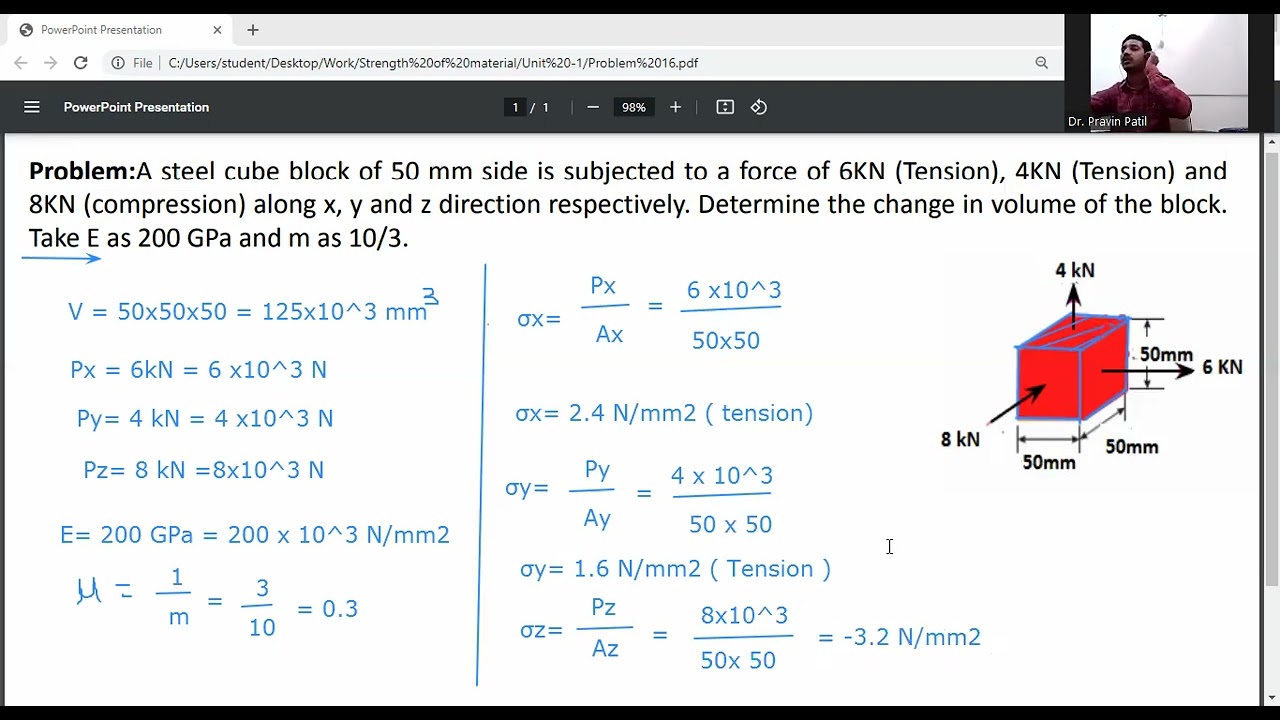

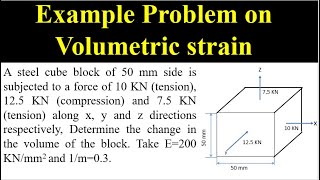

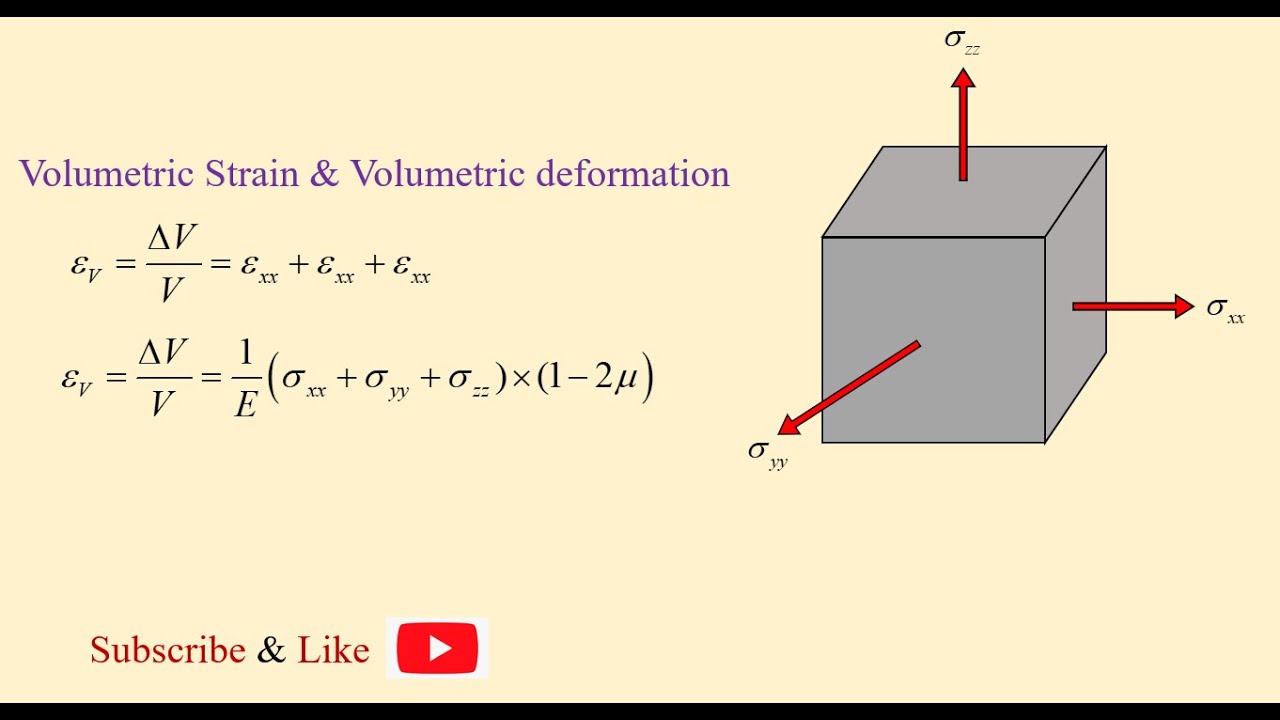

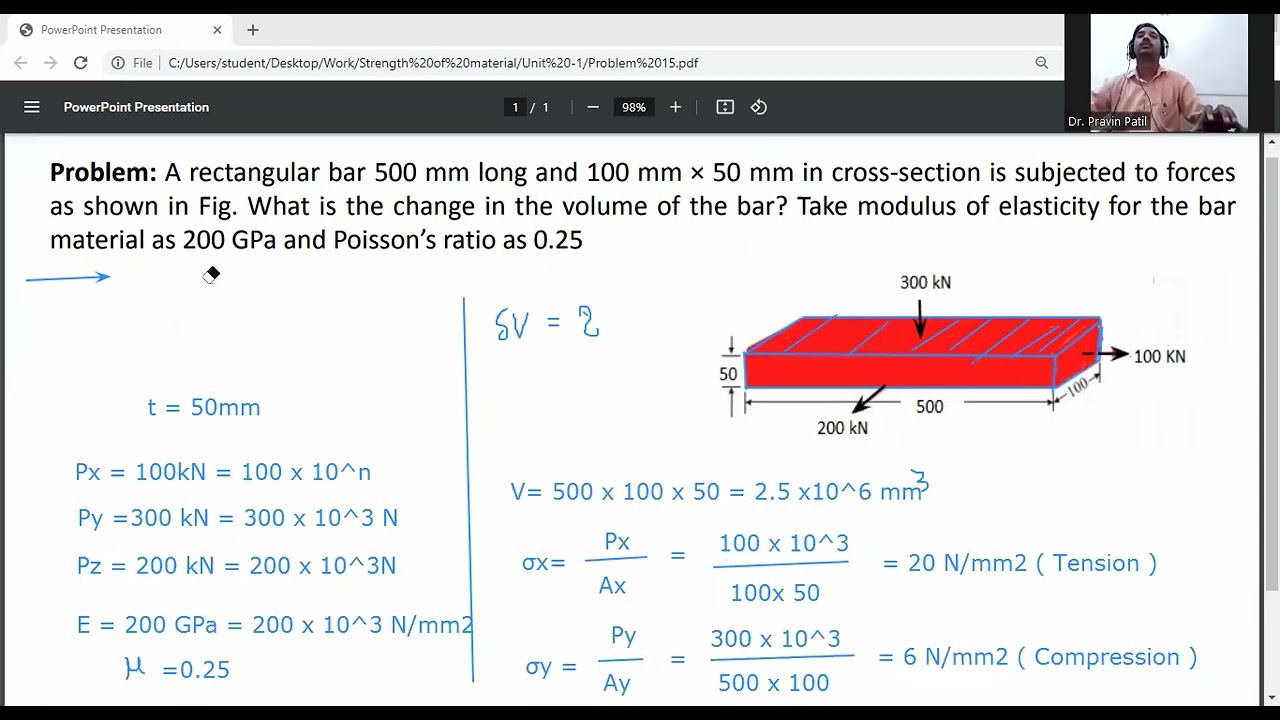

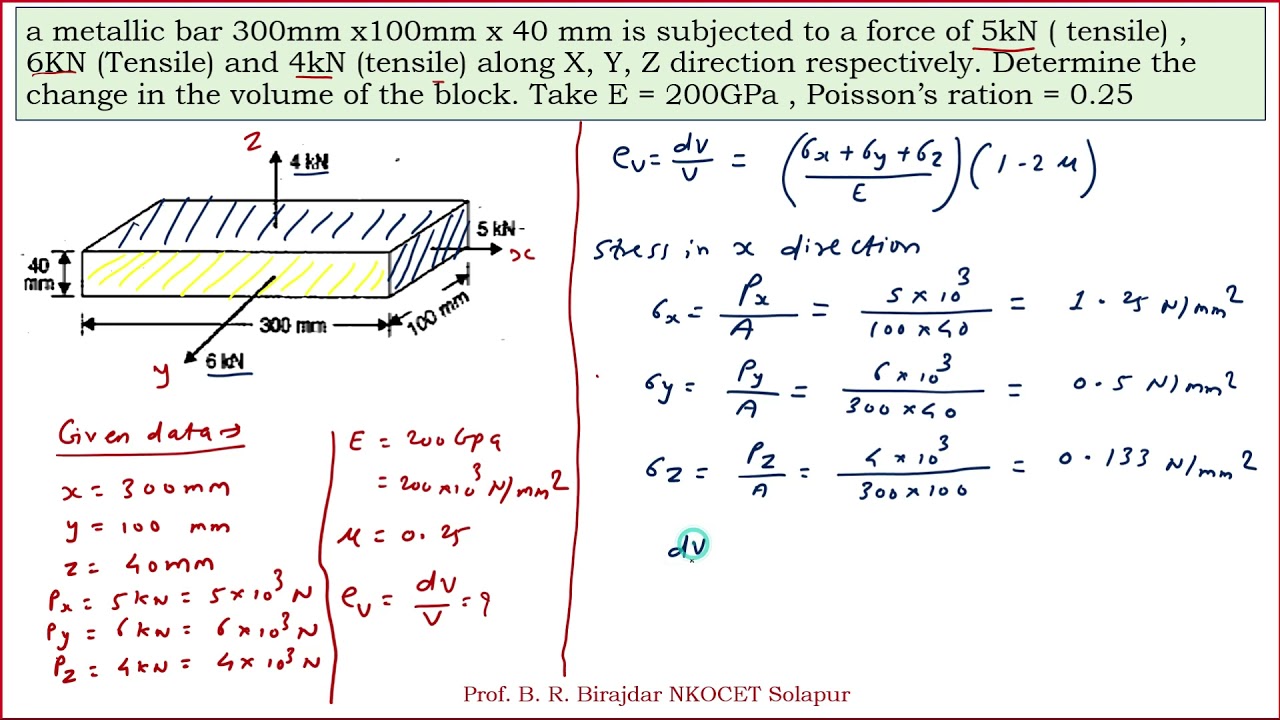

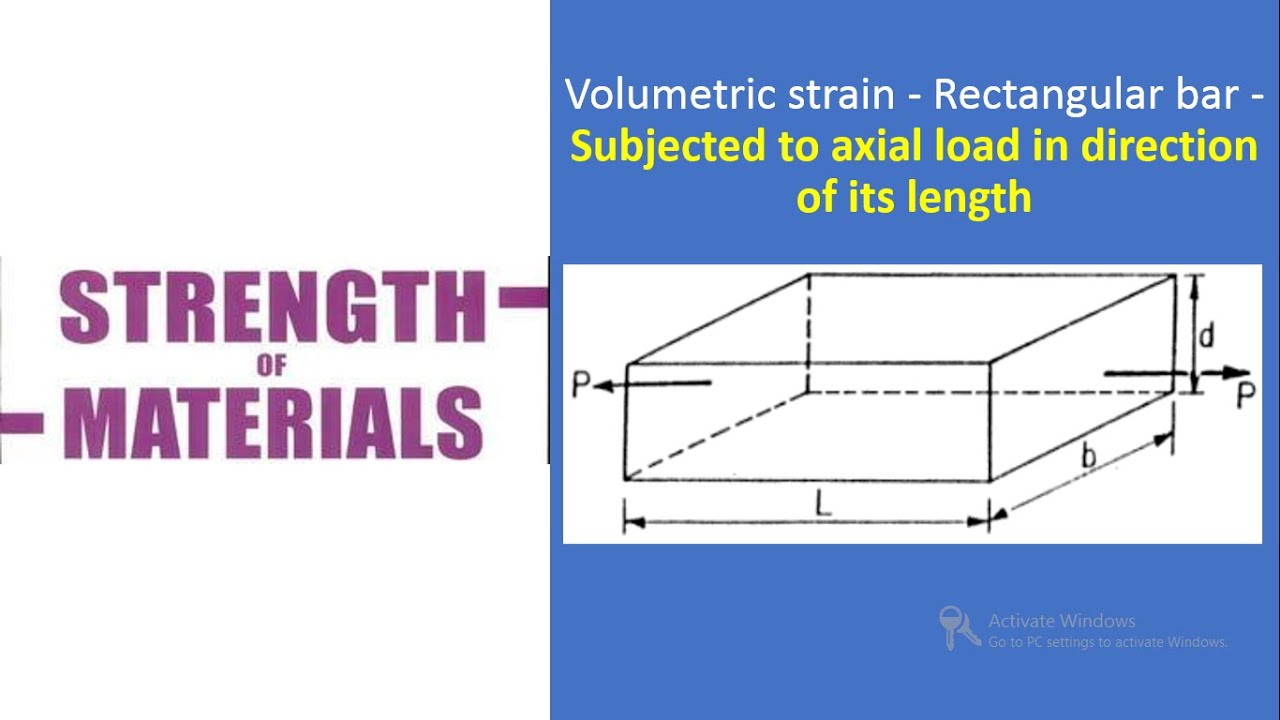

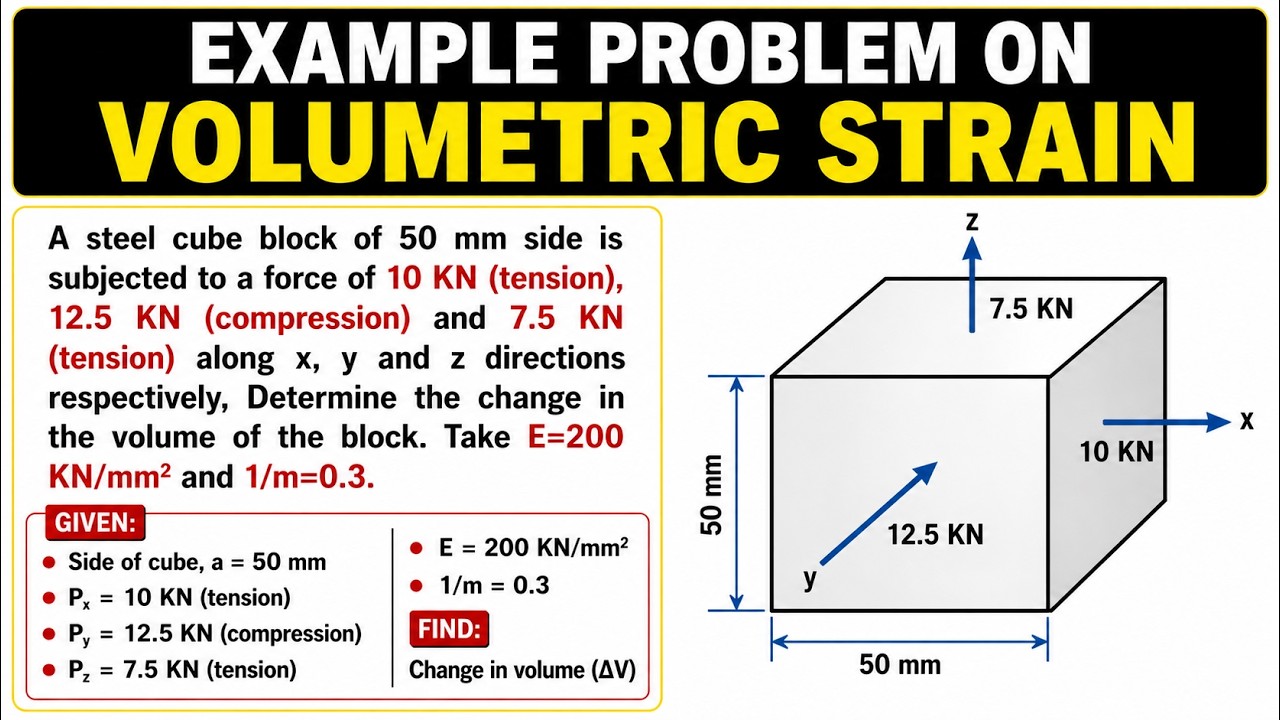

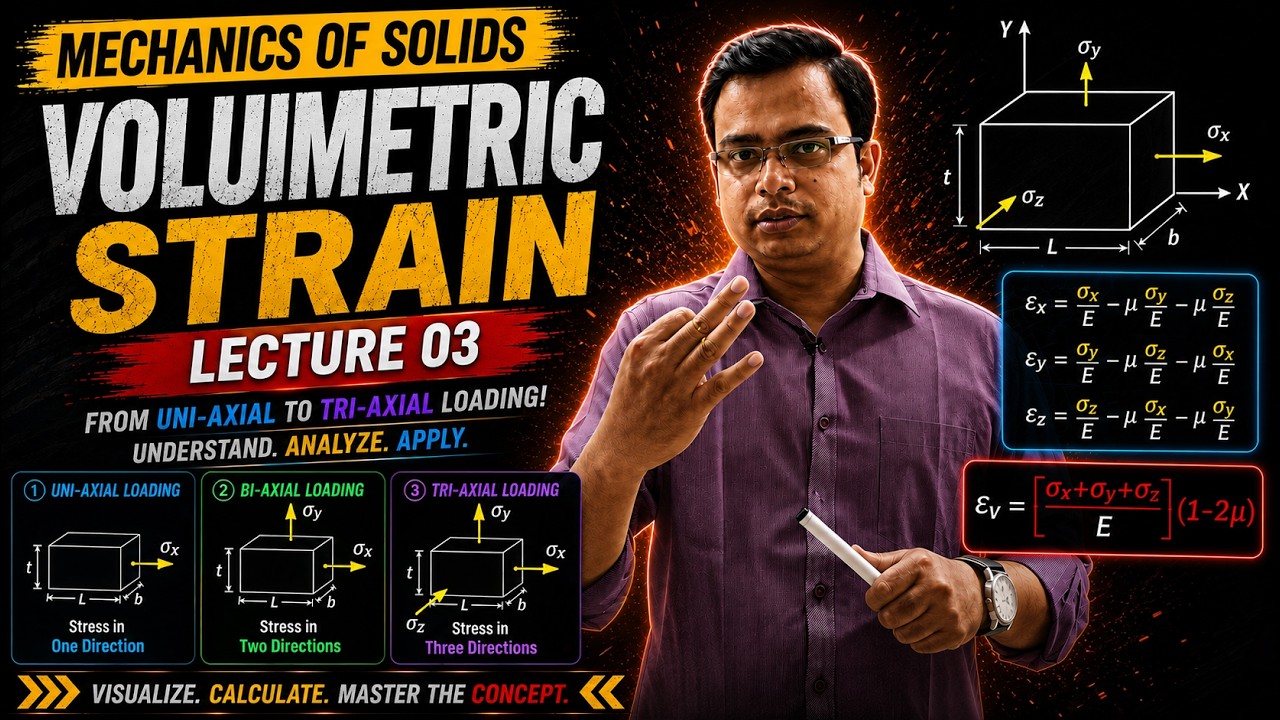

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Local Volumetric Strain
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We consider a body being deformed as shown in Figure 1. As the body deforms, the volume of every small region (called local volume element) of the body also changes. We can therefore define a quantity called local volumetric strain because the change in volume per unit volume will be different for different parts in the body.
Detailed Explanation
This chunk introduces the concept of local volumetric strain. It explains that when a solid body undergoes deformation, tiny regions within it experience changes in volume. This leads us to define local volumetric strain, a measure of how much the volume of these small regions changes relative to their original volume. It's important to realize that this change varies across different parts of the body due to uneven deformation.
Examples & Analogies
Imagine a sponge being squeezed. Different parts of the sponge compress at different rates. The local volumetric strain can be thought of as measuring how much each small piece of the sponge's volume decreases when you apply pressure. Just like how each section of the sponge reacts differently based on where you apply the force.
Defining the Parallelopiped
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Let us think of three line elements ∆X, ∆Y, and ∆Z forming a parallelopiped at the point of interest X in the reference configuration as shown in Figure 1. We should keep in mind that the sides of the parallelopiped are very small so that the parallelopiped lies in a tiny region near X.
Detailed Explanation
Here, we introduce a geometrical representation to help visualize local volumetric strain. A parallelopiped is defined by three line segments (∆X, ∆Y, ∆Z) originating from a point of interest. The sizes of these segments are extremely small, ensuring that we can accurately analyze the deformation of this local region without being affected by larger, possibly varying stresses in the body. This local view is essential for understanding how volumetric strain varies at different points in the body.
Examples & Analogies
Think of a small block of jelly on a plate. If you push down on the jelly at one corner, only that part of the jelly experiences deformation. By examining the tiny block (or parallelopiped) of jelly where you applied the pressure, you can see how much it squished down compared to its original shape.
Calculating Volume in Reference and Deformed Configurations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Asthevolumeofaparallelopiped is given by scalar triple product of vectors forming its sides, the volume of the parallelopiped in the reference configuration (denoted by V) will be V = ∆X·(∆Y×∆Z). The volume of the parallelopiped in the deformed configuration (denoted by v) will be v = ∆x·(∆y×∆z).
Detailed Explanation
We derive a mathematical expression for the volume of the parallelopiped: in its original state, it's calculated using the scalar triple product (V = ∆X·(∆Y×∆Z)). Similarly, after deformation, the new volume is given by another scalar triple product involving the deformed elements (v = ∆x·(∆y×∆z)). These formulas are essential for quantifying how much the volume changes due to deformation.
Examples & Analogies
Consider a box filled with air. When you squeeze the sides of the box, it becomes smaller (v). Before being squeezed, it had a larger volume (V). The difference in these volumes represents how much the box can condense under pressure, just like we are analyzing how a small volume element behaves under deformation.
Definition of Volumetric Strain
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The volumetric strain (denoted by ϵ) is defined as the change in volume per unit volume, particularly relating to the two previously mentioned volumes V and v: ϵ = (v - V) / V.
Detailed Explanation
Volumetric strain quantifies how much a small element of the material has deformed, expressed as a ratio of volume change to the original volume. This relationship is vital for understanding material behavior under various stress conditions. When a body is subjected to external forces, knowing how local parts deform helps engineers and scientists predict how materials will behave under load.
Examples & Analogies
Imagine filling a balloon with air (original volume V). As you blow air into it, the balloon expands (volume changes to v). The volumetric strain here reflects how much your original balloon volume has changed due to the additional air pressure. This kind of calculation allows you to understand how flexible or stiff materials are under pressure.
Mathematical Framework for Volumetric Strain
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The scalar triple product can also be realized as the determinant of a matrix whose columns are formed by the vectors involved in the scalar triple product. Thus, we can write ϵ = (det(F) - 1) / V, where F is the deformation gradient matrix.
Detailed Explanation
This chunk introduces a more advanced concept where the scalar triple product can be represented using a determinant, which is a central concept in linear algebra. By expressing the volumetric strain in terms of determinants, we make the formulation more mathematically rigorous and applicable in engineering and physics. Using the deformation gradient matrix (F), we connect changes in shape and volume to the underlying deformation mechanics.
Examples & Analogies
Think of a factory that measures how much a dough expands when heated and shaped. Using mathematical tools, they can determine not only how much it has expanded but also the quality and stability of that expansion, similar to how we use determinants here. The math allows us to express those physical changes in a precise way.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Local Volumetric Strain: Measurement of volume change in deformable bodies.
-
Displacement Gradient: Mathematical representation crucial for understanding volumetric strain.
-
Scalar Triple Product: Key mathematical operation yielding volume measures.
-
Determinant: Important for calculating volume changes in reference and deformed states.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
An example of local volumetric strain can be seen in rubber bands, where stretching them alters their volume.
-
In concrete columns, volumetric strain can indicate potential weaknesses under heavy loads.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When volume's strained, don't feel pained; it's just a change, we’ll rearrange!
📖 Fascinating Stories
-
Imagine a sponge soaking up water; the change in its size reflects how local volumetric strain works in different situations.
🧠 Other Memory Gems
-
VPC: Volume change, Point specific, Comparisons made.
🎯 Super Acronyms
LVS
- Local Volume Strain – Remembering it as measuring 'Local Changes'.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Local Volumetric Strain
Definition:
A measure of the change in volume of a small region of a deformed body relative to its original volume.
-
Term: Displacement Gradient
Definition:
A mathematical representation of how displacement varies in a body, crucial for calculating strains.
-
Term: Scalar Triple Product
Definition:
A product of three vectors that results in a scalar representing the volume of a parallelepiped.
-
Term: Determinant
Definition:
A scalar value that helps in finding volumes and properties of matrices.
