Introduction to Cables and Their Properties
Unlock Audio Lesson
Today, we’re discussing cables, which are flexible members that primarily transmit tensile forces. Can anyone tell me why they can’t handle compression?
Because they can buckle under axial compressive forces?
Exactly! Excellent point. Recall that due to their slender nature, they do not handle bending well. Now, let's think about how they behave under load. What happens to the cable when force is applied?
It changes slope depending on where the load is applied?
Yes, when we load a cable, it creates a sag. This sag is represented by the height 'h'. Does anyone remember why sag is important?
It helps in developing the necessary tensions to support the loads?
Exactly! The sag helps develop tensile forces necessary to counteract any vertical loads.
Understanding Sag and Thrust
Unlock Audio Lesson
Now, let's dive deeper into the concepts of sag and thrust. Who can remind us what we mean by thrust?
Thrust is the horizontal component of the tension force in the cable, right?
Perfect! And how does it relate to the overall tension in a cable?
I think it stays constant while the cable is under vertical loads.
That's right! The horizontal component, H, remains constant, impacting the entire system's equilibrium. Can anyone tell me what the sag-to-span ratio is? How is it denoted?
It's denoted as r and it's the ratio of sag to the span of the cable.
Excellent! Keep this in mind because it helps analyze cable behavior under various loads.
Drawings and Funicular Polygons
Unlock Audio Lesson
When a cable experiences concentrated loads and it operates under negligible weight, it deforms into a funicular polygon. Who can explain what this means?
It means the cable forms a series of linear segments between the points of load application?
Exactly! When we think about designing structures, understanding this polygon's shape is critical. It allows engineers to predict how forces will flow through the structure. Who wants to try sketching a funicular polygon?
I can give it a shot! Will it just be a series of straight lines?
Correct! Connecting the points where the loads are applied with straight lines represents the funicular shape. Fantastic!
Application of Funicular Polygons
Unlock Audio Lesson
How do you think funicular polygons help in engineering applications? Can anyone think of a real-world application?
I think they're used in bridges and cable-stayed systems!
Absolutely! These polygons allow engineers to optimize material use while ensuring safety and structural integrity. What do you think would happen if we neglected their design?
The structure could fail under load because it wouldn't distribute forces correctly!
Right! Understanding these principles is fundamental for anyone pursuing structural engineering.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
Funicular polygons are shapes that result from a cable under tension subjected to various loads. The section explains how cables behave when loads are applied, the role of sag and thrust, and introduces key equations related to these concepts. Understanding funicular polygons is essential in structural engineering for designing effective cable supports.
Detailed
Funicular Polygons
In structural engineering, a cable is defined as a slender, flexible member having negligible flexural stiffness, allowing it to only transmit tensile forces. The primary reinforcement of a cable lies in its ability to change slope at load application points, developing tensile forces and resisting vertical loads through sag (denoted as h). The horizontal component of the tensile force in the cable is known as thrust (H). The distance between the supports of a cable is referred to as the chord.
The sag-to-span ratio is represented mathematically as
$$r = \frac{h}{l}$$
When concentrated loads apply to a cable of negligible weight, the configuration transforms into what is termed a funicular polygon. It's significant to note that while the cable supports vertical forces, the horizontal tension component (H) remains constant throughout the cable's length. This section sets the foundation for understanding how funicular polygons play a crucial role in load distribution and stability in cable-supported structures.

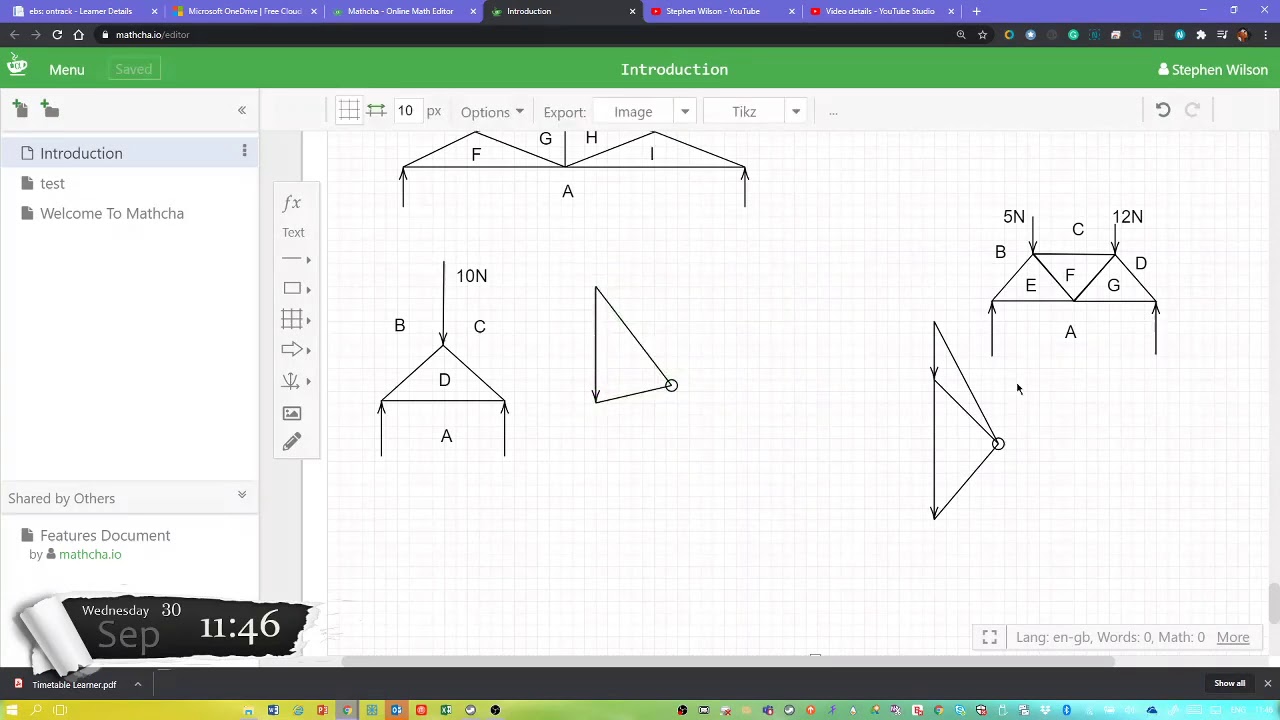

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Cables
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A cable is a slender flexible member with zero or negligible flexural stiffness, thus it can only transmit tensile forces.
Detailed Explanation
This statement introduces what a cable is, emphasizing its key physical properties. Unlike rigid structures that can resist bending, cables can only pull or stretch because they lack the stiffness to bend under load. This flexibility allows cables to efficiently carry loads but also to change shape significantly.
Examples & Analogies
Imagine a rubber band; it can stretch and hold loads but cannot resist being bent. Like the rubber band, cables function best under tension rather than compression or bending.
Direction of Tensile Forces
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The tensile force at any point acts in the direction of the tangent to the cable (as any other component will cause bending).
Detailed Explanation
Tensile forces in cables always pull along the length of the cable. Because cables cannot resist bending, any force acting perpendicular to the cable would cause it to bend, which is not possible. Therefore, it is essential that the force aligns with the tangent to the cable to ensure that it only experiences tension.
Examples & Analogies
Think of a tightrope walker. The rope can only support their weight if it is tight and straight. If there are any forces that pull down at an angle, the rope will sag and cannot hold the weight efficiently.
Cable Sag and Thrust
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Cables resist vertical forces by undergoing sag (h) and thus developing tensile forces. The horizontal component of this force (H) is called thrust.
Detailed Explanation
When a cable is loaded vertically, it will sag downwards. This sag creates a tension that allows the cable to respond to the load. The horizontal component of the force generated due to this tension is referred to as 'thrust,' and is crucial for understanding how cables carry loads effectively.
Examples & Analogies
Consider a hammock. When you sit in it, the fabric sags under your weight, and the sagging creates tension in the ropes that can help support you. The horizontal force acting to keep the ropes taut is similar to 'thrust' in a cable.
Chord and Sag to Span Ratio
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The distance between the cable supports is called the chord. The sag to span ratio is denoted by \( r = \frac{h}{l} \).
Detailed Explanation
The 'chord' refers to the straight line distance between the two points where the cable is supported. The sag to span ratio gives a numerical relationship between the height sagging down (h) and the distance between the supports (l). This ratio helps in designing cables for specific loads and spans.
Examples & Analogies
If you were to hang a rope between two trees, the distance between the trees is the 'chord.' If the rope bounces downwards in the middle, the height it drops down is the 'sag.' The ratio of how far it dips compared to how far apart the trees are helps determine how sturdy your rope setup is.
Funicular Polygon Concept
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When a set of concentrated loads is applied to a cable of negligible weight, then the cable deflects into a series of linear segments and the resulting shape is called the funicular polygon.
Detailed Explanation
The funicular polygon is the shape formed by a cable when it supports several concentrated loads. Instead of a smooth curve, the cable forms straight lines between these points of load due to its nature of only being able to hold tensile forces. This provides engineers a method to visualize load paths on cables.
Examples & Analogies
Picture a bunch of keys hanging from a string. As you add more keys, the string will adjust into straight lines connecting each key. The overall shape formed by the string and the keys showcases how the load distribution affects the string’s shape, resembling a funicular polygon.
Behavior Under Vertical Forces
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
If a cable supports vertical forces only, then the horizontal component H of the cable tension T remains constant.
Detailed Explanation
When only vertical loads are applied, the horizontal component of the tension does not vary. This constancy simplifies calculations and helps predict how the cable will behave under different loads, as the horizontal tension can be treated as a fixed value in engineering design.
Examples & Analogies
Think about the wires holding up a sign. If the sign were to sway only in the vertical direction with wind, the wires would remain tight horizontally, keeping the sign securely in place. The tension in the wire along the horizontal direction doesn't change even as the sign moves.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Funicular Polygon: The configuration that a cable adopts when loads are applied.
-
Sag: The vertical dip in a cable caused by weight, critical for load support.
-
Thrust (H): The constant horizontal force component in cable tension.
-
Chord: The linear distance between the cable's supports.
-
Sag-to-Span Ratio: A significant factor in understanding cable behavior and load distribution.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
A cable bridge utilizes funicular polygons to balance the forces acting on it, ensuring structural stability.
-
The design of a cable car system relies on funicular shapes to manage changes in tension due to varying passenger loads.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Cables sag and stretch, but don't you fret, they hold on tight, that's what we bet!
📖 Fascinating Stories
-
Imagine a tightrope walker; the cable below sags slightly under their weight, creating a funicular polygon that perfectly balances them—a beautiful alignment of forces.
🧠 Other Memory Gems
-
C A T H - Remember the cable's properties: Cable, Axial force, Thrust, and Horizontal component.
🎯 Super Acronyms
S T A C (Sag, Thrust, Axial tension, Chord)—the key elements of cable mechanics.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Cable
Definition:
A slender, flexible member with negligible flexural stiffness that transmits tensile forces.
-
Term: Funicular Polygon
Definition:
The shape formed by a cable under load, represented by a series of linear segments.
-
Term: Thrust
Definition:
The horizontal component of the cable tension.
-
Term: Sag
Definition:
The vertical displacement of the cable between supports when under load.
-
Term: Chord
Definition:
The distance between the supports of a cable.
-
Term: SagtoSpan Ratio (r)
Definition:
The ratio of sag (h) to the span (l) of the cable.
