Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Introduction to Energy Methods
Unlock Audio Lesson
Today, we will be learning about energy methods, particularly Real Work and Virtual Work techniques. Can anyone explain what energy methods in structural engineering involve?
Isn't it about how energy transforms within structures?
Exactly! Energy methods study the transformation and conservation of energy within structures under load. But first, let's discuss the First Law of Thermodynamics, which lays the groundwork for our understanding.
What does the First Law state?
It states that the time-rate of change of total energy, which is a combination of kinetic and internal energy, equals the work done by external forces plus heat input. It's often given as d(K + U) = W + H.
What happens in adiabatic conditions?
Good question! In adiabatic conditions, where there is no heat transfer, this simplifies to the external work done equaling the internal strain energy: W = U.
So, external work is equal to energy stored in the structure?
Precisely! This foundational principle is crucial in understanding how structures behave under load.
Real Work Method
Unlock Audio Lesson
Let's dive deeper into the Real Work method. Who can recap what we've learned about internal work?
We learned that we can calculate strain energy by looking at infinitesimal elements under stress.
Exactly! Strain energy is determined by the formula. Can someone recall the calculation for total strain energy?
It's U = 1/2 * strain * E * volume, right?
Correct! And how does this apply to axial members?
We derive U = (∫(P^2 dx)/(AE)) from the volumetric calculations for axial members, right?
Well done! Understanding these conversions is essential to solving structural problems.
Virtual Work Method
Unlock Audio Lesson
Now let's discuss the Virtual Work method. Why do you think it is considered more powerful than Real Work?
Because it allows us to analyze deformations beyond just the applied loads?
That's right! The Virtual Work method permits the use of hypothetical or virtual forces that can help assess the compatibility of internal and external forces. Can anyone explain what 'virtual force' means?
It means using a force system that may not be real but still satisfies equilibrium conditions, right?
Exactly! These virtual forces give us a broader view of how systems behave and make it easier to derive deformations.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In this section, we explore the foundations of energy methods, specifically Real Work and Virtual Work techniques, and how they apply to structural analysis. The impacts of different energy states and work done on structural elements are discussed in detail, providing insight into internal work interactions.
Detailed
Detailed Summary
In this chapter, we delve into the fundamental concepts of energy methods in structural engineering, which serve as powerful techniques for both formulating the stiffness matrix of elements and analyzing structural deformations.
9.1 Introduction
The section begins with an overview of energy methods and their critical role in solving structural problems.
9.2 Real Work
The first part focuses on the Real Work method, revisiting the First Law of Thermodynamics:
d(K + U) = W + H
This equation indicates that the rate of change of total energy is equal to the sum of external work and heat changes. In an adiabatic system, this simplifies to:
W = U
This implies that the work done by external forces equals the internal strain energy. The section discusses the internal work in detail, depicting how to calculate strain energy through infinitesimal elements under uniaxial stress scenarios, leading to:
U = rac{1}{2} imes ext{strain} imes E imes ext{Volume}
Specific formulas for axial and torsional members are derived, reinforcing the significance of understanding strain energy in structural analysis.
9.3 Virtual Work
The second part introduces the Virtual Work method, which overcomes the limitations of the real work method. While the latter can only determine deflections along applied loads, virtual work allows for a greater understanding of deformations through compatible internal and external forces. The principle of Virtual Force enables equilibrium conditions to be assessed more richly:
- Actual external loads and virtual forces can both yield solutions when the right compatibility conditions are met.
- The structure develops axial stresses under both real and virtual loads, ensuring thorough analysis.

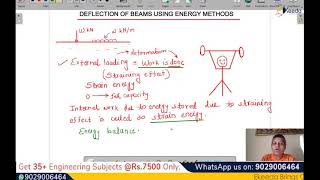

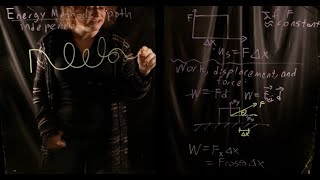

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Energy Methods
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Energy methods are powerful techniques for both formulation (of the stiffness matrix of an element) and for the analysis (i.e. deflection) of structural problems. We shall explore two techniques: 1. Real Work 2. Virtual Work (Virtual force)
Detailed Explanation
Energy methods are essential tools in structural engineering. They aid in both creating mathematical models (formulation) and analyzing how structures behave under loads (analysis). The section introduces two primary techniques: Real Work and Virtual Work. Real Work examines the actual energy consumed by structures when forces are applied, while Virtual Work involves theoretical loads to find the structure's response.
Examples & Analogies
Think of energy methods like two different ways of troubleshooting a car. 'Real Work' is like inspecting your car's engine directly to see where power is lost. In contrast, 'Virtual Work' is more like using a diagnostic tool—it gives you insights based on hypothetical scenarios, helping you understand potential issues without physically examining every part.
Real Work Explained
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
We start by revisiting the first law of thermodynamics: The time-rate of change of the total energy (i.e., sum of the kinetic energy and the internal energy) is equal to the sum of the rate of work done by the external forces and the change of heat content per unit time. d(K + U) = W + H. For an adiabatic system (no heat exchange) and if loads are applied in a quasi-static manner (no kinetic energy), the above relation simplifies to: W = U.
Detailed Explanation
This chunk discusses the first law of thermodynamics, which relates energy change to external work and heat content. In structural analysis, if there's no heat exchange (adiabatic) and loads are applied slowly (quasi-static), the energy equations simplify to indicate that the work done by external forces equals the internal energy stored in the structure. This fundamental principle allows engineers to calculate how much energy a system can store when forces are applied.
Examples & Analogies
Imagine a sponge. When you squeeze it (applying external work), the sponge can hold onto some of that energy as it compresses (internal energy). If you release it slowly (quasi-static), the energy stays contained within the sponge without losing any heat to the environment.
Internal Work and Strain Energy
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Considering an infinitesimal element from an arbitrary structure subjected to uniaxial state of stress, the strain energy can be determined. The net force acting on the element while deformation is taking place is P = σ dydz. The total strain energy will thus be U = (1/2) ∫ σ dV.
Detailed Explanation
In this chunk, we examine how strain energy is calculated for small elements of a structure experiencing stress. When a load is applied, these elements experience a force that leads to deformation. The formula uses the stress (σ) acting on the element and integrates over its volume (dV) to find the total strain energy. This concept helps engineers understand how materials deform under load and how much energy is stored in them.
Examples & Analogies
Think about stretching a rubber band. When you pull it, you apply a force (stress), and the rubber band deforms, storing energy. If you measure how much it stretches (its volume), you can understand how much energy it has stored at that moment—just like calculating strain energy in structures.
Application of Strain Energy to Structural Members
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
When applied to various structural members it yields the following results: Axial Members: U = (1/2) ∫ σ dVol, and Torsional Members: U = (1/2) ∫ (τ G) dVol.
Detailed Explanation
This section takes the theory of strain energy further by applying it to different types of structural members. For axial members, the energy stored is calculated using the stress, while for torsional members, we consider shear stress and modulus of rigidity to determine energy. Each formula shows how the energy varies with different load conditions and structural configurations.
Examples & Analogies
Imagine you have two different springs. One is stretched straight (axial) while the other is twisted (torsional). Even though both are under stress, they store energy differently depending on how they are loaded, just like axial and torsional members store strain energy based on their specific conditions.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Energy Methods: Techniques for formulating stiffness matrices and analyzing structures.
-
Real Work Method: A method calculating energy stored through external work.
-
Virtual Work Method: Using hypothetical force systems for analysis.
-
Adiabatic System: A system with no heat transfer, simplifying calculations.
-
Strain Energy: Energy stored within a structure due to deformation.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Consider a cantilever beam subject to an axial load; use the Real Work method to calculate the total strain energy stored during deformation.
-
For a truss, apply the Virtual Work method to find the deformations at the joints due to applied loads.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
In structures we play, energy at bay; Real Work does strain, while Virtual’s in the game.
📖 Fascinating Stories
-
Imagine a bridge, swaying in the wind. The real load is the gusts, while the virtual ones help us see how the bridge bends without ever truly experiencing those forces.
🧠 Other Memory Gems
-
For Real Work: R - Release, E - Energy, A - Apply Load, L - Live (deform), WORK; For Virtual Work: V - Virtual Forces, I - Indeterminate, R - Realize, T - Test compatibility.
🎯 Super Acronyms
REST ALL - Real Energy Stress Test Active Loads (for Real Work methods); Virtual Forces
- V-Value
- I-Intensity
- R-Reliability
- T-Tension.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Real Work
Definition:
A method that calculates the work done by external forces in achieving internal strain energy.
-
Term: Virtual Work
Definition:
A technique that uses hypothetical forces to analyze structural deformations without needing to apply real loads.
-
Term: Internal Work
Definition:
The work done within the materials of the structure during deformation.
-
Term: Strain Energy
Definition:
The energy stored in a deformable body due to deformation.
-
Term: Adiabatic System
Definition:
A system where no heat exchange occurs with the environment.
-
Term: First Law of Thermodynamics
Definition:
States that energy cannot be created or destroyed, only transformed from one form to another.
