Introduction to Columns
Unlock Audio Lesson
Today, we’re going to discuss columns. Can anyone tell me what a column is in structural engineering?
Isn't it the vertical support in a building?
Exactly! Columns support loads vertically. They resist axial loads and bending moments. For example, when a load is not centered, it creates a bending effect.
What types of columns are there?
Great question! There are several types, including tied, spiral, composite, and pipe columns. Each has unique features. Let's remember this with the acronym TSC-P: Tied, Spiral, Composite, Pipe.
Can you explain why lateral reinforcement is essential?
Absolutely! Lateral reinforcement prevents buckling and provides shear strength, which is crucial during events like earthquakes. Think of it as a safety net for your columns!
So, they help the column stay stable?
Exactly! Remember, stable columns are safer columns!
To summarize, columns are vital structural elements that resist axial loads and bending moments, and include various types. Their design incorporates essential features like lateral reinforcement for safety.
Types of Columns
Unlock Audio Lesson
Now that we've covered basic concepts, let's dive deeper into the different types of columns. Who remembers the types we discussed?
Tied, spiral, composite, and pipe columns!
Correct! Let’s explore each one. Tied columns use ties to restrain steel bars. Spiral columns have steel reinforcement spirals. Why do we think these features are important?
They probably help with strength and stability!
Exactly. Composite columns blend materials for enhanced performance. They adapt properties of different materials. Pipe columns, commonly used in structures like bridges, are hollow and lightweight.
What about lateral reinforcement?
Good point! It ensures the column's integrity under lateral loads. It's key to preventing buckling. Remember, reinforcement enhances performance!
To recap, understanding the types and features of columns, including their reinforcement, is essential for efficient structural design.
Failure Modes in Columns
Unlock Audio Lesson
Let’s discuss failure modes in columns. What happens when a load is applied eccentrically?
It can cause bending stress?
Correct! We categorize failure into large eccentricity leading to steel yielding and small eccentricity to concrete crushing. Can anyone share the balanced condition?
It's when both steel yields and concrete crushes simultaneously when load is applied?
Great! This condition is critical for design. We must ensure that our design can handle those scenarios. Why is this important?
Is it so we can prevent column failure?
Exactly! Prevention of failures protects structures and lives. Always keep those conditions in mind!
Recapping, the failure modes include yielding of steel and crushing of concrete, important considerations for effective design.
Designing Reinforcement for Columns
Unlock Audio Lesson
Finally, let’s apply what we’ve learned to design reinforcement for columns. Remember our example of a column with specific dimensions and loads?
Yes! The loads were 201 kips and 358 kip ft.
Great recall! The first step is calculating the ultimate loads. Can someone explain how to find them?
You multiply the design loads by the load factors.
Exactly! Ultimately, it leads us to reinforcement design. Think of this process as solving a puzzle where every piece must fit perfectly for safety.
What's the final reinforcement one should use?
It’s derived from our calculations. Always refer to design charts for accuracy in real-life applications. To summarize, reinforcement calculation is about ensuring safety and stability under expected loads.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section provides an overview of columns, explaining their resistance to axial loads and bending moments. It categorizes columns into different types and discusses crucial factors like lateral reinforcement and the conditions leading to different types of failure, including short and eccentric columns.
Detailed
Detailed Overview of Columns in Structural Engineering
This section introduces the fundamental concepts related to columns, a critical element in structural engineering. Columns are designed to resist both axial loads and bending moments, which can occur due to eccentric loading. The various types of columns include tied, spiral, composite, and pipe columns, shown in Figure 27.1.
Lateral reinforcement serves numerous purposes, including preventing outward buckling of longitudinal steel, mitigating concrete's Poisson expansion, providing shear reinforcement against horizontal forces such as wind and earthquake loads, and enhancing the ductility of columns, crucial for earthquake resistance.
Moving on to specific column types, short columns are characterized by their effective lengths and their failure modes, which can involve yielding of steel or crushing of concrete, depending on the eccentricity of the applied load. The section identifies balanced conditions where both steel yielding and concrete crushing occur simultaneously, emphasizing the importance of understanding these interactions for effective column design. The use of design charts to determine reinforcement for columns is practical, illustrated with an example problem demonstrating the calculation methodology.

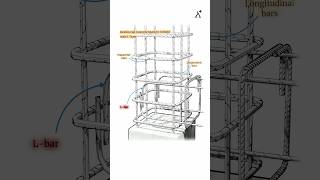

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Introduction to Columns
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Columns resist a combination of axial P and flexural load M, (or M = Pe for eccentrically applied load).
Detailed Explanation
This introduction explains the fundamental purpose of columns in structural engineering. Columns are vertical structural elements that support loads. They can carry axial loads, which are forces acting directly along the length of the column (denoted as 'P'), as well as bending moments (denoted as 'M'). The equation 'M = Pe' describes how a bending moment arises when there is an eccentric load, meaning when the load does not act through the column’s centroid.
Examples & Analogies
Think of a column like a tree supporting a vine. If the vine pulls straight down, the tree stands firm (axial load). But if the vine pulls to the side, the tree has to fight against that pull to stay upright (bending moment).
Types of Columns
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Tied column
- Spiral column
- Composite column
- Pipe column
Detailed Explanation
Columns can be classified into different types based on their design and reinforcement methods. Tied columns have transverse ties connecting the vertical reinforcement. Spiral columns use a continuous spiral of reinforcements, providing strength and ductility. Composite columns integrate different materials, typically steel and concrete. Pipe columns are hollow sections that can efficiently carry loads while saving material.
Examples & Analogies
Imagine different types of tree trunks: a tied column is like a tree wrapped with ropes (ties), a spiral column is like a twisted tree trunk that can bend without breaking, while a pipe column is similar to a hollow bamboo stalk—strong yet lightweight.
Lateral Reinforcement
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Restrains longitudinal steel from outward buckling
- Restrains Poisson’s expansion of concrete
- Acts as shear reinforcement for horizontal (wind & earthquake) load
- Provides ductility very important to resist earthquake load.
Detailed Explanation
Lateral reinforcement is crucial for maintaining the stability of a column. It prevents the vertical steel from buckling outward and manages deformation due to Poisson’s effect, which causes concrete to expand sideways when compressed. This reinforcement also helps the column resist shear forces during events like earthquakes or high winds, and it provides ductility, allowing the structure to deform without failing, thus enhancing resilience against lateral loads.
Examples & Analogies
Imagine a tall, thin candle. Without a sturdy base, it could easily topple over (buckling). If we wrap it with elastic bands (lateral reinforcement), it stands stronger against the wind, just as columns do in buildings.
Short Columns
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- 0.85 is obtained also from test data
- Matches with beam theory using rect. stress block
- Provides an adequate factor of safety
Detailed Explanation
Short columns are those whose height is small compared to their cross-sectional dimensions. The factor of 0.85 indicates a reduction in the effective strength of concrete when used in columns. This value is based on experimental data and relates to the way bending and axial forces interact, similar to beam theory. It ensures safety by incorporating a conservative estimate of the material's strength, allowing for unpredictable variations in load and material quality.
Examples & Analogies
Think about how much weight a thick, short pillar can hold compared to a tall, skinny stick. The calculations ensure that even if we place too much weight on it, the pillar remains sturdy and safe, just like engineers ensure safety in short columns.
Eccentric Columns
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Unsymmetric moments ML = MR
- uncertainty of loads (must assume a minimum eccentricity)
- unsymmetrical reinforcement
Detailed Explanation
Eccentric columns experience bending due to loads not acting directly at their center. This condition creates unsymmetrical moments on the left (ML) and right (MR) of the column. Because load assumptions can vary, engineers must consider a minimum eccentricity in their designs to counteract potential uncertainties. Often, reinforcement in these columns can be arranged asymmetrically, contributing to complex behavior under load.
Examples & Analogies
Imagine a seesaw with someone heavier sitting a bit to one side (eccentric load). This imbalance causes the seesaw to tilt (unsymmetrical moments). To keep it stable, we have to consider how to distribute the weight carefully, just like engineers do with eccentric columns.
Types of Failure in Eccentric Columns
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Large eccentricity of load failure by yielding of steel
- Small eccentricity of load failure by crushing of concrete
- balanced condition
Detailed Explanation
Eccentric columns can fail in different ways depending on the load's placement. If the load is large and offset (large eccentricity), steel reinforcement may yield first, causing the column to bend. With a small eccentric load, the concrete may crush under compression before the steel fails. Sometimes, a balanced condition exists where both materials reach their limits at the same time, indicating an optimal condition just before failure.
Examples & Analogies
Imagine a marshmallow (concrete) and a skewer (steel). If you push down hard on the marshmallow at the edge, it squishes (crushing). But if you push harder on the skewer first, it bends (yielding). The balance point is when both begin to yield and crush at the same time, much like balancing the load on an eccentric column.
Balanced Condition
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
There is one specific eccentricity e = M/b such that failure will be triggered by simultaneous
1. steel yielding
2. concrete crushing.
Detailed Explanation
In a balanced condition, there exists a specific eccentricity ratio that will cause both the steel and the concrete to fail simultaneously. This occurs when the bending moment is distributed evenly between the two materials, leading to predictable failure patterns that can be modeled and analyzed. Understanding this balance is critical for designing columns that are both safe and efficient.
Examples & Analogies
Imagine a balancing act where two performers must fall at the same time to complete their act successfully. If one falls too early, the act fails. In structural terms, knowing the exact point when both materials fail together helps engineers create reliable and safe structures.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Column Types: Important for understanding different structural applications.
-
Eccentric Loads: Knowledge of how loads affect column performance is crucial.
-
Balanced Column Condition: Essential for preventing failure in design.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
Design a column that supports a load of 300 kips with specific dimensions according to different code requirements.
-
Calculate the reinforcement needed for a column subjected to a moment of 50 kip-ft under eccentric loading conditions.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Columns stand tall and resist them all, axial and bending, they're built to call.
📖 Fascinating Stories
-
Imagine a tall building. Each column inside holds up weight. If it’s off-center, it bends. But with reinforcements, it stands strong and safe.
🧠 Other Memory Gems
-
Remember TSC-P for types of columns: Tied, Spiral, Composite, Pipe.
🎯 Super Acronyms
LBS for Lateral Reinforcement
- Limits Buckling Stability.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Axial Load
Definition:
A force that is applied along the length of a structural member, primarily in a column.
-
Term: Bending Moment
Definition:
A measure of the bending effect due to forces acting on a structural element.
-
Term: Lateral Reinforcement
Definition:
Steel bars used within a concrete column to increase its resistance to buckling and shear.
-
Term: Eccentric Load
Definition:
A load that is applied away from the centroid of an object causing it to pivot or bend.
-
Term: Balanced Condition
Definition:
A state in which both the steel and concrete reach their failure limits simultaneously.
