12 - Cross sectional elements
Enroll to start learning
You’ve not yet enrolled in this course. Please enroll for free to listen to audio lessons, classroom podcasts and take practice test.
Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Pavement Surface Characteristics
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Today we'll explore the pavement surface characteristics. Can anyone tell me why friction is critical between car wheels and the road?
I think it helps prevent skidding?
Exactly! Friction is crucial, especially when turning. It helps maintain control. Now, the coefficient of friction can vary. Anyone recall the typical values recommended?
Isn’t it around 0.35 to 0.4?
Correct! This range is vital during sight distance calculations. Now let’s move on to unevenness—why do we care about that?
Because it affects ride comfort, right?
Exactly! The unevenness index tells us a lot. Let’s remember: lower values mean better comfort. For instance, an index below 1500 mm/km is good. Can someone summarize why drainage is also important?
To prevent water from damaging the pavement and causing skids!
Fantastic! Remember, effective drainage contributes to safety and pavement longevity.
Camber Design
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now, let's delve into camber. What is it, and why is it necessary?
It's the slope of the road that helps drain water off the surface?
Exactly, well done! Camber protects the road and subgrade from water damage. What are some common types of camber?
Parabolic and straight types?
Right! The choice depends on the surface material and design purpose. Can anyone explain the recommended values for different surfaces?
Concrete and bituminous roads need about 2% camber for heavy rain?
Correct! Camber varies to ensure efficiency based on road type. Great job!
Roadway Width and Kerbs
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's talk about roadway width. Why is it significant?
It ensures safe navigation for vehicles?
Precisely! It is crucial for accommodating the traffic volume. What about the kerbs—why do we design them differently?
To manage vehicle encroachment and provide pedestrian safety?
Exactly! Kerbs serve various purposes such as maintaining boundaries and ensuring safety. Can anyone remember the height distinctions between kerb types?
Mountable kerbs are about 10 cm, semi-barrier kerbs are 15 cm, and barrier kerbs are 20 cm.
Spot on! Understanding these dimensions is vital for effective road design.
Road Margins
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's cover road margins. What role do shoulders play alongside roads?
They provide space for emergency stops or breakdowns.
Exactly! They support safety and vehicle maneuverability. What about the design of bus bays?
They should be recessed so vehicles can pass safely.
Correct! Bus bays prevent traffic disruption. Students, can you calculate the ideal width for a parking lane?
It should be at least 3 meters for parallel parking.
Very well! Road margins are vital for functional traffic flow.
Right of Way Design Principles
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
To conclude, let's discuss the right of way. What does this term mean?
It refers to the land designated for road construction, right?
Exactly! Adequate ROW ensures room for all elements and future development. What aspects influence ROW width?
Factors like topography, drainage needs, and future expansions?
Spot on! Effective planning is crucial for sustainable urban development. Our session today clearly aligns with engaging road infrastructure!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
The characteristics of cross-sectional elements significantly influence factors such as the comfort and safety of driving. Key aspects include pavement surface properties like friction and unevenness, the geometry of camber, and kerb type and layout, all of which require careful design to ensure effective drainage, driver visibility, and vehicular safety.
Detailed
Detailed Summary
The section on cross-sectional elements describes crucial features that affect the durability and safety of pavements in transportation engineering. The primary focus areas include:
1. Pavement Surface Characteristics
Four main aspects influence the safety and comfort while driving:
- Friction: Essential for vehicle control, especially on curves. Factors affecting friction include pavement type, tire condition, and vehicle dynamics.
- Unevenness: Impacts ride comfort and vehicle operation costs, quantifiable by an unevenness index.
- Light Reflection: Different colors of road surfaces affect nighttime visibility, influencing safety.
- Drainage: Proper drainage design prevents water accumulation, which can deteriorate pavement materials and increase vehicle skidding risks.
2. Camber
Camber, the slope of the road surface, is critical for effective water drainage. Different designs of camber (parabolic, straight) are specified based on the type of surface (like concrete, gravel) and intended use (heavy vs. light rain).
3. Width of Carriageway
Details the minimum and desirable widths for lanes to ensure smooth traffic flow and safety along with side clearance recommendations for different roadway types.
4. Kerb Types
Kerbs define the boundary and safety zones along roads, with various designs serving different traffic needs and pedestrian safety considerations.
5. Road Margins
Outlines additional components such as shoulders, parking lanes, bus bays, service roads, cycle tracks, footpaths, and guard rails, each catered to enhance safety and traffic management.
6. Right of Way (ROW)
Describes the width of land needed for the road, including all associated cross-sectional elements and future planning needs, supported by tables of specifications.
By understanding these cross-sectional elements, engineers can facilitate better-designed highways to enhance safety, comfort, and longevity of pavements.

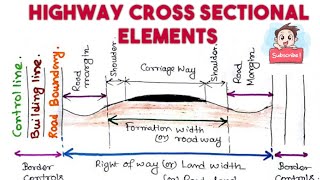

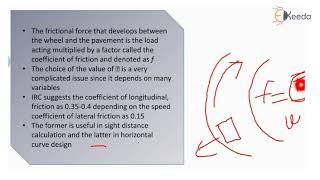

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Cross Sectional Elements
Chapter 1 of 7
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The features of the cross-section of the pavement influence the life of the pavement as well as the riding comfort and safety. Of these, pavement surface characteristics affect both of these. Camber, kerbs, and geometry of various cross-sectional elements are important aspects to be considered in this regard. They are explained briefly in this chapter.
Detailed Explanation
This section introduces the concept of cross-sectional elements, which are crucial for the design and functionality of roads. The features of the cross-section include aspects like the pavement surface, which directly impacts the durability of the pavement and the comfort and safety of vehicles traveling on it. Understanding elements like camber, kerbs, and other geometrical factors help in ensuring a well-designed road that promotes safe driving.
Examples & Analogies
Think of a road as a sandwich. Each layer – the surface, the filling, and the base – needs to be properly constructed to hold together and provide a good eating experience. If the layers are uneven or poorly put together, the sandwich (or road) won’t be enjoyable or functional.
Pavement Surface Characteristics
Chapter 2 of 7
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
For a safe and comfortable driving, four aspects of the pavement surface are important: the friction between the wheels and the pavement surface, smoothness of the road surface, the light reflection characteristics of the top of the pavement surface, and drainage of water.
Detailed Explanation
This chunk delves into the specific characteristics of pavement surfaces essential for driving safety and comfort. These characteristics include: 1) Friction ensures vehicles don’t skid, especially in curves; 2) Smoothness provides a comfortable ride; 3) Light reflection contributes to visibility at night; and 4) Effective drainage prevents water from accumulating, which can lead to hydroplaning.
Examples & Analogies
Imagine walking on a polished floor versus a rough gravel path. The smooth floor allows you to walk with ease (like a smooth road), whereas the rough path may cause you to trip (similar to how poor pavement can affect driving).
Friction
Chapter 3 of 7
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Friction between the wheel and the pavement surface is a crucial factor in the design of horizontal curves and thus the safe operating speed. Further, it also affects the acceleration and deceleration ability of vehicles. Lack of adequate friction can cause skidding or slipping of vehicles.
Detailed Explanation
Friction is vital for vehicle control, particularly when navigating curves. If the friction is too low due to wet conditions or worn tires, vehicles can skid off their intended path. Understanding friction helps engineers design roads that maintain enough grip for safe operation, especially at higher speeds.
Examples & Analogies
Think of riding a bicycle on a wet road. If the tires have good grip (high friction), you can steer and stop effectively. However, if the road is slippery and your tires lack grip, you could easily lose control and fall.
Unevenness
Chapter 4 of 7
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
It is always desirable to have an even surface, but it is seldom possible to have such one. Even if a road is constructed with high quality pavers, it is possible to develop unevenness due to pavement failures. Unevenness affects the vehicle operating cost, speed, riding comfort, safety, fuel consumption, and wear and tear of tyres.
Detailed Explanation
Unevenness in road surfaces can significantly impact driving experiences. It can increase vehicle costs through higher fuel consumption and tire wear, reduce comfort by causing bumps during travel, and even threaten safety due to loss of control.
Examples & Analogies
Driving on a bumpy road is similar to riding a rollercoaster. Continuous bumps can make you feel uncomfortable and can even throw off your balance, making it more difficult to control the vehicle safely, just like a poorly maintained rollercoaster ride.
Light Reflection
Chapter 5 of 7
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
White roads have good visibility at night, but cause glare during daytime. Black roads have no glare during day, but have poor visibility at night. Concrete roads have better visibility and less glare. It is necessary that the road surface should be visible at night, and reflection of light is the factor that answers it.
Detailed Explanation
The color and material of a road affect how well it can be seen at different times of day. For example, white concrete shows up well at night under headlights but can cause glare in bright sunlight. Engineers must consider these factors to enhance nighttime visibility without causing daytime distractions.
Examples & Analogies
Imagine wearing sunglasses on a bright day and stepping out into the evening. Just like the need to adapt your eyewear for different light conditions, road materials must be designed to optimize visibility throughout the day and night.
Drainage
Chapter 6 of 7
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The pavement surface should be absolutely impermeable to prevent seepage of water into the pavement layers. Further, both the geometry and texture of pavement surface should help in draining out the water from the surface in less time.
Detailed Explanation
Proper drainage is crucial for maintaining the integrity of pavement surfaces. If water seeps through, it can weaken the road structure and cause failures. Roads must be designed to effectively channel water away quickly, preventing puddles and potential accidents.
Examples & Analogies
Consider how a sponge works. If it soaks up too much water, it becomes heavy and can't serve its purpose. Similarly, if a road collects water instead of draining it efficiently, it can lead to serious structural issues.
Camber
Chapter 7 of 7
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Camber or cant is the cross slope provided to raise the middle of the road surface in the transverse direction to drain off rainwater from the road surface. The objectives of providing camber are: surface protection especially for gravel and bituminous roads, sub-grade protection by proper drainage, and quick drying of pavement which in turn increases safety.
Detailed Explanation
Camber is a designed tilt in road surfaces to ensure water drains away effectively. This design helps prevent water accumulation that can cause surface damage and increases safety by reducing the likelihood of water on the road, which could lead to slippery conditions.
Examples & Analogies
Think of a tilted roof that channels rainwater down into gutters. Just as that roof prevents leaks inside the house, camber in roads prevents water from settling on the surface and creating hazards for drivers.
Key Concepts
-
Pavement Surface Characteristics: Important for safety and comfort.
-
Friction: Essential for vehicle control, especially on curves.
-
Camber Design: Important for drainage and surface integrity.
-
Kerb Types: Different designs influence vehicle and pedestrian safety.
-
Road Margins: Enhance overall safety and traffic management.
-
Right of Way: Ensures future expansion and proper land use.
Examples & Applications
A highway with inadequate drainage may experience swift deterioration and increased skidding incidents during rains.
Proper camber design can reduce water pooling on roads, enhancing driver safety during wet conditions.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
With a high camber, water flows like a waltz, keeps the road dry, that's the result!
Stories
Once there was a road called Smooth Way. It had perfect camber and amazing kerbs, which helped cars glide safely both night and day.
Memory Tools
Remember CAMBER: C for Control (drainage), A for Angle (slope), M for Material (surface type), B for Balance (safety), and E for Efficiency (design).
Acronyms
For the factors of friction, use SLCS
Surface type
Load
Condition
Speed.
Flash Cards
Glossary
- Friction
The resistance encountered by the wheel against the surface of the pavement, essential for vehicle stability.
- Unevenness Index
A measurement indicating the vertical undulation of a road surface that affects ride quality.
- Camber
The cross slope of the road surface designed to facilitate drainage.
- Kerb
A raised edge along the road that delineates the carriageway from the shoulder or footpath.
- Right of Way (ROW)
The designated width of land required to accommodate all necessary road features and future needs.
- Drainage
The system designed to remove excess water from the pavement to prevent deterioration.
