Overview of Superelevation
Unlock Audio Lesson
Today we're learning about superelevation, which is the banking of a road at curves. Can anyone tell me why superelevation is important?
To help vehicles turn safely?
Exactly! It counteracts centrifugal force. Now, what factors must we consider when designing superelevation?
We need to think about the types of vehicles using the road.
Right, different vehicles have different weights and dimensions, and we’ve got to design accordingly. Remember, this is called 'mixed traffic'. Let’s break down the guidelines provided by the IRC next.
Design Procedure for Superelevation
Unlock Audio Lesson
When we design superelevation, we must follow a specific procedure. Can anyone repeat the first step?
Find the e for 75% of the design speed, neglecting f?
Great! What does 'e' represent?
'e' is the superelevation rate we're calculating.
Yes! Next, there are conditions to check if the superelevation exceeds specific values. Can anyone describe what those conditions are?
If 'e' is greater than 0.07, we have to move to the next step.
Exactly! Step 2 involves checking the coefficient of friction. And what do we do in Step 4?
We find the allowable speed for the maximum e!
Exactly! Let’s summarize the steps again.
Maximum and Minimum Superelevation
Unlock Audio Lesson
Now, let's discuss maximum and minimum superelevation rates. What can you tell me about it, Student_3?
Maximum superelevation differs by terrain type, right? Like 7% for rolling terrain?
Exactly! And what about the minimum requirements?
The minimum for drainage purposes is about 2 to 4%.
Spot-on! This helps ensure effective drainage on curved sections. Understanding these limits is crucial for roadway safety.
Extra Widening on Curves
Unlock Audio Lesson
Let’s talk about extra widening. Why is it needed on curved sections?
Because vehicles have wider paths when turning?
Correct! This is due to a phenomenon known as off-tracking. Can anyone think of the two types of widening?
Mechanical widening and psychological widening!
Exactly! Mechanical widening involves the physical space needed, while psychological widening addresses driver perception. Let’s wrap it up with how we calculate the extra width needed.
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
In Horizontal Alignment II, the focus is on superelevation design, addressing how it is influenced by various vehicle types and traffic conditions, and including the necessary measures for pavement widening at curves.
Detailed
Detailed Summary
Chapter 15 discusses the critical design element of superelevation in road geometry, emphasizing its necessity for vehicle safety during turns. Superelevation refers to the banking of the roadway at curves to counteract the effects of centrifugal force experienced by vehicles.
Key Points:
- Guidelines on Superelevation: The design must consider various vehicle shapes and weights rather than a single design vehicle, tailoring the superelevation based on vehicle dynamics and traffic conditions. IRC guidelines provide maximum and minimum superelevations based on road type and terrain.
- Design of Superelevation: Steps are outlined to determine the necessary superelevation based on speed and friction coefficients, ensuring safety for both fast and slow-moving vehicles.
- Maximum and Minimum Superelevation: The IRC recommends specific limits depending on road conditions, such as plain, rolling, and hilly terrains, to accommodate various vehicles and ensure drainage.
- Attainment of Superelevation: Techniques for implementing superelevation via pavement rotation and crown shifting are presented to achieve effective road designs.
- Radius of Horizontal Curve: The importance of appropriate curve radius is examined to optimize comfort and safety for vehicles, highlighting the balance between radius size and future design changes.
- Extra Widening: This involves adding necessary carriageway width on curves to account for mechanical and psychological factors affecting vehicle spacing and flow.
Overall, following these guidelines is crucial for maintaining safe, efficient roads.

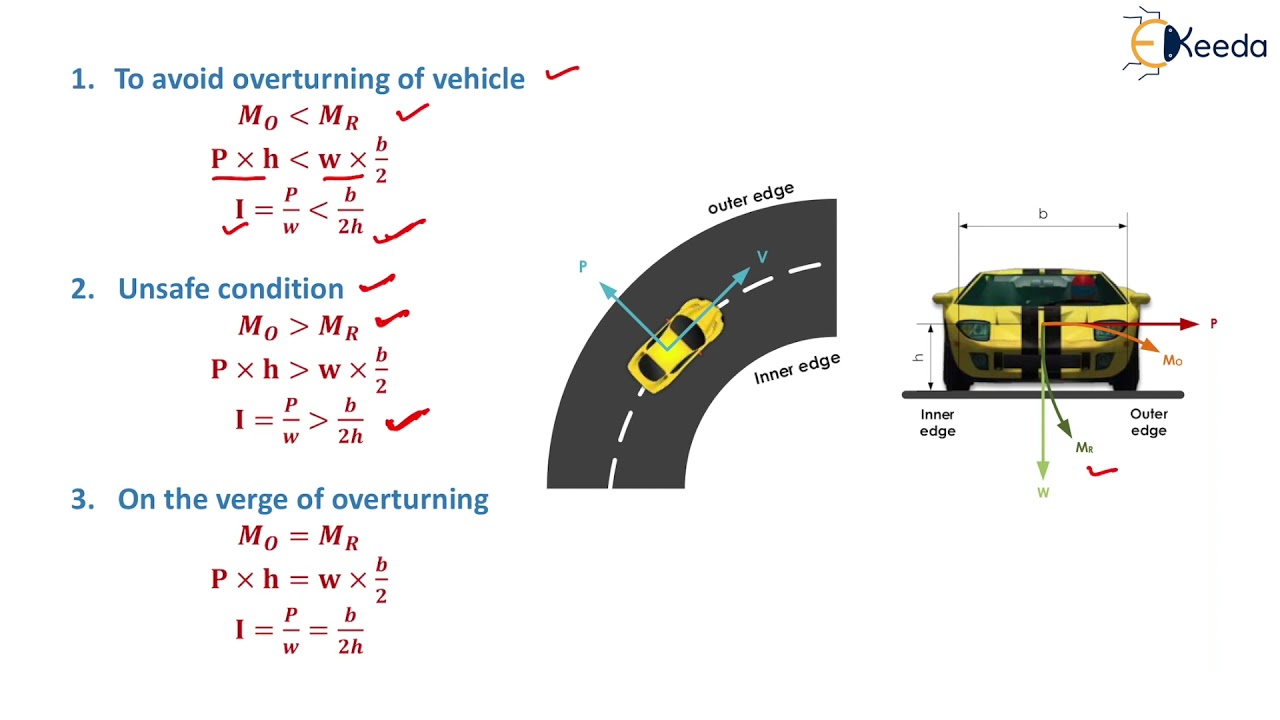

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Superelevation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
This section discusses the design of superelevation and how it is attained. A brief discussion about pavement widening at curves is also given.
Detailed Explanation
The section provides an overview of superelevation, which is the banking of a road at curves. It aims to counteract the centrifugal force acting on vehicles while turning, enhancing safety and comfort. The initial topic introduces how superelevation is designed, emphasizing the importance of considering different vehicle types and traffic conditions.
Examples & Analogies
Imagine riding a bicycle around a turn. If the path is flat, you may lean into the turn to maintain balance. Similarly, roads are banked to help vehicles stay on course without toppling over.
Guidelines on Superelevation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
While designing the various elements of the road like superelevation, we design it for a particular vehicle called design vehicle which has some standard weight and dimensions. But in the actual case, the road has to cater for mixed traffic.
Detailed Explanation
Superelevation is designed considering standard vehicles, referred to as the design vehicle. However, real roads accommodate various vehicles, each differing in weight, size, and speed. For example, a loaded truck requires less superelevation to prevent toppling, while faster vehicles can handle more banking. This difference is crucial as it impacts how safely vehicles can navigate curves.
Examples & Analogies
Think of a roller coaster. Fast rides bank their curves to keep passengers safely inside the vehicle, while slower rides may not need such steep angles.
Design of Superelevation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
For fast moving vehicles, providing higher superelevation without considering coefficient of friction is safe...IRC suggests following design procedure...
Detailed Explanation
The design procedure for superelevation varies based on vehicle speed. For high speeds, the road can be banked more steeply, but for lower speeds, friction must be considered to prevent slipping. Steps for calculating the needed superelevation include determining the effective banking based on speed and friction, followed by adjusting if the calculated superelevation exceeds certain limits.
Examples & Analogies
Imagine sliding on a slippery ice rink; you need to lean into turns more to avoid slipping. Similarly, roads are designed with specific banks to ensure vehicles safely travel at their speeds.
Maximum and Minimum Superelevation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Depends on (a) slow moving vehicle and (b) heavy loaded trucks with high CG...maximum superelevation of 7 percent for plain and rolling terrain...
Detailed Explanation
The IRC establishes guidelines for the maximum and minimum superelevation based on vehicle types and terrain. For example, in flat areas, the max superelevation allowed is 7%, while in hilly areas, it can be as much as 10%. These guidelines ensure that curves are safe for different traffic conditions and vehicle types.
Examples & Analogies
Consider an inclined bicycle ramp. Depending on whether you're using a regular bike or a cargo bike, you might need different ramp angles to ensure you can ride safely without tipping over.
Attainment of Superelevation
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
- Elimination of the crown of the cambered section by... 2. Rotation of the pavement cross-section to attain full superelevation by...
Detailed Explanation
To effectively achieve superelevation, methods include eliminating the road's crown or rotating the pavement cross-section. The crown helps with drainage, and adjusting how the edges of the road slope helps to achieve the needed banking. These methods allow engineers to create a stable road surface that safely guides vehicles around curves.
Examples & Analogies
Like a cake with a dome, if you flatten one side to create a slope, you create a safe pathway for vehicles to represent how roads can be altered for better travel.
Radius of Horizontal Curve
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The radius of the horizontal curve is an important design aspect of the geometric design...
Detailed Explanation
The radius of a curve significantly influences the speed at which vehicles can safely travel. A larger radius allows for higher speeds, and engineers consider both superelevation and friction to establish the optimal curve radius. Avoiding overly tight curves is critical to maintaining road safety and minimizing the need for future realignments.
Examples & Analogies
Think of a merry-go-round. The wider the path, the faster you can run around it without losing balance. Tight curves slow you down, similar to how vehicles need longer paths for safe navigation.
Extra Widening
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Extra widening refers to the additional width of carriageway that is required on a curved section of a road...
Detailed Explanation
Extra widening is necessary on curves to accommodate the different paths of vehicles (mechanical widening) and the tendency of drivers to steer away from the road's edge (psychological widening). These widenings help ensure safe passage for vehicles and enhance comfort while navigating turns.
Examples & Analogies
Visualize a sports car on a racetrack. As it takes a tight curve, it requires more space on the track to maintain speed and avoid crashing. Similarly, roads are widened to allow cars to navigate bends without danger.
Psychological Widening
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Widening of pavements has to be done for some psychological reasons also...
Detailed Explanation
Psychological widening addresses drivers' behavior on curves. Drivers naturally prefer to keep distance from edges, so extra pavement width is added to facilitate overtaking and improve comfort. This widening is calculated using empirical relations considering curve radius and vehicle speed.
Examples & Analogies
When walking on a crowded sidewalk, people tend to stay towards the center for comfort. Similarly, drivers like extra space on curves for safety, leading to road designs that accommodate this need.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Superelevation: The banking of the road at curves that enhances safety.
-
Mixed Traffic: Designing roads to accommodate various vehicle types.
-
Lateral Friction: The interaction between tires and road surface affecting superelevation.
-
Psychological Widening: Addressing driver behavior to create safer curves.
-
Off-Tracking: The phenomenon where different vehicle wheels follow different paths during turns.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
When designing a curve with a radius of 100 meters at a speed of 50 km/h, the superelevation should account for slow-moving vehicles, adjusting the design accordingly.
-
For a highway curve with a radius of 450 meters, calculating the required superelevation might involve considering heavy trucks which need less banking to avoid toppling.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
When you turn and feel a lean, superelevation keeps your ride serene.
📖 Fascinating Stories
-
Imagine a car racing around a curve; without superelevation, it might tumble! But with it, the ride is smooth, ensuring drivers feel secure.
🧠 Other Memory Gems
-
Remember the acronym 'SPLASH' to recall Superelevation, Psychological Widening, Lateral Friction, Allowable speeds, Safety, and Height of vehicles.
🎯 Super Acronyms
EASE - Elevation And Safety Ensure, which helps remind us how superelevation works.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Superelevation
Definition:
The banking of a roadway at a curve to counteract centrifugal force.
-
Term: Mixed Traffic
Definition:
Traffic that consists of vehicles of different shapes, sizes, and weights.
-
Term: Lateral Friction
Definition:
The friction between the road surface and the tires that plays a crucial role in superelevation design.
-
Term: Offtracking
Definition:
The phenomenon where a vehicle's rear wheels follow a different path than its front wheels on curves.
-
Term: Psychological Widening
Definition:
The extra space provided due to drivers' tendencies to avoid driving close to edges on curves.
