Overview of Road Markings
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Good morning, class! Today, we're going to learn about road markings. Can anyone tell me why you think road markings are important?
I think they help drivers know where to go.
Absolutely! Road markings guide and control traffic, ensuring safe and smooth movement. They create psychological barriers for drivers, which means they help us safely navigate the roads. Let's remember this with the acronym 'GAPS': Guide, Assess, Position, Safety. What does 'GAPS' stand for again?
Guide, Assess, Position, Safety!
Great job! Now, can anyone explain how road markings complement traffic signs?
They give us more information about signs, right?
Exactly! They enhance the function of signs and help convey important information visually.
To summarize, road markings are vital for guiding traffic safely. Remember: GAPS!
Types of Road Markings
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let’s dive into the types of road markings. Can anyone name a type of road marking?
Longitudinal markings?
Yes! Longitudinal markings are very important as they run along the direction of traffic. Anyone knows what color is used for separating traffic flowing in the same direction?
White!
Correct! And what about traffic coming from opposite directions?
Yellow!
Exactly! Longitudinal markings can be solid, broken, or double solid. Solid lines mean no crossing. Can someone give an example where one might find a double solid line?
At a dangerous curve.
Great observation! Let’s keep those differences in mind; they are crucial for road safety.
Transverse Markings
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now let's discuss transverse markings. Who can describe what these are?
They’re markings across the road at places like intersections, right?
Yes! Transverse markings include stop lines and pedestrian crossings. What’s the purpose of a stop line?
It tells vehicles where to stop at a traffic signal.
Correct! And where should it be positioned?
It should be near the intersection, right?
Right! It helps in maintaining order and safety at busy intersections. Remember, the strategic placement of these markings is vital for preventing accidents.
Object Markings
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let’s now explore object markings. Can anyone explain why we need to mark physical obstructions on the road?
To prevent accidents from hitting those objects?
Exactly! Hazards like traffic islands and poles require clear markings. What colors do we use for these markings?
Black and yellow stripes, right?
Yes! It helps attract drivers’ attention. Can you think of where you might see these markings in real life?
By traffic islands or construction zones!
Excellent examples! Remember, clear object markings help keep our roads safe.
Word Messages and Final Thoughts
🔒 Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Finally, let’s talk about word messages. What are they, and how do we use them?
They’re messages like 'STOP' painted on the road?
Exactly! They provide clear instructions in just a few words. Can someone give me an example of a situation where word messages are essential?
At school zones where kids might cross!
Very important! Word messages help regulate behavior effectively. Before we finish, what’s the takeaway from today's lesson?
Road markings are key for safety and traffic flow!
Exactly! Remember, road markings enhance safety for everyone on the road. Well done today, everyone!
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
This section discusses the purpose and importance of road markings in traffic management. It details types like longitudinal and transverse markings, their meanings, and their role in enhancing road safety for both vehicles and pedestrians.
Detailed
Detailed Summary
Road markings play a crucial role in guiding and controlling traffic on highways. They serve not only as visual aids but also as psychological barriers that help delineate safe pathways and maintain lateral clearance from hazards. The primary types of road markings are classified into longitudinal markings, transverse markings, object markings, word messages, parking markings, and those at hazardous locations.
Classification
Road markings, which may include lines, patterns, or words, can be classified as:
- Longitudinal markings: Indicate the proper position for vehicles traveling in the same direction and include color codes and patterns that signal permissible actions.
- Transverse markings: Installed across the roadway to indicate crucial information at intersections, such as stop lines and pedestrian crossings.
- Object markings: Highlight physical obstacles that could pose hazards in the carriageway.
These markings also utilize reflective materials for visibility during nighttime driving.
Importance of Road Markings
Road markings are not only essential for controlling the flow of traffic but also for ensuring pedestrian safety, marking parking spaces, and warning drivers of potential hazards ahead. Their systematic application contributes significantly to the degree of order and safety in traffic management.

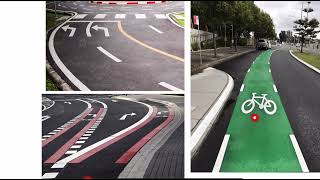

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Road Markings
Chapter 1 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The essential purpose of road markings is to guide and control traffic on a highway. They supplement the function of traffic signs. The markings serve as a psychological barrier and signify the delineation of traffic path and its lateral clearance from traffic hazards for the safe movement of traffic. Hence they are very important to ensure the safe, smooth and harmonious flow of traffic.
Detailed Explanation
This section introduces the importance of road markings. Road markings, which include painted lines and symbols on roads, help direct vehicles and pedestrians, ensuring they follow the correct paths. They function alongside traffic signs to enhance road safety. By acting as a 'psychological barrier,' these markings make drivers aware of their location on the road and how far they are from potential hazards. Properly guiding traffic helps prevent accidents and promotes a smoother driving experience.
Examples & Analogies
Imagine driving in an unfamiliar city at night. If there were no road markings or signage, you might feel lost and unsure of which way to go. Road markings act like a friendly guide, leading you safely along your path and helping you avoid collisions with other vehicles or obstacles.
Classification of Road Markings
Chapter 2 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The road markings are defined as lines, patterns, words or other devices, except signs, set into applied or attached to the carriageway or kerbs or to objects within or adjacent to the carriageway, for controlling, warning, guiding and informing the users. The road markings are classified as longitudinal markings, transverse markings, object markings, word messages, marking for parkings, marking at hazardous locations, etc.
Detailed Explanation
Here, road markings are categorized into various types based on their functions. Longitudinal markings run along the direction of traffic; transverse markings cross the road. Object markings highlight physical hazards, while word messages provide specific instructions. This classification helps roadway designers and engineers to implement the appropriate types of markings where needed, ensuring safety and clarity for users.
Examples & Analogies
Think of a restaurant menu that organizes dishes into appetizers, entrees, and desserts. Just as this classification helps diners find what they want easily, the classification of road markings allows drivers to quickly understand how to navigate the roads and what to expect.

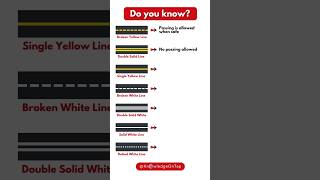

Longitudinal Markings
Chapter 3 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
They are marked along the direction of traffic on the roadway surface, for the purpose of indicating to the driver, his proper position on the roadway. White is the predominant colour used in the case of longitudinal markings for separating traffic flow in the same direction. Yellow colour is used to separate the traffic flow in opposite direction and also to separate the edges...
Detailed Explanation
Longitudinal markings are designed to guide drivers on the roadway. The colors of these markings provide specific meanings: white is generally used for lanes moving in the same direction, while yellow indicates opposing traffic lanes. The patterns of the lines (solid, broken, double-solid) communicate different rules regarding lane changes, helping drivers make safe decisions.
Examples & Analogies
Consider these markings like the lanes on a swimming pool. Just as swimmers follow the designated lanes to avoid colliding with others, road markings help drivers maintain their lanes to prevent accidents.
Types of Longitudinal Markings
Chapter 4 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Different types of longitudinal markings are centre line, traffic lanes, no passing zone, warning lines, border or edge lines, bus lane markings, cycle lane markings.
Detailed Explanation
The various types of longitudinal markings serve distinct purposes, from designating the center of the road (centre lines) to separating bikes from vehicles (cycle lane markings). These markings are essential for facilitating organized and safe movements of different modes of transport on the roads.
Examples & Analogies
Imagine a game of soccer where players need specific lines to follow, like the halfway line or penalty box. Similarly, road markings provide boundaries and lanes, ensuring everyone knows their place.

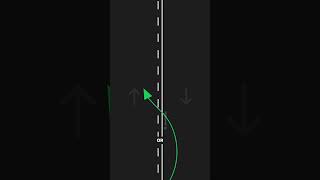

Centre Line
Chapter 5 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Centre line separates the opposing streams of traffic and facilitates their movements. Usually, no centre line is provided for roads having width less than 5 m and for roads having more than four lanes. The centre line may be marked with either single solid line, single broken line, double broken line or double solid line depending upon the road and traffic requirements...
Detailed Explanation
The centre line is vital for safety as it divides opposing traffic streams and prevents head-on collisions. The type of line (e.g., solid or broken) communicates to drivers whether they are permitted to cross that line. In different road conditions—like urban vs. rural—markers might vary in style to enhance clarity.
Examples & Analogies
Think of the middle line as a fence separating two yards. Just as you wouldn't cross into your neighbor's yard without permission, drivers must understand where they can and can't cross the centre line.

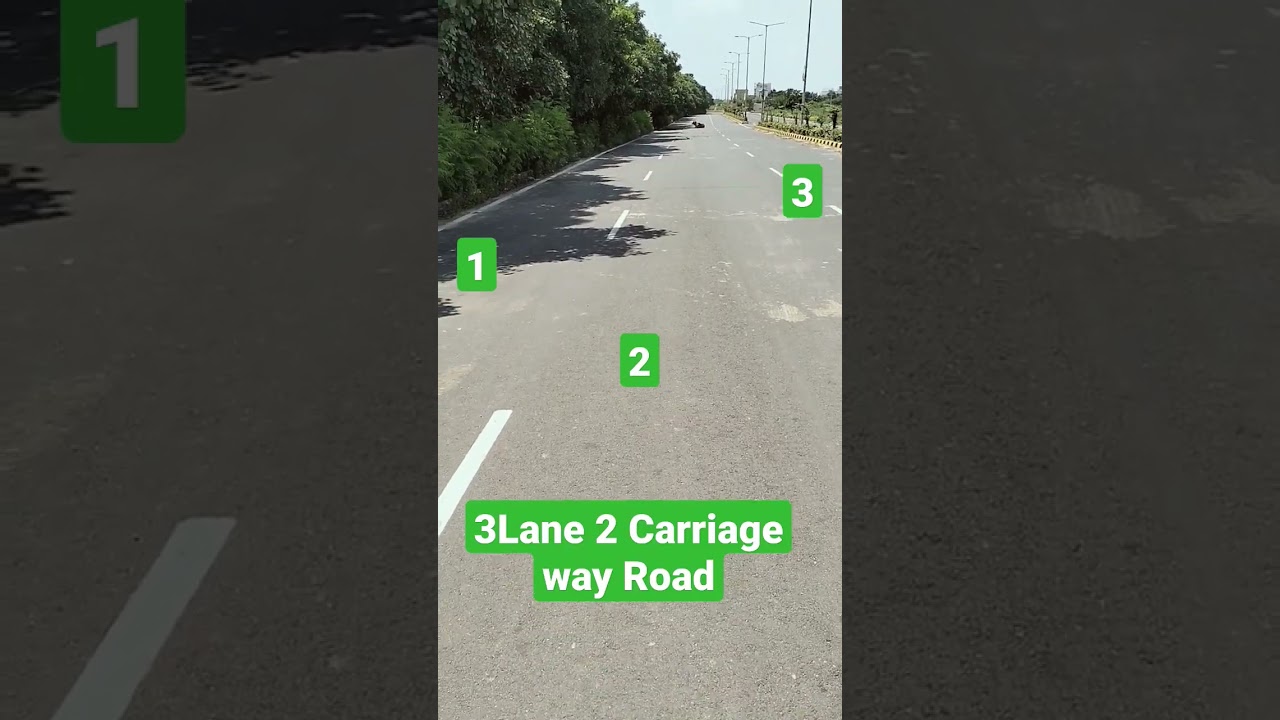

Traffic Lane Lines
Chapter 6 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
The subdivision of wide carriageways into separate lanes on either side of the carriageway helps the driver to go straight and also curbs the meandering tendency of the driver. At intersections, these traffic lane lines will eliminate confusion and facilitate turning movements.
Detailed Explanation
Traffic lane lines help organize the roadway by assigning specific lanes for vehicles to follow. This reduces confusion, particularly at intersections, where many vehicles are navigating in different directions. Typically, these are marked with solid or broken lines indicating when changing lanes is permissible.
Examples & Analogies
Consider a busy market where everyone is trying to get to different stalls. If everyone had a designated path to follow (like lane lines), it would be much easier to move around without bumping into each other.
No Passing Zones
Chapter 7 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
No passing zones are established on summit curves, horizontal curves, and on two lane and three lane highways where overtaking maneuvers are prohibited because of low sight distance. It may be marked by a solid yellow line along the centre or a double yellow line...
Detailed Explanation
No passing zones warn drivers where overtaking is unsafe due to visibility concerns. These are typically marked with solid yellow lines. Understanding these markers is crucial for safe navigation, as attempting to pass in a no passing zone can lead to severe accidents.
Examples & Analogies
Think of a steep, winding mountain road where you can't see what's ahead. The no passing lines are like warning signs on this road, telling drivers that it’s unsafe to overtake because they might meet oncoming traffic that they can't see yet.
Warning Lines
Chapter 8 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
They are broken lines with line segments as long as the normal gaps and vice-versa. They warn the drivers about the obstruction approaches. They are marked on horizontal and vertical curves...
Detailed Explanation
Warning lines alert drivers about upcoming hazards, like curves or intersections, where visibility may be limited. By using broken lines that alternate in length, these markings signal that caution is required on the upcoming stretch of road.
Examples & Analogies
Imagine a road leading towards a sharp turn that's hidden by tree lines. Warning lines serve as the friendly reminder that you should slow down and prepare for a surprise, just like seeing caution tape at a construction site.
Edge Lines
Chapter 9 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
These indicate edges of rural roads which have no kerb to delineate the limits up to which the driver can safely venture. They should be at least 150 mm from the actual edge of the pavement. They are painted in yellow or white.
Detailed Explanation
Edge lines provide visual cues about the limits of the roadway, particularly on edges without borders. By maintaining a safe distance from the actual edge, these lines remind drivers to stay on the path and not venture into dangerous territories off the road.
Examples & Analogies
Think of edge lines as the boundary markers in your backyard that tell you where to stop mowing. They guide you to maintain a safe distance away from the fence, similar to how edge lines guide vehicles.
Transverse Markings
Chapter 10 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Transverse markings are marked across the direction of traffic. They are marked at intersections, etc. The site conditions play a very important role...
Detailed Explanation
Transverse markings provide critical information at intersections and pedestrian crossings. Their placement reflects traffic flow and is integral for safety, indicating where vehicles must stop or yield, and where pedestrians can cross.
Examples & Analogies
Think of transverse markings as the lines on a soccer field that indicate the penalty area. Like those specific markings guide players on where actions are permitted, transverse markings guide vehicles on where to stop and allow pedestrians to cross.
Summary of Road Markings
Chapter 11 of 11
🔒 Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Road markings aid in controlling traffic by exercising psychological control over the road users. They are made use of in delineating the carriage way as well as marking obstructions, to ensure safe driving. They also assist in safe pedestrian crossing.
Detailed Explanation
The summary reinforces how road markings play a vital role in traffic management, helping drivers navigate safely while also protecting pedestrians. They are not just visual decorations but essential tools for maintaining order and safety on the road.
Examples & Analogies
Think of road markings as the rules in a game. Just as players need to know the rules to play fair and avoid chaos, drivers need road markings to navigate safely and avoid accidents.
Key Concepts
-
GAPS: Guide, Assess, Position, Safety
-
Types of Road Markings: Longitudinal, Transverse, Object Markings
-
Functions of Word Messages in Traffic Management
Examples & Applications
A white line separating lanes of traffic moving in the same direction.
A yellow line indicating a no-passing zone.
Zebra crossing to enhance pedestrian safety at intersections.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
When you see a solid line, think twice before you cross, it's not fine.
Stories
Imagine a driver named Sam, who always follows the lane, keeping safety his main aim. He sees the markings clearly, guiding his way so dearly.
Memory Tools
GAPS – Guide, Assess, Position, Safety – for remembering road marking roles.
Acronyms
RPM – Road, Position, Markings – think about your safety on your way.
Flash Cards
Glossary
- Road Markings
Lines, patterns, words, or devices applied to road surfaces to guide and control traffic.
- Longitudinal Markings
Markings that run parallel to the flow of traffic, helping indicate the proper position on the roadway.
- Transverse Markings
Markings applied across the direction of traffic, usually found at intersections.
- Object Markings
Markings indicating physical obstructions near or within the roadway.
- Stop Line
A marking indicating where vehicles must stop at a traffic signal or control device.
- Edge Lines
Markings that indicate the boundary of the roadway.
- Word Messages
Inscribed words on the road surface to convey information to road users.
- No Passing Zone
An area where overtaking or passing is prohibited, indicated by road markings.
- Zebra Crossing
A pedestrian crossing marked by alternating black and white stripes.
