40. Traffic Rotaries

Rotary intersections or roundabouts are special forms of at-grade intersections laid out for the movement of traffic in one direction around a central traffic island. Essentially, all the major conflicts at an intersection, namely the collision between through and right-turn movements, are converted into milder conflicts, namely merging and diverging. The vehicles entering the rotary are gently forced to move in a clockwise direction in an orderly fashion. They then weave out of the rotary to the desired direction. The benefits, design principles, capacity of rotary etc. will be discussed in this chapter.

Traffic rotaries or roundabouts facilitate smoother traffic flow by directing vehicles to move in a single direction around a central island. This design minimizes high-speed collisions by transforming sharper turns into more gradual merging and diverging movements. Vehicles entering the rotary must yield to those already within it, promoting an orderly transition through the intersection.

Imagine a merry-go-round at a playground. Children waiting in line (vehicles on the road) must wait for their turn to hop on. As they do, they move in a circular fashion (traffic moving clockwise around the central island), allowing for a safe and fun experience with less chance of everyone colliding.

The key advantages of the rotary intersection are listed below:

1. Traffic flow is regulated to only one direction of movement, thus eliminating severe conflicts between crossing movements.
2. All the vehicles entering the rotary are gently forced to reduce speed and continue to move at a slower speed. Thus, fewer of the vehicles need to be stopped.
3. Because of the slower speed of negotiation and elimination of severe conflicts, accidents and their severity are much less in rotaries.
4. Rotaries are self-governing and do not need virtually any control by police or traffic signals.
5. They are ideally suited for moderate traffic, especially with irregular geometry, or intersections with more than three or four approaches.

However, there are a few specific limitations for rotaries which are listed below:

1. All the vehicles are forced to slow down and negotiate the intersection. Therefore the cumulative delay will be much higher than channelized intersections.
2. Even when there is relatively low traffic, the vehicles are forced to reduce their speed.
3. Rotaries require a large area of relatively flat land, making them costly in urban areas.
4. Since the vehicles are not stopping, and they accelerate at rotary exits, they are not suitable when there is high pedestrian movement.

Rotary intersections have distinct advantages such as managing traffic flow in one direction, minimizing abrupt stops, and reducing the probability of severe accidents. The continuous movement in a rotary means that intersections can operate more efficiently, especially in terms of traffic management without the need for signals. However, the downside is that the requirement for vehicles to slow down can cause delays, particularly when traffic is low, and the need for ample flat land can increase costs in urban settings. Moreover, they are not pedestrian-friendly when there is heavy foot traffic.

Think of a rotary as a smooth dance floor where people (vehicles) glide around without stopping. In contrast, a conventional intersection is like a crowded room where everyone has to stop and wait before moving again. While the dance floor has its rhythm, it might require more space to accommodate everyone’s movements, making it less practical in smaller venues.

Rotaries are not suitable for every location. There are a few guidelines that help in deciding the suitability of a rotary:

1. Rotaries are suitable when the traffic entering from all the four approaches are relatively equal.
2. A total volume of about 3000 vehicles per hour can be considered the upper limit, and a volume of 500 vehicles per hour is the lower limit.
3. A rotary is very beneficial when the proportion of right-turn traffic is very high; typically, it is suitable for more than 30 percent.
4. Rotaries are suitable when there are more than four approaches, or if there are no suitable lanes available for right-turn traffic.

Selecting the right location for a rotary involves assessing traffic patterns to avoid over- or under-utilization. Equal traffic flow from all approaches typically works best, ensuring that no single entry overwhelms the intersection. Additionally, the rotary should cater to high volumes of vehicles and enable efficient right-turn movements, which enhances its overall effectiveness.

Imagine planning a party with friends and realizing that everyone wants to dance. If you have a small room with only one door, it becomes chaotic. However, if you have a larger space with multiple exits and more areas for people to move around, everyone can enjoy dancing without bumping into each other. Similarly, a rotary intersection thrives best when designed with enough 'dance floor' space and multiple 'doors' for traffic entry and exit.

As noted earlier, the traffic operations at a rotary are three: diverging, merging, and weaving. All the other conflicts are converted into these three less severe conflicts.

1. Diverging: It is a traffic operation when the vehicles moving in one direction are separated into different streams according to their destinations.
2. Merging: Merging is the opposite of diverging, when traffic streams coming from various places and going to a common destination are joined into a single stream.

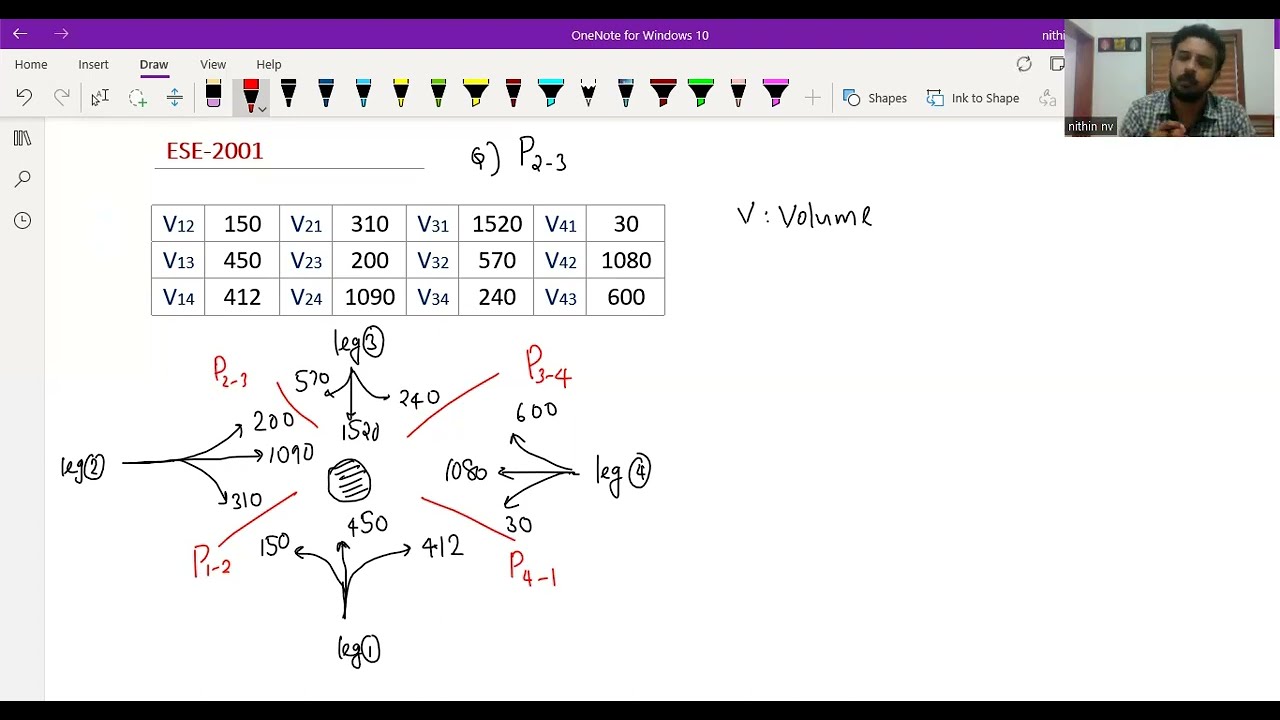

3. Weaving: Weaving is the combined movement of both the merging and diverging movements in the same direction.

In a rotary, traffic operates through three main actions: diverging, merging, and weaving. Diverging occurs when vehicles separate to head in different directions. Merging happens when vehicles from various directions converge to go towards a common path. Weaving is a combination of both—where vehicles change lanes as they navigate the rotary. Understanding these operations helps in designing efficient traffic flows that minimize blockage and potential accidents.

Think of a rotary like a busy airport runway where planes (vehicles) need to change directions. When one plane takes off (diverging), another needs to land (merging), while a third circles back in the same flight path (weaving). Properly managing this flow ensures smooth transitions and prevents collisions, much like how vehicles smoothly navigate a rotary.

The design elements include design speed, radius at entry, exit, and the central island, weaving length and width, entry and exit widths. In addition, the capacity of the rotary can also be determined using some empirical formulas.

To ensure a rotary functions smoothly, several design factors are key: the speed at which vehicles should navigate, the radius of curves for entering and exiting, the size of central islands, and the dimensions involved in weaving sections. All these elements combine to influence how efficiently a rotary can disperse traffic.

Designing a rotary is like preparing a recipe for a complex dish. You need the right ingredients (design elements) in the right proportions (sizes and speeds) to create a successful outcome—smooth traffic flow. If you don’t balance the components correctly, you might end up with an overcrowded kitchen (traffic jam) or a dish that doesn’t taste right (ineffective rotary).

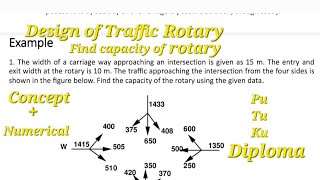

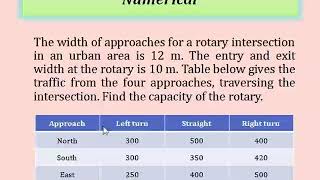

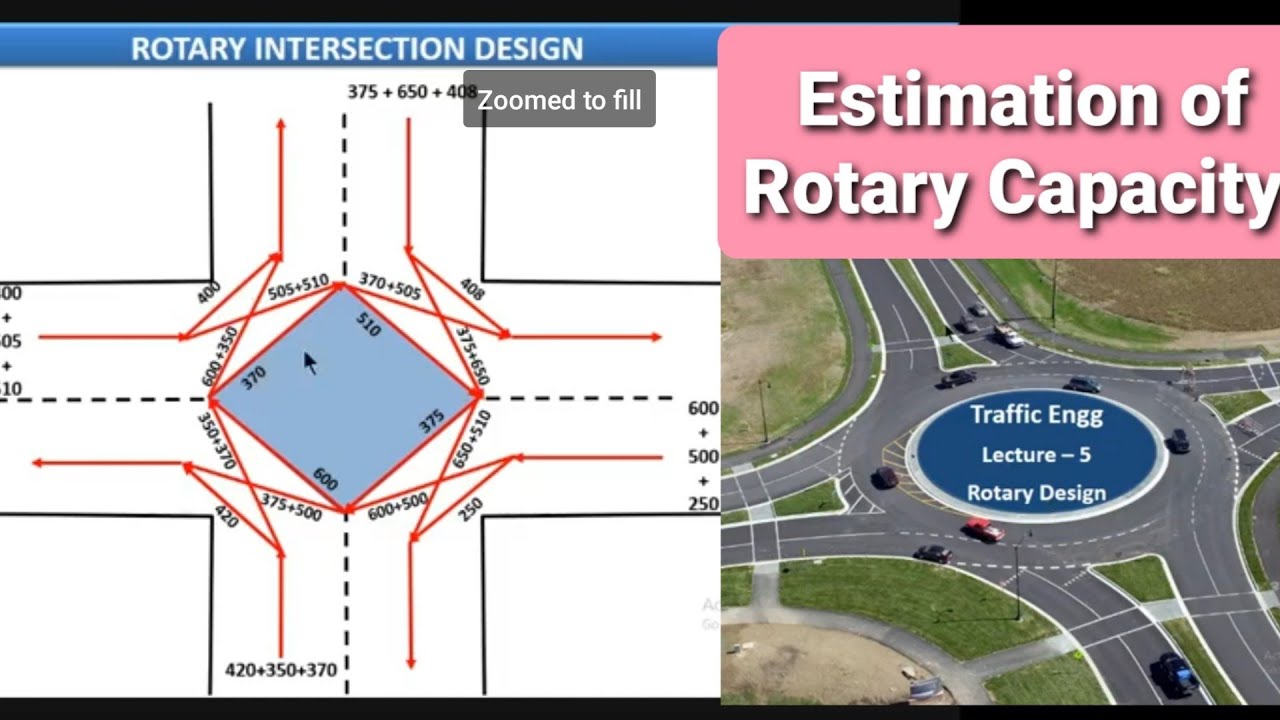

The capacity of a rotary is determined by the capacity of each weaving section. Transportation road research lab (TRL) proposed the following empirical formula to find the capacity of the weaving section: Q = 280w[1+ e][1 - p] / (w - 3) where e is the average entry and exit width, w is the weaving width, l is the length of weaving, and p is the proportion of weaving traffic to non-weaving traffic. This formula is valid only if certain conditions are satisfied.

The capacity of a rotary is influenced by how effectively vehicles can weave in and out of lanes without causing disruptions. The empirical formula provided helps traffic engineers calculate this capacity, ensuring that rotaries can handle expected traffic volumes while remaining safe. The underlying conditions for validity of the formula guide the design and construction process.

Think of the capacity of a rotary like the flow of water through a pipe. If the pipe is too narrow (inadequate capacity), water will back up (traffic congestion). The formula engineers use ensures that the pipe remains wide enough for a steady flow, accommodating peak use without overflowing.

--
