Interactive Audio Lesson
Listen to a student-teacher conversation explaining the topic in a relatable way.
Overview of Traffic Signals
Unlock Audio Lesson
Today we are discussing traffic signals. Can anyone tell me what you think the main role of a traffic signal is?
To control the flow of traffic?
Exactly! Traffic signals control traffic flow by managing conflicts between different movements. This helps ensure safety and reduces congestion.
What are some advantages of traffic signals?
Great question! They promote orderly movement, increase intersection capacity, and provide simple geometric design. However, they can create larger stopped delays.
So, do we prefer signals over rotaries?
It depends on the context. The overall delay might be less with signals, but user experience is often more focused on stopped delays. Always consider traffic patterns!
Let's remember: Signals manage conflict, but ensure to analyze user-centered delays too! Recap: Traffic signals enhance order but can increase wait times.
Definitions in Signal Design
Unlock Audio Lesson
To effectively discuss traffic signal design, we need to be familiar with some key terms. What do you think a 'cycle' means in this context?
Is it the time it takes for all signals to change?
That's right! A cycle is one complete rotation through all signal indications. Now, what about 'cycle length'?
It’s the total time for one complete cycle of signals?
Correct! And we denote the cycle length as 'C'. Another key term is 'phase.' Who can describe what a phase in signal design is?
It groups conflicting movements for clarity and safe movement, right?
Exactly! Phases allow non-conflicting movements to flow smoothly. Remember: Cycle, Length, Phase—C, L, P!
Signal Design Procedure
Unlock Audio Lesson
Now let's move on to the signal design procedure. Can anyone tell me how many major steps we have?
Six steps?
Exactly! The first is phase design, which involves minimizing conflicts. Why do you think phase design is so critical?
It affects how well all the cars can move through the intersection!
Correct! Next is determining amber and clearance time. Why do you think these times matter?
They help ensure drivers can react safely!
Exactly! Then we move on to determining cycle length and green time. It’s essential for optimizing flow. Remember these steps and sequence them: Phase, Amber, Cycle, Green, Pedestrian, Evaluation.
Phasing and Intervals
Unlock Audio Lesson
Let's discuss phasing in more detail. Why would we use a two-phase system versus a four-phase system?
If we have more turning traffic, we should use four phases to manage it better, right?
Exactly! Two phases are ideal when through traffic dominates. And what about intervals? Who remembers what a change interval is?
That's the yellow light time?
Correct! The change interval provides a warning before the red signal. It’s crucial for driver safety. What about clearance intervals?
They clear vehicles before the next phase begins?
Correct! Always consider the movement and timing of vehicles. Recap: Two-phase for through traffic, clearance for safety.
Cycle Length and Capacity
Unlock Audio Lesson
Now, turning to cycle length. Why is it an important factor in signal design?
It determines how long each signal lasts for traffic to move, right?
Exactly! The cycle length influences capacity. How do we calculate the effective green time?
By adding green time to yellow and all-red times, minus any lost times?
Right! And remember, interruptions like start-up and clearance times count as lost times. Can anyone tell me how we know capacity in terms of vehicles?
It’s using effective green time divided by cycle length!
Exactly! Remember: Cycle length and Capacity dictate the efficiency of our traffic signals—keep practicing those calculations!
Introduction & Overview
Read a summary of the section's main ideas. Choose from Basic, Medium, or Detailed.
Quick Overview
Standard
The section outlines the process of designing traffic signals, highlighting the advantages and disadvantages of signalized intersections. It provides detailed definitions, notations, and the steps involved in the signal design procedure, focusing on how signals can enhance traffic flow while managing conflicts between various traffic movements.
Detailed
Traffic Signal Design - I
Traffic signal design is crucial in managing the conflicts arising from traffic movements at intersections. This section emphasizes the principles of how signals can promote orderly traffic flow, increased intersection capacity, and the necessity for thoughtful geometric designs to enhance safety and efficiency.
Key Concepts Covered
- Overview of Traffic Signals: Highlights the conflict resolution through time-sharing of traffic movements and the balance between stopped delays and overall delay benefits compared to rotaries.
- Definitions: Introduces essential terms related to traffic signals, including cycle, cycle length, intervals, phases, and lost time.
- Signal Design Procedure: Outlines the six major steps in traffic signal design, focusing on the importance of separating conflicting movements to minimize delays.
- Phasing: Discusses two-phase and four-phase systems, showcasing different intersection designs.
- Interval Design: Details the importance of change and clearance intervals in ensuring safety.
- Cycle Time and Capacity: Explains the need for determining cycle length, effective green time, and lane capacity to maximize traffic throughput.
This section serves as a foundational guide to understanding the intricacies of traffic signal design, which is imperative for effective transportation engineering.
Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Overview of Traffic Signals
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The conicts arising from movements of trac in dierent directions is solved by time sharing of the facility.
The advantages of traffic signal include an orderly movement of traffic, an increased capacity of the intersection and requires only simple geometric design. However, the disadvantages of the signalized intersection are it affects larger stopped delays, and the design requires complex considerations.
Detailed Explanation
Traffic signals help in managing intersections by allowing different traffic movements to occur at different times. This time-sharing method reduces conflict between vehicles moving in opposite directions.
Benefits of traffic signals include better organization of traffic flow and increased intersection capacity. However, they can cause longer delays due to stopping, and their design can be intricate due to various factors that need to be considered.
Examples & Analogies
Imagine a busy restaurant where people take turns to enter a buffet. The signal operates like the waiter, directing one group of diners to go at a time while keeping others waiting in line. While this method promotes order (like a traffic signal does), busy times can lead to long waits (similar to delays at a signal).
Definitions and Notations
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
A number of definitions and notations are there to be understood in signal design. They are discussed below:
1. Cycle: A signal cycle is one complete rotation through all of the indications provided.
2. Cycle length: Cycle length is the time in seconds that it takes a signal to complete one full cycle of indications. It is given by the symbol "C".
3. Interval: Thus it indicates the change from one stage to another. There are two types of intervals - change interval and clearance interval.
4. Green interval: It is the green indication for a particular movement or set of movements and is denoted by G.
5. Red interval: It is the red indication for a particular movement or set of movements and is denoted by R.
6. Phase: A phase is the green interval plus the change and clearance intervals that follow it.
7. Lost time: It indicates the time during which the intersection is not effectively utilized for any movement.
Detailed Explanation
This chunk defines important terms related to traffic signals:
- Cycle is when all signal indications have been displayed once.
- Cycle length (C) refers to the total time it takes to complete one cycle.
- Intervals denote different stages of the signal, such as change intervals (yellow light) and clearance intervals (all red).
- Green and red intervals signal when vehicles can or cannot move.
- Phases help organize traffic movements into conflict-free groups.
- Lost time accounts for delays before vehicles can enter the intersection once the light turns green.
Examples & Analogies
Consider a traffic signal as a conductor of an orchestra: each instrument (or group of movements) has its turn to play (green light) while others stop (red light). If the conductor makes a mistake (lost time) or if the music takes too long to switch (the cycle), it affects the harmony of the performance (traffic flow).
Signal Design Procedure
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The signal design procedure involves six major steps: 1. phase design, 2. determination of amber time and clearance time, 3. determination of cycle length, 4. apportioning of green time, 5. pedestrian crossing requirements, and 6. performance evaluation of the above design.
Detailed Explanation
Designing a traffic signal involves multiple steps to ensure it manages traffic effectively:
1. Phase design separates conflicting traffic movements to avoid accidents.
2. Amber time (yellow light) and clearance time are calculated for safe transitions between red and green.
3. Cycle length is established to determine how long each complete signal cycle takes.
4. Green time allocation decides how long the light stays green based on traffic flow.
5. Requirements for pedestrian crossings ensure safety for people on foot.
6. Finally, evaluating the signal system's performance confirms that it meets the intended goals.
Examples & Analogies
Think of traffic signal design as planning a school event: you have to decide when each group (phases) will present (green time), how long they need to switch (amber time/clearance), and ensure everyone has a chance to participate without conflict (pedestrian requirements). Each step is planned to make sure the event runs smoothly.

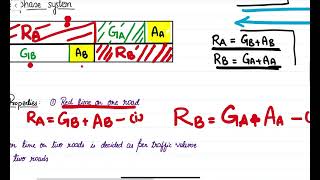

Types of Signal Phases
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Two phase signals are usually adopted if through traffic is significant compared to the turning movements. Four phase signals are typically used when turning movements are significant.
Detailed Explanation
Traffic signals can be designed with different numbers of phases:
- A two-phase signal is used when straight-through traffic is more significant than turns. This simplifies the flow while addressing the main routes.
- A four-phase signal can help manage more complex intersections where turning movements are significant, allowing separate signals for different directions to reduce conflicts.
Examples & Analogies
Imagine a two-lane road where one lane is constantly busy with cars driving straight while another has only a few turns. A two-phase signal allows the busy lane to flow freely, while a four-phase signal might be like a busy intersection where turning cars need their own time to ensure everyone gets through safely.

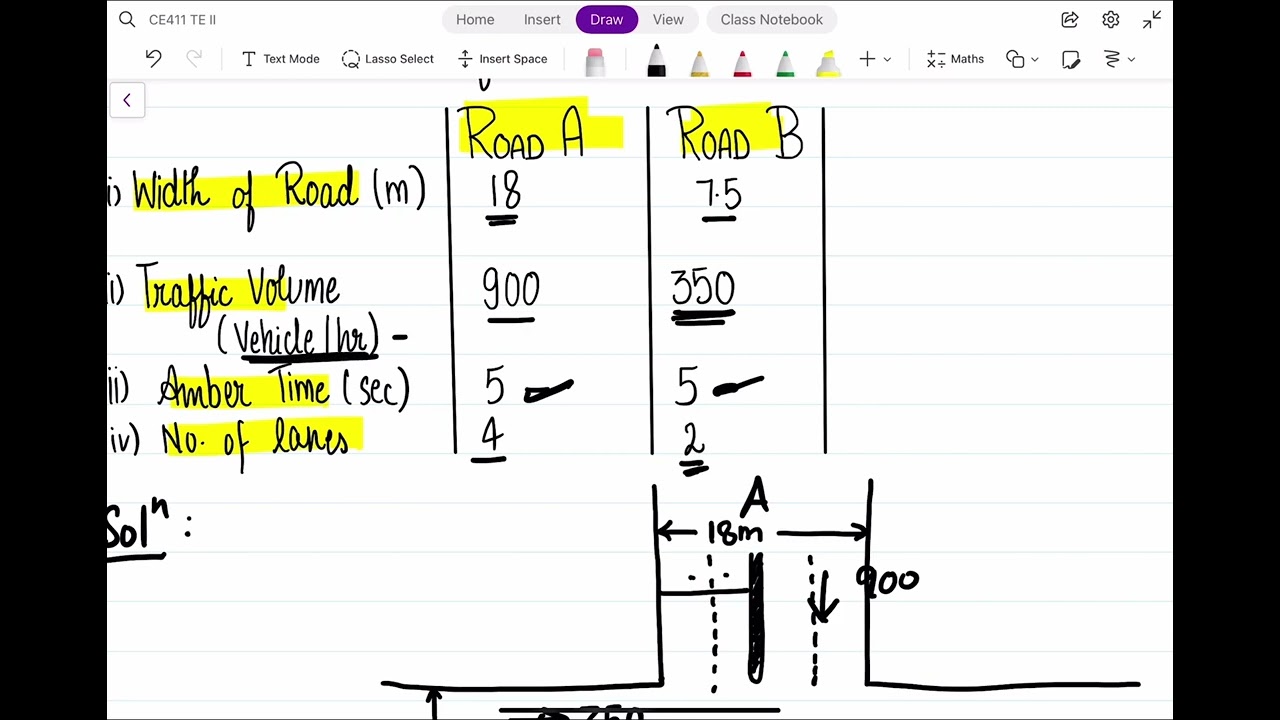

Interval Design
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
The change interval or yellow time is provided after green time for movement. The purpose is to warn a driver approaching the intersection during the end of green time about the coming of a red signal. The design consideration is that a driver approaching the intersection with design speed should be able to stop at the stop line of the intersection before the start of red time.
Detailed Explanation
Interval design is critical for safe traffic management:
- The change interval (yellow light) alerts drivers that the green light is ending. This gives them a chance to stop safely.
- Designers calculate this interval so that a car approaching the intersection can stop at the stop line before the light turns red, enhancing safety for both drivers and pedestrians.
Examples & Analogies
Think of the yellow light as a concert’s closing announcement before the show ends. It gives the audience cue to wrap up their enjoyment and make a safe exit. Just as concertgoers need time to leave, drivers need time to react and stop safely.
Cycle Time and Headways
Unlock Audio Book
Signup and Enroll to the course for listening the Audio Book
Cycle time is the time taken by a signal to complete one full cycle of iterations. As the signal is initiated, the time interval between two vehicles is referred to as headway. The first headway will be relatively longer, whereas the second will be comparatively lower, eventually leveling out to define the saturation headway.
Detailed Explanation
Understanding cycle time is key to traffic signal operation:
- Cycle time (C) determines how long it takes for the signal to go through all its phases.
- As vehicles respond to the green light, the time interval between vehicles (headway) is examined. The first vehicle takes longer due to the need for a driver to react, but subsequent vehicles follow more quickly as they can begin moving sooner. Eventually, this stabilizes into a consistent rate, known as the saturation headway.
Examples & Analogies
Think of a line at a coffee shop that’s just opened. The first customer takes time to decide and place their order (longer headway), while the next customers (subsequent headways) can see what to do and proceed faster. Eventually, once things settle, the line moves at a steady pace.
Definitions & Key Concepts
Learn essential terms and foundational ideas that form the basis of the topic.
Key Concepts
-
Overview of Traffic Signals: Highlights the conflict resolution through time-sharing of traffic movements and the balance between stopped delays and overall delay benefits compared to rotaries.
-
Definitions: Introduces essential terms related to traffic signals, including cycle, cycle length, intervals, phases, and lost time.
-
Signal Design Procedure: Outlines the six major steps in traffic signal design, focusing on the importance of separating conflicting movements to minimize delays.
-
Phasing: Discusses two-phase and four-phase systems, showcasing different intersection designs.
-
Interval Design: Details the importance of change and clearance intervals in ensuring safety.
-
Cycle Time and Capacity: Explains the need for determining cycle length, effective green time, and lane capacity to maximize traffic throughput.
-
This section serves as a foundational guide to understanding the intricacies of traffic signal design, which is imperative for effective transportation engineering.
Examples & Real-Life Applications
See how the concepts apply in real-world scenarios to understand their practical implications.
Examples
-
An intersection with heavy through traffic may benefit from a two-phase system, grouping conflicting right-turn movements in one phase.
-
A four-phase system may be utilized in dense urban intersections, ensuring safe and efficient movement of left, right, and through traffic.
Memory Aids
Use mnemonics, acronyms, or visual cues to help remember key information more easily.
🎵 Rhymes Time
-
Traffic lights manage the flow, here comes green, stop and go!
📖 Fascinating Stories
-
At an intersection, a green light calls cars—a race to reach the other side, but first, they must clear before the red comes to guide.
🧠 Other Memory Gems
-
Remember 'CGLP' for Cycle, Green time, Lost time, Phase!
🎯 Super Acronyms
PIC to remember the phases
- P: for Phase
- I: for Interval
- C: for Cycle.
Flash Cards
Review key concepts with flashcards.
Glossary of Terms
Review the Definitions for terms.
-
Term: Cycle
Definition:
A complete rotation through all of the indications provided by traffic signals.
-
Term: Cycle Length
Definition:
The time in seconds to complete one full cycle of indications at a signal.
-
Term: Interval
Definition:
The change from one signal stage to another, including change intervals and clearance intervals.
-
Term: Phase
Definition:
A phase consists of the green indication plus the change and clearance intervals.
-
Term: Lost Time
Definition:
Time during which the intersection is not effectively utilized for any movement.
