Design Parameters to Consider

Digital filters are powerful tools in signal processing, and their design is influenced by several key parameters. Understanding these parameters is crucial for effective filter implementation in communication applications.

1. Cutoff Frequency

The cutoff frequency defines the frequency at which the filter begins to attenuate the input signal. It is essential to choose an appropriate cutoff frequency to ensure the desired signal components pass through while unwanted frequencies are reduced.

2. Filter Order

The filter order refers to the number of previous input and output samples the filter considers. A higher filter order results in a steeper roll-off but may introduce increased computational complexity.

3. Passband and Stopband Ripple

The passband ripple indicates the variations in gain within the bandpass frequency range, while stopband ripple reflects variations in gain in the stopband frequencies. Minimizing these ripples can improve the filter's performance and ensure signal integrity.

4. Attenuation

Attenuation measures the reduction of signal amplitude in the stopband. Higher attenuation is usually desirable as it ensures that undesired signals are effectively removed while the desired signals maintain their strength.

5. Phase Response

The phase response relates to the phase shift introduced by the filter across frequencies. Linear phase response is particularly important in applications where preserving the waveform of the signal is critical, such as in audio processing.

6. Stability and Causality

The filter must be designed to be stable, meaning that it will not produce output oscillations in response to bounded input. Causality ensures the filter's output is determined only by present and past inputs, making it feasible for real-time processing.

In summary, the selection and optimization of these design parameters are crucial for creating filters that perform effectively in various applications in signal processing.

Youtube Videos

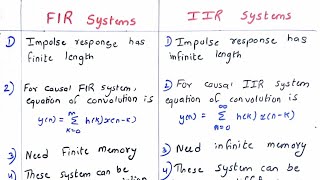

FIR and IIR comparision in Hindi | dsp series
