Purpose of Steering Mechanisms
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Let's discuss the purpose of steering mechanisms in automobiles. Steering systems allow the driver to control the vehicleβs direction. Can anyone tell me why it's crucial for a vehicle to have effective steering?
I think it's important for safety and to ensure that the car goes where the driver wants it to.
Exactly! Effective steering ensures smooth handling, stability, and a predictable response during various maneuvers. This brings us to the different types of steering mechanisms. Who can name one?
There's manual steering, right?
Correct! Manual steering requires the driver to apply direct effort via the steering wheel. Now, why do you think power steering became popular?
Because it makes it easier to steer, especially in larger vehicles.
Exactly! Power steering uses hydraulic or electric assistance which reduces the driver's effort. Great! Letβs summarize: steering systems are essential for vehicle control and come in two main typesβmanual and power.
Understanding Steering Gearboxes
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Now letβs discuss the different types of steering gearboxes. Can anyone list what gearboxes we studied?
I remember worm and nut, worm and sector, and rack and pinion!
Excellent! Each type has unique features and applications. For instance, what type would you expect to find in a commercial vehicle?
Worm and nut, since it's robust, right?
Correct! And what about rack and pinionβwhere's it commonly used?
In modern cars, I believe.
Yes! Rack and pinion offers direct linear motion and high precision, making it ideal for modern vehicles. To summarize, steering gearboxes play a critical role in controlling vehicle movement.
Wheel Geometry Importance
π Unlock Audio Lesson
Sign up and enroll to listen to this audio lesson
Next, letβs look at wheel geometry. Who can explain why proper wheel geometry is vital for vehicles?
It helps with how the tires interact with the road, which is important for handling and tire life.
Absolutely! Key parameters like camber, caster, and toe-in affect tire wear and handling. Can someone explain what camber is?
It's the angle of the wheel in relation to the vertical axis of the vehicle?
Right on! It affects cornering performance. Let's not forget the Ackermann principleβwho can explain that?
It ensures the inside and outside wheels turn at proper angles during a corner.
Exactly! This principle helps minimize tire scrubbing. To wrap up, proper wheel geometry significantly impacts overall vehicle performance.
Introduction & Overview
Read summaries of the section's main ideas at different levels of detail.
Quick Overview
Standard
In this section, we explore how steering mechanisms enable drivers to control vehicle direction. We differentiate between manual and power steering, highlight various steering gearboxes, and discuss key elements of wheel geometry that affect handling, stability, and comfort.
Detailed
Steering Mechanism
Purpose and Principles
Steering systems are crucial for vehicle control, allowing drivers to dictate the direction by adjusting the front wheels' orientation. Effective steering is essential for ensuring smooth handling, maintaining stability, and providing a predictable response during maneuvers.
Types of Steering Mechanisms
- Manual Steering: Direct effort by the driver through the steering wheel, common in older or lighter vehicles.
- Power Steering: Utilizes hydraulic or electric assistance, reducing required effort; modern vehicles predominantly use Electric Power Steering (EPS) for efficiency and adaptability.
Steering Gear Box Types
Gearbox Types and Applications:
- Worm and Nut: Common and robust, primarily used for commercial vehicles.
- Worm and Sector: Offers moderate precision, suitable for trucks and heavy vehicles.
- Worm and Roller: Lower friction leading to improved feel; widely found in many cars.
- Recirculating Ball: Uses balls to minimize friction; popular in heavier vehicles.
- Rack and Pinion: Enables direct linear motion and high precision; prevalent in modern vehicles.
- Cam and Lever: An older design that is rarely used today.
Wheel Geometry
Good wheel geometry is vital for road holding, tire longevity, and driver comfort. Important parameters include:
- Camber: The angle between the vertical axis of a wheel and the vertical axis of the vehicle, affecting tire wear and cornering capabilities.
- Caster: The angle of the steering axis which influences straight-line stability and steering effort.
- Toe-in/Toe-out: Describes the distance between the front and rear of the wheels, impacting straight tracking and tire life.
- Kingpin Inclination: The angle of the kingpin, which helps in steering returnability.
- Ackermann Principle: Ensures the inside and outside wheels are turned at appropriate angles during cornering, reducing tire scrubbing.

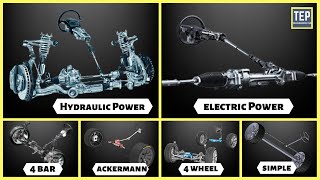

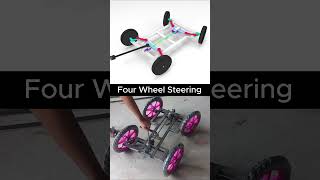

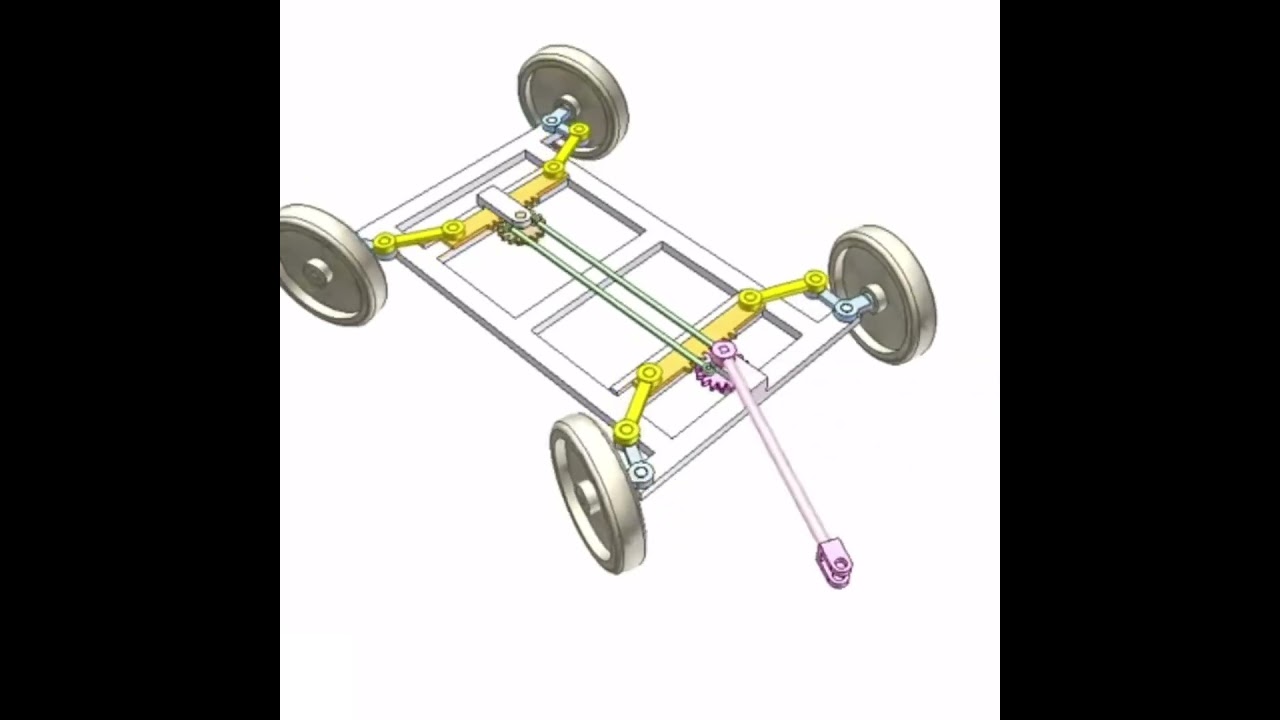

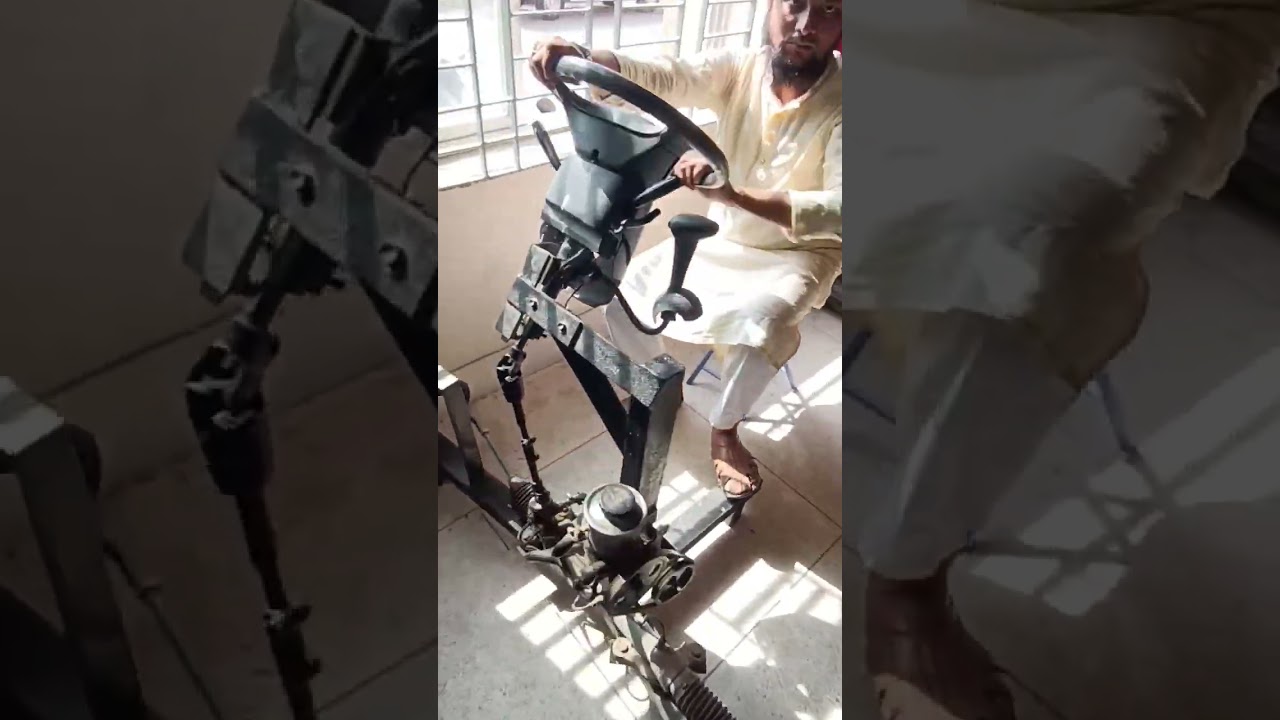

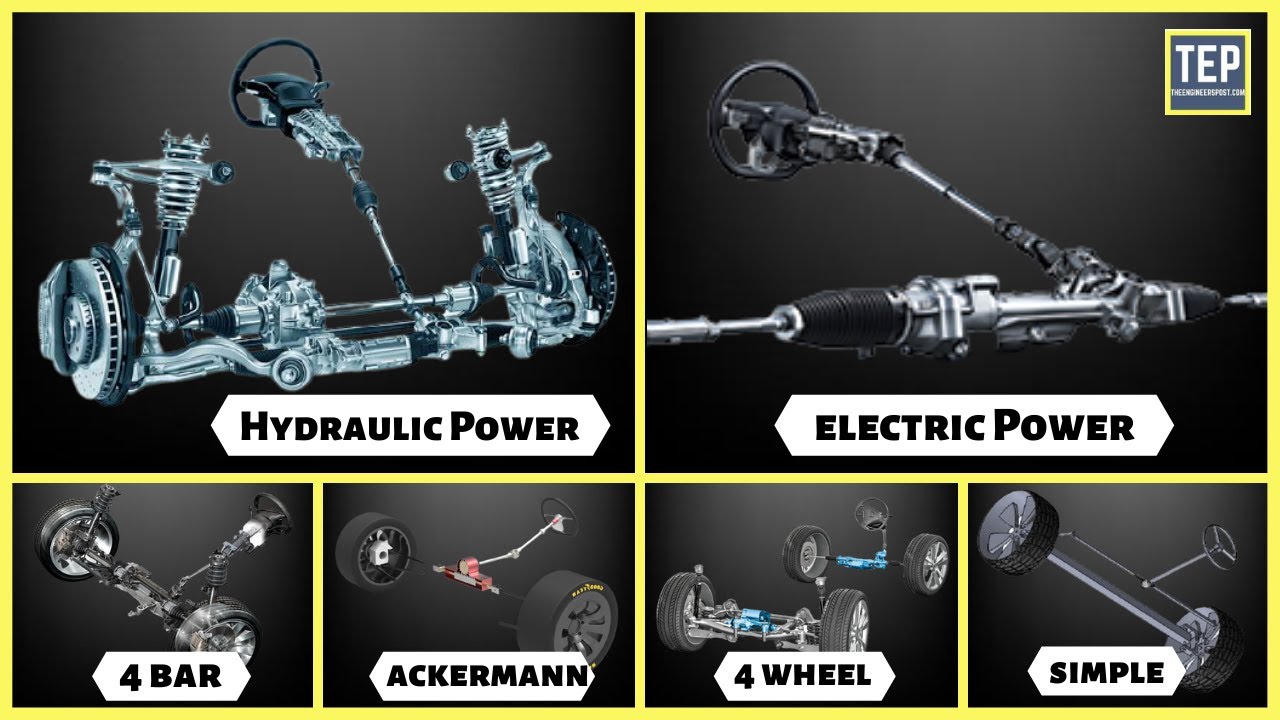

Youtube Videos
Audio Book
Dive deep into the subject with an immersive audiobook experience.
Purpose and Principles
Chapter 1 of 5
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Steering systems enable the driver to control the vehicle's direction by changing the orientation of the front wheels.
Effective steering ensures smooth handling, stability, and predictable response during various maneuvers.
Detailed Explanation
The primary purpose of a steering system in a vehicle is to allow the driver to guide it by turning the front wheels. This is essential for navigating turns, avoiding obstacles, and driving safely. When steering is effective, it contributes to a smooth driving experience since it helps maintain stability and provides a predictable response from the vehicle during maneuvers. Imagine trying to ride a bicycle without being able to steer; you wouldn't be able to turn, and it would be very challenging to control your direction. Similarly, in cars, an efficient steering system is vital for safe and comfortable driving.
Examples & Analogies
Think of steering like a conductor of an orchestra. Just as a conductor directs the musicians to create harmonious music, the steering mechanism directs the wheels of the car, ensuring that it moves in the intended direction and responds well to the driver's intentions.
Types of Steering Mechanisms
Chapter 2 of 5
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Manual Steering: Driver applies direct effort via steering wheelβcommon in older/lighter vehicles.
Power Steering: Uses hydraulic or electric assistance to reduce effort; modern vehicles typically use electric power steering (EPS) for better efficiency and adaptability.
Detailed Explanation
There are two primary types of steering mechanisms: manual and power steering. Manual steering requires the driver to exert direct force on the steering wheel to turn the wheels, which is more common in older or lighter vehicles. Power steering, on the other hand, uses either hydraulic or electric systems to assist the driver in turning the wheels, making it easier to handle the vehicle, especially at low speeds. Modern cars mostly use electric power steering because it is more efficient and can adapt to driving conditions. Think of it like lifting weights; without help, the weights feel heavy (manual steering), but with a pulley system that aids you, it becomes much easier (power steering).
Examples & Analogies
Imagine trying to turn a heavy door. If you push it yourself, it can be tough (manual steering). However, if you had a spring-loaded assist that lightens the load, it becomes much easier to open (power steering).
Steering Gear Box Types
Chapter 3 of 5
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Gearbox Type Features and Applications
Worm and Nut: Common, robust, used in commercial vehicles.
Worm and Sector: Simple, moderate precision; trucks and heavy vehicles.
Worm and Roller: Lower friction, improved feel, many cars.
Recirculating Ball: Balls reduce friction, popular in heavier vehicles.
Rack and Pinion: Direct linear motion, high precision, common in modern cars.
Cam and Lever: Older design, seldom used today.
Detailed Explanation
Different types of steering gearboxes have distinct features and applications. For instance, 'Worm and Nut' gearboxes are robust and often found in commercial vehicles. 'Rack and Pinion' gearboxes, on the other hand, convert rotational motion from the steering wheel into linear motion to turn the wheels with high precision, making them ideal for modern cars. Other types like 'Worm and Sector' and 'Recirculating Ball' reflect varying degrees of friction and precision, suitable for different vehicle sizes and purposes. Each type of steering gearbox plays a crucial role in the overall performance and feel of steering, influencing how responsive and controlled the vehicle feels.
Examples & Analogies
Think of steering gearboxes like different kinds of levers. A long, bulky lever (Worm and Nut) works great for heavy lifting (like in commercial vehicles), while a short, precise lever (Rack and Pinion) allows for fine adjustments (like steering a race car).
Wheel Geometry
Chapter 4 of 5
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Proper geometry ensures road holding, tire life, and driver comfort. Key parameters include:
Camber: Angle between vertical axis of wheel and vertical axis of vehicle; affects tire wear and cornering.
Caster: Backward/forward tilt of steering axis; impacts straight-line stability and steering effort.
Toe-in/Toe-out: Difference in distance between front and rear of wheels; influences straight tracking and tire life.
Kingpin Inclination: Angle of the kingpin, assists steering returnability.
Ackermann Principle: Ensures inside and outside wheels turn at appropriate angles in a corner, minimizing tire scrubbing.
Detailed Explanation
Wheel geometry is crucial for various aspects of vehicle performance, including how well it grips the road and how long its tires last. 'Camber,' for instance, refers to the tilt of the wheels and can significantly affect how tires wear down and how well they grip in turns. 'Caster' helps maintain stability while driving straight, while 'Toe-in/Toe-out' adjustments improve tracking and control. The 'Ackermann Principle' ensures that as the vehicle steers, both the inside and outside wheels turn at different angles to maintain a good grip on the road without causing excessive tire wear. Understanding wheel geometry is like knowing how to walk on a balance beam: the angles of your feet (like camber and caster) help you stay balanced and avoid falling (maintaining road grip).
Examples & Analogies
Imagine how a well-tuned bicycle handles turns compared to a poorly adjusted one. If the wheels are off balance (incorrect camber or toe), you might find it hard to steer smoothly or might wear down the tires quickly. Balance is key for performance!
Ackermann Principle
Chapter 5 of 5
π Unlock Audio Chapter
Sign up and enroll to access the full audio experience
Chapter Content
Ackermann Principle: Ensures inside and outside wheels turn at appropriate angles in a corner, minimizing tire scrubbing.
Detailed Explanation
The Ackermann Principle is a key concept in steering design that ensures the inner and outer wheels of a vehicle turn at the appropriate angles when going around a corner. This principle is crucial because when a vehicle turns, the outside wheel travels a longer distance than the inside wheel. If both wheels turned at the same angle, it would lead to excessive tire wear and scrubbing, which is when tires slide instead of rolling effectively. The Ackermann design helps each wheel track the curve of the turn appropriately, which allows for smoother cornering and better tire longevity.
Examples & Analogies
Think about taking a sharp turn on a skateboard. If both wheels are straight, the skateboard doesn't turn effectively, and you risk falling. But if you angle your wheels (like the Ackermann Principle), you navigate the turn smoothly, keeping your balance and not wearing the wheels down too fast.
Key Concepts
-
Steering System: A mechanism that allows control over the direction of a vehicle.
-
Types of Steering: Includes manual and power steering.
-
Gearbox Types: Different gearboxes have distinct applications and features.
-
Wheel Geometry: Key parameters impacting vehicle maneuverability and tire wear.
-
Ackermann Principle: Essential for reducing tire scrubbing during turns.
Examples & Applications
Manual steering is commonly found in older cars, requiring significant driver effort.
Modern luxury vehicles often use electric power steering for ease of control and responsiveness.
Memory Aids
Interactive tools to help you remember key concepts
Rhymes
If your carβs to steer right, geometryβs the light; camber, caster, toe in sight, help make handling just right.
Stories
Imagine a car trying to turn around a tight corner. Without the Ackermann principle, the inside wheel might skid and wear out. Thanks to this clever design, the car can corner smoothly, preserving both tires and driver confidence.
Memory Tools
Remember 'CCTK' for Wheel Geometry: Camber, Caster, Toe, Kingpin.
Acronyms
STEEP for Steering Types
for Steering (manual or power)
for Types (gearbox)
for Efficiency (power steering saves effort)
for Ease of handling
for Precision.
Flash Cards
Glossary
- Manual Steering
A steering system where the driver directly applies physical effort via the steering wheel.
- Power Steering
A steering assistance mechanism that uses hydraulic or electric systems to reduce the driver's effort.
- Gearbox
A component that translates the driver's input from the steering wheel to the wheels.
- Camber
The angle between the vertical axis of the wheel and the vertical axis of the vehicle.
- Caster
The angle of the steering axis relative to vertical, influencing vehicle stability.
- Toein/Toeout
The difference in distance between the front and rear of the wheels, affecting vehicle tracking.
- Ackermann Principle
A design principle ensuring that wheels turn at different angles during a turn, minimizing tire scrubbing.
